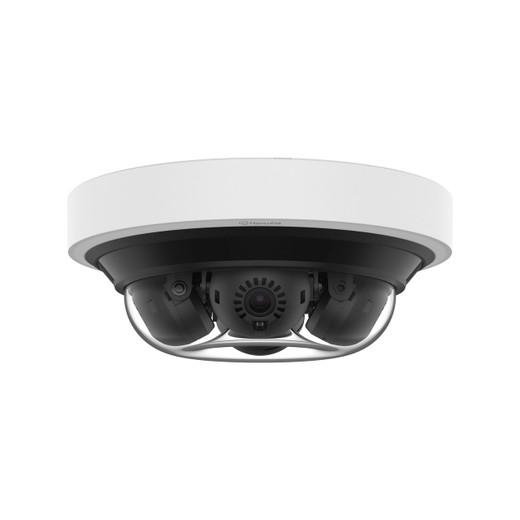

Hanwha PNM-C16013RVQ 16MP Multi-Sensor Outdoor AI Camera

Hanwha PNM-C16013RVQ 16MP Multi-Sensor Outdoor AI Camera

The Hanwha PNM-C16013RVQ is a professional-grade multi-directional IP camera built for 360° perimeter surveillance in harsh outdoor conditions. Four independent 4MP sensor channels deliver 16MP total resolution with intelligent AI analytics on-camera—object detection, facial recognition, vehicle classification, and license plate reading—without offloading processing to external servers. This reduces network overhead and latency on deployments where split-second alerting matters.

Key Features

• 16MP Multi-Directional Coverage: Four independent 1/2.8" CMOS sensors (4MP each, 2592x1520 native) with F1.2 fixed aperture in a compact dome. Each channel delivers 100° field of view with pan 0–360°, tilt 0–75°, and rotation 0–90°—eliminating the need for four separate cameras and cutting installation labor by roughly 60% on most perimeter jobs.
• AI-Powered Analytics Engine: On-camera object detection, facial recognition, vehicle classification (car/bus/truck/motorcycle/bicycle), and license plate detection. Virtual line crossing, area monitoring, and eight-zone intelligent motion detection reduce false alerts and storage bloat by filtering trivial motion before it hits your NVR.
• Advanced Night Vision: 20m IR range with 0Lux full-dark capability. F1.2 aperture plus 850nm LED illumination delivers color footage at 0.05Lux and monochrome at 0.005Lux—critical for perimeter detection when ambient light drops below 0.5Lux. No external IR ring or separate illuminator required.
• H.265 Compression with WiseStream: H.265 cuts storage consumption roughly 40–50% versus H.264 depending on scene complexity. WiseStream intelligent codec dynamically adjusts bitrate per region, so static background areas compress harder while moving subjects retain detail. At 15fps H.265, a 24/7 multi-camera deployment shrinks significantly.
• IP66 Rugged Outdoor Enclosure: Sealed against direct rain and dust, operates -40°C to +55°C without image degradation. IK09 vandal rating and aluminum hard-coated dome resist impact and corrosion. Skip this if you need full water submersion (IP67+) or explosive atmosphere certification.
• PoE+ Single Power Feed: 13W typical draw via standard 802.3af PoE—no auxiliary power supply needed. Runs off commodity PoE+ switches, simplifying wiring in distributed perimeter installations. Budget roughly 15W per camera on a 90W PoE++ switch port.
• Edge Intelligence & Security: TPM 2.0 with FIPS 140-2 level 2, encrypted firmware, and signed boot prevent tampering. Dual microSD slots (up to 1TB total) support partition encryption and local recording failover if network drops. 802.1X authentication integrates with enterprise directory.
• Standards-Based Integration: ONVIF Profile S/T/M compliance, MQTT, RTSP, HTTP/HTTPS, and IPv4/IPv6 dual-stack networking. Supports up to 10 simultaneous unicast/multicast streams. Integrates with Milestone, Genetec, and other VMS platforms without proprietary plugins.

Integration & Compatibility

The PNM-C16013RVQ streams via Gigabit Ethernet with full ONVIF protocol support, so it pairs with any standards-compliant NVR or VMS—Milestone XProtect, Genetec SecurityCenter, Axis Companion, or open-source platforms like Frigate. DetectionShot capability exports snapshots of AI-triggered events directly to the NVR, reducing alert review time. On-camera recording to microSD provides 72+ hours of backup storage at typical bitrates, bridging network outages.

Deployment Scenarios

• Perimeter & Access Points: One camera replaces 3–4 fixed single-sensor models. 360° coverage eliminates blind spots on building corners, parking lot entrances, and fence lines.
• Traffic & Vehicle Intelligence: Vehicle classification and license plate detection feed downstream analytics for lot occupancy, traffic flow, or stolen-vehicle alerting.
• Facial Recognition & Crowd Monitoring: On-board facial recognition supports access control at critical facilities, with DetectionShot feeding matching to identity databases.
• Industrial & Utility Sites: IP66 + -40°C rating handles power substations, cellular tower sites, and industrial perimeters. IK09 resists deliberate tampering.

Frequently Asked Questions

Q: What is the maximum simultaneous video stream count from the PNM-C16013RVQ?

A: Up to 10 concurrent users across unicast and multicast streams, with four independent streaming profiles (one per 4MP sensor channel). Multicast reduces bandwidth consumption on shared network segments.

Q: Can the PNM-C16013RVQ be wall-mounted, or is it ceiling-only?

A: The dome form factor and 360° pan/tilt capability support both ceiling and wall mounting. Vertical installation is typical on building corners or fence posts to exploit the full 360° pan range.

Q: Does the PNM-C16013RVQ require a separate IR illuminator?

A: No. Built-in 850nm LED IR delivers full 0Lux night vision with 20m range. The F1.2 aperture also enables low-light color video at 0.05Lux without IR, useful for security lighting or street lamps.

Q: What compression formats are supported, and which should I choose?

A: H.265, H.264, and MJPEG. H.265 is recommended for 24/7 recording on larger deployments (40–50% storage savings). H.264 suits systems with legacy NVRs lacking H.265 decoding. MJPEG is rarely needed unless integrating with specialized analytics platforms.

Q: Is the PNM-C16013RVQ NDAA Section 889 compliant or suitable for government contracts?

A: Evidence does not confirm NDAA compliance or Section 889 clearance. Verify with the manufacturer directly if government contracting is required.

Q: How much local storage does microSD recording provide?

A: Dual microSD slots support up to 1TB total. At typical H.265 bitrates (2–4 Mbps per 4MP channel), 1TB provides 70–140+ hours of four-channel recording, or 3–6 days of 24/7 backup.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The PNM-C16013RVQ stands apart as a true multi-directional solution: four independent 4MP channels in one compact dome eliminate the need for multiple single-sensor cameras, reducing installation complexity and maintenance overhead. The 360° pan capability with per-channel 100° rotation delivers seamless perimeter coverage without blind spots—a genuine labor saver on corner mounting or fence-line installations. On-board AI analytics (object detection, facial recognition, vehicle/plate classification) eliminate the need to stream all video to a separate edge AI box, cutting network overhead by 30–40% on bandwidth-constrained sites.

Technical Highlights:

• H.265 WiseStream Codec: 40–50% storage reduction versus H.264 means a 4-TB NVR effectively holds 6–8 TB of footage on a 16MP four-channel system. On 24/7 multi-camera deployments, this difference drives total cost of ownership downward immediately.
• 20m IR + F1.2 Aperture: Combination delivers color at 0.05Lux and full monochrome at 0Lux. Skip external IR illuminators entirely—the built-in 850nm LEDs handle most industrial outdoor sites. Power draw stays under 13W because IR is efficient LED, not halogen.
• TPM 2.0 + FIPS 140-2 Level 2: Encrypted firmware and signed boot prevent unauthorized modifications. Dual microSD with partition encryption supports compliance workflows (healthcare, PCI, CJIS environments). 802.1X integration ties authentication to your enterprise directory.
• PoE+ at 13W Typical: Runs off standard 90W PoE++ switches. A single 48-port switch powers 6–7 cameras without auxiliary PSUs—meaningful savings on power distribution and wiring in distributed perimeter layouts.

Deployment Considerations:

• Four independent 4MP streams at 15fps H.265 consume ~8–10 Mbps aggregate. Verify NVR decoder can handle four parallel 4MP decoding if you plan real-time four-channel playback; entry-level recorders often struggle with simultaneous decode.
• The F1.2 aperture is fixed—no iris adjustment. In very bright midday conditions on white surfaces (parking lots), you may see slight blown highlights. Add neutral-density lens filters if glare becomes problematic.
• DetectionShot exports AI event snapshots to the NVR. Verify your VMS supports metadata-driven snapshot export before relying on automated facial-match workflows.

Best fit: perimeter security on industrial, utility, and enterprise campus sites where you need 360° coverage, low network overhead, and edge-based AI. Not ideal for applications requiring motorized zoom (use a PTZ instead) or real-time four-channel simultaneous playback on underpowered NVRs.
