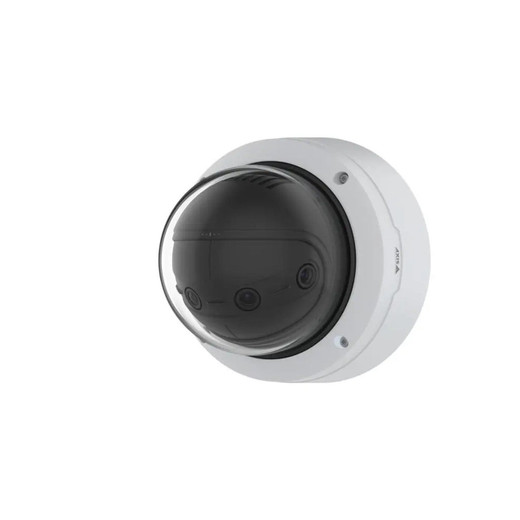

Axis 02450-001 7MP Panoramic Outdoor Dome PTZ Camera

The Axis 02450-001 is a multisensor panoramic dome camera designed to eliminate coverage gaps in outdoor perimeter and area surveillance. Rather than mounting multiple cameras to cover a wide space, this single unit stitches input from its sensor array into a seamless 180° panoramic video stream at 7MP resolution (3712×1856 pixels). The combination of wide panoramic view with 360° horizontal pan capability and PTZ functionality means you get both situational awareness and the ability to zoom into specific areas of interest without switching between devices.

Overview

Multisensor panoramic architecture delivers advantages over traditional wide-angle lenses: no barrel distortion at edges, no resolution loss in peripheral areas, and a natural, undistorted perspective across the entire frame. The 02450-001 operates at 30 fps, ensuring smooth video for both real-time monitoring and forensic review. It draws power exclusively via PoE (standard 802.3af), so you avoid separate power infrastructure and simplify network cabling—particularly valuable when mounting on rooftops or in locations distant from AC outlets.

The camera's 1/2.8" CMOS sensor and 3.3mm focal length produce the 180° horizontal / 90° vertical field of view. Panoramic image stitching happens internally, delivering a single coherent video stream to your VMS or recorder without requiring external image-processing hardware.

Key Features

• 180° Panoramic Coverage: Multisensor design with automatic image stitching eliminates the need for 2–3 separate cameras to cover the same area. Reduces installation points, cabling runs, and overall device footprint.
• 7MP Resolution (3712×1856): Sufficient pixel density for forensic detail recovery and license-plate reading at typical perimeter distances. Panoramic format captures both wide awareness and usable close-up evidence from a single stream.
• 360° Pan with PTZ: Full horizontal rotation combined with optical zoom allows operators to reframe and examine specific zones without switching camera views. Critical for incident response in large outdoor areas.
• Forensic WDR (Wide Dynamic Range): Automatically balances exposure across scenes with extreme brightness contrasts—e.g., sun-lit parking lot with dark building shadows. Prevents blown highlights or crushed blacks that obscure evidence.
• Lightfinder Technology: Minimum illumination rated at 0.15 lux means reliable color performance in pre-dawn, dusk, and overcast conditions. Eliminates the grayscale washout typical of cheaper low-light cameras.
• H.264 + Zipstream Compression: Intelligent bitrate optimization can reduce bandwidth and storage consumption by up to 50% versus standard H.264, allowing longer retention or more cameras on a fixed storage / network budget.
• IP66 / IK10 Durability: IP66 rating blocks direct rain and dust; IK10 vandal rating withstands impact equivalent to a 5 kg weight dropped from 1.25 m. Suitable for unattended outdoor deployments.
• Extended Operating Range: –40°C to +55°C tolerance covers arctic through desert climates without additional thermal housings. Eliminates heated enclosure costs in harsh environments.
• PoE Power Delivery: Draws under 13W via standard 802.3af PoE. No separate power supply, no 24VAC transformer, no additional breaker required. Single Cat6 cable per camera simplifies configuration and reduces installation labor.
• Built-in Audio: Two-way audio support enables remote communication from the monitoring station and on-site incident documentation without external audio codec hardware.
• Secure Boot & Signed Firmware: Protects against unauthorized firmware modifications and rootkit installation. Critical for facilities with strict cybersecurity compliance (financial, government, healthcare).

Integration & Compatibility

The 02450-001 supports ONVIF, enabling integration with any standards-compliant Video Management System (VMS) or network video recorder. It also supports network video recorders from leading manufacturers. H.264 video stream and standard RJ-45 PoE power make it compatible with existing IP camera infrastructure and switches. Local microSD card storage (up to a practical limit) provides redundant recording if the network recorder is unavailable.

For large-scale outdoor IP camera deployments, the panoramic form factor typically reduces overall camera count by 30–50% compared to multiple narrow-view domes, lowering switch port requirements, cooling needs, and storage throughput. PoE switches rated for 802.3af are sufficient; no High-PoE infrastructure required.

Deployment Considerations

The 02450-001 excels in open outdoor spaces: parking lots, vehicle yards, transit terminals, perimeter fences, and public squares. Its panoramic view is less effective in narrow corridors or confined spaces where a narrower, higher-zoom camera would be more practical. The seamless image stitching requires adequate lighting and stable subject matter during the stitch; moving vehicles or people crossing the stitch line may show minor artifacts in fast-motion scenarios, though static forensic review is unaffected.

Mount this camera on a mast, pole, or building overhang where it has an unobstructed panoramic view. Ensure the mounting structure can handle the dome's weight and wind load; consult the datasheet for exact specifications and fastener requirements.

When to Choose a Different Model

If you need deeper zoom beyond PTZ optical range, or if your deployment requires multiple simultaneous views (e.g., east-facing AND west-facing coverage), consider a higher-resolution variant or a multi-camera strategy. If indoor mounting or a compact form factor is a requirement, the panoramic dome format may not fit—a standard indoor turret or compact bullet camera would be more suitable.

James Everett

Perspective based on aggregated IPSD and affiliated engineering team experience.

The Axis 02450-001 represents a genuine architectural shift in how you can approach wide-area outdoor surveillance. Instead of tolerating the distortion and resolution loss inherent in a super-wide-angle lens, or accepting blind spots between multiple narrow-view cameras, this unit delivers a true 180° seamless panorama in a single video stream. The multisensor stitching is transparent to your VMS—it just sees a single H.264 stream in panoramic format.

Technical Highlights:

• Seamless 180° Panoramic Stitching: No distortion, no edge blur, no resolution falloff. The 3712×1856 pixel output is genuinely usable corner-to-corner, unlike a fisheye or ultra-wide lens where peripheral areas degrade sharply.
• 0.15 Lux Lightfinder + Forensic WDR: Handles the harshest lighting scenarios outdoor security encounters—dusk with artificial lighting, bright sun through shadow, mixed color temperature. Produces legible detail where cheaper WDR cameras produce noise or color shift.
• 360° Pan + 30 fps Panoramic Output: Operators can reframe within the panorama AND pan the entire field beyond 180° if needed. At 30 fps, panning is smooth enough for forensic playback—no stuttering or dropped frames during incident review.
• Zipstream Compression (H.264): Encoder dynamically adjusts bitrate based on scene complexity. Stationary parking lot = low bitrate; a busy intersection = higher bitrate only when needed. Real-world bandwidth savings of 30–50% versus fixed-bitrate H.264.

Deployment Considerations:

• Panoramic Image Artifacts: Fast-moving objects (trucks, crowd) crossing the stitch line can show minor warping or doubling in real-time. Static forensic review is clean, but live monitoring of high-motion scenes may benefit from operator zoom-in to a single sensor region.
• Mount Stability is Critical: Panoramic stitching depends on stable sensor alignment. Wind-induced vibration or a loose mounting bracket degrades stitch quality. Budget for rigid pole or building-integrated mounts, not light-duty clamps.
• PoE Budget Awareness: At 12.95W typical draw, the 02450-001 is modest on power. A standard 48-port 802.3af PoE switch can power 30–35 of these units. However, confirm your switch's total power budget and use actual worst-case numbers from the datasheet, not marketing specs.

For a parking lot covering 200+ linear meters or a critical perimeter where you need seamless, undistorted panoramic awareness plus the ability to zoom into specific zones, the 02450-001 (often searched as 02450 001) cuts your device count by 40–60% compared to conventional multi-camera approaches. Install it once, integrate it into your VMS, and let operators manage a single, coherent view rather than panning between fixed narrow-view devices.

Frequently Asked Questions

Q: Does the Axis 02450-001 work with Milestone XProtect or generic ONVIF VMS platforms?

A: Yes. The camera outputs standard H.264 video and supports ONVIF Profile S, compatible with Milestone XProtect, Genetec, Axis Camera Station, and any ONVIF-compliant VMS. Consult your VMS documentation to verify panoramic resolution support; most modern platforms handle the 3712×1856 format natively.

Q: What's the maximum cable run from a PoE switch to the 02450-001?

A: Standard 802.3af PoE supports up to 100 m (328 ft) of Cat5e or Cat6 cable. Beyond that distance, use a PoE extender or run a dedicated power source. The 02450-001 draws low power (under 13W), so it's less sensitive to voltage drop than high-power devices.

Q: Can I record the panoramic stream directly to a microSD card for redundancy?

A: Yes. The 02450-001 supports local microSD card storage up to practical limits (manufacturer documentation details the maximum certified capacity). This provides a local backup if your network recorder or NVR becomes unavailable, though the main H.264 stream should always flow to your primary VMS.

Q: Is the 02450-001 NDAA-compliant or suitable for federal/government procurement?

A: Axis cameras, including the 02450-001, are manufactured in Sweden. Confirm NDAA Section 889 compliance requirements with Axis or your procurement officer. Some federal contracts require explicit vendor certification; others accept manufacturer origin as proof of compliance.

Q: What are the exact dimensions and weight for roof/pole mounting?

A: Consult the technical datasheet for precise weight, mounting bracket dimensions, and wind-load calculations. Do not assume standard dome dimensions; the panoramic sensor array may differ from conventional domes.

Q: Does the 02450-001 include a warranty, and what does it cover?

A: Axis typically includes a 3-year limited hardware warranty covering manufacturing defects and component failure. Consult your point of sale or Axis directly for warranty terms specific to your region and purchase channel.
