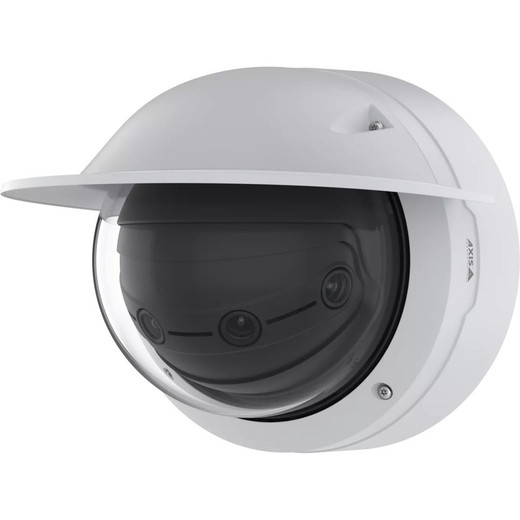

Axis 02658-001 26MP Panoramic Dome Camera
The Axis 02658-001 is a four-sensor panoramic dome engineered to eliminate blind spots across large open spaces with a single IP address and one Ethernet connection. Rather than deploying three or four fixed cameras to cover a parking lot, warehouse floor, or transit hub, the Q4809-PVE stitches four 12 MP sensors into a continuous 26 MP panoramic image—10,240 × 2,560 pixels spanning 180° horizontal by 45° vertical—without the distortion or dead zones that plague fisheye designs. This approach cuts installation labor, cabling, licensing overhead, and NVR port usage while delivering forensic-grade pixel density for investigative video review months after an incident.
Key Features
- 26 MP Seamless Panoramic Coverage: Four 1/2.3" CMOS sensors deliver lossless digital zoom across the entire panorama. Magnify any region—vehicle license plate, facial detail, package barcode—without losing sharpness or requiring camera repositioning. A single device replaces what would normally be two or three separate fixed cameras, cutting conduit runs, terminations, and NVR channel overhead.
- Dual ARTPEC-8 Processing: Twin on-camera processors handle real-time image stitching, wide dynamic range (WDR) balancing, and up to 20 independent video streams from a single device. Send high-resolution panorama to your network video recorder, lower-bitrate proxy to a mobile app, and region-of-interest crops to edge analytics appliances—all without degrading any stream or adding external stitching hardware.
- H.265 Compression Cuts Storage 40–60%: 25/30 fps capture (50/60 Hz) paired with H.265 codec reduces storage footprint roughly 40–60% versus H.264 on equivalent scenes. On 24/7 multi-camera deployments, that difference translates directly to fewer NVR drives, lower disk replacement cycles, and reduced cloud egress charges if archiving to remote storage.
- IP66 & NEMA 4X for Outdoor Mounting: Sealed against dust ingress and direct rain spray, making outdoor mounting straightforward—parking lot perimeters, loading dock façades, and building exterior walls. Note: IP66 resists rain and dust but is not submersible; if you need full water immersion, specify IP67. Dome form factor sheds water naturally and resists tampering better than bullet or turret styles in high-traffic or public-access areas.
- PoE+ Power Simplification: Draws Class 4 PoE+ per 802.3at, eliminating the need for a separate 12V power supply. A single Ethernet run handles both data and power, reducing conduit runs, wall terminations, and switch complexity. Total power draw is kept low enough that your existing switch infrastructure likely won't require upgrades.
- Advanced WDR & Day/Night Imaging: Intelligent wide dynamic range processing balances exposure in mixed-light scenarios—bright skylight against dark warehouse interior, reflective concrete against shadowed loading bays. IR-corrected imaging and automatic day/night mode switching maintain usable picture quality during dusk transitions and overnight operation without manual switching or degradation.
- ONVIF & Multi-Stream Flexibility: Standards-based ONVIF interface ensures compatibility with major VMS platforms—Milestone XProtect, Axis Camera Station, and others. Twenty configurable streams let you tailor resolution, frame rate, and codec per downstream application. Edge analytics don't need 26 MP; a 2 MP crop at 15 fps suffices and consumes far less edge compute than full-resolution decode.
- Edge Storage & Failover: microSD card slot (up to 512 GB) provides on-camera storage for critical segments or failover recording if your NVR loses connectivity. Useful for sites where a network outage cannot be tolerated—the camera buffers locally and syncs when the recorder comes back online.
- Signed Firmware & Secure Boot: Supports signed firmware and secure boot for organizations subject to NDAA Section 889 or similar supply-chain compliance requirements. 802.1X authentication and HTTPS encryption secure both the video stream and control plane.
- Two-Way Audio: Audio input (microphone or line-level feed) supports ambient-sound monitoring or two-way communication from your VMS. Useful for parking lot intercoms, warehouse floor alerting, or incident-scene audio review.
Integration & Compatibility
The 02658-001 speaks ONVIF and integrates cleanly with standard VMS platforms, Axis Camera Station, and third-party recording systems. Dual ARTPEC-8 architecture ensures real-time stitching happens on-camera; no external stitching appliance or GPU cluster required. Firmware updates and configuration are delivered over the network; no on-site technician visits needed for routine maintenance.
Compact dome housing mounts flush to ceiling or wall without jutting components that catch fasteners or structural irregularities. Integrates cleanly into existing architectural workflows without requiring custom brackets or extended conduit.
When to Choose a Different Model
If you need higher zoom capability or longer-range IR illumination, consider a higher-resolution variant in the Axis Q-series lineup. If your deployment is fully indoor with no risk of rain or dust, a lower IP-rated compact dome may reduce cost. If you require true submersion protection (IP67), step up to a fully sealed housing variant. If you need PTZ capability (pan/tilt/zoom control), the panoramic trade-off sacrifices motorized positioning for fixed ultra-wide coverage.
Frequently Asked Questions
Q: Is the Axis 02658-001 NDAA Section 889 compliant?
A: Yes. The 02658-001 supports signed firmware and secure boot mechanisms designed to meet NDAA Section 889 and supply-chain compliance requirements. Consult the manufacturer or your regional distributor for current certification documentation.
Q: Does the 02658-001 work with Milestone XProtect?
A: Yes. The camera is ONVIF-compliant and integrates with Milestone XProtect and other major VMS platforms via standard ONVIF Profile S, T, and G interfaces.
Q: What is the maximum storage capacity on the microSD card slot?
A: Up to 512 GB. A full-resolution 26 MP stream at 25 fps with H.265 compression will consume approximately 2–5 GB per hour depending on scene complexity, allowing 100+ hours of local failover storage on a maxed-out card.
Q: Can I mount the 02658-001 outdoors without additional housing?
A: Yes. The IP66 and NEMA 4X rating means it resists rain spray and dust ingress. However, IP66 is not submersible; do not mount it where it will be submerged or exposed to high-pressure washdown spray. For those scenarios, request an IP67-rated variant.
Q: How many video streams can the 02658-001 deliver simultaneously?
A: Up to 20 independent streams, each with configurable resolution, frame rate, and codec. This allows simultaneous delivery of full-resolution panorama, mobile proxies, and region-of-interest crops without degrading any output.
Q: Does the 02658-001 include two-way audio capability?
A: Yes. The camera supports audio input for microphone feeds or line-level signals, enabling ambient-sound monitoring and two-way communication from your VMS platform.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Axis 02658-001 in several large-footprint installations—parking structures, warehouse receiving areas, and transit hubs—and the panoramic approach eliminates a real problem: blind spots at camera seams and the cost of licensing multiple separate devices. The 02658-001 delivers 26 MP across a single IP address, which means fewer NVR channels, simpler cabling, and forensic-grade zoom on every region without repositioning optics.
Technical Highlights:
- Dual ARTPEC-8 processors: Real-time stitching of four sensors happens on-device with zero latency. No external appliance required. Up to 20 simultaneous streams means you can feed high-res panorama to the recorder, low-res proxy to mobile apps, and 2MP crops to edge analytics—all without contention.
- H.265 + 25/30 fps: Storage footprint drops 40–60% compared to H.264. On a 24-camera site running 24/7, that's the difference between four 4TB drives and two—real money on NVR hardware and power.
- PoE+ (Class 4): Single Ethernet run eliminates a separate 12V power supply and conduit run. Your switch likely has capacity; if not, one additional PoE+ injector handles a small cluster.
- IP66/NEMA 4X: Outdoor-rated, but remember: IP66 resists rain spray, not submersion. Don't mount it in a high-pressure washdown area or full-water-immersion environment.
Deployment Considerations:
- Stitching artifacts: On rare moving objects that cross sensor boundaries (fast-moving vehicle, person running), you may see minor stitching artifacts. Not a dealbreaker, but test in your specific environment if fast motion is a forensic priority.
- Mounting rigidity: Panoramic stitching assumes a static, rigidly-mounted dome. Vibration from HVAC ducts or structural flex can introduce small registration errors. Use solid ceiling mounts; avoid flex-conduit or loose fasteners.
- Night mode WDR balance: In extreme mixed lighting (bright exterior window + dark interior), the dual processors balance WDR frame-by-frame. You get good overall exposure, but you won't pull license plates off a dark vehicle parked outside a bright window in the same frame. Accept that tradeoff or use supplemental IR.
Deploy the 02658-001 where you need wide, fixed coverage without pan/tilt—parking lots, warehouse floors, transit corridors, and building façades. It cuts hardware count, licensing, and cabling significantly compared to three separate cameras and delivers zoom-in forensics without repositioning optics. For sites that demand motorized pan/tilt or longer-range telephoto, step to a different form factor. For wide, stationary 24/7 coverage on a reasonable budget, this is the right call.
