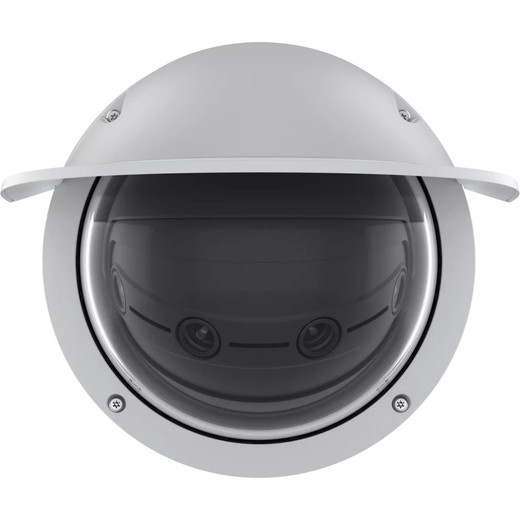

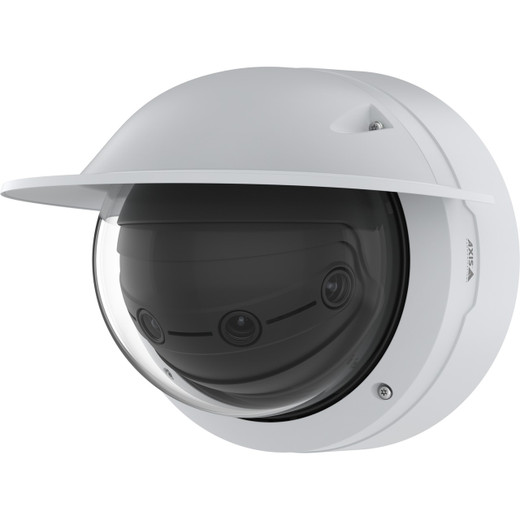

Axis 02657-001 Q3839-PVE 29MP Panoramic Dome Camera

The Axis 02657-001 is a four-sensor panoramic dome built on dual ARTPEC-8 processors with integrated deep learning capability. It delivers 29 MP across four synchronized 1/1.8" CMOS sensors (8.3 MP each, 2.0 µm pixel pitch) and stitches them into a continuous 180° horizontal × 90° vertical panoramic view at up to 30 fps (25 fps @ 50 Hz). This architecture means one camera replaces three to five fixed units, reducing hardware count, cabling, PoE port consumption, and NVR channel licensing—a real cost lever on large deployments covering parking lots, industrial yards, or transportation hubs.

Key Features

• Seamless 180° × 90° Panoramic Coverage: Four 8.3 MP sensors with intelligent stitching eliminate visible seams or alignment drift common in competing multi-sensor rigs. Accessible via a single IP address—no stitching workarounds in your VMS. This matters for forensic review: you get full-resolution detail across the entire field without wraparound distortion or blind spots at frame edges.
• Dual ARTPEC-8 with Dedicated DLPU: Each processor handles half the panoramic stream. The deep learning processing unit (DLPU) runs object detection, classification, and tracking directly on the camera. Sophisticated analytics (person/vehicle type, direction, speed) execute at the edge without offloading to external AI servers or consuming raw video bandwidth—reduces backend load and latency for real-time alerts.
• H.265 and H.264 Codec Support: H.265 cuts bitrate roughly 40–50% versus H.264 at equal quality. On a 24/7 panoramic feed at 29 MP, that translates to real storage savings. H.264 fallback ensures compatibility with legacy VMS platforms that haven't adopted H.265, protecting your investment in existing infrastructure.
• PoE+ Class 4 Power Delivery: Draws up to 30W max via a single Ethernet cable. Class 4 PoE+ is sufficient for this load, so your network switch's power budget won't strain under multiple units. No separate 12 VDC supplies, external injectors, or dedicated power conduit—simplifies cabling and reduces installation labor.
• IP66 and NEMA 4X Environmental Rating: Direct rain and dust ingress won't penetrate the dome housing. NEMA 4X adds corrosion resistance, critical in coastal, industrial, or chemical-plant environments. Skip this camera if you need IP67 (submersion tolerance)—IP66 handles weather but not water immersion.
• Wide Dynamic Range with Day/Night: 180–200 dB WDR handles simultaneous bright sunlight and deep shadow (parking lot sun glare + building overhang). Day/night mechanical shutter prevents bloom and false color in mixed-lighting scenes, ensuring usable footage across lighting transitions without manual adjustment.
• Lossless Digital Zoom: Zoom into any region of the panoramic view without degradation. Critical for forensic review: investigate a specific person or license plate from the master panoramic stream instead of relying on separate fixed cameras with lower detail.
• microSD Card Local Recording: Onboard edge storage for failover recording if your NVR or network link drops. Fills the gap between camera stopping and connectivity restoration—no blind spot in the event timeline.
• Enterprise Cybersecurity: HTTPS, signed firmware, and secure boot prevent unauthorized firmware injection, man-in-the-middle attacks on video streams, and credential compromise. Meets baseline requirements for deployments subject to audit or regulatory compliance.
• ONVIF Profile S/T/G Compatibility: Works with Milestone XProtect, Genetec, Pelco, and third-party VMS platforms via open standards. Not locked into Axis-only ecosystems—vendor flexibility at integration time.
• Audio Input and Two-Way Communication: Built-in microphone and speaker enable two-way communication and event-triggered audio recording. Useful for parking lot enforcement, access control zones, or emergency announcements without a separate intercom system.

Why Panoramic Architecture Reduces Total Cost of Ownership

Covering a large facility traditionally requires 3–5 fixed or PTZ cameras with separate mounts, cabling, PoE injectors, and NVR channels. The 02657-001's single panoramic stream eliminates redundant hardware and NVR licensing. One cable run, one PoE port, one channel—versus five separate installations. On a 100-camera deployment, this translates to tens of thousands in labor and hardware savings, plus simpler management and fewer failure points.

Integration & Compatibility

The 02657-001 integrates natively with network video recorders (NVRs) supporting ONVIF Profile S/T/G. Milestone XProtect, Genetec, Pelco, and other enterprise VMS platforms recognize it as a standard IP camera without custom drivers. For PoE power planning, allocate 30W per unit on your switch. Pair with a managed PoE switch rated for Class 4 power to avoid oversubscription. For installations requiring extended retention (30+ days at 29 MP), calculate bitrate carefully: H.265 at 30 fps panoramic typically runs 8–12 Mbps depending on scene complexity, versus 20–25 Mbps in H.264—use this to right-size NVR storage.

When to Choose a Different Model

If your facility requires monochrome or extended IR range beyond typical IP66 outdoor use, evaluate a higher-spec variant in the Axis panoramic family. If you need PTZ capability (pan/tilt/zoom) rather than fixed panoramic coverage, consider the Axis ARTPEC-8 PTZ line instead. For tight budget deployments, a single high-resolution fixed camera may suffice—but you'll lose the seamless 180° field, multiple analytics viewpoints, and hardware consolidation that the 02657-001 delivers.

Frequently Asked Questions

Q: Does the Axis 02657-001 require a separate PoE injector?

A: No. Class 4 PoE+ (30W max) is delivered directly over Ethernet. You need only a switch or injector that supports PoE+ (IEEE 802.3at or higher). No external power supply required.

Q: Can I use the 02657-001 in a submersion or high-pressure wash environment?

A: No. IP66 rating handles rain and dust, but not immersion. IP67 is required for submersion. For high-pressure washdown (chemical plants, food processing), verify NEMA 4X corrosion tolerance and confirm water ingress testing with Axis support before deployment.

Q: Does the panoramic view work with standard VMS software?

A: Yes. ONVIF Profile S/T/G compatibility means Milestone XProtect, Genetec, Pelco, and similar platforms recognize the 02657-001 as a single IP camera. The panoramic stream is delivered as one video source—no special stitching plugins needed, though advanced VMS may offer cropping and digital zoom controls.

Q: What is the bitrate for H.265 versus H.264 on the 02657-001?

A: Scene-dependent. H.265 typically runs 40–50% lower bitrate than H.264 at equal perceptual quality. For a busy outdoor panorama (high detail, motion), expect 8–12 Mbps H.265 versus 20–25 Mbps H.264. Test your exact scene before final storage sizing.

Q: Does the 02657-001 include edge recording capability?

A: Yes. MicroSD card slot supports failover local recording. If your NVR or network link drops, the camera continues recording to onboard storage up to supported card capacity (up to 512GB depending on card specifications).

Q: Can the 02657-001 perform object detection and tracking without a separate AI appliance?

A: Yes. Dual ARTPEC-8 processors with dedicated DLPU (deep learning processing unit) execute object detection, classification, and tracking directly on the camera at the edge. Reduces dependency on external analytics servers and bandwidth consumption for raw video.

Marty Allison

Perspective based on aggregated IPSD and affiliated engineering team experience.

The Axis 02657-001 is a smart consolidation play for large-area surveillance where hardware count and cabling overhead matter. Four synchronized 8.3 MP sensors delivering seamless 180° × 90° panoramic coverage in a single IP address is not commodity—it solves a real integration headache. The dual ARTPEC-8 with onboard DLPU means you're not streaming raw 29 MP feeds to a central analytics engine; object detection, classification, and tracking happen at the edge, cutting bandwidth and server load significantly.

Technical Highlights:

• Four 8.3 MP 1/1.8" CMOS sensors: 2.0 µm pixel pitch delivers forensic-grade detail across the panoramic frame. Synchronized capture eliminates temporal drift between sensors—critical for tracking objects moving across stitched boundaries. You get true multi-angle coverage from one mount point.
• H.265 codec with 40–50% bitrate reduction: On 24/7 recording at 30 fps panoramic, bitrate savings are substantial. A typical busy outdoor scene runs 8–12 Mbps H.265 versus 20–25 Mbps H.264. Over a month of continuous recording across 10 cameras, that's terabytes of difference in NVR storage.
• PoE+ Class 4 (30W max): Low power envelope means no external injectors, no separate conduit runs. A standard managed switch with Class 4 PoE+ support handles 8–12 units on a single power domain. Simplifies network planning and reduces installation labor.
• IP66/NEMA 4X rating: Weather-sealed with corrosion resistance. Verified for outdoor coastal, industrial, and chemical-plant environments. WDR 180–200 dB with day/night mechanical shutter handles glare and shadow transitions without manual iris tuning.

Deployment Considerations:

• Bitrate varies with scene complexity—high-motion, high-detail outdoor scenes push toward the 12 Mbps H.265 ceiling. Test your exact scenario (time of day, weather, foreground clutter) before committing to 30+ day retention at 29 MP. A test deployment on your target NVR eliminates surprises.
• Panoramic stitching depends on stable mount and alignment. Wall or ceiling vibration (from HVAC, traffic) can drift sensor registration over weeks. Use rigid mounts and verify alignment quarterly on installations near mechanical equipment.
• ONVIF Profile S/T/G is standard, but not all legacy VMS platforms handle panoramic digital zoom intuitively. Milestone XProtect, Genetec, and Pelco support it; older VMS may require firmware updates or workarounds. Verify VMS compatibility before bulk deployment.
• microSD failover recording is useful but not a substitute for an NVR. Edge storage fills fast on high-bitrate feeds; position the 02657-001 as a gap-filler between a network failure and NVR recovery, not as a standalone recorder.

The 02657-001 is ideal for parking lot, industrial yard, and transportation hub deployments where consolidating 3–5 fixed cameras into a single panoramic unit reduces cabling, power, and licensing cost. It's not a PTZ replacement—use it where you need wide, stationary coverage with forensic zoom capability and onboard AI. Real deployment saving: on a 100-camera parking facility, switching to panoramic units cuts hardware by 60–70%, labor by 40%, and NVR licensing by proportional channel count. That math wins in engineering review.

Key Specifications:
Color: White
