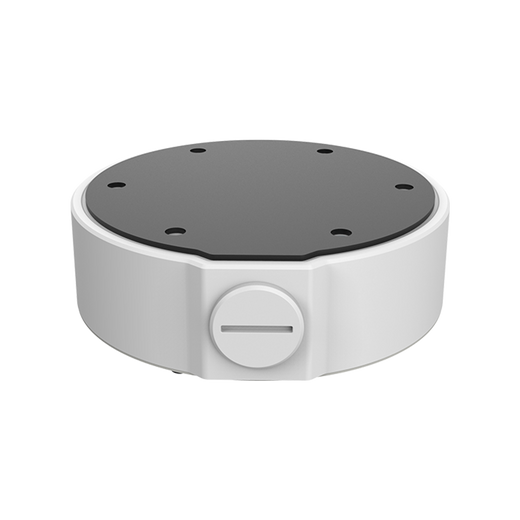

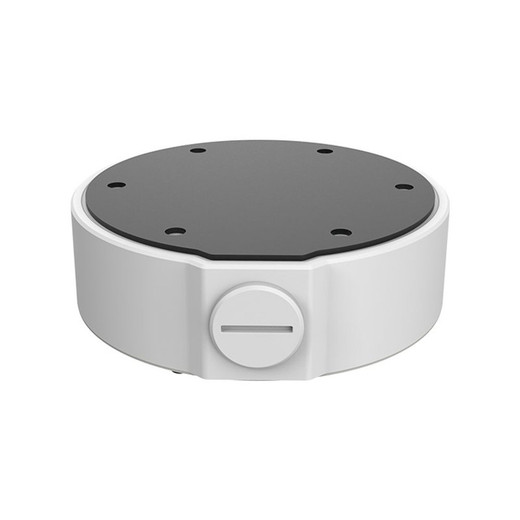

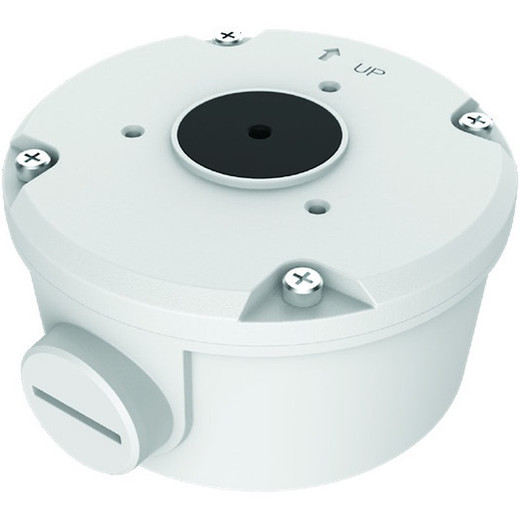

i-PRO M-JB Round Junction Box for Fixed Dome Cameras
The i-PRO M-JB is a weather-sealed round junction box purpose-built for fixed dome camera installations where organized cable management and environmental protection are non-negotiable. As an accessory, it serves a single, critical function: protecting RJ45 connectors, splices, and excess cabling from water ingress, UV degradation, physical damage, and unauthorized tampering — all while maintaining a clean, code-compliant appearance on the ceiling. Whether you're wiring a retail chain, warehouse, parking structure, or campus, the M-JB keeps your termination points intact and accessible for the life of the installation.
Key Features
- IP66 Weather-Sealed Construction: Direct rain and dust won't penetrate the enclosure, so outdoor and semi-exposed ceiling installations stay protected. This matters in climates with frequent moisture exposure — a non-sealed junction point fails within months. IP66 is sufficient for rain, snow, and dust; if your site demands full submersion protection (e.g., spray-down or washdown environments), you'll need IP67 or higher, which the M-JB does not provide. For most outdoor and covered-soffits deployments, IP66 is the practical threshold.
- Weatherproof Cable Glands: Prevent water from following cables into the box — a common failure point in outdoor runs. Each gland isolates the cable entry, stopping moisture migration along the sheath and protecting the splice or connector inside from corrosion. This single detail extends termination point life by years in humid or rainy climates.
- Multiple Knockouts for Flexible Conduit Entry: Route CAT5e or CAT6 cables in from different angles without forcing sharp bends or leaving unused ports exposed. Reduces stress on terminations and simplifies future rework or cable additions without dismantling the entire box. Flexibility during installation and service saves labor and minimizes downtime.
- Flat Top Mounting Surface: Sits flush with the ceiling and provides a stable, level platform for mounting the dome camera directly on top — no separate bracket needed. Ensures repeatable camera alignment and reduces installation labor by consolidating the junction box and camera mount into a single footprint. One less component to source and install.
- Ample Internal Volume: Accommodates RJ45 connectors, punchdown blocks, and service loops without crushing cables or forcing tight coils that degrade signal integrity. Easier to inspect and repair without complete disassembly, which speeds troubleshooting and cable swaps on-site. Technicians appreciate a box with breathing room.
- UV-Stabilized Materials: Extended outdoor exposure won't embrittle or degrade the housing. Matters for 5+ year installations without yellowing or cracking — a real factor in high-sunlight parking lots or exterior soffits. Cheaper enclosures fail structurally after 2–3 years of sun exposure.
- Elevated Mounting Clearance: Lifts the box above the ceiling plane, creating space below for cable slack, maintenance access, and future additions — especially valuable in tight cavity or drop-ceiling scenarios where bundling cables flat against the structure causes kinks and crosstalk. Vertical separation improves signal integrity and troubleshooting.
- CAT5e / CAT6 Rated Cable Support: Tested to support standard network cable runs without cross-talk or impedance issues. Confirms compatibility with PoE cameras and modern Ethernet standards, meaning you won't see signal degradation from the junction itself. The M-JB is transparent to your network — it's just a clean, protected termination point.
Integration & Compatibility
The M-JB works with any fixed dome camera that mounts on a standard ceiling bracket. No vendor lock-in — this is a generic junction enclosure optimized for i-PRO IP cameras but fully compatible with any dome needing a weather-sealed cable termination point. Wire management and conduit routing follow standard electrical codes — your installer will recognize the design immediately. When paired with i-PRO cameras, the M-JB provides the cable protection layer that keeps your investment secure across outdoor and semi-exposed deployments. Budget one M-JB per camera location; each box terminates a single camera run and anchor point.
When to Choose the M-JB
Select the M-JB if you're deploying fixed dome cameras on exposed or semi-exposed ceilings where moisture, dust, or physical tampering pose a real risk. Outdoor retail canopies, warehouse overhangs, parking structure soffits, and campus exteriors all benefit from this level of protection. The flat-top mount is especially valuable when space or labor cost is a constraint — you eliminate a separate bracket and reduce per-location assembly time. For indoor-only drops in climate-controlled spaces, a basic conduit approach may suffice, and the M-JB adds unnecessary cost. For sites requiring full submersion protection (high-pressure washdown bays, spray-intensive environments), step up to an IP67-rated enclosure.
Frequently Asked Questions
Q: Can the M-JB be mounted on walls as well as ceilings?
A: The M-JB is designed for ceiling mounting with a flat-top platform. Wall mounting is not recommended, as the design optimizes for downward cable routing and protective overhang. For wall-mounted cameras, consider a vertical-profile junction enclosure.
Q: Does the M-JB come with cable glands included?
A: Cable glands are integrated into the design; confirm gland count and thread sizes with your installer or the equipment list before ordering. The box supports multiple knockout entries for flexibility.
Q: What's the difference between IP66 and IP67? Do I need IP67?
A: IP66 protects against direct rain and dust; IP67 adds brief immersion (up to 1 meter for 30 minutes). IP66 is sufficient for outdoor installations that don't involve standing water or high-pressure spray. IP67 is essential for washdown environments or low-lying exterior locations prone to flooding.
Q: Will the M-JB work with PoE cameras?
A: Yes. The M-JB is CAT5e and CAT6 rated, so it handles PoE power delivery without degradation. No signal loss or power drop attributed to the junction itself.
Q: How do I secure excess cable inside the M-JB?
A: Internal volume is designed to accommodate service loops and slack without coiling pressure. Use standard cable ties or clips inside the box; the M-JB does not ship with cable management hardware.
Q: Is the M-JB suitable for PoE+ or high-power cameras?
A: The M-JB is a passive enclosure and does not limit power delivery. If your camera draws PoE+ (802.3at) or higher, confirm your network switch supports the wattage required. The junction box itself introduces no power constraints.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The i-PRO M-JB is a straightforward, no-nonsense accessory that solves a real field problem: exposed junction points fail in outdoor and semi-exposed ceiling runs. At 0.66 lbs and IP66 rated, the M-JB eliminates the most common failure mode in fixed dome deployments — water migrating along cable sheaths into unsecured RJ45 connections. The flat-top mounting design consolidates two components (junction box plus camera bracket) into one footprint, which saves labor during install and simplifies future rework.
Technical Highlights:
- IP66 Weather Sealing: Withstands direct rain and dust ingress — non-sealed junctions fail in 3–6 months under consistent moisture. IP66 is the practical minimum for outdoor and overhang installations; skip this if your site is truly indoors and climate-controlled.
- Weatherproof Cable Glands: Prevent water wicking along cable sheaths into the termination — the single biggest reason outdoor junction boxes fail. Isolated entry points stop moisture migration cold.
- UV-Stabilized Housing: Matters for long-term sun exposure; cheaper plastic enclosures embrittle or crack within 2–3 years in high-UV environments like parking lots. This one holds up for 5+ years without structural degradation.
- CAT5e / CAT6 Rated Support: Confirms zero signal loss or impedance shift through the junction — the box is transparent to your network. Handles PoE power delivery without bottleneck.
Deployment Considerations:
- IP66 is rain and dust; if you need full submersion protection (washdown bay, flood-prone location), jump to IP67 or IP68. The M-JB is not the right choice for spray-intensive environments.
- The flat-top mount is ceiling-only. Wall-mounted domes need a different profile. Don't force this into a vertical application — it'll look wrong and may not seal properly.
- Budget one M-JB per camera anchor point. This is a single-termination enclosure; if you're consolidating multiple runs into one box, you'll need oversized or split configurations.
Position the M-JB in any fixed dome deployment on exposed or semi-exposed ceilings — retail canopies, warehouse overhangs, parking structures, campuses. It's the difference between a junction that lasts five years and one that corrodes in a season. Don't skip it on outdoor installs.
