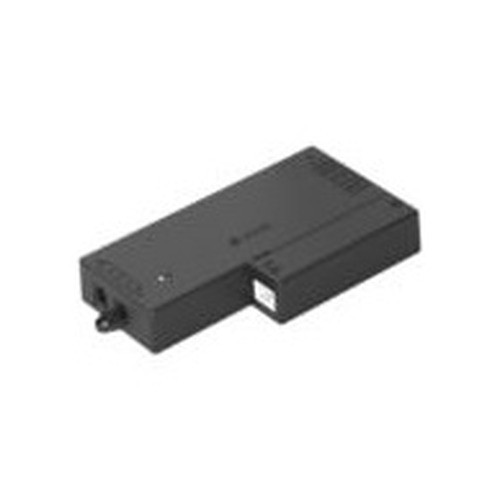

Bosch DCNMFBD2 Flush Base Discussion Device

The Bosch DCNMFBD2 is a flush-mount base unit built for conference and discussion systems where the microphone or control unit needs to sit flush with a tabletop, under a seat, or inside a cable duct rather than sitting on top of the surface. It's the infrastructure piece integrators install before the visible discussion unit ever gets attached — the part that carries power and signal through a wall, table, or armrest cavity. At 656 g (1.45 lb) and a compact 32 mm x 100 mm x 200 mm footprint, the DCNMFBD2 is sized to disappear into furniture rather than compete with it visually.

Overview

Bosch designed the Flush Base Device 2 as a mounting and connectivity hub for discussion system components in boardrooms, council chambers, and courtrooms where cable runs need to stay hidden. The DCNMFBD2 accepts RJ12, RJ45-compatible, 3-pole terminal block, and 2-pole terminal block connections, giving integrators flexibility on how the run gets terminated depending on whether the install uses pre-terminated patch cable or field-wired terminal connections. Running on 48 VDC and drawing just 5 W on the FBD alone, it fits comfortably within low-voltage building infrastructure without demanding a dedicated high-current circuit.

Key Features

• Flush installation profile: at 32 mm deep, the DCNMFBD2 mounts under a tabletop, inside a seat, or in an armrest cable duct — the discussion unit surface stays clean with no visible base housing, which matters in council chambers and boardrooms where cable clutter undermines the room's finish.
• Multi-connector wiring: RJ12, RJ45-compatible, 3-pole terminal block, and 2-pole terminal block options mean the installer picks the termination method that matches the existing cable plant instead of being locked into one connector type mid-retrofit.
• 48 VDC operation at 5 W: low power draw keeps per-seat electrical load light across a multi-unit discussion system, which matters when a single power supply is feeding dozens of flush base devices around a conference table or chamber.
• RAL 9017 traffic black finish: a neutral, non-reflective housing color that blends into dark furniture and cable ducting rather than drawing attention to the mounting hardware.
• Operating range 5°C to 45°C (41°F to 113°F): covers standard indoor conference and courtroom environments; the enclosed rating narrows to 5°C-35°C (41°F-95°F) — worth checking against the actual furniture cavity temperature if the unit sits inside a poorly ventilated armrest or duct.
• Transport rating -30°C to 70°C (-22°F to 158°F): wide enough to survive shipping and storage in unconditioned trucks or warehouses without a controlled-climate requirement before installation.
• Storage range -5°C to 45°C (23°F to 113°F): gives integrators a buffer for holding stock on a shelf between projects without special climate control.
• Humidity tolerance 5%-90% non-condensing: matches typical indoor commercial environments; avoid installing in spaces prone to condensation, such as near exterior glass in humid climates.

Integration & Compatibility

The DCNMFBD2 is a base/mounting component in the Bosch product line and is intended to pair with compatible discussion unit components from the same conferencing family. Its terminal block and RJ-style connectors are built to interface with standard structured cabling, which simplifies integration into existing PoE and low-voltage network infrastructure already run through the building. For rooms being wired from scratch, review a PoE and low-voltage cable planning guide before finalizing conduit and duct routing, since the flush-mount depth of 32 mm needs to be accounted for in the furniture or floor box design. Pair the DCNMFBD2 with appropriate mounting accessories where the installation calls for a floor box or under-table enclosure rather than a direct cable duct feed.

Frequently Asked Questions

Q: What power does the Bosch DCNMFBD2 require?

A: The DCNMFBD2 operates on 48 VDC and draws 5 W for the FBD unit alone.

Q: Can the DCNMFBD2 be mounted under a tabletop?

A: Yes. It's designed for wall mounting, under-tabletop or under-seat installation, or placement in an armrest or cable duct.

Q: What connector types does the DCNMFBD2 support?

A: It supports RJ12, RJ45-compatible connections, a 3-pole terminal block, and a 2-pole terminal block.

Q: What's the operating temperature range for the DCNMFBD2?

A: 5°C to 45°C (41°F to 113°F) in open installation; when enclosed, the rated range narrows to 5°C to 35°C (41°F to 95°F).

Q: How much does the DCNMFBD2 weigh?

A: 656 g (1.45 lb).

Q: What color is the DCNMFBD2 housing?

A: RAL 9017 traffic black.

Eden Phillips

The DCNMFBD2 is one of those parts that never gets seen once the room is finished, but it decides how clean the install looks. At 32 mm deep, it's thin enough to sit under a tabletop or inside an armrest duct without forcing a furniture modification, which is the whole point of a flush base device.

Technical Highlights:

• 48 VDC / 5 W draw: low enough that a single centralized power supply can feed a full row of council or boardroom seats without upsizing the circuit.
• Multi-connector support (RJ12, RJ45-compatible, 3-pole and 2-pole terminal block): lets you match termination to whatever cable plant is already in the floor or duct instead of re-pulling cable to match one connector standard.
• 656 g / 1.45 lb housing: light enough that it doesn't strain the mounting point when installed under a tabletop or inside a seat shell.

Deployment Considerations:

• Check the enclosed operating range (5°C-35°C / 41°F-95°F) against the actual cavity temperature if the DCNMFBD2 is going inside a sealed armrest or duct with limited airflow — it's narrower than the open-air rating.
• Humidity tolerance stops at 90% non-condensing, so rooms with condensation risk near exterior glazing need ventilation accounted for at the duct or floor box.

This is the right part for a courtroom or council chamber retrofit where the discussion units need to read as built-in furniture, not add-on hardware — the DCNMFBD2 handles the hidden wiring and power side so the visible unit is the only thing anyone sees at the table.
