Network Video Recorders (NVRs)

Plan Your Deployment

Camera count and resolution requirements
Retention period and storage capacity planning
Throughput and recording bandwidth limits
RAID configuration and redundancy strategy
Remote access and VMS integration needs

Sub categories

Showing Results for Network Video Recorders (NVRs)

Compare

Add to Cart The item has been added
Hanwha

SKU: QRN-1630S-12TB

Hanwha QRN-1630S-12TB 16-Channel PoE NVR

16-channel PoE NVR with integrated power and 8MP native recording
- 8MP @ 60fps across all 16 channels with H.265 compression
- 130W integrated PoE eliminates need for external power switches
- 8MP @ 60fps, 1080p @ 240fps, 720p @ 480fps frame rate options
In stock · Ships same business day

$2,590.00 $1,736.99 Save $853.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: QRN-1630S-2TB

Hanwha QRN-1630S-2TB 16CH NVR 2TB with PoE

16-channel 8MP NVR with integrated PoE and 2TB storage
- 16 PoE ports (802.3af) power cameras directly; no external injectors
- Records 8MP at H.265 compression across all 16 channels simultaneously
- Dual HDMI outputs: 4K on HDMI1, 1080p on HDMI2 for flexible monitoring
In stock · Ships same business day

$1,390.00 $932.99 Save $457.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: QRN-1630S-6TB

Hanwha QRN-1630S-6TB 16-Channel PoE NVR

16-channel PoE NVR with integrated power and 8MP recording
- 16 integrated PoE ports with 130W budget power all cameras directly
- 8MP multi-channel recording at full frame rate with H.265 compression
- 6TB onboard storage with dual-stream and ONVIF/Wisenet compatibility
In stock · Ships same business day

$1,870.00 $1,253.99 Save $616.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: QRN-830S

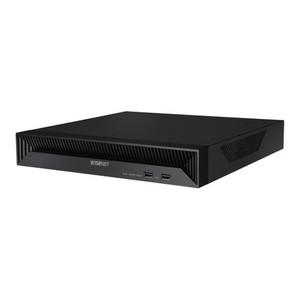

Hanwha QRN-830S 8-Channel 8MP Network Video Recorder

8-channel 8MP NVR with H.265 compression and 4K HDMI output
- Records up to 8MP at 80Mbps max with H.265, H.264, MJPEG codec options
- 4K HDMI display (3840×2160) with flexible multi-screen layouts up to 9 channels
- Up to 6TB single HDD storage with dual-stream and event-triggered recording modes
In stock · Ships same business day

$760.00 $509.99 Save $250.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: QRN-830S-2TB

Hanwha QRN-830S 8-Channel PoE Network Video Recorder

8-channel PoE NVR with integrated power and 8MP support
- 8 PoE ports with 65W budget eliminate external injectors
- Records 8MP at 60 fps with H.265 compression and 6TB storage
- Motion, defocus, audio detection, and ONVIF compatibility built-in
In stock · Ships same business day

$1,000.00 $670.99 Save $329.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: QRN-830S-6TB

Hanwha QRN-830S 8CH NVR 6TB with 8 PoE Ports

8-channel 8MP NVR with built-in 8-port PoE and 6TB storage
- Records 8 cameras at 8MP resolution with 80Mbps aggregate bandwidth
- Integrated 802.3af PoE ports eliminate external switches and injectors
- H.265, H.264, and MJPEG codec support for multi-brand camera compatibility
Special Order · Ships in 2-3 weeks

$1,480.00 $992.99 Save $487.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: QRN-830S-4TB

Hanwha QRN-830S-4TB 8CH PoE NVR 4TB

8-channel PoE NVR with 4TB storage and integrated 65W power
- 8 built-in PoE ports eliminate external injectors; powers all cameras
- Records up to 8MP across all channels with H.265 compression
- 4TB onboard storage for extended retention on mid-scale deployments
In stock · Ships same business day

$1,240.00 $831.99 Save $408.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: WRN-1632-12TB

Hanwha WRN-1632-12TB 32-Channel 2U Network Video Recorder

32-channel 2U NVR with 12TB storage and 250 Mbps throughput
- Manages 32 simultaneous IP camera streams at 250 Mbps maximum
- 12TB pre-installed, expandable to 40TB across four SATA HDD bays
- H.265 and H.264 compression with Wisestream bitrate optimization
In stock · Ships same business day

$3,740.00 $2,507.99 Save $1,232.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: WRN-1632-18TB

Hanwha WRN-1632-18TB 32-Channel 2U Rackmount NVR with 18TB Storage

32-channel 2U rackmount NVR with 18TB storage for mid-scale IP surveillance
- Records 32 simultaneous IP cameras at 250 Mbps throughput without frame drops
- H.265 compression reduces storage needs 40–60% vs. H.264 for longer retention
- Includes 4 Professional Wisenet WAVE licenses for client, mobile, and cloud access
In stock · Ships same business day

$4,130.00 $3,093.99 Save $1,036.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: WRN-1632-24TB

Hanwha WRN-1632-24TB 32-Channel NVR 24TB Storage

32-channel 24TB NVR with 250 Mbps throughput for enterprise surveillance
- Records 32 IP cameras simultaneously at 250 Mbps sustained with H.265 codec
- 24TB internal storage expandable to 40TB; includes 4 Wisenet WAVE licenses
- Intel-based 2U rackmount; dual GbE, HDMI output, keyboard/mouse included
In stock · Ships same business day

$4,565.00 $3,061.99 Save $1,503.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: WRN-1632-30TB

Hanwha WRN-1632-30TB 32-Channel Rack-Mount NVR

32-channel rack NVR with 30TB storage and 250 Mbps throughput
- 32 simultaneous IP camera channels with 250 Mbps recording bandwidth
- 30TB internal storage (expandable to 40TB) with H.265 compression
- Wisenet WAVE platform integration with AI analytics and ONVIF support
Special Order · Ships in 2-3 weeks

$4,760.00 $3,565.99 Save $1,194.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: WRN-1632-40TB

Hanwha WRN-1632-40TB 32-Channel 2U Rackmount NVR

32-channel 2U rackmount NVR with 40TB storage for enterprise video
- 250 Mbps sustained throughput handles 32 simultaneous IP camera feeds
- 40TB internal SATA storage with H.265 codec extends retention 30–45 days
- Dual Gigabit Ethernet with failover and AI metadata ingestion support
In stock · Ships same business day

$5,360.00 $3,594.99 Save $1,765.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: WRN-1632-4TB

Hanwha WRN-1632-4TB 32-Channel 2U Rack NVR 4TB

32-channel 2U rack NVR with 250 Mbps throughput and expandable storage
- Records up to 32 concurrent IP cameras with dual 1 Gbps network ports
- 4TB base storage expands to 40TB across four SATA bays for extended retention
- H.265 and H.264 compression with AI metadata support for intelligent search
In stock · Ships same business day

$3,195.00 $2,142.99 Save $1,052.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: WRN-1632-8TB

Hanwha WRN-1632-8TB 2U Rack Mount NVR

32-channel 2U rack NVR with 8TB storage and Wisenet WAVE included
- Supports 32 IP cameras at 250 Mbps aggregate throughput with H.265 compression
- Pre-configured with Wisenet WAVE software and 4 Professional licenses ready to deploy
- AI metadata support for intelligent analytics and forensic search across recordings
Special Order · Ships in 2-3 weeks

$3,495.00 $2,343.99 Save $1,151.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: WRN-1632S-12TB

Hanwha WRN-1632S-12TB 32-Channel 2U PoE+ NVR 12TB

32-channel 2U PoE+ NVR with 12TB storage and integrated power
- 32 IP cameras on 16 built-in PoE+ ports with 200W power budget
- 12TB pre-installed, expandable to 40TB across 4 SATA drive bays
- H.265, H.264, and MJPEG codec support for mixed camera deployments
In stock · Ships same business day

$4,040.00 $3,025.99 Save $1,014.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hanwha

SKU: WRN-1632S-18TB

Hanwha WRN-1632S-18TB 32-Channel 2U PoE+ NVR

32-channel 2U rack NVR with integrated 200W PoE+ and 18TB storage
- Records 32 cameras at 250 Mbps with H.265 compression and up to 40TB capacity
- 16 built-in PoE+ ports (200W total) power cameras without external injectors
- Runs Wisenet WAVE VMS natively for unified camera management and playback
In stock · Ships same business day

$4,430.00 $3,317.99 Save $1,112.01

Add to Cart
The item has been added

What to Look For When Buying

The decisions that matter most before you spec.

Real Bitrate vs. Rated Camera Count

NVRs are often rated for more cameras than they can actually process simultaneously at rated resolution and frame rate. Before purchase, calculate total ingress bitrate: sum camera bitrate × number of cameras, then confirm the NVR's sustained throughput (not peak). See Why Your NVR Can't Handle Its Rated Camera Count for real-world examples.

Storage Throughput & Disk Selection

NVR write speed is limited by disk throughput, not capacity alone. A 4-camera 4K system can exceed 100 Mbps sustained writes; mismatched drive selection causes dropped frames and gaps. Pair your NVR with surveillance-grade drives rated for 24/7 streaming and validate RAID configuration matches your retention math.

Retention Calculation & Scaling

Storage lifetime depends on bitrate, motion-detection settings, and frame-rate. A 30-day retention target for 16 cameras at 4 Mbps each = ~1.7 TB minimum. Factor in overhead, RAID redundancy, and growth. Read Retention Math for IP Cameras: Bitrate, Motion, Storage Traps to avoid undersizing.

Network & Power Infrastructure Readiness

Large NVR deployments collapse when backbone switches, PoE injectors, or UPS capacity aren't sized for sustained load. Why Surveillance Networks Collapse at the Core explains bandwidth and redundancy planning. Verify your switch, network cabling, and power distribution before finalizing the recorder choice.

Vendor Support & Software Compatibility

NVR firmware, mobile app stability, and remote access reliability vary widely. Select brands like Hikvision, Hanwha, Axis, and Vivotek with proven field track records and transparent changelog/SLA terms. Evaluate Video Management Software (VMS) integration early to avoid vendor lock-in.

Redundancy, Failover & Incident Reliability

Single NVR failure or network outage can blind an entire facility during critical incidents. Architect dual-recorder setups, redundant storage, or Why Surveillance Systems Fail During Incidents to ensure continuous recording. For multi-site deployments, plan for isolated recording at each location and centralized backup.

Technology Stack

The specs and acronyms that actually affect network video recorders (nvrs) performance.

Bitrate (Mbps)

The sustained network and storage bandwidth required per camera stream. Measured in megabits per second. Lower bitrate = longer retention on same storage; too low = lost detail. NVR throughput (e.g., 200 Mbps) must exceed sum of all camera bitrates to avoid frame drops.

PoE Budget (Watts)

Power delivered over Ethernet to cameras. Standard PoE = 15W per port; PoE+ = 30W; PoE++ = 60W or more. Verify NVR's built-in PoE power supply or external injector can supply total wattage for all connected cameras simultaneously, not just nameplate rating.

RAID Configuration (0, 1, 5, 6, 10)

Storage redundancy method. RAID 1 (mirroring) = 50% usable capacity but fast recovery; RAID 5 (striping + parity) = ~67–75% usable, slower rebuild; RAID 6 = dual-parity, safest but slower writes. Choose based on RTO/RPO and disk failure tolerance for your facility.

Frame Rate (FPS) & Resolution

Higher resolution and frame rate increase bitrate non-linearly. 4K 30 FPS ≈ 50–100 Mbps per camera; 1080p 30 FPS ≈ 4–8 Mbps. NVR must deliver rated FPS across all channels simultaneously; frame-rate reduction under load is common and often undisclosed in specs.

Onboard Storage vs. Expansion

Some NVRs include 1–8 TB of internal drive bays; others accept only external SAN or NAS. Modular expansion via USB, SATA, or NAS allows scaling beyond internal capacity but introduces network latency and single-point-of-failure risk if not redundant.

HDMI/VGA Output & Multi-Monitor

Direct video output for live playback and alarm response. Dual HDMI or DVI enables multi-monitor wall displays for SOC operations. Check Monitors & Displays for compatible wall-mount and Joystick & Keyboard Controls for operator interfaces.

Typical Deployment Scenarios

Small Office (8 Cameras, 30-Day Retention)

One 8-channel compact NVR (e.g., entry-level Hikvision or Hanwha model) with 2–4 TB internal RAID 1 storage. Built-in PoE switch powers cameras; single gigabit uplink to office network. Total bitrate ~32–48 Mbps; UPS protects against brief power loss. Cost: $800–$1,500 all-in.

Retail Chain (4 Stores, 16 Cameras Each, Centralized Backup)

Four 16-channel mid-range NVRs deployed locally at each store location, each with 4–6 TB RAID 5 storage for 14-day retention. Nightly backup to central NAS or cloud via WAN. If one location's NVR fails, other three continue recording; central system rebuilds from backups. Requires network redundancy and Why Surveillance Standards Collapse After the Third Location planning.

Campus/Large Facility (64+ Cameras, Hybrid Storage)

One or two enterprise-class 64-channel rackmount NVRs in data center with 24–48 TB SAN or modular expansion. Satellite 16-channel NVRs at building entrances for local failover. Total bitrate 400+ Mbps; redundant gigabit backbone, dual switches, and Why Large Surveillance Systems Fail: Storage Throughput Reality mitigation. Integrate Video Management Software (VMS) for unified search and forensics.

High-Resolution Mixed Deployment (32 × 1080p + 8 × 4K, 60-Day Retention)

32-channel NVR rated for 4K + lower-res mixing. 1080p cameras = ~6 Mbps each (192 Mbps); 4K = ~60 Mbps each (480 Mbps); total ~672 Mbps. Verify NVR sustains this; may require two units or careful frame-rate reduction. 12–16 TB RAID 6 storage. Cross-reference Retention Math for IP Cameras: Bitrate, Motion, Storage Traps to confirm math.

Frequently Asked Questions

What's the difference between an NVR and a DVR?

A DVR (Digital Video Recorder) uses analog coax cameras and a capture card; an NVR (Network Video Recorder) receives IP camera streams over Ethernet. NVRs are now standard because they enable remote access, higher resolution, PoE power, and easier scaling. DVRs are legacy for most new deployments.

How do I calculate how much storage I need?

Multiply bitrate per camera (Mbps) × number of cameras × 86,400 seconds/day × retention days ÷ 8 bits/byte = total bytes. Example: 5 cameras × 5 Mbps × 86,400 × 30 days ÷ 8 = ~810 GB. Add 20–30% overhead for RAID and metadata. See Retention Math for IP Cameras: Bitrate, Motion, Storage Traps for detailed examples.

Can I mix camera brands and resolutions on one NVR?

Yes, most modern NVRs accept ONVIF-compliant IP cameras from any vendor (Hikvision, Axis, Vivotek, etc.) and mix 1080p, 2MP, 4K, and other resolutions on the same recorder. However, bitrate and frame-rate planning becomes critical; lower frame rates or bitrate reduction may occur if total throughput is exceeded.

What happens if my NVR storage fills up?

Most NVRs default to overwrite mode: oldest video is deleted to make room for new recording. Some support redundancy via dual RAID arrays or remote backup. Prevent accidental loss by setting up automated export to NAS, VMS archive, or cloud; verify RAID type protects against single-disk failure.

Do I need a separate switch if my NVR has PoE?

If your NVR has integrated PoE ports and all cameras connect directly to it, no external switch is needed. However, if you have more cameras than PoE ports or need network redundancy, add a managed PoE switch upstream. Always verify the NVR's PoE wattage budget covers all cameras simultaneously.

What's the best way to ensure my NVR doesn't fail during an incident?

Deploy Why Surveillance Systems Fail During Incidents architecture: local recording at multiple sites, UPS backup, network redundancy, and regular backup to offsite NAS or cloud. Test failover quarterly. Use RAID 6 or mirrored storage, and avoid single points of failure in power, network, and storage paths.

Plan Your Deployment

Sub categories

Showing Results for Network Video Recorders (NVRs)

Hanwha QRN-1630S-12TB 16-Channel PoE NVR

Hanwha QRN-1630S-2TB 16CH NVR 2TB with PoE

Hanwha QRN-1630S-6TB 16-Channel PoE NVR

Hanwha QRN-830S 8-Channel 8MP Network Video Recorder

Hanwha QRN-830S 8-Channel PoE Network Video Recorder

Hanwha QRN-830S 8CH NVR 6TB with 8 PoE Ports

Hanwha QRN-830S-4TB 8CH PoE NVR 4TB

Hanwha WRN-1632-12TB 32-Channel 2U Network Video Recorder

Hanwha WRN-1632-18TB 32-Channel 2U Rackmount NVR with 18TB Storage

Hanwha WRN-1632-24TB 32-Channel NVR 24TB Storage

Hanwha WRN-1632-30TB 32-Channel Rack-Mount NVR

Hanwha WRN-1632-40TB 32-Channel 2U Rackmount NVR

Hanwha WRN-1632-4TB 32-Channel 2U Rack NVR 4TB

Hanwha WRN-1632-8TB 2U Rack Mount NVR

Hanwha WRN-1632S-12TB 32-Channel 2U PoE+ NVR 12TB

Hanwha WRN-1632S-18TB 32-Channel 2U PoE+ NVR

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Network Video Recorders (NVRs)

Frequently Asked Questions

Related Categories

Engineering Reading
