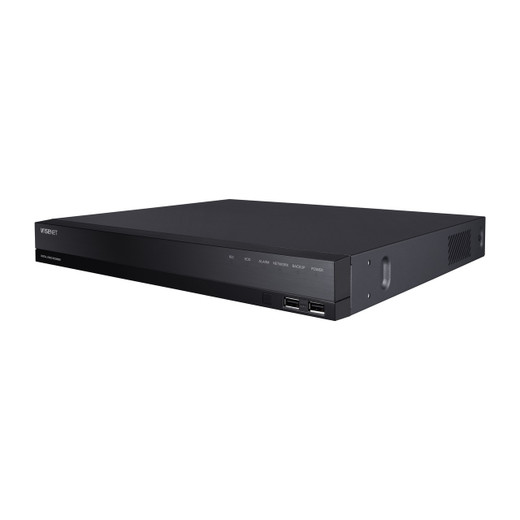

Hanwha HRX-435-6TB Pentabrid DVR 8MP 6TB
The Hanwha HRX-435-6TB is a 4-channel pentabrid DVR designed for hybrid surveillance environments where analog and IP camera systems must coexist. This recorder unifies AHD, TVI, CVI, CVBS analog, and IP camera inputs on a single platform, accommodating up to 4 analog channels plus 6 network camera channels with support for resolutions up to 8MP across all formats. Shipped with 6TB of pre-installed storage and expandable with a second drive, the HRX-435 is purpose-built for integrators managing mixed analog-to-IP migration strategies.
Key Features
- Pentabrid input support: AHD, TVI, CVI, CVBS analog, and IP cameras on one platform
- 4 analog channels + up to 6 network camera channels (10 total inputs)
- 8MP maximum resolution across all signal types
- 6TB HDD pre-installed; dual drive bay for up to 12TB total capacity
- H.265, H.264, and MJPEG codec support for efficient bandwidth management
- 30 Mbps recording bandwidth; 32 Mbps playback bandwidth (6-channel simultaneous)
- Dual video output: HDMI (up to 4K) and VGA (up to 1080p)
- 4 alarm inputs and 2 relay outputs for integrated security automation
- P2P mobile access with QR code connectivity
- Coaxial PTZ and device control support
Signal Compatibility & Recording Performance
The HRX-435 accepts analog inputs in AHD, HDTVI, HDCVI, and CVBS formats at resolutions from 8MP down to 720p and CIF, with support for both NTSC and PAL standards. Network cameras connect via SUNAPI Wisenet or ONVIF protocol at up to 8MP resolution. Recording frame rates scale with resolution: 8 fps at 8MP, 12 fps at 5MP, 15 fps at 4MP, and 30 fps at 2MP and below. Triple codec support—H.265, H.264, and MJPEG—allows flexible compression strategies to balance quality and storage efficiency. The recorder supports manual, scheduled (continuous/event), and dual-track recording modes for granular control over capture policies.
Connectivity & Control
Dual video outputs deliver independent display options: HDMI supports resolutions up to 4K (3840×2160) for primary monitoring, while VGA provides a secondary output at up to 1080p. Coaxial control enables PTZ and auxiliary device management. The system includes 4 audio input channels and 1 audio output for integrated surveillance audio, along with 4 alarm inputs and 2 relay outputs for third-party system integration. P2P connectivity via QR code streamlines mobile app access, while up to 4 simultaneous user connections support multi-operator monitoring.
Applications
The HRX-435 is ideal for retail chains, warehouses, and enterprises transitioning from analog to IP surveillance without replacing existing camera infrastructure. Its pentabrid flexibility supports phased upgrades and heterogeneous deployments where budget constraints or infrastructure limitations require mixed analog-IP environments.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HRX-435 occupies a pragmatic position in the pentabrid market. Its 4-channel analog + 6-channel IP architecture reflects realistic hybrid deployments where legacy analog cameras must coexist with modern IP systems. H.265 codec support is critical for managing the 10-input load within the 30 Mbps recording bandwidth ceiling—efficient compression directly extends storage life and reduces bitrate costs in bandwidth-constrained environments.
The dual drive bay and 6TB baseline provide immediate scalability without requiring external NAS infrastructure. Coaxial PTZ control adds value for analog upgrades. However, the pentabrid approach trades specialized optimization for versatility; pure AHD or pure IP recorders may outperform at equivalent price points in homogeneous deployments.
Best suited for system integrators and enterprises with committed hybrid roadmaps.
