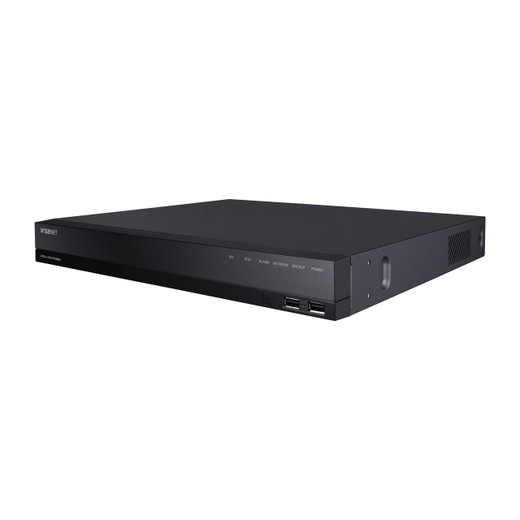

Hanwha HRX-435-2TB 8MP Pentabrid DVR Recorder
The Hanwha HRX-435-2TB is a versatile 4-channel pentabrid DVR designed for installers and integrators requiring multi-format camera support in a single compact unit. This hybrid recorder accepts AHD, TVI, CVI, CVBS analog inputs, and IP network cameras, eliminating the need for format conversion and enabling flexible, scalable deployments. With 2TB of included storage and expansion up to 12TB, the HRX-435-2TB is ideal for small to mid-size surveillance installations across retail, hospitality, and commercial environments.
Key Features
- 4-channel analog (AHD/TVI/CVI/CVBS) + up to 6-channel IP network camera inputs
- 8MP analog resolution support with backward compatibility for 5MP, 4MP, 1080p, 720p, and CVBS
- H.265, H.264, and MJPEG triple codec compression for flexible storage optimization
- Dual HDMI and VGA simultaneous outputs (up to 4K via HDMI, 1080p via VGA)
- 2TB pre-installed storage; expandable to 12TB with dual SATA HDD slots
- 4-channel analog audio input with 1-channel audio output
- 4 alarm inputs and 2 relay outputs for integration with third-party devices
- Coaxial PTZ control for compatible camera and dome systems
- P2P connectivity via QR code—instant mobile access through Wisenet app
- Up to 4 simultaneous remote users (1 local + 3 remote connections)
Technical Specifications
Recording Performance: 8fps at 8MP and 12fps at 5MP per analog channel. Maximum recording bandwidth is 30 Mbps; playback bandwidth reaches 32 Mbps. Advanced search and playback support up to 6 simultaneous playback channels on local monitors for rapid incident review.
Network Integration: SUNAPI (Wisenet) and ONVIF protocol support enable seamless integration with third-party IP cameras. Remote accessibility is managed through secure dual-stream architecture, supporting up to 3 simultaneous remote users alongside 1 local connection.
Storage & Expansion: Ships with 2TB capacity and supports dual SATA hard drives up to 6TB each (maximum 12TB total). Storage scalability accommodates extended retention requirements without external NAS dependencies.
Applications
The HRX-435-2TB is well-suited for:
- Mixed-signal deployments with existing analog infrastructure and IP expansion
- Multi-location retail and hospitality chains requiring standardized recording platforms
- Commercial facilities with diverse camera legacy systems
- Budget-conscious installations seeking 8MP analog performance without proprietary encoders
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HRX-435-2TB addresses a critical market gap: organizations with legacy analog cameras seeking 8MP clarity without wholesale infrastructure replacement. The pentabrid architecture—supporting five input formats—minimizes integration friction and vendor lock-in. H.265 codec adoption reduces bandwidth and storage costs by up to 50% compared to H.264, a significant advantage for bandwidth-constrained networks.
The 2TB base configuration with 12TB ceiling provides flexibility for small 4-camera sites through moderately scaled 10-camera mixed deployments. Wisenet app integration offers field technicians rapid access for troubleshooting, while ONVIF compliance ensures future interoperability. The 30 Mbps recording bandwidth limitation should be noted for high-frame-rate or resolution-heavy deployments; facilities requiring sustained 4K IP streams may benefit from dedicated NVR platforms.
Dual simultaneous HDMI/VGA output is a pragmatic feature for control room environments, though modern IP-based monitoring may eventually depreciate coaxial PTZ support.
