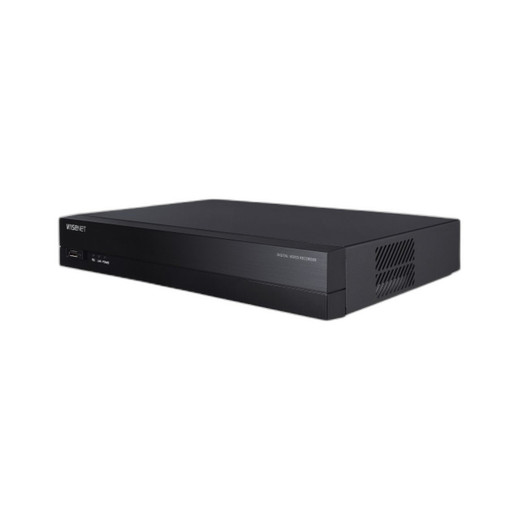

Hanwha HRX-434 4-Channel Pentabrid DVR Recorder

Hanwha HRX-434 4-Channel Pentabrid DVR Recorder

The HRX-434 is a compact, enterprise-grade pentabrid recorder engineered for flexible analog and IP camera deployments. Unlike single-format recorders, this model accepts five simultaneous video input types—AHD, HDTVI, HDCVI, CVBS analog, and network IP protocols—on its 4 analog channels plus up to 6 additional IP camera feeds, consolidating mixed-technology surveillance into one 1.5kg unit. This eliminates the operational complexity and cost of parallel recorders when upgrading existing analog infrastructure or scaling with hybrid camera types.

Key Features

• Pentabrid Input Architecture: Four analog BNC inputs (1Vp-p, 75 ohm) auto-detect and decode AHD, HDTVI, HDCVI, or CVBS signals on the same connectors. No format pre-selection needed—plug in any compatible analog camera and the HRX-434 recognizes it. Paired with up to 6 networked IP cameras (8MP max per stream), you reach 10 total input sources from a single recorder footprint.
• 8MP Recording with H.265 Compression: Records at 8MP resolution (up to 8 fps), 5MP (12 fps), 4MP (15 fps), or 2MP/1080p (30/25 fps NTSC/PAL) per channel. H.265 codec cuts storage consumption roughly 40–50% versus H.264, a critical factor for 24/7 recording across multiple channels. Main stream bandwidth caps at 30 Mbps per channel; playback bandwidth reaches 32 Mbps to support simultaneous 6-channel retrieval without frame stuttering.
• Single SATA Storage Slot, 6TB HDD Support: One 2.5" or 3.5" SATA drive (up to 6TB) provides local recording buffer and archive. Calculate retention based on your channel count, resolution mix, and frame rate—8MP at 8 fps consumes roughly 3.5 Mbps per stream, so a 6TB drive with 4-channel mixed-resolution recording lasts approximately 10–14 days before overwrite. No hot-swap capability; plan maintenance windows accordingly.
• Dual Display Output (HDMI + VGA Simultaneous): HDMI and VGA operate independently at full resolution—connect a 4K monitor to HDMI for live multi-view or remote search, while a secondary VGA output (up to 1920×1080) drives a desk monitor or control room display. Both remain active and independent, so display failure on one output doesn't affect the other.
• Advanced Event Triggering & Analytics: Motion detection, video loss, tampering, face detection, and line-crossing detection on analog and IP channels. Pre/post event recording buffers ensure you capture context around triggered events. Detected events trigger email alerts, relay outputs (1 relay; 4 alarm inputs), PTZ presets, buzzer audible alarms, or on-screen overlays for rapid human response.
• Network Access & Mobile Remote Viewing: ONVIF Profile-S compliance enables integration with third-party VMS platforms (Milestone, Genetec, etc.). P2P QR code provisioning allows instant mobile app setup without manual IP assignment—scan the code and connect via iOS or Android SmartViewer or Wisenet Mobile. RS-485 PTZ control supports Pelco-D/P and Samsung-T dome protocols for coaxial camera control.
• Security & Network Features: 802.1X authentication, AES encryption, IP address filtering, and TCP/IP stack (RTSP, HTTP, SUNAPI, Wisenet DDNS) for remote access. Supported by SSM (Wisenet system management platform), WebViewer (browser playback), and SmartViewer (local/remote desktop client).
• Fanless, Low-Power Operation: Draws 22W max at 12VDC (includes all I/O active), rated for 0–40°C ambient, making it suitable for unheated server closets, retail environments, or outdoor cabinets with passive cooling. No fan means silent operation and minimal maintenance.

Recording & Playback Modes

Schedule-based continuous recording, event-driven recording (triggered by motion, video loss, or external sensor input), or hybrid schedules (continuous on primary channels, event-only on secondary) match your storage and compliance needs. Playback supports simultaneous 6-channel review from the local display, a connected CMS system, or mobile viewers without impacting live recording performance.

Typical Deployments

Mixed analog/IP migration scenarios (retail chains upgrading from analog to IP without replacing all cameras simultaneously), hospitality properties requiring HD surveillance with existing coax infrastructure, office buildings with both analog legacy domes and new IP turrets, and compact facilities (pharmacies, small warehouses) needing fanless, power-efficient recording without complex management overhead. The network video recorder category includes higher-channel alternatives if you need more than 10 concurrent inputs or larger Hanwha surveillance line deployments.

Integration & Compatibility

Integrates with NVR storage and retention planning guides to calculate drive sizing for your resolution and frame-rate mix. Connects to PoE switches for IP camera power (if your IP cameras support PoE). Compatible with ONVIF-compliant mobile apps and VMS platforms; Hanwha-specific features (face detection, WebViewer dewarping for fisheye lenses) unlock in SSM or WebViewer clients.

Frequently Asked Questions

Q: Can I record on all 4 analog channels and all 6 IP channels simultaneously at maximum resolution?

A: Yes, but with frame-rate constraints. All 10 channels can record concurrently, but if you push all 4 analog inputs to 8MP and all 6 IP cameras to 8MP, total bandwidth and CPU load will limit frame rates. Plan on 8 fps for analog at 8MP and 6–8 fps for IP at 8MP to stay within the 30 Mbps main-stream cap per channel. Sub-stream (lower resolution) recording for archival is recommended to preserve bandwidth.

Q: What happens if I exceed 6TB storage capacity or the drive fails?

A: Older recordings are overwritten in a circular buffer; there is no auto-failover to a second drive. Plan your retention window based on 6TB capacity and your recording mix. For mission-critical deployments, back up events manually to NAS or cloud storage via the VMS platform, or add an external USB drive for manual backup if the HRX-434 supports it (confirm with the manufacturer datasheet).

Q: Does the HRX-434 work with Milestone XProtect or other third-party VMS?

A: Yes, ONVIF Profile-S compliance enables integration with Milestone, Genetec, and other ONVIF-compatible VMS platforms. Native Hanwha features (face detection, line crossing on networked cameras) may require SSM or WebViewer to fully expose; third-party VMS systems will see the recorder and cameras as standard ONVIF devices.

Q: Is the HRX-434 suitable for outdoor installations?

A: Not directly. The recorder itself is not weatherproofed (no IP rating listed) and is designed for indoor mounting. Deploy it inside a building, cabinet, or climate-controlled enclosure, then run coax or Ethernet to outdoor analog or IP cameras. The cameras themselves must meet your environmental requirements (IP66/67 for rain exposure, etc.).

Q: How do I set up mobile remote access?

A: P2P QR code pairing simplifies setup: scan the QR code printed on the unit or displayed in the recorder's web interface using Wisenet Mobile (iOS/Android), and the app establishes a connection without manual NAT/port forwarding. For advanced remote access (CMS integration, multi-site management), configure the recorder's network settings and DDNS hostname in the local menu, then point your VMS system to the recorder's IP address or DDNS name.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The HRX-434 fills a critical market gap for organizations with legacy analog systems that need IP scalability without wholesale hardware replacement. Its pentabrid design allows coexistence of AHD, HDTVI, HDCVI, and CVBS signals on the same 4 analog channels, then layers up to 6 IP cameras for a total of 10 input sources. This avoids the cost and operational friction of running parallel recorders during a migration—you plug in both analog and IP cameras, and the HRX-434 handles format detection automatically.

Technical Highlights:

• H.265 Compression at 8MP: Recording 8MP at 8 fps consumes approximately 3.5 Mbps per stream without H.265 optimization, or roughly 1.8–2.0 Mbps with H.265 enabled—nearly 50% savings. Over 4 channels recording 24/7, that's the difference between a 6TB drive lasting 10 days and lasting 20 days. Critical for 30-day or 90-day retention mandates on budget constraints.
• Single 6TB SATA Storage Ceiling: One drive slot with max 6TB capacity limits long-term retention. A 4-channel mixed-resolution setup (8MP analog + 2MP IP, typical retail scenario) consumes roughly 15–18 Mbps aggregate, translating to 6–8 days of 24/7 retention per 6TB before overwrite. If your compliance or insurance requires 60+ days, this recorder alone won't meet it—you'll need NAS backup or secondary archival storage.
• Fanless 22W Max Draw: 12VDC passive operation means silent deployment in retail sales floors, libraries, or quiet office areas without acoustic cooling noise. Also fits into 12VDC battery backup or solar scenarios where DC power is already available.

Deployment Considerations:

• Frame-Rate Trade-off at High Input Density: While the HRX-434 accepts 10 total input sources, pushing all of them to 8MP simultaneously will bottleneck CPU and bandwidth. Realistic deployments use a mix: 4 analog channels at 5–8MP (retail front/back/aisles) plus 2–3 high-value IP cameras (entrance, safe, high-resolution detail) at 8MP, with the remainder at 2–4MP for fill coverage. Plan your channel mix before commissioning.
• No Redundancy in Storage Path: Single SATA drive, single HDD slot. A drive failure loses all local recordings up to that moment. For mission-critical surveillance, mandate event-triggered backup to a NAS appliance via the recorder's VMS integration, or implement a secondary recording stream to the VMS server itself.
• Pentabrid Detection Assumes Clean Signals: Analog coax cable quality matters. Damaged, excessively long, or poorly terminated runs may cause signal noise that confuses the format auto-detect (AHD vs. HDTVI misidentification). Field-test analog camera connections before deployment, especially on renovation projects reusing old cabling.

Best suited for retail, hospitality, and small-to-mid office environments with a mixed installed base—where legacy analog domes and turrets coexist with newer IP cameras, and a single compact recorder replaces three separate devices. Skip this if you need >10 simultaneous input streams, >6TB storage, or fully redundant recording paths.
