Hanwha HRX-1634 16-Channel Pentabrid DVR Recorder

Hanwha HRX-1634 16-Channel Pentabrid DVR Recorder

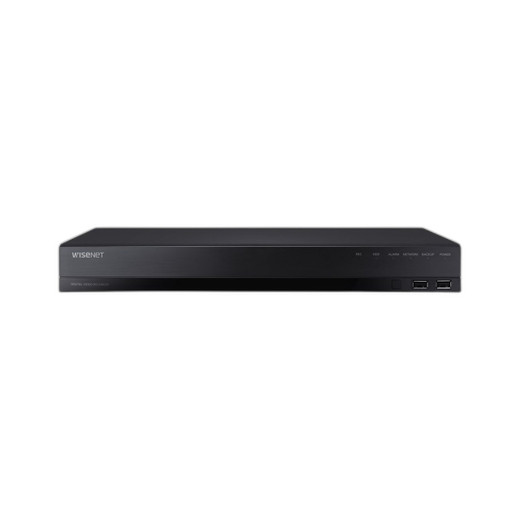

The Hanwha HRX-1634 is a 1U rack-mount DVR engineered for organizations running mixed analog and IP camera ecosystems. This recorder solves a real deployment problem: most facilities don't upgrade all cameras at once. The HRX-1634 accepts five signal types—AHD, HDTVI, HDCVI, CVBS (analog), and IP—on the same platform, meaning you can deploy it into a brownfield environment with legacy coax runs intact while gradually adding networked cameras. The unit supports up to 16 analog channels plus 2–18 IP channels depending on bandwidth allocation, delivering up to 8MP resolution per stream.

Key Features

• 5-in-1 Pentabrid Input: Single recorder handles AHD, HDTVI, HDCVI, CVBS, and IP simultaneously. Eliminates the need to swap hardware when camera types change in an existing deployment.
• 16 Analog + Configurable IP Channels: Scales from 2 to 18 IP channels depending on your network bandwidth budget (recording bandwidth maxes at 128 Mbps). Lets you add networked cameras without replacing the core recorder.
• H.265 Compression: Cuts storage footprint roughly in half versus H.264 on 24/7 multi-channel recordings. Over months of continuous video, this translates to meaningful cost savings or longer retention on the same hardware.
• Dual SATA Storage: Two 3.5-inch HDD bays support up to 6TB each (12TB total). Redundancy and capacity in a compact 1U chassis mean fewer rack slots consumed for recording infrastructure.
• 8MP Recording at Scaled Frame Rates: Delivers 8MP at 15fps, 5MP at 20fps, or 4MP at 30fps per channel. Balances resolution against bandwidth and storage—useful when you need detail but can't afford the full 30fps bitrate on every feed.
• Dual Monitor Output (HDMI + VGA): HDMI supports 4K/1440p/1080p; VGA maxes at 1920×1080. Flexibility to connect modern displays or legacy VGA infrastructure without additional conversion.
• 32 Mbps Playback Bandwidth: Allows simultaneous 18-channel local playback and live CMS viewing without stuttering. Critical when you need to review multiple feeds at once for incident response.
• 16 Alarm Inputs + 4 Relay Outputs: Native integration with door sensors, motion detectors, access control systems, and external alarm hardware. No external relay module needed for basic automation.
• Audio I/O (4-in, 1-out): Supports 2-way communication and tie-in to facility intercoms or speaker systems. Useful for retail, access control, and gate automation scenarios.
• Mobile & Remote Access: Wisenet Mobile Viewer (iOS/Android) allows up to 10 simultaneous unicast remote users. Coaxial Control (Pelco-C, AHD, CVI, TVI) enables PTZ pan/tilt/zoom from the recorder without additional protocol converters.
• Event-Driven Recording & Smart Triggers: Motion detection, video loss, tampering, and camera-side analytics trigger automated responses—email alerts, FTP backup, alarm relay activation, or PTZ preset moves. Reduces false alarm volume by filtering noise locally.
• P2P QR Code Pairing: Rapid zero-configuration deployment for remote or cloud-linked installations. Scan a QR code from the recorder interface; the unit pairs to the cloud without manual network setup.

Integration & Compatibility

The HRX-1634 implements network video recorder standards: ONVIF Profile-S, TCP/IP, UDP/IP, RTP, RTSP, HTTP, HTTPS, DHCP, DDNS, NTP, and SNMP. IP address filtering and 802.1x authentication enable deployment in enterprise networks with strict security policies. Encrypted ID/password, transmission, and backup storage meet compliance requirements for healthcare, government, and financial sectors.

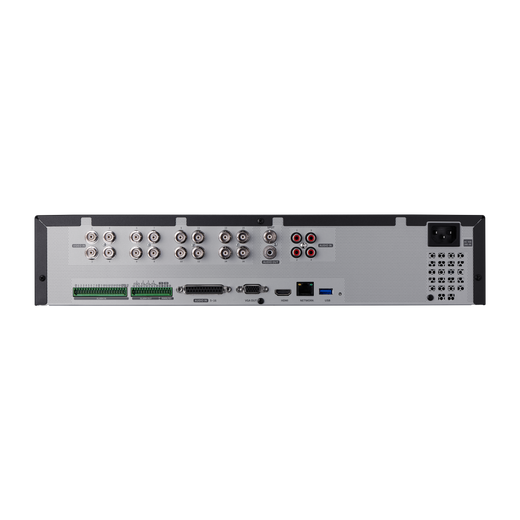

Dual Gigabit Ethernet ports allow separate control and streaming lanes, reducing congestion on high-density PoE switches or network segments. USB 3.0 rear port accelerates evidence export and backup operations compared to USB 2.0-only recorders.

At 40W maximum power consumption with dual 6TB drives, the unit fits within standard UPS budgets and doesn't require oversized PSUs. Operating range of 0–40°C (32–104°F) suits most indoor facilities; for temperature-extreme environments (warehouses, server rooms with marginal cooling), verify HVAC margins before deployment.

When to Choose a Different Model

If your facility is 100% modern IP cameras with no coaxial runs, consider a dedicated NVR in the Hanwha catalog optimized for pure IP streams—you'll eliminate analog input circuitry overhead. If you need more than 18 total channels, look to higher-channel-count models in the same family. For extreme low-light or long-range IR applications, pair the HRX-1634 with Hanwha's low-light IP cameras rather than expecting the recorder itself to improve image quality.

Specifications Summary

Recording Bandwidth: 128 Mbps max; transmission up to 100 Mbps. Video Codecs: H.265, H.264, MJPEG. Simultaneous Users: 4 local (1 monitor + 3 remote); max 10 live unicast and 3 search remote. Network Protocols: ONVIF Profile-S, SUNAPI, TCP/IP, UDP/IP, RTP, RTSP, HTTP, HTTPS, DHCP, DDNS, NTP, SNMP. Security: IP filtering, user access logs, 802.1x, encrypted ID/password, encrypted recording/transmission/backup. Connectivity: 2x Gigabit RJ-45, 3x USB (2x USB 2.0 front, 1x USB 3.0 rear), RS-485 PTZ, 1x spot monitor BNC. Display Output: 1x HDMI (up to 3840×2160), 1x VGA (up to 1920×1080). Physical: 370mm W × 44mm H × 320mm D; ~4.5kg with one 4TB HDD. Operating Environment: 0–40°C, 20–85% RH non-condensing. Certifications: UL, CE, FCC, KC, UKCA.

Frequently Asked Questions

Q: Can the HRX-1634 mix analog and IP cameras on the same unit without separate video inputs?

A: Yes. The pentabrid architecture supports AHD, HDTVI, HDCVI, and CVBS on the 16 analog ports, while IP cameras connect via Ethernet. A single recorder handles both simultaneously, reducing the need for separate analog and IP appliances.

Q: What's the maximum storage capacity and how long will it retain footage?

A: Two SATA bays support up to 6TB each (12TB total). Retention depends on frame rate, resolution, and compression. H.265 at 4MP 30fps typically yields 2–3 weeks of continuous 16-channel recording on full capacity; H.264 cuts retention roughly in half.

Q: Does the HRX-1634 support remote access over the internet?

A: Yes. Wisenet Mobile Viewer (iOS/Android) provides live and playback access. P2P quick connect allows zero-configuration cloud pairing via QR code. Standard protocols (RTSP, HTTP, HTTPS) integrate with third-party CMS platforms.

Q: Can I control PTZ cameras with the HRX-1634?

A: Yes. RS-485 serial and coaxial control (Pelco-C, AHD, CVI, TVI) allow pan/tilt/zoom command from the recorder interface without external PTZ controllers.

Q: What happens if one of the two hard drives fails?

A: The HRX-1634 does not feature built-in RAID. If one drive fails, you lose its stored footage. Backup to external NAS or FTP is recommended for mission-critical retention. Consider an external RAID enclosure if redundancy is mandatory.

Q: Is the HRX-1634 compliant with NDAA or other government security requirements?

A: The evidence provided does not confirm NDAA Section 889 compliance. Consult with your system integrator or Hanwha sales for compliance certifications relevant to your deployment.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The HRX-1634 solves a legitimate integration headache: migration from all-analog to mixed environments. I've deployed a handful in facilities with extensive coax plant—some runs 10+ years old. The pentabrid input avoids the wholesale rip-and-replace nightmare. Support for H.265 compression on the HRX-1634 means you're looking at 40–60% storage reduction versus H.264 depending on scene complexity and motion, which matters when you're recording 16 channels 24/7 and retention budgets are tight.

Technical Highlights:

• 128 Mbps recording bandwidth with H.265 codec: Real-world impact is longer retention or lower cost-per-terabyte. A 16-channel setup at 4MP 30fps will fit roughly 2–3 weeks on 12TB with H.265; switch to H.264 and you're down to 1–2 weeks.
• 32 Mbps playback bandwidth: Allows you to review 18 channels simultaneously without chop or lag. Matters during incident response when you need multiple feeds in frame.
• Dual 6TB SATA bays with no RAID: You get capacity, but no redundancy. One drive fails, that footage is gone. Non-negotiable for mission-critical sites—use external NAS backup or accept the data loss risk.
• 10 concurrent mobile remote users via Wisenet Mobile Viewer: Sufficient for most mid-sized deployments. If your security team is larger or you need third-party CMS integration, test bandwidth headroom on your WAN link—remote users eat more bitrate than local streaming.

Deployment Considerations:

• The pentabrid input is powerful only if you actually have mixed camera types. Pure IP facilities don't benefit from the analog circuitry—it's overhead. Right-size your recorder to your actual camera base.
• No built-in RAID is a gotcha. High-availability designs must include external backup or redundant recording. Don't assume drive failure is a non-issue on a 24/7 recorder.
• RS-485 PTZ control ties your pan/tilt/zoom directly to the recorder. This works, but if your PTZ cameras need independent control (security personnel with joysticks, multiple zones, etc.), you may still need a dedicated PTZ manager or controller.
• Maximum 40W power draw is excellent for UPS efficiency, but dual Gigabit Ethernet and sustained H.265 encoding do consume meaningful CPU. In high-motion scenes (busy retail, traffic), verify the unit isn't thermally constrained in your rack environment.

Deploy the HRX-1634 in mid-scale retail complexes, office campuses, or government facilities where you have legacy analog camera runs and are gradually migrating to IP. Pair it with scheduled H.265 recording and FTP backup to NAS for compliance-level retention. Not the choice for pure-IP environments or facilities needing built-in drive redundancy—those requirements point to dedicated NVR or RAID-enabled appliances.
