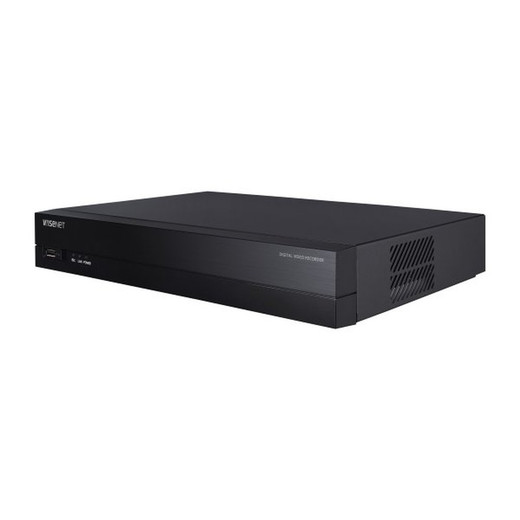

Hanwha HRX-435-4TB 8MP 4-Channel Pentabrid DVR
The HRX-435-4TB is a 4-channel pentabrid DVR engineered to bridge analog and IP camera ecosystems without forcing immediate hardware replacement. It accepts AHD, HDTVI, HDCVI, CVBS (composite), and IP inputs on the same unit—meaning you can deploy analog cameras on dedicated analog channels while gradually adding IP cameras on the network side. This matters because most facilities cannot overhaul their surveillance infrastructure overnight; the HRX-435-4TB lets you upgrade incrementally and maintain operational continuity.
Core Recording and Storage
The unit delivers 8MP resolution on analog channels with frame rates optimized for storage efficiency: 8 fps at 8MP, 12 fps at 5MP, and 15 fps at 4MP. H.265 codec support is the critical efficiency win here—it cuts storage requirements roughly 40–60% compared to H.264 depending on scene complexity, a meaningful factor when recording 24/7 across mixed camera types. The factory-installed 4TB drive handles continuous recording, and dual SATA bays let you expand to 12TB total, pushing retention windows significantly longer without external storage complexity.
Recording bandwidth maxes at 30 Mbps with 32 Mbps playback capacity, so reviewing archived footage remains responsive even under load. Triple codec support—H.265, H.264, and MJPEG—lets you tune compression per camera: use H.265 for continuous streams needing extended retention, H.264 for moderate-bandwidth needs, and MJPEG for event-based clips where decoding latency is irrelevant. This flexibility is genuinely useful in heterogeneous systems where different zones have different bandwidth budgets.
Connectivity and Monitoring
The HRX-435-4TB supports up to 4 simultaneous analog inputs plus 6 additional network cameras, giving you modest IP expansion within a compact form factor. If your facility needs 8+ IP cameras, evaluate larger pentabrid models in the same network video recorder family. Simultaneous playback handles 6 channels locally, 4 channels via mobile, and 1 channel over web—an asymmetry that prioritizes on-site review and local responsiveness while keeping remote access functional.
Dual monitor outputs (HDMI and VGA) support both control room and secondary display workflows without additional converters. Coaxial PTZ control leverages existing analog camera cabling for compatible pan-tilt-zoom devices, preserving infrastructure investments. Hanwha IP cameras integrate via native SUNAPI protocol, and third-party ONVIF-compliant devices connect without proprietary lock-in on the network side.
Four audio input channels and one audio output channel suit hybrid deployments combining video with access control, alarm monitoring, or two-way communication. Four alarm inputs and two relay outputs let you trigger external systems—door strikes, strobe lights, email alerts—based on motion or event detection. QR code P2P connectivity accelerates mobile app deployment without manual configuration overhead.
Environmental and Operational
The unit operates across standard indoor conditions (0°C to 40°C / 32°F to 104°F), making it suitable for mounting in unconditioned spaces like utility rooms or equipment cabinets with basic temperature control. AC 110–240V input voltage accommodates global facilities. Support for 4 simultaneous users (1 local, 3 remote) means facility staff, integrators, and monitoring centers can access footage concurrently without contention.
Typical applications span retail and manufacturing facilities with mixed analog and IP cameras, multi-site properties undergoing phased IP migration, transportation hubs requiring integrated audio and alarm logic, and warehouse environments where redundant analog backup feeds coexist with modern network cameras on a single recorder. The blend of analog support and IP scalability makes it a practical stepping stone for operations that cannot migrate all sensors at once.
Frequently Asked Questions
Q: Can I expand the HRX-435-4TB storage after purchase?
A: Yes. The unit ships with a 4TB factory-installed SATA drive. Dual SATA bays allow adding a second drive up to 4TB each, for a total of 12TB raw capacity. Expansion does not require factory support—you can add a second drive and configure it in the recorder's storage settings.
Q: Does the HRX-435-4TB work with non-Hanwha IP cameras?
A: Yes. The unit supports ONVIF-compliant IP cameras from any manufacturer. It also supports Hanwha SUNAPI protocol for native integration with Hanwha IP cameras. Third-party devices must comply with ONVIF Profile S or higher to ensure full compatibility.
Q: What frame rates can I achieve at different resolutions on analog channels?
A: Analog channels deliver 8 fps at 8MP, 12 fps at 5MP, and 15 fps at 4MP. IP cameras on the network side support independent frame rates determined by the camera itself and network bandwidth availability.
Q: Can I use the HRX-435-4TB to record audio from microphones?
A: Yes. The recorder has four audio input channels and one audio output channel. Connect microphones or line-level audio sources to the inputs, and configure the recorder to encode audio alongside video. Audio output can feed external speakers or alarm systems.
Q: Does the HRX-435-4TB support motion detection and alarm triggering?
A: Yes. The recorder supports motion detection on all channels (analog and IP). Four alarm input terminals can receive signals from external sensors, and two relay outputs can trigger external devices—door strikes, strobes, or email alerts—based on configured events.
Q: What is the warranty period for the HRX-435-4TB?
A: Hanwha typically provides a 3-year warranty on its DVR/NVR products. Confirm the exact coverage with your supplier or distributor, as warranty terms may vary by region or sales channel.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HRX-435-4TB hits a real operational sweet spot for facilities trapped between legacy analog and modern IP. H.265 compression at 40–60% efficiency versus H.264 directly translates to fewer drive replacements and longer retention windows on a fixed storage budget—meaningful when you're running 24/7 across 10 mixed sensors. The pentabrid architecture isn't a gimmick; it's a pragmatic answer to the fact that most warehouses, retail chains, and industrial sites cannot rip-and-replace all cameras at once.
Technical Highlights:
- H.265 Compression: 40–60% storage reduction versus H.264 on identical scenes—directly extends retention or reduces drive count on the 4TB–12TB storage envelope.
- Analog + IP on One Unit: 4 AHD/HDTVI/HDCVI/CVBS channels plus 6 IP channels eliminate the need for separate analog and network recorders during migration phases.
- Frame Rate Optimization: 8 fps at 8MP, 12 fps at 5MP, and 15 fps at 4MP on analog channels allow tuning per zone—high-motion areas get 15 fps, low-motion corridors run 8 fps to conserve drive throughput.
- Dual Storage Expansion: Two SATA bays scale from 4TB to 12TB without external enclosures or network appliances—simpler cable runs, fewer power feeds.
- Audio and Alarm I/O: Four audio inputs and two relay outputs integrate access control, door strikes, and strobe logic without a separate alarm panel in smaller deployments.
Deployment Considerations:
- IP Scalability Ceiling: 6 additional IP channels is modest—works fine for phased migration or hybrid setups with 8–10 total cameras, but don't expect this to be your primary NVR if you're planning a 40-camera network. Plan a larger family member if pure IP growth is your trajectory.
- Analog Bandwidth vs. Resolution Trade: 8 fps at 8MP is acceptable for perimeter or general area coverage, but high-motion critical zones (cash handling, loading dock) may warrant dedicated 4MP cameras at 15 fps on the same recorder to balance retention with image capture rate.
- Storage Expansion Planning: Two 4TB drives give you 12TB total; if you need more, plan for external USB or network storage rather than another recorder. Budget accordingly during initial scoping.
- Coaxial PTZ Control: Existing analog cabling can drive compatible PTZ domes—check that your PTZ model supports 485 or 422 serial over coax before committing to that integration path.
The HRX-435-4TB is purpose-built for retail and warehouse environments mid-transition: you have working analog cameras, you're adding IP slowly, and you need one recorder that doesn't force immediate infrastructure overhaul. It's not a primary choice for pure-IP deployments or facilities with 20+ cameras—those need dedicated IP NVRs. But for a 50-location retail chain with mixed camera ages, or a distribution center phasing in modern sensors over 18 months, the HRX-435-4TB eliminates the cost and complexity of parallel recording systems.
