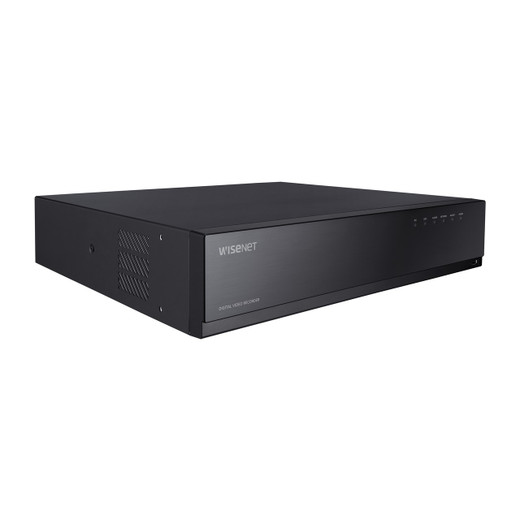

Hanwha HRX-1635-8TB 16CH Pentabrid DVR

Hanwha HRX-1635-8TB 16CH Pentabrid DVR

The Hanwha HRX-1635-8TB is a 16-channel pentabrid digital video recorder engineered for hybrid analog and IP camera deployments. This 5-in-1 platform consolidates legacy analog infrastructure with modern network camera migration, supporting AHD, HDTVI, HDCVI, CVBS, and ONVIF/SUNAPI network inputs on a single platform. Pre-configured with 8TB storage capacity, the HRX-1635-8TB scales from 16 analog channels to a maximum of 18 total channels, making it ideal for integrators and IT managers modernizing surveillance systems without complete infrastructure replacement.

Key Features

• Pentabrid Input Architecture: Native support for AHD, HDTVI, HDCVI, CVBS (NTSC/PAL), and ONVIF/SUNAPI network cameras eliminates the need for separate recorders across different camera technologies.
• 8MP Analog Capture: Records analog cameras at up to 8MP resolution at 15 fps, with flexible frame rate options at 5MP (20 fps), 4MP/2MP/1MP (30 fps), and 960H/720H (30 fps) per channel.
• H.265 Compression: Advanced H.265 codec optimization reduces bandwidth and storage consumption while maintaining image quality across multi-channel continuous recording.
• 8TB Storage Capacity: Pre-configured storage supports extended retention periods for 16-channel deployments with flexible recording profiles.
• Coaxial PTZ Control: Built-in support for coaxial control protocols enables PTZ camera integration over existing cabling infrastructure.
• Multi-Format VMS Compatibility: ONVIF support for network cameras, SUNAPI and Wisenet integration for Hanwha ecosystems, plus Wisenet Viewer and Wisenet Mobile access.
• Audio Support: Audio input capability for enhanced incident documentation and forensic review.
• NDAA & FCC Compliance: Regulatory certifications ensure suitability for sensitive deployments and U.S. federal compliance requirements.

Technical Specifications

• Resolution: 8MP analog maximum, network camera support up to 2MP with 480 fps burst capability
• Video Compression: H.265 primary codec with H.264 and MJPEG support for flexibility
• Form Factor: DVR (digital video recorder)
• Storage: 8TB pre-installed
• Connectivity: PoE compatibility for network camera integration
• Network Protocol: ONVIF, SUNAPI (Wisenet)

Applications

• Hybrid surveillance deployments transitioning from analog to IP infrastructure
• Multi-site integrations requiring consolidated recording across diverse camera types
• Retail, transportation, and industrial facilities with existing analog camera investments
• Integrator and systems integrator standardization on a single recorder platform

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The HRX-1635-8TB addresses a critical pain point in surveillance modernization: the need to support mixed-protocol environments during infrastructure transitions. The pentabrid architecture eliminates forklift upgrades, allowing organizations to deprecate analog cameras at their own pace while capturing higher resolution on new network deployments. H.265 codec efficiency is particularly valuable in 16-channel scenarios where bandwidth and storage redundancy are cost drivers.

Hanwha's ONVIF and Wisenet ecosystem support ensures vendor flexibility, while coaxial PTZ control leverages existing cabling for camera upgrades. For integrators, the standardized 16+2 channel expansion model simplifies inventory management across customer sites. The 8MP analog maximum—higher than many competitors—extends the useful life of legacy AHD/HDCVI infrastructure.

NDAA certification is essential for federal and institutional deployments. Primary consideration: pentabrid recorders require skilled configuration to optimize compression and retention profiles across mixed resolutions; basic IT support may require integrator assistance for ongoing management.
