Rack-Mount NVRs

Plan Your Deployment

Specify total recording bandwidth from aggregate camera bitrates across all channels
Select RAID level and hot-spare configuration for drive failure protection
Evaluate 1U, 2U, or 4U form factor based on drive bay count and expansion needs
Confirm rack depth, airflow clearance, and power draw for cabinet planning
Plan dual-NIC and failover for network redundancy in mission-critical recording

Showing Results for Rack-Mount NVRs

Compare

Out of stock
Hikvision

SKU: DS-96064NI-I16

Hikvision DS-96064NI-I16 64-Channel 4K NVR

64-channel 4K NVR with 32MP on channels 1-4 and 16-bay storage
- H.265+ compression cuts bandwidth and storage up to 70% vs H.264
- 16 bays support up to 10TB per drive; synchronous 16-channel playback
- Dual 4K HDMI outputs plus VGA; four Gigabit Ethernet with SFP expansion
Special Order · Ships in 2-3 weeks

$5,924.00 $4,079.99 Save $1,844.01

Add to Cart
The item has been added
Free shipping over $499

$5,924.00 $4,079.99 Save $1,844.01

Add to quote Compare
Compare

Out of stock
Hikvision

SKU: DS-9632NI-I16

Hikvision DS-9632NI-I16 32-Channel 4K NVR

32-channel 4K NVR with H.265+ compression and 160TB storage capacity
- 32 IP cameras up to 12MP each with 4K (3840×2160) output at 60Hz
- H.265+ compression reduces bandwidth to 320 Mbps in / 256 Mbps out
- 16 hot-swappable SATA bays (up to 10TB each) with RAID 0/1/5/6/10 support
Special Order · Ships in 2-3 weeks

$3,885.00 $2,674.99 Save $1,210.01

Add to Cart
The item has been added
Free shipping over $499

$3,885.00 $2,674.99 Save $1,210.01

Add to quote Compare
Compare

Out of stock
Hikvision

SKU: DS-9632NI-I8

Hikvision DS-9632NI-I8 32-Channel 4K NVR

32-channel 4K NVR with H.265+ compression and 8 SATA bays
- 32 IP cameras up to 12MP per channel with dual 4K HDMI output at 60Hz
- H.265+ codec reduces bandwidth to 320 Mbps incoming, 256 Mbps outgoing
- 8 SATA + 1 eSATA slots support up to 10TB drives with RAID 0/1/5/6/10
Special Order · Ships in 2-3 weeks

$2,093.00 $1,390.99 Save $702.01

Add to Cart
The item has been added
Free shipping over $499

$2,093.00 $1,390.99 Save $702.01

Add to quote Compare
Compare

Add to Cart The item has been added
Hikvision

SKU: DS-7732NI-M4/24P

Hikvision DS-7732NI-M4/24P 32-Channel 8K NVR with Integrated PoE

32-channel 8K NVR with 24 integrated PoE ports for large-scale surveillance
- 24 PoE++ ports deliver 95W each, powering 32 cameras without external switch
- 320 Mbps bandwidth supports mixed 4K/8K streams with H.265+ codec efficiency
- 32-channel decode at 1080p with two-way audio to 8 IP speakers included
In stock · Ships same business day

$2,064.00 $1,396.99 Save $667.01

Add to Cart
The item has been added
Free shipping over $499

$2,064.00 $1,396.99 Save $667.01

Add to cart Add to quote Compare
Compare

Out of stock
ACTi

SKU: ZNR-224

ACTi ZNR-224 32-Channel 2-Bay Rackmount NVR
Special Order · Ships in 2-3 weeks

$4,603.00 $3,484.99 Save $1,118.01

Add to Cart
The item has been added
Free shipping over $499

$4,603.00 $3,484.99 Save $1,118.01

Add to quote Compare
Compare

Out of stock
ACTi

SKU: ZNR-423

ACTi ZNR-423 32-Channel 4-Bay Rackmount NVR
Special Order · Ships in 2-3 weeks

$2,080.00 $1,574.99 Save $505.01

Add to Cart
The item has been added
Free shipping over $499

$2,080.00 $1,574.99 Save $505.01

Add to quote Compare
Compare

Out of stock
ACTi

SKU: ZNR-425

ACTi ZNR-425 32-Channel Rackmount NVR
Special Order · Ships in 2-3 weeks

$2,080.00 $1,574.99 Save $505.01

Add to Cart
The item has been added
Free shipping over $499

$2,080.00 $1,574.99 Save $505.01

Add to quote Compare
Compare

Out of stock
Axis

SKU: 02541-001

Axis S1264 144TB Rack Recording Server - 02541-001

144TB rack server with 64 camera licenses for enterprise surveillance
Special Order · Ships in 2-3 weeks

$24,132.99

Add to Cart
The item has been added
Free shipping over $499

$24,132.99

Add to quote Compare
Compare

Out of stock
Axis

SKU: 02539-001

Axis S1264 24TB Rack Recording Server - 02539-001

24TB rack server for 64-camera surveillance networks
Special Order · Ships in 2-3 weeks

$17,539.00 $17,012.99 Save $526.01

Add to Cart
The item has been added
Free shipping over $499

$17,539.00 $17,012.99 Save $526.01

Add to quote Compare
Compare

Add to Cart The item has been added
Axis

SKU: 02810-004

Axis S2224 Mk II 24-Channel Camera Station Rack - 02810-004

24-channel rack appliance with integrated PoE switch and 12TB storage
- 24 concurrent video streams with Axis Camera Station Pro licensing included
- Managed 24-port PoE switch eliminates separate network infrastructure
- 12TB onboard + 2 expansion bays scale to 24TB; RAID 0/1/5/10 redundancy
In stock · Ships same business day

$5,709.00 $5,537.99 Save $171.01

Add to Cart
The item has been added
Free shipping over $499

$5,709.00 $5,537.99 Save $171.01

Add to cart Add to quote Compare
Compare

Out of stock
Digital Watchdog

SKU: DW-BJAIHDX5132T

Digital Watchdog DW-BJAIHDX5132T Blackjack AI Switch
Special Order · Ships in 2-3 weeks

$10,757.00 $7,870.99 Save $2,886.01

Add to Cart
The item has been added
Free shipping over $499

$10,757.00 $7,870.99 Save $2,886.01

Add to quote Compare
Compare

Out of stock
Digital Watchdog

SKU: DW-BJRR2Y520T

Digital Watchdog DW-BJRR2Y520T Blackjack Rack 2U
Special Order · Ships in 2-3 weeks

$129,626.00 $94,848.99 Save $34,777.01

Add to Cart
The item has been added
Free shipping over $499

$129,626.00 $94,848.99 Save $34,777.01

Add to quote Compare
Compare

Out of stock
Digital Watchdog

SKU: DW-VG41610T16P

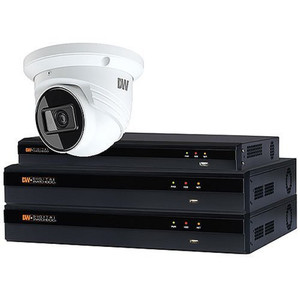

Digital Watchdog DW-VG41610T16P Advanced Linux-Based NVR
Special Order · Ships in 2-3 weeks

$3,009.00 $2,201.99 Save $807.01

Add to Cart
The item has been added
Free shipping over $499

$3,009.00 $2,201.99 Save $807.01

Add to quote Compare
Compare

Out of stock
Digital Watchdog

SKU: DW-VG41612T16P

Digital Watchdog DW-VG41612T16P Advanced Linux-Based NVR
Special Order · Ships in 2-3 weeks

$3,188.00 $2,332.99 Save $855.01

Add to Cart
The item has been added
Free shipping over $499

$3,188.00 $2,332.99 Save $855.01

Add to quote Compare
Compare

Out of stock
Digital Watchdog

SKU: DW-VG41616T16P

Digital Watchdog DW-VG41616T16P Advanced Linux NVR
Special Order · Ships in 2-3 weeks

$3,684.00 $2,695.99 Save $988.01

Add to Cart
The item has been added
Free shipping over $499

$3,684.00 $2,695.99 Save $988.01

Add to quote Compare
Compare

Out of stock
Digital Watchdog

SKU: DW-VG41620T16P

Digital Watchdog DW-VG41620T16P Advanced Linux NVR
$4,774.00 $3,493.99 Save $1,280.01

Add To Quote
Free shipping over $499

$4,774.00 $3,493.99 Save $1,280.01

Add to quote Compare

What to Look For When Buying

The decisions that matter most before you spec.

Throughput & Storage Reality Check

Rated camera counts don't guarantee usable performance. Most NVRs fail at their rated channel count because bitrate, codec, and storage write-speed constraints kick in first. Calculate actual bitrate per camera, factor motion-heavy periods, and stress-test before committing to scale.

RAID & Redundancy for 24/7 Operations

Enterprise deployments demand RAID 5 or 6, hot-swap drive bays, and redundant power supplies. Surveillance systems often fail exactly when you need them most — usually at the storage layer. Verify drive mean-time-to-recovery (MTTR) and PSU failover specs before purchase.

Network Backbone & Core Collapse Risk

Rack-mount NVRs pull massive sustained bitstream from the network. Networks collapse at the core when gigabit uplinks become the bottleneck. Plan for redundant 10GbE or teamed 1GbE uplinks, and validate switch fabric throughput—not port count.

Retention Math & Storage Sizing

Retention calculations fail when motion-based bitrate and codec overhead are underestimated. Model worst-case scenarios: all cameras recording at peak quality during peak hours. Undersizing storage by 30% is the industry norm—pad your calculations.

Vendor Ecosystem & Integration Depth

Leading brands like Hikvision, Hanwha, and Axis offer different API maturity, third-party integration breadth, and long-term support pipelines. Verify VMS compatibility, ONVIF compliance, and migration paths before standardizing on a platform.

Thermal & Power Density in Compact Spaces

Rack-mount appliances generate significant heat and power draw. Ensure your data center has adequate cooling capacity, PDU availability, and UPS runtime for graceful shutdown during outages. Verify MTBF ratings and check if warranty covers thermal stress scenarios.

Technology Stack

The specs and acronyms that actually affect rack-mount nvrs performance.

RAID Levels (5, 6, 10)

RAID 5 stripes data across drives with one parity block—good for < 8-drive arrays. RAID 6 uses dual parity and is safer for large capacity drives (6TB+) where rebuild time and URE (unrecoverable read error) risk spike. RAID 10 mirrors + stripes—pricey but fastest recovery.

Hot-Swap Drive Bays

Allows you to pull and replace failed drives without powering down the NVR. Critical for 24/7 operations where downtime costs money. Verify the system auto-detects new drives and auto-rebuilds RAID without operator intervention.

Redundant Power Supplies (RPS)

Two independent PSUs connected to separate electrical circuits. If one PSU fails, the second keeps the system running. Essential for mission-critical surveillance; verify wattage headroom for GPU or transcoding loads, not just baseline.

GPU Acceleration & Transcoding

Dedicated graphics processor offloads real-time video codec conversion (H.264 → H.265, multi-bitrate streaming) from the CPU. Prevents bottlenecks when serving remote clients or running AI analytics on 100+ streams simultaneously.

Gigabit vs. 10 Gigabit Networking

Single gigabit (1 GbE) ports max out around 90–110 Mbps sustained throughput per link. High-channel-count racks need 10GbE uplinks or teamed 1GbE bonds to avoid network saturation during peak recording periods.

Mean Time Between Failure (MTBF) & Warranty

Industry-standard MTBF for rack NVRs ranges 50,000–100,000 hours. Pair this with multi-year hardware warranty and support SLAs. Verify whether warranty covers thermal stress, power anomalies, and extended parts availability—critical for systems expected to run 7+ years.

Typical Deployment Scenarios

Multi-Building Corporate Campus (200 Cameras)

Deploy a Hanwha or Hikvision 4U rack NVR (256-channel capable) in the main data center with 10GbE uplinks. Pair with IP cameras distributed across 8 buildings, use edge NVRs for failover per building. Plan 90 days rolling retention at 4 Mbps average bitrate (~4.3 TB/day per building). Ensure RAID 6 for redundancy and 48-hour MTTR window.

24/7 Airport/Transit Hub (80 Cameras, 90-Day Retention)

Install a 2U or 4U rack NVR with hot-swap drive bays in secure network closet. Size storage for 90 days at 8 Mbps per camera (64 TB+ raw). Use bitrate and motion modeling to avoid undersizing. Implement redundant power (UPS + generator), teamed gigabit uplinks, and RAID 5/6 with spare drive slots pre-installed.

Gaming/Entertainment Venue (120 Cameras, Live Analytics)

GPU-accelerated rack NVR handles real-time H.264/H.265 transcoding and object detection across 120 channels. Use Axis or Speco models with NVIDIA CUDA support. Plan for 14-day retention at high quality (10+ Mbps) plus 60 days low-quality archive. Dual PSUs and redundant 10GbE uplinks non-negotiable due to live event demand.

School District Multi-Campus Deployment (300+ Cameras)

Federated approach: one 4U master rack NVR in district operations center, smaller 1U–2U appliances at each school building. School deployments require synchronized retention, remote management, and off-site backup. Choose i-PRO or Vivotek for native remote replication. Verify bandwidth budgeting across WAN links and failover behavior during connectivity loss.

Frequently Asked Questions

What's the difference between 1U, 2U, and 4U rack-mount NVRs?

Form factor determines physical height, drive bay count, and power budget. 1U = 1.75 inches tall, typically 2–4 drive bays, 8–32 channels. 2U = 3.5 inches, 4–8 bays, 16–64 channels. 4U = 7 inches, 8–16+ bays, 64–256+ channels. Choose based on channel count, retention duration, and available rack space. Larger units allow faster storage, cooler operation, and easier hot-swap workflows.

How do I calculate storage size for my deployment?

Use this formula: (Number of Cameras × Bitrate in Mbps × Retention Days × 86400 seconds) ÷ 8 = Storage in GB. Example: 64 cameras × 4 Mbps × 30 days ÷ 8 = 960 GB (≈1 TB). Add 30% overhead for motion-heavy periods, codec overhead, and RAID parity. Most deployments underestimate bitrate and storage by 30–50%—test your actual cameras before committing.

Do I need RAID 5 or RAID 6 for enterprise surveillance?

For small arrays (< 6 drives) and short rebuild windows, RAID 5 is acceptable. For large-capacity drives (8TB+) and 24/7 continuous write loads, RAID 6 is safer—it tolerates two simultaneous drive failures and reduces URE (unrecoverable read error) risk during rebuild. If uptime is critical, RAID 6 is the standard. Verify your NVR can hot-swap drives without stopping recording.

What network bandwidth do rack-mount NVRs typically require?

At peak load, expect 90–110 Mbps per gigabit (1 GbE) link sustained. For systems with 32+ channels at 4+ Mbps per camera, a single gigabit uplink will saturate. Upgrade to 10 Gigabit Ethernet or team two 1 GbE bonds to avoid core network collapse. Test your actual camera bitrate + VMS client traffic before finalizing uplinks.

Can a rack-mount NVR really handle its rated camera count?

Rarely at full quality or frame rate. Most appliances fail well below rated specifications due to storage write-speed limits, CPU transcoding bottlenecks, or codec overhead. Always de-rate by 20–40% and conduct load testing with your actual camera models and bitrate settings. Verify that the NVR can sustain peak bitrate for 24+ hours without frame drops or dropped connections.

What happens if the NVR's primary drive or power supply fails?

With RAID and redundant PSUs, the NVR keeps recording on the surviving drive(s) while the failed PSU is isolated. Hot-swap drive bays let you replace the bad drive without powering down. Ensure you have spare drives and PSUs on-site or on contract with 4-hour parts delivery. Without RAID, a single drive failure means total data loss—never deploy non-RAID systems in production.
