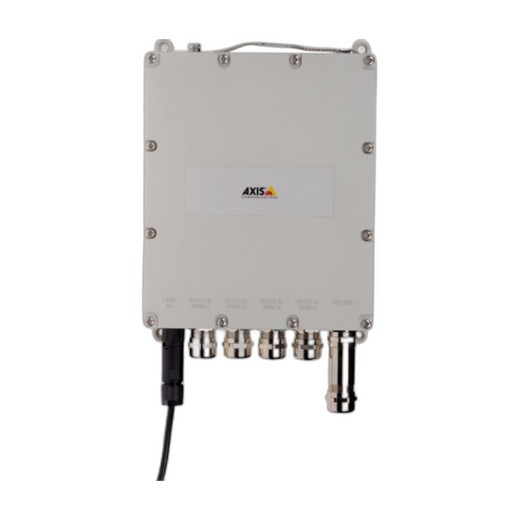

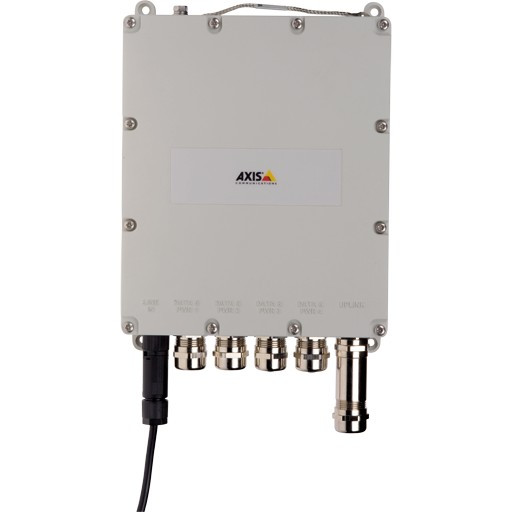

Axis 01449-001 4-Port Outdoor PoE+ Managed Switch
The Axis 01449-001 (T8504-E) is a hardened network switch purpose-built for outdoor surveillance and access control deployments where standard managed switches fall short. Four Gigabit PoE+ ports deliver power and data to IP cameras, controllers, and other networked devices in extreme climates, while a dedicated SFP uplink enables fiber backbone connectivity for distributed camera sites. Enterprise-grade management features—VLAN segmentation, SNMP monitoring, RADIUS authentication—integrate seamlessly into larger surveillance architectures.
Key Features
- Asymmetric PoE+ Power Budget: Ports 1–2 deliver up to 60W each (IEEE 802.3at Type 2 Class 4), while ports 3–4 provide 30W each, totaling 150W. This architecture lets you power two high-draw PTZ or thermal cameras simultaneously without external injectors—a significant cost and complexity reduction on mid-scale outdoor deployments.
- 10 Gbps Switching Capacity with 7.44 Mpps Throughput: Handles four simultaneous 1 Gbps streams without bottlenecking, plus an 8,000-entry MAC table. Overkill for four cameras, but essential if you're daisy-chaining additional switches or running mixed surveillance and operational traffic on the same backbone.
- Extreme Temperature & Surge Hardening: Operating range of -40°C to 50°C (−40°F to 122°F) with 90% humidity condensing environments means no seasonal downtime in arctic or desert sites. 6kV surge protection on all four network ports and AC input protects against lightning transients—critical in open parking lots and building perimeters where direct strikes aren't rare.
- SFP Fiber Uplink Port: Single-mode or multi-mode fiber connection eliminates Ethernet distance limits (100m max on copper RJ45) and adds electrical isolation—valuable when cameras sit hundreds of meters from the control room or when ground potential differences cause hum in analog systems.
- VLAN and Network Segmentation: 802.1Q VLAN support isolates camera traffic from operational networks, reducing broadcast storms and enforcing firewall policies. SNMP v1/v2c/v3 monitoring and RADIUS/TACACS authentication integrate with enterprise identity and network management systems—non-negotiable for installations audited under PCI or HIPAA frameworks.
- Jumbo Frames (10 KB) and IPv6 Support: Jumbo frames reduce CPU overhead on recording servers when handling high-bitrate video streams. IPv6 readiness future-proofs the installation as enterprises migrate away from IPv4-only infrastructure.
- Compact Aluminum Enclosure: 240 × 166 × 72 mm and 2.9 kg fits standard DIN-rail mounts or pedestal installations. PVC-free casing and full compliance with EN 55032/55024 (EMC), IEC 60950-1, and EN 62368-1 simplifies customs clearance in regulated markets.
Deployment Considerations
The 01449-001 excels in outdoor perimeter and parking installations where four cameras or access points need centralized power delivery and network redundancy. Pair it with managed network switches in the same Axis family for cascaded deployments, or use the fiber uplink to bridge to an indoor switching infrastructure. AXIS Device Manager integration allows remote firmware updates and centralized configuration across multiple outdoor switches—especially valuable for enterprise estates with dozens of distributed sites.
The 60W/30W asymmetric design means you cannot power four 40W cameras from a single unit; plan accordingly or cascade a second switch via the uplink. The 150W AC-to-DC power supply is included but requires 100–240V 50/60 Hz mains access—outdoor installations typically demand weatherproof AC distribution or a nearby UPS.
Integration & Compatibility
Supports AXIS Camera Station, Milestone Xprotect, and any ONVIF-compliant video management software via standard SNMP traps and syslog reporting. RADIUS and TACACS authentication ensure switch access logs integrate with centralized identity platforms. Upstream connectivity via 1 Gbps Ethernet or single/multi-mode fiber SFP.
What's in the Box
- Axis T8504-E Switch
- Power connector
- Installation guide
- 5-year warranty documentation
Frequently Asked Questions
Q: Can the Axis 01449-001 power four 40W PTZ cameras at once?
A: No. Ports 1–2 support up to 60W each, but ports 3–4 are limited to 30W each. You can run two 40W cameras on ports 1–2 and two lower-power devices (thermal, fixed box cameras, or access readers drawing under 30W) on ports 3–4. If all four loads exceed 30W, cascade a second switch via the SFP uplink or add an external PoE injector to a spare port.
Q: Does the 01449-001 support VLAN tagging for traffic segregation?
A: Yes. The switch supports 802.1Q VLAN tagging, allowing you to isolate camera streams from management traffic or operational networks. This is essential in environments where surveillance and OT/IT networks share the same backbone.
Q: What's the maximum cable distance on the Ethernet ports?
A: Standard RJ45 Gigabit Ethernet is limited to 100 meters (328 feet). Beyond that, use the SFP fiber uplink with single-mode fiber for distances up to several kilometers without signal degradation.
Q: Is the 01449-001 NDAA Section 889 compliant?
A: No U.S. Government restrictions documentation is listed in the source evidence. Contact the manufacturer or your integrator for NDAA compliance certification if this is a procurement requirement.
Q: What happens if the AC power supply fails?
A: The switch will power down. To maintain uptime during mains outages, install the AC supply on a UPS, or use a battery-backed outdoor enclosure rated for your climate and power draw (150W).
Q: Can I monitor the 01449-001 remotely via SNMP?
A: Yes. The switch supports SNMP v1/v2c/v3, allowing you to query port status, power consumption, temperature, and error counters from any SNMP-capable monitoring platform. AXIS Device Manager provides a more user-friendly dashboard for firmware and configuration updates across multiple units.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01449-001 is engineered for outdoor environments where standard managed switches fail. Its dual-power-class design (60W + 30W) accommodates both high-draw thermal and PTZ camera loads simultaneously, while the 150W power budget eliminates the need for external PoE injectors in most mid-scale deployments. The combination of -40°C to 50°C operation and 6kV surge protection on all ports ensures uptime in harsh climates and electrical transient events—common failure modes in parking lot and perimeter installations.
Technical Highlights:
- 10 Gbps Switching Fabric & 7.44 Mpps Throughput: Handles simultaneous 1 Gbps streams from all four cameras without latency or packet loss. The 8,000-entry MAC table supports larger site topologies if you daisy-chain additional switches via the SFP uplink.
- VLAN and QoS Support: 802.1Q segmentation isolates surveillance traffic from operational networks, reducing broadcast storms and enforcing policy-based access control. SNMP v1/v2c/v3 monitoring integrates with enterprise SIEM and asset management systems.
- SFP Fiber Uplink: Single or multi-mode fiber connectivity eliminates 100m copper distance limits and adds electrical isolation—critical for sites where long cable runs or ground potential differences cause hum or data corruption.
Deployment Considerations:
- The asymmetric 60W/30W design means you cannot load-balance four identical 40W cameras equally; plan your device assignment carefully or cascade a second switch.
- The included 150W AC-to-DC supply requires 100–240V mains access and is not battery-backed. Install on a UPS or use an outdoor battery enclosure for critical sites where mains power is unreliable.
- AXIS Device Manager integration simplifies centralized firmware and configuration updates across dozens of distributed switches—essential for large estates with multiple outdoor perimeter sites.
The 01449-001 is the right pick for outdoor parking lots, building perimeters, and transit hubs where you need to power and segment 4 cameras or access controllers in a single hardened package. Skip this if you have fewer than 4 devices and space allows a smaller 2-port variant, or if your site requires fiber-only connectivity (no copper Ethernet).
