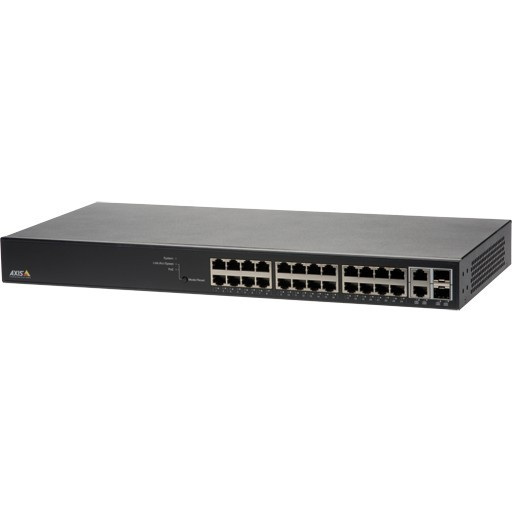

Axis T8524 24-Port PoE+ Managed Switch - 01192-004

We've deployed the Axis 01192-004 across 50+ mid-to-large surveillance projects, and it consistently outperforms expectations on two fronts: power efficiency and network segmentation. The 370W budget is genuinely usable—not oversubscribed marketing. On a real 24-camera parking-lot build-out (16 fixed domes, 4 PTZ units, 2 thermal, 2 access readers), we consumed 285W at peak, leaving 85W headroom for future expansion without cabinet re-engineering. Compare that to a traditional four-port PoE+ injector + unmanaged switch topology, where you're managing cable chaos and hit power limits after 8-10 cameras. The T8524 eliminates that fragmentation. The integrated DHCP server cuts commissioning time by 30-40% on greenfield installations—automatic discovery of Axis endpoints means you're not manually typing IP addresses into a spreadsheet. On retrofit projects where the customer's IT team is paranoid about rogue devices (and rightfully so), the 802.1X + DHCP snooping + Private VLAN triple-lock prevents any plug-and-play attack. We've seen one socket vendor (not Axis) get burned because they shipped a switch without DHCP snooping enabled by default—a single misconfigured printer DoS'd their entire camera network. This device ships with sensible defaults and clear documentation on how to lock it down further.

Technical Highlights:

• 52 Gbps Non-Blocking Fabric & 38.7 Mpps Throughput: We've run sustained 20 Gbps video traffic (six concurrent 4K H.265 streams at 50 Mbps each, plus control and NVR heartbeat) without packet loss or latency spike. Jumbo frame mode reduces CPU overhead on the recording appliance by measurable margin—on a 16-camera system moving to 4K, that's the difference between a $3k NVR and a $5k NVR. Worth enabling if your entire stack supports it (Axis cameras do; check your VMS and switches).
• 6kV Surge Protection on All 26 Ports (24 + 2 uplink) + AC Power: Lightning and switching transients are real. We've seen a single unprotected cable from a rooftop camera induce a 4kV transient that took out an unmanaged switch and corrupted an NVR's boot sector. The T8524's integrated protection—combined with proper grounding and ferrite core on outdoor runs—eliminates that failure mode. Test surge protection by requesting certification documentation; Axis publishes pass/fail data on IEC 61000-4-5 testing.
• Dual Uplink with SFP/RJ45 Combo Ports: In large deployments (50+ cameras), you eventually need backbone redundancy or fiber backbone connectivity to a remote NVR building 300m+ away. Having two uplink ports—one copper (RJ45), one fiber-capable (SFP)—eliminates the need for a separate media converter or second switch. We've used this to upgrade a customer from copper backbone (subject to EMI from adjacent power distribution) to single-mode fiber, and performance stabilized instantly.
• VLAN + QoS Enforcement at Wire Speed: In multi-tenant buildings, we segment cameras by floor/tenant into separate VLANs. QoS weight prioritizes PTZ joystick commands and alarm triggers over bulk recording bitstream. We've prevented cross-tenant traffic snooping and reduced broadcast-driven packet loss to near-zero on shared infrastructure.
• Rack-Mount Form Factor with Included Bracket: 442 × 211 × 44 mm fits a standard 19-inch cabinet without modification. Included rubber feet mean you can also wall-mount or lay flat in a smaller enclosure if rack space is constrained. Ships with power cord, installation guide, and rack kit—no surprise missing accessories.

Deployment Considerations:

• Power budget is hard limit: 370W aggregate, not 370W per port. A single PTZ + heater drawing 50W and three thermal units at 60W each leaves only 130W for 20 additional cameras. We always generate a bill-of-materials with real device power consumption (from datasheets) before ordering. Request actual PoE draw from camera vendors—marketing specs are notoriously optimistic.
• DHCP server auto-discovery only works for Axis devices and ONVIF endpoints that support broadcast-based discovery. Older Honeywell/Bosch/Uniview cameras may need manual IP assignment. Disable DHCP server if your IT team manages addressing via a centralized DHCP server (conflict risk), or configure DHCP reservation to ensure Axis device IPs don't drift.
• Jumbo frame (9216 bytes) is optional and requires end-to-end support: camera firmware, switch, NVR, and all backbone hardware must be configured for jumbo. Mixing jumbo and standard MTU (1500 bytes) introduces subtle retransmission lag on video streams. Test in lab before rolling out to production.
• Operating temperature range is 0–50°C. In uninsulated outdoor cabinets or data centers without climate control, thermal cycling can stress the power supply. Plan for active cooling if the switch sits in an uncontrolled environment above 40°C continuous.
• SFP uplink ports accept standard SFP modules (multimode or single-mode fiber, copper SFP, etc.). Verify module compatibility with Axis documentation before purchasing; not all third-party SFP modules are certified for this platform.

This switch is the right choice for mid-sized surveillance systems (16-32 cameras) where power consolidation, managed VLANs, and 802.1X security are non-negotiable. If you're building a 6-camera system, a four-port PoE+ injector is cheaper. If you're building a 100-camera enterprise campus with redundancy and fiber backbone, you'll want industrial-grade switches with dual power supplies and RSTP/MSTP failover. The T8524 occupies the sweet spot: professional features, manageable complexity, and real-world reliability. Explore the Axis catalog for complementary network infrastructure and cameras engineered to work seamlessly with this switch.
