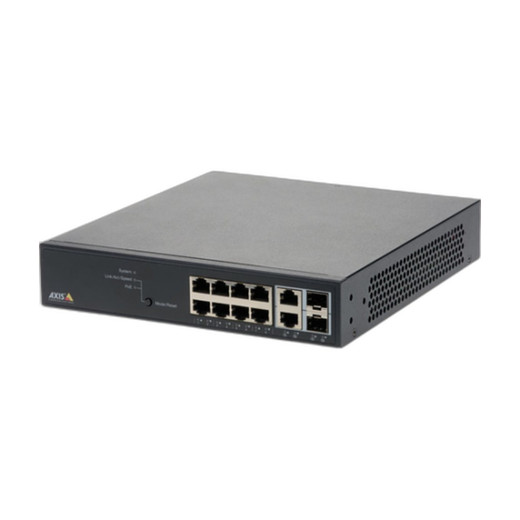

Axis 01191-004 8-Port PoE+ Gigabit Network Switch
The Axis 01191-004 (model T8508) is a managed network switch purpose-built for IP security networks where reliable power delivery and device control matter. Eight PoE+ ports supply up to 30W each with a 130W total power budget—enough to feed eight high-draw devices like PTZ cameras, dual-sensor units, or access controllers without auxiliary power infrastructure. This is a wired, indoor switch designed for integrators and enterprise IT architects who need to separate surveillance traffic from general corporate networks and enforce device-level authentication.
Key Features
- 8 PoE+ Ports (IEEE 802.3at Type 2 Class 4): Each port delivers up to 30W, eliminating the need for separate power supplies on security cameras and edge devices. The 130W shared budget means you can run eight 15W fixed cameras, four PTZ units at 25W each, or any combination that doesn't exceed the cap. This directly reduces cable runs, conduit costs, and electrical labor on retrofit installations.
- Dual Combo Uplink Ports (SFP/RJ45): Each combo port accepts either a fiber SFP transceiver or standard Gigabit RJ45, eliminating the need to buy separate fiber and copper switches. Use fiber to span longer distances (campus deployments, multi-building facilities) or standard copper for short runs to an upstream core switch. No lock-in to a single transport medium.
- 20 Gbps Switching Capacity, 14.9 Mpps Throughput: Aggregate bandwidth of 20 Gbps and line-rate packet forwarding at 14.9 million packets per second keeps latency negligible across eight simultaneous 1 Gbps flows. Real benefit: you can push multiple high-bitrate video streams (4K, lower-compression codecs) without queueing or packet loss on the backplane.
- VLAN and IEEE 802.1X Access Control: Isolate camera traffic from IT networks using Private VLANs, preventing surveillance data from crossing into corporate servers. 802.1X enforcement means only authenticated devices get network access—locks out rogue cameras or unauthorized edge hardware before they touch the wire.
- Built-in DHCP Server, LLDP-MED Support: Assign IP addresses and device configurations directly from the switch without depending on a separate DHCP server. LLDP-MED auto-detects powered devices and negotiates power requirements, reducing manual provisioning overhead. Particularly useful in decentralized or temporary deployments.
- Industrial Metal Chassis, 6kV Surge Protection: All-metal enclosure withstands 6kV transient surges on network and AC ports—protects against lightning, electrical faults, or utility spikes. Operates 0–50°C indoors, handling warehouse, parking structure, and utility room environments without climate control.
- AXIS Device Manager Integration: Centralized management across multiple switches via Axis's Device Manager software. Provision VLANs, QoS policies, and firmware updates from one console. Scales from a single site to enterprise multi-location deployments without per-device manual configuration.
- Comprehensive Protocol Suite: Supports IPv4/IPv6, SNMP v1/v2c/v3 for monitoring, SSH for secure management, STP/RSTP/MSTP for loop prevention, and NTP for time synchronization across distributed sites. Enterprise-grade networking without proprietary extensions.
When to Choose This Model
Select the 01191-004 if you're deploying 6–12 high-power security cameras or access controllers in a single location or small cluster, need fiber uplink capability without buying a second switch, and require managed switching (VLANs, 802.1X, QoS). The 130W power budget is practical: enough for a mix of PTZ, multi-sensor, and fixed cameras. If you have only 2–4 cameras and no requirement for network isolation or device authentication, an unmanaged PoE switch will be simpler and cheaper. If you need 16+ PoE ports, look to higher-port-count models in the Axis family.
Integration and Compatibility
The T8508 works with any IP camera or edge device supporting PoE+ (802.3at) or standard PoE (802.3af). Dual combo uplinks accept industry-standard SFP transceivers—no proprietary fiber modules required. AXIS Device Manager provides native integration with Axis IP cameras for streamlined discovery and configuration. SNMP v3 and HTTPS management allow integration with third-party monitoring and IT orchestration platforms (Nagios, Zabbix, Splunk). LLDP-MED works with any LLDP-capable device for auto-negotiation of power draw and VLAN assignment.
What's in the Box

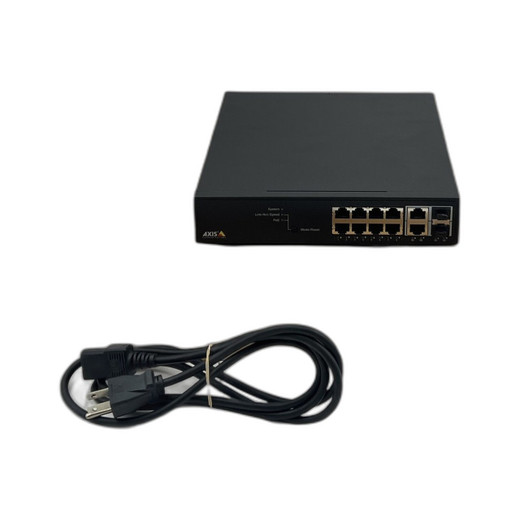

Installation guide, drill template, power cord, four rubber feet. Optional AXIS T85 Rack Mount Kit (sold separately) for 19-inch rack installations. Includes 5-year warranty from manufacturer.
Frequently Asked Questions
Q: Can I run eight 30W PTZ cameras on the T8508's 130W budget?
A: No. Eight devices at 30W each equals 240W, which exceeds the 130W power budget. You can run four PTZ cameras at 30W (120W) plus one backup device, or mix fixed cameras (5–12W) with PTZ. Check manufacturer specs for each device's actual power draw under typical operation.
Q: Does the 01191-004 support fiber uplinks, or do I need a separate switch?
A: Yes, both combo uplink ports accept SFP fiber transceivers. You don't need a separate switch. Use one combo port for fiber (long distance) and the other for RJ45 copper (short distance to a core switch), or use both for redundant fiber links.
Q: How do I isolate camera traffic from corporate IT networks?
A: Configure Private VLANs on the T8508 to place camera traffic in a separate broadcast domain. Use IEEE 802.1X to enforce device authentication before any camera or controller gets network access. AXIS Device Manager simplifies VLAN provisioning across the switch.
Q: What's the difference between PoE and PoE+?
A: Standard PoE (802.3af) delivers up to 15.4W. PoE+ (802.3at Type 2 Class 4) delivers up to 30W per port. High-power devices—PTZ cameras, multi-sensor units, access controllers, some NVRs—require PoE+. The T8508 provides PoE+ on all eight ports.
Q: Does it work with AXIS Device Manager?
A: Yes. The T8508 integrates directly with AXIS Device Manager for centralized configuration, firmware updates, and monitoring across multiple switches and sites.
Q: What temperature range does the T8508 handle?
A: Operating range is 0–50°C (32–122°F) indoors. Not rated for outdoor exposure, direct sunlight, or freezing environments. For outdoor edge switches, consider hardened outdoor-rated models from the Axis catalog.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 01191-004 is a mid-tier managed switch that does real work in surveillance and access-control networks. The 130W PoE+ budget is honest: it's not a typo or marketing math. You get eight ports at 30W each, but the combined limit forces realistic device pairing. This pushes integrators toward actual load planning instead of over-provisioning. The dual combo uplinks eliminate infrastructure sprawl—fiber to a remote building, copper to your core, same switch, no second purchase.
Technical Highlights:
- 20 Gbps Switching Fabric, 14.9 Mpps Throughput: Full-duplex on all ports means simultaneous traffic flows don't compete. Eight cameras pushing 1080p at 8 Mbps each (64 Mbps total) or a single 4K camera at 40 Mbps crosses the switch with zero congestion. The 8K MAC address table handles large, complex topologies without address-table exhaustion.
- IEEE 802.1X + DHCP Snooping + ACL: Not marketing fluff. 802.1X refuses unauthenticated devices network access before they even get a DHCP lease. DHCP Snooping prevents rogue servers from handing out bad gateway addresses. ACLs block traffic by port, IP subnet, or protocol. Together, they stop unauthorized hardware from infiltrating the video network.
- LLDP-MED Auto-Negotiation: The switch discovers a connected camera's power requirements and automatically assigns it to the correct power class. Saves a troubleshooting call when someone plugs in a 25W PTZ expecting standard PoE to work.
- 6kV Surge Protection, Metal Chassis: Lightning strikes utility lines, utility trucks hit conduit, or a wet intern touches a power rail. All-metal enclosure + 6kV suppression on both AC and network ports keeps the switch operational. Industrial temperature range (0–50°C) means unheated warehouses, parking garages, and outdoor utility cabinets don't kill it.
Deployment Considerations:
- Power Budget Discipline: Sixteen 15W cameras will overshoot 130W. Know your device specs before plugging. Use a spreadsheet or the Axis Device Manager power calculator to avoid disappointment during commissioning.
- Indoor Only: This is an indoor switch. Don't mount it outside without an enclosure. Temperature limit is 0–50°C; freezing warehouse docks or sun-baked utility boxes will exceed the upper bound in summer.
- Uplink Redundancy: The two combo ports are independent; use both for dual-path fiber or paired fiber + copper links if your network topology demands high availability. Single-port uplinks remain a single point of failure.
The T8508 (01191-004) is the right fit for warehouse automation sites, multi-building corporate campuses, and integrations where you must separate surveillance VLANs from IT networks and enforce device authentication. It's not overkill for 8–10 cameras, nor is it undersized for that scale.
