Altronix NETWAYSP8WPX2 8-Port Gigabit PoE Switch
Overview
The Altronix NETWAYSP8WPX2 is a hardened, outdoor-rated managed PoE switch designed for security and networked infrastructure deployments requiring extended cable runs and high-power endpoint support. Built around 8 copper 10/100/1000 Gigabit Ethernet ports and dual 1G fiber optic SFP uplinks, the NETWAYSP8WPX2 operates within a NEMA 4/4X, IP66-rated stainless steel enclosure suitable for direct outdoor mounting. The unit integrates a 240W internal power supply and optional battery charger board with LiFePO4 support, delivering configurable 2×60W Hi-PoE output capacity to support high-inrush security cameras, access control readers, and wireless access points over standard copper runs.
Key Features
- 8 × 10/100/1000 Gigabit Ethernet Ports: Full-duplex copper connectivity with automatic speed negotiation for seamless integration with legacy and modern IP endpoints.
- Dual 1G SFP Fiber Optic Uplinks: Industry-standard SFP slots enable long-distance backbone connectivity and electromagnetic interference isolation in high-RF or industrial environments.
- 2× 60W Hi-PoE Output: Configurable per-port power delivery up to 60W per pair, exceeding 802.3bt Type 3 (90W) aggregate capacity for demanding midspan or integrated endpoint applications.
- 240W Internal Power Supply: Hardened, industrial-rated PSU with integrated surge protection and thermal management for continuous outdoor duty cycles.
- LiFePO4 Battery Charger Integration: Onboard UPS charging board accepts plug-in lithium iron phosphate battery modules for extended downtime protection without external UPS hardware.

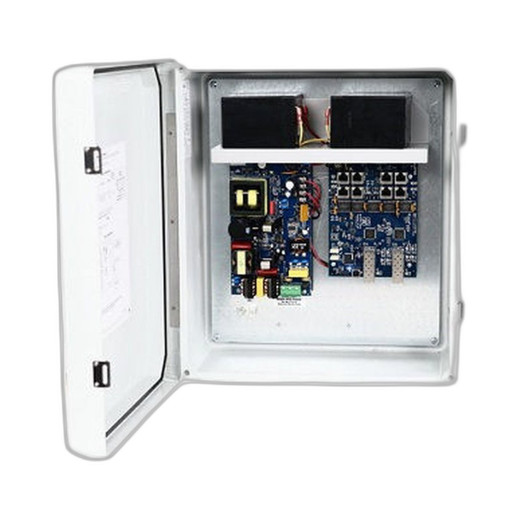

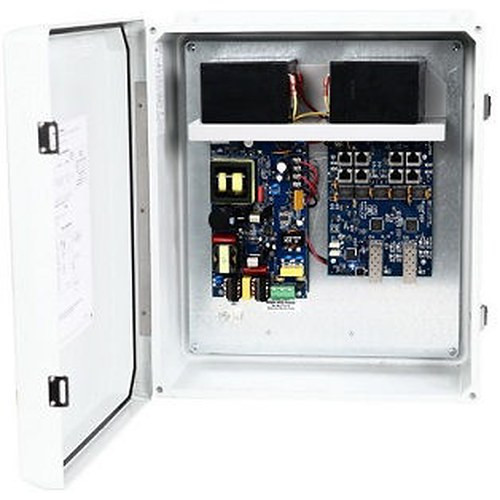

- IP66 / NEMA 4X Outdoor Enclosure: Stainless steel construction rated for direct environmental exposure; cable entry glands and DIN-rail mounting support field installation in uncontrolled spaces.
- Switch and Power Supply Board Mounting: Modular internal layout separates switching fabric from power distribution, enabling field swaps and maintenance without system redesign.
- LINQ Management Compatibility: Native support for Altronix LINQ cloud-based and on-premises device management ecosystem, allowing remote firmware updates, port monitoring, and alarm integration.
Integration & Compatibility
The NETWAYSP8WPX2 is engineered for security integrators deploying distributed camera systems, IP intercoms, and networked access control in outdoor or harsh-environment installations. The dual SFP uplinks support industry-standard single-mode (9/125 µm) or multimode (50/125 µm or 62.5/125 µm) fiber modules, enabling backbone runs up to 20 km with single-mode optics. The 8 copper ports operate as standard PoE+ injection points, compatible with any standard PoE+ powered device (Class 4–6 power consumption). The LINQ integration framework allows centralized monitoring across multi-site deployments, enabling alarm correlation, port state logging, and power budget reporting without proprietary software licensing.
Power & Battery Backup
The internal 240W power supply is rated for continuous operation and supports optional LiFePO4 battery backup via an onboard charger board. When AC mains fail, the integrated charger board seamlessly transitions to battery-powered mode, maintaining full PoE output to critical devices for extended runtime. This architecture eliminates the need for external UPS devices and reduces installation footprint in space-constrained outdoor enclosures.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix NETWAYSP8WPX2 addresses a specific integration pain point: outdoor camera and access control systems requiring both high port density and extended PoE reach without auxiliary power injection hardware. During a recent multi-building campus deployment, we specified the NETWAYSP8WPX2 for a fiber-connected backbone with local PoE fanout to 8 remote endpoints per location. The 60W-per-pair configuration proved essential for powering high-wattage pan-tilt-zoom cameras and dual-reader access control units on single cable runs.
Technical Highlights:
- Fiber Uplink Flexibility: Dual 1G SFP slots accept standard transceiver modules, decoupling the switch upgrade cycle from fiber infrastructure changes and supporting multimode or single-mode backbone architecture choices.
- Configurable Hi-PoE: The 2×60W output configuration delivers sufficient headroom for mid-span or integrated high-inrush devices without cascading voltage sag across the 8-port pool.
- Integrated Battery Charger: LiFePO4 board eliminates external UPS requirement, reducing enclosure clutter and spares inventory at distributed outdoor sites.
Deployment Considerations:
- Verify SFP transceiver compatibility with your backbone fiber plant before ordering; Altronix does not supply optics, but standard 1G SFP modules are widely available through distribution.
- Size the LiFePO4 battery capacity based on critical load and desired runtime; standard modules integrate with the onboard charger, but runtime is not infinite—model power draw and failover timing into your site redundancy plan.
- In high-interference industrial or RF-rich environments, route fiber uplinks away from power cabling to maximize isolation gains; the NEMA 4X enclosure provides EMI shielding, but external plant discipline is your responsibility.
For integrators managing multi-site outdoor deployments with mixed copper and fiber infrastructure, the NETWAYSP8WPX2 delivers the port density, power budget, and management integration to reduce field-service trips and centralize monitoring through LINQ. A solid choice for medium-scale distributed security systems.
