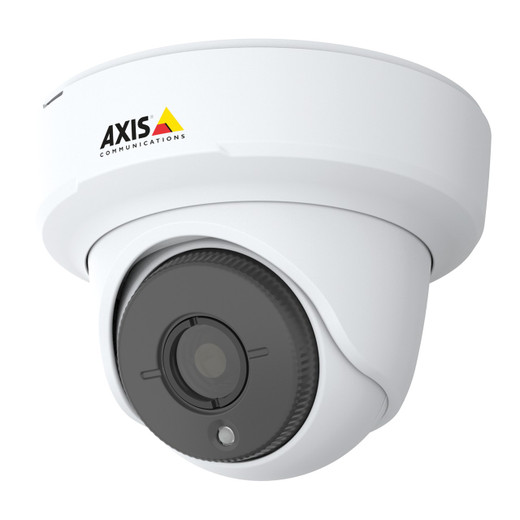

Axis 01026-001 FA3105-L 2MP Eyeball IP Camera Sensor
The Axis 01026-001 is a compact modular sensor unit designed for discreet indoor surveillance where image quality and form factor matter equally. This eyeball-shaped CMOS sensor delivers 2MP (1920×1080) at 30 fps, making it practical for retail loss prevention, banking environments, and other security-sensitive sites where the camera itself should be inconspicuous. Unlike larger dome housings, the low-profile eyeball design mounts flush to walls, ceilings, or counters, reducing visual footprint while maintaining professional forensic-grade imaging capability.
Key Features
- 2MP HDTV Resolution (1920×1080): Sufficient detail for facial recognition and incident documentation in typical retail and banking scenarios — not overkill for storage bandwidth, but sharp enough for loss prevention investigations.
- 103° Horizontal Field of View: Covers significantly more floor space than narrow-angle alternatives, meaning fewer cameras needed per location and lower total deployment cost. Corner placement yields particularly effective room coverage.
- CMOS Sensor with f/2.0 Aperture: Wide aperture gathers more light in dim conditions; paired with the 3.13mm focal length, creates a forgiving optical design that tolerates mounting in shadow areas without frequent manual adjustment.
- 0.2 Lux Color Sensitivity: Enables surveillance in dimly lit retail aisles, bank corridors, and warehouse aisles without forcing a switch to infrared mode — preserving color detail critical for suspect identification and merchandise verification.
- Built-in IR Illumination with Auto IR-Cut Filter: Automatically switches to monochrome IR mode in complete darkness, extending surveillance into after-hours periods without external lighting infrastructure. The adaptive filter avoids IR bloom that degrades image quality in mixed lighting.
- Forensic Wide Dynamic Range (WDR): Dynamically balances bright overhead lighting and shadowed areas in a single frame — essential in retail checkout zones where harsh LEDs meet variable ambient conditions. Prevents loss of detail in either bright or dark regions, supporting forensic-grade evidence capture.
- PoE Wired Connectivity (1.2W Average, 1.5W Max): Operates on standard 802.3af PoE without dedicated power infrastructure. The minimal draw means 20+ cameras can share a single 60W PoE switch without strain — a significant cost and installation advantage in multi-camera retail deployments.
- Operating Range -20°C to +50°C: Handles year-round indoor climate swings without enclosure upgrades, so installation in untempered storage areas or seasonal retail spaces remains viable.
Integration and Compatibility
The FA3105-L is a modular sensor within the Axis camera line, compatible with standard ONVIF-based network video recorders and video management systems. PoE power delivery simplifies wiring; a single Ethernet run provides both power and data, reducing installation labor. The compact form factor integrates with standard wall and ceiling mounts without bulky external brackets.
When to Choose a Different Model
If your application requires outdoor weatherproofing, higher resolution (4MP or above), or integrated audio, consider higher-specification variants in the Axis eyeball or dome families. The FA3105-L prioritizes discreet indoor deployment; if you need rugged exterior mounting or panoramic coverage, a different sensor design is more appropriate.
What's in the Box
Contact us for exact package contents including mounting hardware and documentation.
Frequently Asked Questions
Q: What's the maximum infrared range on the 01026-001?
A: The datasheet specifies built-in IR illumination, but effective range depends on surface reflectance and mounting height. Typical indoor applications (retail aisles, ATM surrounds, counter monitoring) benefit from the IR at 2–4 meters; for greater distances, consider external IR supplementation or a higher-wattage camera design.
Q: Can the FA3105-L mount on a wall or only on a ceiling?
A: The eyeball form factor permits wall, ceiling, and counter mounting. The compact shape tolerates multiple orientations, making it flexible for corner placement or discreet wall positioning above checkout areas or doorways.
Q: Does 2MP resolution work for facial recognition?
A: At 1920×1080, facial recognition is viable at typical retail distances (2–5 meters). For longer-distance identification (beyond 6 meters) or high-security forensic requirements, a 4MP or higher variant would be more suitable.
Q: What video compression formats does the 01026-001 support?
A: The sensor supports industry-standard H.264 and H.265 encoding. H.265 cuts bandwidth and storage roughly in half compared to H.264 — meaningful for 24/7 multi-camera retail deployments where storage costs accumulate quickly.
Q: Is the camera ONVIF compliant for third-party VMS integration?
A: Yes, the FA3105-L supports ONVIF standards, permitting integration with Milestone XProtect, Genetec, and other mainstream video management platforms. Confirm specific codec and profile compatibility with your VMS vendor during procurement.
Q: What's the warranty on the Axis 01026-001?
A: Axis typically provides a 3-year warranty on camera sensors. Confirm exact terms with an specialty distributor at time of purchase.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01026-001 is a deliberate choice for deployments where discretion and bandwidth efficiency outweigh megapixel volume. This modular eyeball sensor occupies minimal visual real estate — critical in retail and banking environments where visible security hardware can either reassure or alarm customers. The 2MP resolution with forensic WDR strikes a practical balance: sufficient detail for loss prevention investigations and facial verification, yet restrained enough to avoid storage bloat across 24/7 multi-camera installations.
Technical Highlights:
- 1.2W Average Power Draw: Minimal PoE consumption permits dense multi-camera deployment on standard 60W switches without needing upgraded infrastructure. A typical retail location with 15–20 cameras can operate from a single PoE switch, eliminating midspan injectors and redundant cabling.
- Forensic WDR Implementation: Particularly valuable in checkout and counter areas where harsh overhead LEDs create intense contrast with ambient shadow zones. Unlike basic WDR, forensic-grade processing preserves detail in both bright and dark regions simultaneously — essential for facial recognition and merchandise verification.
- 0.2 Lux Color Sensitivity: Permits color surveillance in dimly lit retail aisles and back-of-house areas without automatic IR mode. Preserves suspect and merchandise color information — critical for loss prevention investigations where clothing description or product color is part of the forensic record.
- 103° Field of View: Reduces per-location camera count. Strategic corner mounting covers 70–80% of a typical retail space, lowering total system cost and simplifying cabling design.
Deployment Considerations:
- Resolution Limits: At 2MP, facial recognition remains effective only to roughly 5 meters. In large-format retail or warehouse installations where monitoring zones exceed 6 meters, plan for higher-MP variants or overlapping coverage areas.
- IR Range Trade-off: Built-in IR is adequate for typical retail counter and aisle monitoring (2–4 meters). After-hours full-facility monitoring beyond 4 meters may require external supplemental IR or acceptance of monochrome night vision at reduced detail.
- PoE Budget Simplicity: With only 1.5W peak consumption, power distribution becomes a non-issue even in retrofit installations with older, undersized PoE infrastructure. This is a genuine advantage over higher-wattage 4MP+ alternatives.
Deploy the 01026-001 in retail loss prevention, banking ATM and teller zones, convenience stores, and gas station counter monitoring where image detail, discreet form factor, and tight bandwidth budgets align. It's not a high-megapixel catch-all; it's a surgical tool for specific forensic applications where less is genuinely more.
