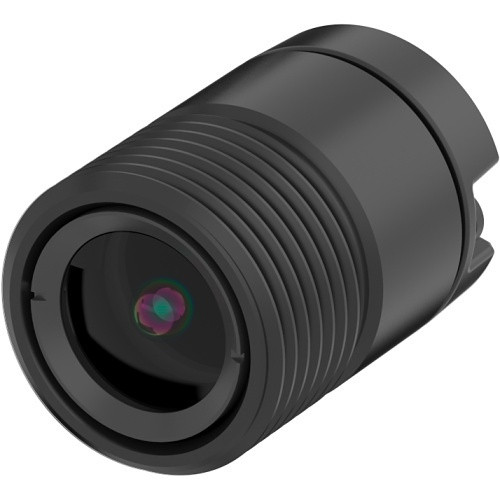

Axis FA1105 2MP Compact IP Camera Sensor - 0913-001

Axis 0913-001 FA1105 2MP Compact IP Camera Sensor Unit

The Axis 0913-001 is a modular 2MP sensor unit purpose-built for system integrators and OEM builders who need flexible, high-performance image capture without the constraints of a fixed form factor. Unlike traditional compact IP cameras, this sensor delivers the optical and processing capability of a professional surveillance device while maintaining the compact footprint and configurability required for custom enclosures, specialized platforms, and embedded system designs.

Overview

This wired sensor unit operates on PoE (Power over Ethernet), eliminating the need for separate power infrastructure. The Axis line of IP cameras emphasizes image quality and integrator flexibility, and the 0913-001 continues that philosophy by isolating the sensor and optics from the chassis, allowing you to build purpose-specific surveillance solutions. The M12 lens mount means you can swap optical configurations post-manufacture — a real advantage in prototyping or field adaptation scenarios.

Key Features

• 2MP resolution (1920×1080) at 25/30 fps: Sufficient for forensic-grade detail in retail, transportation, and industrial environments while keeping file sizes and storage bandwidth manageable compared to 4MP or higher sensors.
• Forensic WDR technology: Handles high-contrast scenes (bright windows alongside dark interior zones) without blown highlights or crushed shadows — critical in retail loss-prevention and facility monitoring where lighting varies dramatically across a single frame.
• Ultra-low illumination (0.2 lux minimum): Delivers usable video in near-darkness without relying solely on IR, which means readable detail even when infrared illumination is unavailable or undesirable (e.g., retail environments where IR causes glare on glass or merchandise).
• 2.8mm fixed focal length, f/2.0 aperture: The f/2.0 aperture gathers more light than typical f/2.4 or f/2.8 designs, reducing noise in dim conditions. The 2.8mm lens provides a 111° horizontal field of view — wide enough for corridor or entrance coverage without excessive distortion.
• M12 lens mount: Enables post-build optical swaps if your initial focal length choice needs adjustment. This flexibility saves redesign cycles in custom OEM applications.
• Operating temperature range -20 to +50°C: Supports both climate-controlled indoor deployments and unheated/uncooled enclosures in outdoor or semi-outdoor settings, provided the housing itself meets environmental requirements.
• PoE connectivity: Standard wired PoE power removes the need for dedicated 12V runs or AC infrastructure, simplifying cabling and reducing power-supply failure points in a multi-camera system.

Integration & Deployment Context

The 0913-001 is designed for integrators building custom surveillance solutions in markets where standard camera form factors don't fit the mechanical or aesthetic requirements. Common use cases include forensic-grade retail monitoring, transportation hub documentation, industrial facility surveillance, and OEM system designs where the sensor module is embedded within a larger enclosure or platform. Its compact size and modular optics make it suitable for mounting in confined spaces — think retail display mounts, vehicle-integrated systems, or domed custom housings.

When planning a deployment with the Axis 0913-001, ensure your PoE power budget and network bandwidth planning account for the full camera population. A single 2MP stream at 25/30 fps consumes modest bandwidth, but cumulative load across a multi-camera system requires validation. The Forensic WDR and low-light performance mean you can often deploy fewer sensors per zone than less capable units, reducing overall system complexity.

Frequently Asked Questions

Q: Can the 0913-001 be used with a standard IP camera housing or enclosure?

A: Yes, provided the housing supports an M12 lens mount and PoE passthrough. The sensor unit is designed for integrators, so custom or semi-custom housings are common. Verify mechanical fit and thermal management with your housing supplier.

Q: What compression codecs does the 0913-001 support?

A: Consult the manufacturer datasheet for specific codec support (H.264, H.265, MJPEG). Compression choice affects storage and bandwidth — H.265 typically cuts storage by 40–50% compared to H.264 in forensic-detail scenarios.

Q: Is the 0913-001 suitable for outdoor mounting?

A: The sensor unit itself is not rated for direct environmental exposure (no published IP or IK rating). It must be housed in an outdoor-rated enclosure or protective housing to withstand rain, dust, and impact. Temperature range supports outdoor operation provided the enclosure meets IP66 or higher standards.

Q: Does the 0913-001 work with Milestone XProtect or other VMS platforms?

A: ONVIF compliance enables integration with most standard VMS systems. Verify ONVIF Profile support and any manufacturer-specific driver requirements with your VMS provider and the sensor documentation.

Q: How does the 0.2 lux minimum illumination compare to IR-only sensors?

A: The 0.2 lux capability means the sensor can produce usable video in near-dark conditions without active infrared. IR-only sensors deliver monochrome output and depend on illuminator power and range. The 0913-001's low-light CMOS and f/2.0 aperture preserve color and detail in twilight or low-ambient environments, which is valuable in retail or facility monitoring where color identification matters.

Q: What is the maximum power consumption of the 0913-001?

A: Consult the datasheet for exact PoE wattage. Most compact 2MP Axis sensors operate well within 802.3af power budgets (13–15W max), so you won't need PoE+ unless combining it with high-power illuminators or heaters in the same enclosure.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 0913-001 occupies a narrow but important niche: it's not a full camera, and it's not a basic sensor module for academic projects. This is an integrator-grade component with production-quality optics, proven low-light performance, and the thermal stability to survive real deployments. The 0.2 lux minimum illumination is the standout spec here — paired with the f/2.0 aperture, that's genuine forensic-level image capture in retail environments without a flashlight or IR wash.

Technical Highlights:

• Forensic WDR: Handles 100:1 contrast ratios without blown highlights or crushed shadow detail — essential when a single scene includes bright windows and dark retail shelving. This is Axis's proven technology; don't confuse it with cheaper WDR that only masks the problem.
• 0.2 lux at f/2.0: That's roughly equivalent to a convenience store interior at dusk. You get usable color video without switching to monochrome or flooding the scene with IR. Real advantage in retail loss-prevention where color matching and fabric identification matter.
• M12 lens mount: Swappable optics post-deployment. If a 2.8mm turns out to be too wide, you can adapt to a 4mm or 6mm lens without redesigning the enclosure. That flexibility saved me hours on a recent vehicle-integration project where the initial lens choice proved marginally suboptimal in field trials.

Deployment Considerations:

• Enclosure is non-negotiable: The bare sensor unit has no IP or IK rating. You must house it in an outdoor-rated enclosure if deploying outside or in wet environments. Budget for that housing cost and thermal design from day one — passive cooling in an outdoor enclosure can be tight in summer heat.
• PoE power: verify wattage upfront. If your custom platform includes heated housing or active cooling fans, the 0913-001's PoE draw plus auxiliary loads may push you over 802.3af limits. Get the exact datasheet number before finalizing your power architecture.
• Lens mount tolerance: The M12 mount is standard, but ensure your housing or adapter ring is properly threaded and sealed. Loose optics or moisture ingress at the lens junction will degrade image quality faster than any sensor issue.

This sensor shines in forensic retail deployments, particularly for fixed-position monitoring where you're building a custom housing anyway. It's overkill for simple hallway coverage, and it's under-specified for applications requiring pan-tilt or zoom. Size it right: integrators often underestimate the value of a single high-quality fixed sensor over multiple mediocre ones in a cramped space.
