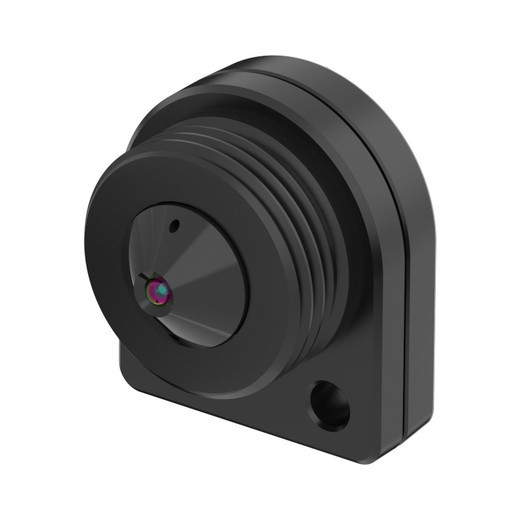

Axis FA1125 2MP Pinhole IP Camera Sensor Unit - 0914-001

Axis FA1125 2MP Pinhole IP Camera Sensor Unit

The Axis FA1125 Sensor Unit (0914-001) is a discrete 2MP pinhole camera designed for covert indoor surveillance applications. This accessory sensor delivers sharp 1920x1080 resolution imagery through a compact M12 lens mount, making it ideal for integration into discreet mounting solutions such as retail displays, ATM housings, and vending machines. When paired with the AXIS FA54 Main Unit, it provides a modular surveillance platform that balances concealment with professional-grade image quality.

Key Features

• Pinhole Lens Design: Ultra-discreet form factor for covert monitoring without drawing attention
• 2MP Resolution: 1920x1080 at up to 30fps for clear facial recognition and detail capture
• Forensic WDR Technology: Advanced Wide Dynamic Range optimized for high-contrast scenes, preserving detail in both bright and dark areas
• Low-Light Performance: 0.25 lux minimum illumination for color video in challenging lighting conditions
• M12 Lens Mount: Flexible lens compatibility with 3.7mm focal length and 2.5 aperture
• Wide Field of View: 91° horizontal, 45° vertical coverage for optimal scene capture
• PoE Power Delivery: Simplified installation via single network cable
• Extended Temperature Range: Operating from -20°C to +50°C for diverse indoor environments

Technical Highlights

The FA1125 sensor features CMOS technology delivering 30fps video at full 2MP resolution. Its Forensic WDR engine prioritizes darker areas to reveal obscured details while minimizing motion artifacts during rapid subject movement. The 0.25 lux minimum illumination capability enables reliable color capture in dim retail, banking, and retail environments without excessive noise. The M12 mount accepts the included 3.7mm lens with f/2.5 aperture, providing a 91° horizontal field of view suitable for medium-distance facial identification.

Ideal Applications

• Retail point-of-sale and checkout monitoring
• ATM and banking facility surveillance
• Vending machine security
• Covert indoor perimeter monitoring
• Discrete reception and entrance areas

As a sensor-only accessory, the FA1125 requires the AXIS FA54 Main Unit for operation, enabling scalable multi-camera deployments with centralized processing and storage.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've deployed the FA1125 in scenarios where visibility of the camera would compromise security or disrupt the environment—think ATM vestibules, retail POS stations, and reception areas where you need coverage without advertising it. The 2MP sensor delivers clean 1080p footage, and the Forensic WDR handles mixed lighting reasonably well, which matters when you're dealing with backlit windows or bright overhead LEDs washing out faces. The 3.7mm lens gives you about 91° horizontal, so plan your mounting distance accordingly—it's not a telephoto setup, but it covers a checkout lane or teller window effectively.

One critical point: this is a sensor unit only. You must pair it with an AXIS FA54 Main Unit to actually process and record video. Budget for that additional component and verify your switch supports the FA54's PoE requirements, because the main unit powers and manages up to four of these sensors. Don't spec this expecting a standalone camera—it's part of a modular system, and that architecture is what makes multi-point covert coverage practical without running separate network drops to every pinhole location.
