Axis FA4115 2MP Varifocal Dome Sensor Unit - 01001-001

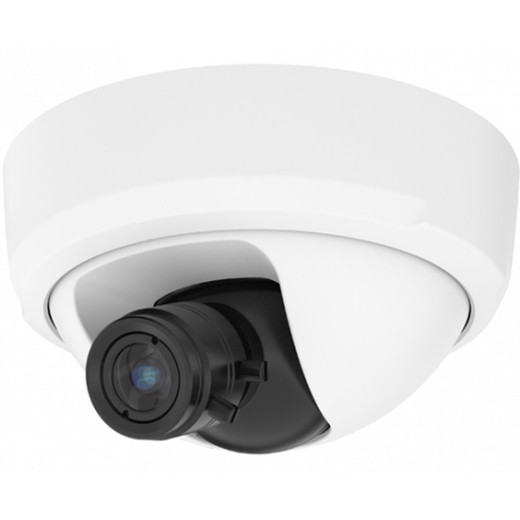

Axis 01001-001 FA4115 2MP Varifocal Dome Camera Sensor Unit

The Axis 01001-001 is a compact 2MP varifocal dome sensor unit engineered as a modular surveillance component for discrete indoor monitoring. Designed to pair with the Axis FA54 Main Unit, this sensor delivers 1920×1080 resolution at 30fps and combines variable focal length optics with Forensic Wide Dynamic Range (WDR) to handle extreme lighting contrasts—critical when faces, license plates, or retail transactions occur in backlit or mixed-light conditions. Unlike all-in-one domes, the modular architecture lets you position the sensor unit where coverage is needed most while centralizing processing and storage at the main unit.

Key Features

• 2MP resolution (1920×1080) at 30fps: Standard frame rate for continuous recording without excessive storage overhead. Delivers sufficient forensic detail for facial recognition and object identification in retail and banking environments without the bandwidth penalty of higher megapixel counts.
• Varifocal lens, 2.8–6.0mm focal length with f/2.0 aperture: Manual focus adjustment enables field-of-view tuning from 99° horizontal (wide corridors, open retail floors) down to 53° (tighter, focused coverage of specific zones) without lens replacement or repositioning. The f/2.0 aperture maximizes light gathering in dim conditions, reducing reliance on supplemental lighting.
• Field of view ranges from 99° to 53° horizontal (53° to 30° vertical): The broad horizontal range accommodates everything from narrow retail aisles and hallways to wider floor plans. Narrower angles work for focused coverage of teller windows, checkout counters, or entrance vestibules where detail matters more than coverage breadth.
• Forensic WDR (Wide Dynamic Range): Handles lighting scenes with extreme contrast ratios—think storefronts with natural daylight adjacent to shadowed interior aisles, or backlit entrance doors. WDR preserves facial and object detail in both bright and dark regions simultaneously, reducing the need for supplemental lighting or repositioning to avoid silhouettes.
• Minimum illumination 0.2 lux with f/2.0 aperture: Enables clear monochrome imaging in back rooms, stairwells, and low-ambient retail spaces (near 24/7 operation without IR supplementation). Compare to typical fixed-lens domes at 0.5–1.0 lux; the 01001-001 delivers superior night sensitivity for cost-per-zone deployments.
• CMOS sensor technology: Delivers reliable, low-noise image capture across variable lighting without the color fringing or lag characteristic of older CCD designs.
• M12 lens mount: Secure mechanical connection ensures optical stability and repeatable focus across environmental vibration or thermal cycling. Verify main unit compatibility before deployment.
• Power over Ethernet (PoE) wired connectivity: Single cable delivers both power and data, simplifying installation and eliminating separate power supply runs. Draws under 13W, well within standard 802.3af PoE budgets, so it won't strain switch power reservoirs on larger deployments.
• Operating temperature range −20 to 50 °C (−4 to 122 °F): Suitable for climate-controlled indoor environments (retail, banking, healthcare, airport terminals). Not rated for unheated freezers, outdoor uncovered areas, or temperature extremes beyond this range.

Integration & Compatibility

The 01001-001 is a sensor-only component and requires pairing with the Axis FA54 Main Unit for power, processing, and connectivity to a network video management system. Verify main unit firmware compatibility and ONVIF Profile support for your chosen VMS before procurement. The modular design allows flexible deployment—place the sensor dome where optical coverage is optimal while locating the main unit in a central secured cabinet or rack, reducing exposure of active electronics in high-traffic or temperature-variable areas.

When to Choose a Different Model

If you require higher resolution (4MP, 5MP, or above) for wide area forensic detail or if you need an integrated all-in-one dome that does not depend on a separate main unit, consider higher-megapixel Axis dome variants in the same family. If your deployment involves outdoor, high-temperature, or IP67-rated submersion scenarios, this indoor-rated sensor is not suitable; seek weatherproof turret or bullet alternatives. If your existing VMS requires proprietary integrations beyond ONVIF, verify compatibility with the FA54 main unit before proceeding.

Frequently Asked Questions

Q: Does the 01001-001 work standalone, or does it require the FA54 Main Unit?

A: The 01001-001 is a sensor unit and requires the Axis FA54 Main Unit for power delivery, video processing, and network connectivity. It cannot operate independently.

Q: What is the maximum cable run distance from the 01001-001 sensor to the FA54 Main Unit?

A: Maximum PoE cable distance is typically 100 meters (328 feet) over standard Cat5e or Cat6 cabling, consistent with IEEE 802.3af specifications. Consult the FA54 main unit documentation for any extended-reach or active extension guidance.

Q: Can the varifocal lens be adjusted remotely, or does it require physical access?

A: The 2.8–6.0mm varifocal lens on the 01001-001 is adjusted manually during installation. It is not motorized and does not support remote focus tuning. Plan installation and focus during commissioning.

Q: Is the 01001-001 NDAA Section 889 compliant?

A: Axis products are subject to compliance review based on your procurement authority and customer tier. Consult your specialty distributor or Axis directly for current Section 889 compliance documentation.

Q: What VMS platforms support the FA54 Main Unit and 01001-001 sensor pair?

A: The FA54 main unit supports ONVIF Profile S and standard IP camera integrations. Verify your target VMS (Milestone XProtect, AXIS Camera Station, etc.) supports ONVIF-compliant cameras before deployment. Consult the FA54 datasheet for comprehensive platform compatibility.

Q: What is the warranty on the 01001-001?

A: Consult your purchase documentation or contact the manufacturer for current warranty terms. Axis typically offers a standard limited hardware warranty; specifics vary by region and sales channel.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 01001-001 is purpose-built for integrators deploying modular, scalable surveillance without the footprint or cost of full all-in-one domes at every coverage point. The varifocal capability is the real advantage here—you can tune field-of-view from 99° to 53° horizontal without swapping lenses or repositioning the dome, cutting deployment time and sparing you the cost of maintaining multiple fixed-lens SKUs in inventory.

Technical Highlights:

• Forensic WDR at extreme contrast ratios: The 01001-001 preserves face and object detail in backlit retail entrances or storefronts with natural light adjacent to dark interior zones—real-world scenarios where standard WDR often clips one or the other. This matters when your investigative footage needs usable facial data or readable transaction details.
• 0.2 lux minimum illumination with f/2.0 aperture: Enables 24/7 operation in dimly lit back rooms, stairwells, and nighttime retail without supplemental IR or lighting infrastructure. Compare this to typical 0.5–1.0 lux competitors; you save on installation labor, power, and thermal load in ceiling plenums.
• 2MP resolution at 1920×1080: Sits at the forensic floor for facial ID and transaction detail. It's not overkill for corridor and retail surveillance (where 4MP+ runs into storage and bandwidth bloat), and it won't burden PoE budgets on dense deployments. 30fps handles normal retail motion without artifacts.
• PoE under 13W draw: Runs on standard 802.3af—no PoE+ switches needed. On a 24-camera retail deployment, this means predictable power budgeting and no costly switch upgrades.

Deployment Considerations:

• Dependency on FA54 Main Unit: The 01001-001 is a sensor only. You must procure and position the FA54 main unit within PoE cable distance (100m standard). This adds cost but also centralizes processing and storage, reducing active electronics exposure in retail floor cabinets where theft or tampering is a risk.
• Manual varifocal adjustment: Unlike motorized zoom, you cannot remote-tune focus. Plan your installation to test focus during commissioning and account for minor repositioning if thermal drift or vibration shifts focus slightly after deployment.
• M12 mount requirement: Verify the dome mounting bracket accommodates M12 lens connections. Non-standard or damaged M12 threads will force sensor replacement.

The 01001-001 is your best fit for retail chains, banking branches, and healthcare facilities requiring forensic-grade discrete surveillance without the visual bulk of traditional all-in-one domes and without the storage overhead of higher-megapixel alternatives. Pair it with the FA54, configure ONVIF access to your VMS, and you have a modular, cost-effective surveillance node that scales across multiple locations.
