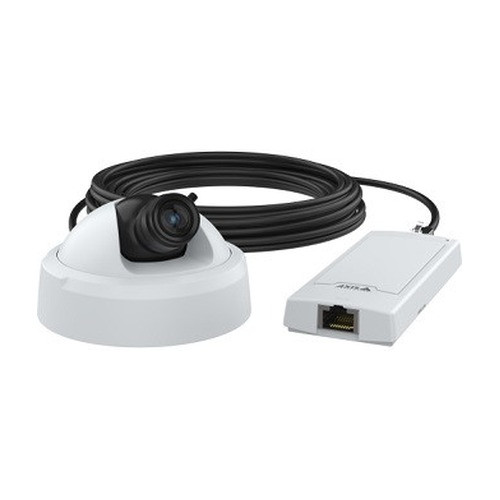

Axis 02859-001 P1275 Mk II 2MP Modular Varifocal Dome Camera

The Axis 02859-001 solves a specific installation problem that conventional dome cameras force you to live with: rigid housings lock the sensor position to the processor unit, leaving you to choose between optimal scene framing and practical housing placement. The P1275 Mk II decouples them. An 8-meter detachable cable separates the compact sensor dome from the main processor unit, letting you position the lens where the scene demands and run the electronics to a ceiling cavity, wall space, or wherever your network and power infrastructure exists. This matters in retrofit deployments, concealment scenarios, and multi-camera installations where mounting conflicts would otherwise demand compromises on coverage or aesthetics.

Resolution is 2MP (1920×1080) at up to 30 fps—not cutting-edge for ultra-wide coverage, but adequate for perimeter monitoring, building entries, and mid-range warehouse zones where detail and frame rate matter less than coverage consistency and storage efficiency. The varifocal lens (2.8–6.0mm, F2.0) gives genuine zoom flexibility; you adjust focal length during commissioning rather than swapping optics or buying multiple cameras. That lens range delivers 99° horizontal FOV at 2.8mm (wide) and narrows to 53° at 6.0mm for tighter framing on specific subjects. The 0.1-meter minimum focus distance means the camera won't suffer soft focus if mounted close to a monitored surface—a practical advantage in confined spaces.

Compression efficiency directly impacts storage and bandwidth. The 02859-001 encodes in H.265, which cuts file size roughly 40–60% compared to H.264 on identical scenes—a material saving when recording 24/7 across a multi-camera IP camera network. H.264 and Motion JPEG are also supported, ensuring compatibility with older VMS platforms or failover scenarios. The embedded CV25 deep learning processor runs edge analytics—motion detection, object classification—on the camera itself, offloading CPU work from your central NVR or network video recorder and reducing latency on time-sensitive alerts.

Night vision relies on integrated infrared at 0.1 meters effective range with automatic day/night switching. This is suitable for ambient-light scenarios (lobbies, corridors, outdoor areas with some ambient illumination) but won't penetrate deep darkness or outdoor perimeters without supplemental lighting. Wide Dynamic Range (WDR) processing preserves detail in mixed-lighting scenes—sunlit entry with interior fixtures, for example—without manual exposure balancing.

Power arrives via PoE+ (802.3af, Class 2), drawing power from standard 802.3af-compliant switch ports or injectors; no separate 12VDC supply required. ONVIF compliance ensures third-party VMS platforms—Milestone, Genetec, Axis Camera Station, and others—recognize the stream, controls, and metadata natively. Local storage via microSD card is supported, useful for forensic backup or network-interruption redundancy.

Security features include signed firmware, HTTPS encryption, and support for 802.1X authentication—standard hardening for enterprise deployments. The modular design also simplifies maintenance: if the sensor dome requires service, the processor unit remains mounted, reducing downtime compared to pulling an integrated camera from its mount.

Key Features

• Modular 8-Meter Detachable Sensor Cable: Separates dome from processor, permitting independent positioning of the sensor head without relocating the main housing—eliminates rigid-dome mounting conflicts and simplifies retrofit installations where ceiling or wall constraints would force optical compromises.
• Varifocal 2.8–6.0mm Lens (M12-Mount): Provides 99° to 53° horizontal FOV without lens changes. Adjustable focal length during commissioning lets you frame scenes precisely rather than overpaying for fixed-lens variants or buying multiple camera models.
• H.265 Compression: Reduces bandwidth and storage footprint 40–60% versus H.264—meaningful on 24/7 multi-camera recording, where storage licensing and disk overhead directly impact five-year cost of ownership.
• CV25 Deep Learning Processor (DLPU): Runs edge-based object classification and intelligent motion detection directly on the camera, offloading NVR CPU overhead and reducing alert latency for time-sensitive security workflows.
• Integrated Infrared: Built-in night vision with automatic day/night switching and 0.1m IR range—suitable for ambient-light environments but not effective for total-darkness perimeter monitoring without supplemental lighting.
• PoE+ Power (802.3af): Standard 802.3af-compliant power delivery; no separate power adapter, reducing cable runs and simplifying power-budget planning on switches supporting multiple PoE devices.
• MicroSD Card Backup: Local video storage support permits forensic clip retention and network-outage failover recording without relying solely on NVR or cloud infrastructure.
• ONVIF Compatibility: Native recognition by third-party VMS platforms (Milestone, Genetec, etc.), ensuring future flexibility if you migrate recording systems without camera replacement.
• Wide Dynamic Range (WDR): Preserves detail across mixed-lighting scenes—entryways, loading docks with mixed sunlight and interior fixtures—without manual exposure tuning during commissioning.

Integration & Compatibility

The 02859-001 (often searched as 02859 001) integrates with ONVIF Profile S and T, supported across enterprise VMS platforms. Axis Camera Station, Milestone XProtect, Genetec Security Center, and similar systems recognize the video stream and analytics metadata natively. H.265 support is widespread in modern NVRs but verify your recorder's codec library if running legacy systems; H.264 fallback ensures compatibility. Firmware signing and HTTPS encryption provide baseline cybersecurity; integration with 802.1X authentication supports enterprise network access control. MicroSD card insertion enables local backup independent of network recording, useful for compliance requirements or forensic workflows demanding offline-retained footage.

Frequently Asked Questions

Q: What is the advantage of the detachable 8-meter cable design?

A: The modular design lets you position the sensor dome independently of the processor unit. In retrofits, ceiling cavities, or wall-mounted scenarios, you can place the lens where scene coverage is optimal and route the main housing to wherever your network and power infrastructure exists—eliminating the rigid-dome compromise of choosing between sensor position and housing location.

Q: Does the 02859-001 support H.265 encoding?

A: Yes. H.265 is the primary codec, delivering 40–60% storage savings versus H.264 on identical scenes. H.264 and Motion JPEG are also supported for backward compatibility with older VMS systems.

Q: What is the effective infrared range?

A: Integrated IR operates at 0.1 meters effective range with automatic day/night switching. This suits ambient-light environments (lobbies, corridors, lit outdoor areas) but is not suitable for total-darkness perimeter monitoring without supplemental lighting.

Q: Can the 02859-001 work with third-party VMS platforms?

A: Yes. ONVIF Profile S and T compliance ensures recognition by Milestone XProtect, Genetec Security Center, Axis Camera Station, and other enterprise platforms. Video stream, analytics, and camera controls are natively supported.

Q: What power source does the camera require?

A: PoE+ (802.3af, Class 2) supplies power via standard network infrastructure—no separate 12VDC adapter or wall outlet needed. Standard PoE+ switch ports or injectors handle the power draw without strain.

Q: Does the 02859-001 support local video backup?

A: Yes. MicroSD card insertion is supported for local backup and network-outage failover recording, useful for compliance retention or forensic workflows requiring offline-retained footage.

Marty Allison

Perspective based on aggregated IPSD and affiliated engineering team experience.

The 02859-001 addresses a genuine pain point in retrofit and constrained-space deployments: the modular design separates sensor and processor via an 8-meter detachable cable, giving you independent positioning freedom that rigid domes never offer. The varifocal lens and H.265 compression deliver practical flexibility—adjust framing during commissioning and cut storage overhead 40–60% on 24/7 recording. The CV25 deep learning processor offloads analytics to the edge, reducing NVR CPU load and cutting alert latency. These aren't flashy specs, but they translate directly into lower operational cost and tighter integration with enterprise VMS platforms.

Technical Highlights:

• Modular 8-Meter Detachable Cable: Enables independent sensor dome positioning without rigid housing constraints—a real advantage in retrofits, ceiling cavities, and wall-mount scenarios where conventional domes create installation compromises.
• Varifocal 2.8–6.0mm Lens (M12): 99° to 53° horizontal FOV range lets you adjust focal length during commissioning rather than purchasing multiple fixed-lens models or overpaying for wide coverage you don't need everywhere.
• H.265 Primary Codec: Delivers 40–60% storage and bandwidth savings versus H.264—meaningful on 24/7 multi-camera recording where licensing, disk overhead, and five-year infrastructure costs directly impact budget.
• CV25 Deep Learning Processor: Edge-based object classification and intelligent motion detection run on the camera itself, offloading NVR CPU and reducing latency on time-sensitive alerts.

Deployment Considerations:

• The 0.1-meter IR range is suitable for ambient-light environments (lobbies, corridors, lit outdoor areas) but won't penetrate total darkness or long-range outdoor perimeters without supplemental lighting—budget accordingly if deploying in unlit zones.
• The 8-meter detachable cable is the design centerpiece; if you don't have a mounting constraint that the modular design solves, a standard integrated dome will cost less and simplify maintenance.
• PoE+ power draw fits standard 802.3af Class 2 budget—verify your switch or injector supports it, but no exotic power infrastructure required.
• ONVIF Profile S/T support ensures third-party VMS compatibility, but confirm your platform's H.265 decoder is enabled if H.264 fallback isn't acceptable for your storage architecture.

Position the 02859-001 where modular sensor placement solves a real installation problem—ceiling-cavity retrofits, wall-mount concealment, multi-camera deployments with infrastructure constraints. If mounting flexibility isn't a requirement, a standard integrated dome in the same Axis family will be simpler to provision and maintain. The varifocal lens and H.265 compression work on any deployment, but the modular cable is the true differentiator; ensure that feature justifies the investment before committing.
