Specialty Cameras

Plan Your Deployment

Define the environmental or operational constraint driving specialty selection
Confirm manufacturer certifications for the target environment
Verify VMS integration and ONVIF profile compatibility

Showing Results for Specialty Cameras

Compare

Out of stock
Pelco

SKU: RC4-51IYJ30X-FB26Z105FW

Pelco RC4-51IYJ30X-FB26Z105FW Aeron EVO2 Thermal PTZ

Cooled thermal PTZ with 26–105mm zoom for long-range perimeter detection
- ≤15 mK NETD cooled detector resolves targets in fog, smoke, and total darkness
- 26–105mm continuous zoom with 360° pan and ±90° tilt for full-area scanning
- Dual resolution (640×512 or 1280×1024) with H.265/H.264 and ONVIF compliance
Special Order · Ships in 2-3 weeks

$43,527.00 $36,272.99 Save $7,254.01

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: SXTE4-QF04-EBT

Pelco SXTE4-QF04-EBT Sarix Thermal Bullet Camera

Thermal bullet camera with QVGA 320×256 sensor for 24/7 perimeter detection
- ≤50 mK thermal sensitivity with radiometric data for temperature-based detection
- 4mm lens, 50×40° FOV, 30 fps with H.265 compression and onboard analytics
- PoE + 12-24VDC power, IP66/IP67, IK10 impact rated, -40°C to +60°C operation
Special Order · Ships in 2-3 weeks

$4,933.33 $3,443.99 Save $1,489.34

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: SXTE4-QF04-EBT-1

Pelco SXTE4-QF04-EBT-1 Sarix Thermal Bullet 9Hz

Thermal bullet camera with 9 Hz frame rate for export-compliant deployments
- QVGA 320×256 thermal sensor with ≤50 mK sensitivity detects heat signatures 24/7
- IK10 vandal-resistant housing rated IP66/IP67 for outdoor all-weather operation
- PoE or 12–24VDC power; onboard analytics for perimeter intrusion and loitering detection
Special Order · Ships in 2-3 weeks

$3,973.92 $3,443.99 Save $529.93

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: SXTE4-QF09-EBT

Pelco SXTE4-QF09-EBT Sarix Thermal Bullet 30Hz

30Hz thermal bullet with radiometric 320×256 for perimeter security
- ≤50 mK NETD uncooled sensor detects heat signatures in total darkness
- 9mm f/1.0 lens, 15×12° FOV, 30 fps for medium-range intrusion detection
- PoE or 12-24VDC power, H.265 compression, IP66/IP67, -40°C to +60°C rated
Special Order · Ships in 2-3 weeks

$4,059.60 $3,518.99 Save $540.61

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: SXTE4-QF09-EBT-1

Pelco SXTE4-QF09-EBT-1 Sarix Thermal Bullet 9Hz

Export-compliant thermal bullet; 320×256 QVGA, 9 fps, PoE powered
- 320×256 thermal resolution with ≤50 mK sensitivity detects heat signatures in total darkness
- 9 mm f/1.0 lens, 15×12° FOV optimized for perimeter detection at distance
- IP66/IP67 rated, IK10 impact resistant, operates −40°C to +60°C in harsh climates
Special Order · Ships in 2-3 weeks

$4,234.00 $3,528.99 Save $705.01

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: SXTE4-QF13-EBT

Pelco SXTE4-QF13-EBT Sarix Thermal Bullet Camera

Thermal bullet camera with 320×256 sensor for 24/7 perimeter monitoring
- ≤50 mK thermal sensitivity detects heat signatures in complete darkness
- 13mm lens, 15.5×12° FOV, 30 fps with H.265 compression for efficient streaming
- IK10 impact rated, IP66/IP67 weatherproof, PoE powered with 256GB onboard storage
Special Order · Ships in 2-3 weeks

$4,405.38 $3,817.99 Save $587.39

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: SXTE4-QF13-EBT-1

Pelco SXTE4-QF13-EBT-1 Thermal Bullet Camera 9Hz

Export-compliant thermal bullet with 320×256 QVGA and 9Hz frame rate
- ≤50 mK thermal sensitivity (NETD) detects objects in low-contrast scenes
- 13mm f/1.0 lens with 15.5×12° FOV in IP66/IP67 rated outdoor housing
- Radiometric output + onboard intrusion, loitering, and object detection analytics
Special Order · Ships in 2-3 weeks

$4,595.00 $3,817.99 Save $777.01

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: SXTE4-QF18-EBT

Pelco SXTE4-QF18-EBT Sarix Thermal Bullet 30Hz

18mm thermal bullet with radiometric measurement for perimeter surveillance
- 320×256 QVGA sensor with ≤50 mK sensitivity detects heat signatures 24/7
- 30 fps H.265 compression over PoE or 12–24VDC with microSD storage
- IP66/IP67 rated, IK10 impact resistant, operates -40°C to +60°C
Special Order · Ships in 2-3 weeks

$4,423.74 $3,833.99 Save $589.75

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: SXTE4-QF18-EBT-1

Pelco SXTE4-QF18-EBT-1 Thermal Bullet Camera 9Hz

Export-compliant 9Hz thermal bullet with 18mm lens for perimeter defense
- 320×256 QVGA thermal sensor, ≤50 mK sensitivity, radiometric measurement
- 18mm f/1.0 fixed lens, 12°×9.5° FOV for extended-range boundary monitoring
- IP66/IP67, IK10 rated; PoE or 12-24VDC; H.265/H.264 with microSD storage
Special Order · Ships in 2-3 weeks

$5,102.00 $4,251.99 Save $850.01

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: SXTE4-VF18-EBT-1

Pelco SXTE4-VF18-EBT-1 Sarix Thermal Bullet Camera

VGA thermal bullet with ≤50 mK sensitivity for perimeter detection
- 640×512 uncooled thermal imaging with 18mm f/1.0 lens, 24×19° FOV
- PoE powered, H.265/H.264 compression, ONVIF compliant for VMS integration
- IP66/IP67 rated, IK10 impact resistant, operates -40°C to +60°C
Special Order · Ships in 2-3 weeks

$6,477.00 $5,397.99 Save $1,079.01

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: SXTE4-VF24-EBT

Pelco SXTE4-VF24-EBT Sarix Thermal Bullet Camera

VGA thermal bullet with 24mm lens and ≤50 mK sensitivity for perimeter protection
- 640×512 thermal resolution with f/1.0 aperture for detection in complete darkness
- 24mm telephoto lens extends range beyond standard models; 30 fps tracking
- Radiometric measurement, perimeter analytics, IP67 rated, PoE or 12-24VDC powered
Special Order · Ships in 2-3 weeks

$7,080.84 $6,136.99 Save $943.85

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: SXTE4-VF24-EBT-1

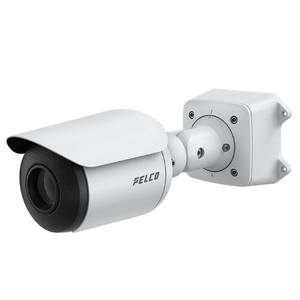

Pelco SXTE4-VF24-EBT-1 Sarix Thermal Bullet Camera

VGA thermal bullet with 24mm lens for long-range perimeter detection
- 640×512 thermal resolution with ≤50 mK sensitivity for precise threat ID
- 24mm telephoto lens captures intruders at extended range; 9 fps export-compliant
- IK10 vandal rating, IP66/IP67 sealing, dual PoE and 12–24VDC power options
Special Order · Ships in 2-3 weeks

$6,942.00 $5,785.99 Save $1,156.01

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: SXTE4-VF36-EBT

Pelco SXTE4-VF36-EBT Sarix Thermal Bullet 36mm

36mm thermal bullet for long-range perimeter detection in extreme conditions
- 640×512 VGA thermal sensor with ≤50 mK sensitivity for low-contrast detection
- 36mm f/1.0 lens and 12° FOV optimized for standoff distance monitoring
- IP66/IP67 rated, IK10 impact resistant, operates -40°C to +60°C with PoE power
Special Order · Ships in 2-3 weeks

$7,304.22 $6,329.99 Save $974.23

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: SXTE4-VF36-EBT-1

Pelco SXTE4-VF36-EBT-1 Sarix Thermal Bullet Camera

VGA thermal bullet with 36mm lens for extended-range perimeter detection
- 640×512 thermal resolution, ≤50 mK NETD, f/1.0 aperture for long-distance threats
- Radiometric measurement, perimeter intrusion, object detection, loitering analytics onboard
- IP66/IP67, IK10 rated; PoE or 12–24 VDC; −40°C to +60°C operating range
Special Order · Ships in 2-3 weeks

$7,304.22 $6,329.99 Save $974.23

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: UED22NA000A

Pelco UED22NA000A EVO Dual-Sensor 30x PTZ Thermal

Dual 1080p visible + thermal PTZ with 30x zoom for all-weather detection
- 30x optical zoom on visible channel paired with thermal imaging in single PTZ unit
- Operates in darkness, fog, and smoke; IP66/67/68 rated for -40°C to +60°C environments
- H.265/H.264 compression with PoE+ power; ONVIF Profile S, T, G, M compatible
Special Order · Ships in 2-3 weeks

$26,538.60 $22,115.99 Save $4,422.61

Add to Cart
The item has been added

What to Look For When Buying

The decisions that matter most before you spec.

Form Factor Drives Deployment Success

Specialty cameras succeed when their physical design matches the environment's constraints—covert housings must blend with décor, anti-ligature mounts must eliminate anchor points, and corrosion-resistant bodies must survive the chemistry of their location. Mismatched form factors lead to visible tampering, installation delays, and premature failure. System failures during critical incidents often trace to inadequate environmental hardening, making camera selection non-negotiable.

Power & Network Reach in Confined Spaces

Covert and flush-mount cameras often sit in ceilings, walls, or isolated corners where standard PoE budgets and switch capacity assumptions break down. Verify PoE consumption of low-light and thermal variants—thermal sensors consume 15–25W vs. 5–8W for standard models. Long cable runs and daisy-chaining exacerbate voltage drop.

Thermal and Low-Light Require Separate Bandwidth Planning

Thermal and extreme low-light cameras often generate larger bitstreams due to noise reduction and thermal-palette encoding. Bitrate assumptions that work for day/night visible cameras will underestimate storage and bandwidth needs for thermal variants. Segregate thermal streams or architect overprovisioned network segments to prevent core network collapse.

Anti-Ligature Certification & Compliance Verification

Anti-ligature cameras require proof of compliance with BHCF (Behavioral Health Center for Federal Certification) or equivalent standards—not all 'recessed' designs meet safety codes. Verify mount design, load ratings, and inspection reports before specifying for psychiatric, detention, or corrections facilities. Non-compliance creates liability and project rejection.

Environmental Hardening Specs Must Match Location Chemistry

Corrosion-resistant cameras vary widely: stainless-steel 304 handles fresh-water spray; 316L handles salt-spray and chlorine pools; marine-epoxy coatings add cost but extend life in harsh chemical environments. Generic deployment standards often collapse when environments change. Document the specific corrosive agents and humidity/temperature ranges at each site to specify the right material grade.

Thermal + Visible Fusion Requires Dual-Stream or Multi-Sensor Architecture

Many hazardous-location and extreme-environment deployments benefit from both thermal anomaly detection and visible-spectrum context. Single thermal-only designs limit investigative review. Consider multi-sensor cameras or paired thermal+visible setups with synchronized recording to capture both forensic evidence and incident dynamics.

Technology Stack

The specs and acronyms that actually affect specialty cameras performance.

ATEX & IECEx Certification

European and international standards for cameras in explosive atmospheres. ATEX Group II categories denote safety level (II 2G = Group II, Category 2, Gas). Required for petrochemical, pharmaceutical, mining, and grain-storage facilities. Certification includes thermal limits, enclosure integrity, and spark elimination.

Ligature-Proof Mount Design

Recessed, flush-mount, and vandal-resistant housings engineered to eliminate anchor points or provide load-rated tie-down surfaces below critical failure thresholds (often <10 lbs). Compliance verified against BHCF or equivalent safety standards. Prevents use as attachment points for self-harm in behavioral health or detention settings.

Marine-Grade Stainless & Epoxy Coatings

304 stainless resists general corrosion; 316L resists salt-spray and acid. Powder-coat epoxy adds 5–10 years to outdoor lifespan in coastal or chemical-spray zones. Specifications denote coating thickness (typically 250–500 microns) and salt-spray test hours (ASTM B117). Critical for poolside, dock, and agricultural applications.

Thermal Sensitivity & NETD (Noise Equivalent Temperature Difference)

Thermal cameras are rated by NETD in millikelvin (mK)—lower is better. <50 mK detects subtle heat signatures at distance; >100 mK suitable only for gross anomaly detection. Thermal sensitivity drives bitrate, power draw, and cooling requirements. Uncooled microbolometer designs are standard; cooled designs add cost but extend detection range.

Pinhole & Covert Optics (1.0–2.0mm Front Glass)

Covert cameras use ultra-compact lenses (1–2mm diameter) with wide angles (100–140°) to hide inside smoke detectors, clocks, or cosmetic housings. Pinhole designs sacrifice depth-of-field and low-light sensitivity. Identification distance shrinks dramatically with pinhole optics; suitable for general monitoring, not facial identification.

Flush-Mount Depth & Ceiling Integration

Specialty compact cameras measure depth in millimeters (often <40mm) to fit into suspended ceilings, wall voids, or architectural pockets. Verify mounting plate compatibility, fiber-optic or short-drop ethernet routing, and thermal dissipation in sealed spaces. Shallow depth limits heatsink size—monitor operating-temperature ratings in high-ambient environments.

Typical Deployment Scenarios

Psychiatric Facility Monitoring (50-bed ward)

Deploy 12–16 anti-ligature recessed-dome cameras throughout common areas, corridors, and activity spaces. Each camera rated <10 lbs load-fail, BHCF-compliant. Pair with access-control at medication dispensary. Use PoE-injected switches rated for 15W per camera. Segregate recording to HIPAA-compliant encrypted storage.

Coastal Dock & Marina (200m perimeter, salt-spray zone)

Install 8–10 316L stainless IP cameras on pole mounts and building overhangs. Specify marine-epoxy coatings, fiber-optic or HDPE conduit for cabling to resist corrosion creep. Include thermal imaging for nighttime intrusion detection on dock approaches. Expect lower resolution performance at night due to salt haze; plan for 2–3x redundancy in critical zones.

Petrochemical Facility Control Room (Class I, Div. 2 Hazardous Location)

Specify 4–6 ATEX Group II Category 3 IP cameras in fixed positions overlooking pump stations and valve manifolds. Each camera rated for Class I explosive atmospheres (gases, vapors). Pair with thermal imaging for anomaly detection (e.g., bearing overheat). Route all cabling through certified conduit. Integrate with explosion-proof video-storage enclosures and UPS systems rated for hazardous zones.

Retail Loss-Prevention with Covert Monitoring (3–5 discrete locations)

Deploy 4–6 covert pinhole or smoke-detector cameras in back office, stockroom, and cash-handling areas alongside conventional visible domes. Covert cameras deter dishonest employees; visible cameras deter customer-facing theft. Use standard indoor IP camera practices for network segmentation. Accept reduced identification distance (6–10 ft) from pinhole optics in exchange for discrete form factor.

Frequently Asked Questions

What makes a camera 'anti-ligature' and why does it matter?

Anti-ligature cameras are engineered with recessed housings, load-rated mounts, and no protruding fixtures that could serve as anchor points for self-harm. They comply with behavioral-health standards (e.g., BHCF) and are critical in psychiatric wards, detention facilities, and corrections environments. A standard turret or dome mount can support 20+ lbs; anti-ligature mounts fail safely below 10 lbs, preventing use as a suicide vector.

How do I choose between stainless-steel grades (304 vs. 316L) for outdoor coastal deployments?

304 stainless is sufficient for general outdoor corrosion (rain, humidity). 316L adds molybdenum for superior salt-spray and chloride resistance, essential within 5 miles of ocean or in salt-spray/chemical zones. Verify ASTM B117 salt-spray test hours (typically 1,000+ for 316L). Pair material choice with epoxy-coating thickness (250–500 microns) for maximum lifespan in harsh environments.

Why do thermal cameras consume more power and bandwidth than visible-spectrum cameras?

Thermal sensors generate constant-stream data (often 640×480 or higher) with heavy compression and palette encoding, consuming 10–25W and 4–12 Mbps bitrate. Visible cameras at the same resolution may use 5–8W and 2–6 Mbps. NVR specifications rarely account for thermal bitrate; calculate storage and bandwidth separately for mixed deployments to avoid system saturation.

Can I use a pinhole/covert camera for facial identification?

No. Pinhole optics (1–2mm diameter) sacrifice depth-of-field and low-light performance for discretion. Identification distance is typically 6–10 feet maximum, vs. 30–50 feet for standard compact cameras. Use covert cameras for general activity logging and area presence; deploy standard compact or visible domes when facial or object identification is required.

What is ATEX certification and do I need it for my outdoor industrial camera?

ATEX (Atmosphères Explosibles) is a European directive for equipment in explosive atmospheres. Cameras deployed in petrochemical plants, grain silos, paint booths, or pharmaceutical manufacturing often operate in Class I (gases/vapors) or Class II (dusts) environments and must be ATEX-certified. Non-compliance creates liability and facility operational shutdown risk. Check local regulations and facility classification before purchasing.

How do I integrate a covert camera into my surveillance network without drawing attention?

Covert cameras should be segregated on separate network VLANs and recorded to a non-obvious NVR or cloud archive, preventing casual discovery via network browser. Use encrypted credentials and avoid labeling camera names as 'Covert–Backroom.' Ensure power delivery (PoE or hidden wiring) matches the hidden form factor. Document camera locations securely and comply with local recording consent laws—undisclosed monitoring can create legal liability.

Plan Your Deployment

Showing Results for Specialty Cameras

Pelco RC4-51IYJ30X-FB26Z105FW Aeron EVO2 Thermal PTZ

Pelco SXTE4-QF04-EBT Sarix Thermal Bullet Camera

Pelco SXTE4-QF04-EBT-1 Sarix Thermal Bullet 9Hz

Pelco SXTE4-QF09-EBT Sarix Thermal Bullet 30Hz

Pelco SXTE4-QF09-EBT-1 Sarix Thermal Bullet 9Hz

Pelco SXTE4-QF13-EBT Sarix Thermal Bullet Camera

Pelco SXTE4-QF13-EBT-1 Thermal Bullet Camera 9Hz

Pelco SXTE4-QF18-EBT Sarix Thermal Bullet 30Hz

Pelco SXTE4-QF18-EBT-1 Thermal Bullet Camera 9Hz

Pelco SXTE4-VF18-EBT-1 Sarix Thermal Bullet Camera

Pelco SXTE4-VF24-EBT Sarix Thermal Bullet Camera

Pelco SXTE4-VF24-EBT-1 Sarix Thermal Bullet Camera

Pelco SXTE4-VF36-EBT Sarix Thermal Bullet 36mm

Pelco SXTE4-VF36-EBT-1 Sarix Thermal Bullet Camera

Pelco UED22NA000A EVO Dual-Sensor 30x PTZ Thermal

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Specialty Cameras

Frequently Asked Questions

Related Categories

Engineering Reading
