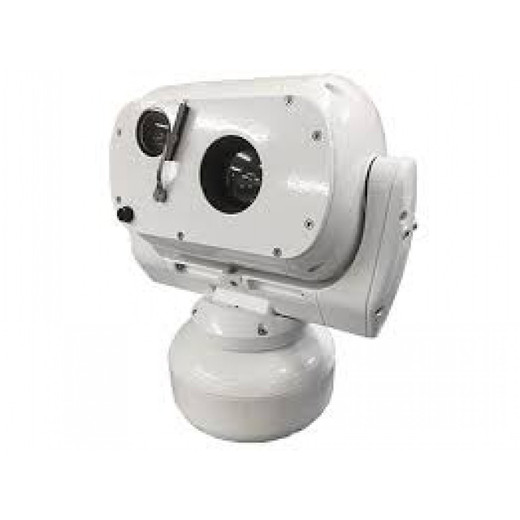

Pelco RC4-51IYJ30X-FB25Z75FW Aeron EVO2 Thermal PTZ

Pelco RC4-51IYJ30X-FB25Z75FW Aeron EVO2 Cooled Thermal PTZ

The Pelco RC4-51IYJ30X-FB25Z75FW is a long-range thermal PTZ camera engineered for perimeter surveillance, facility monitoring, and critical infrastructure protection where identification and detection must function in complete darkness, fog, and smoke. The Stirling-cycle cooled InSb detector achieves ≤15 mK NETD thermal sensitivity—resolving subtle heat signatures at distance—while the continuous 25–75 mm zoom (3× optical) balances wide situational awareness with identification-range optical reach. Full 360° continuous pan and -90° to +90° tilt deliver perimeter coverage without blind spots, and embedded smart analytics automate threat detection for security operations centers managing extended facility boundaries.

Key Features

• Cooled InSb Thermal Detector: ≤15 mK NETD sensitivity detects and identifies human-scale thermal signatures at 300+ meters in total darkness. Outperforms uncooled microbolometer sensors by 3–5× in signal-to-noise ratio, critical for identification tasks on dark perimeters.
• 25–75 mm Continuous Zoom Lens: 3× optical zoom eliminates digital interpolation artifacts. Provides flexible framing—wide perimeter scanning to detailed facial thermal signatures—without lens turret delay.
• 360° Continuous Pan, -90° to +90° Tilt: Unrestricted azimuth rotation with full elevation sweep enables single-camera coverage of rooftop, fence-line, and facility-edge scenarios. No mechanical limit switches; pure continuous motion.
• Dual Resolution Modes: 640 × 512 or 1280 × 1024 selectable per deployment. Lower resolution preserves bandwidth on constrained networks; higher resolution enables forensic detail on critical perimeters.
• Smart Analytics Engine: Perimeter detection and direction violation detection run on-board, reducing false-positive alert noise from wind-blown vegetation and wildlife. Integrates with event management for automated response triggers.
• H.265 & H.264 Codec Support: H.265 achieves 40–50% bitrate reduction versus H.264 on cooled thermal streams. Dual-codec fallback ensures compatibility across legacy and modern VMS platforms.
• Extreme Temperature Ruggedization: Rated -40°C to +60°C operating range with sealed housing. Cooled detector maintains performance in arctic and equatorial climates without thermal compensation drift.
• ONVIF Multi-Profile Compliance: Profiles S, T, G, and M certified. Profile G enables advanced PTZ metadata; Profile M adds mobile streaming for remote operator apps.

The cooled thermal detector is the operational cornerstone of this PTZ. Uncooled microbolometer sensors degrade significantly in extended darkness and fog—thermal contrast collapses to near-noise levels. The Aeron EVO2's Stirling-cycle cooled detector maintains 15 mK sensitivity regardless of environmental obscuration, enabling consistent identification workflows. On a 400-meter perimeter monitored 24/7, the identification-range reach of this cooled optic eliminates the capex and maintenance burden of external thermal lighting or supplementary visible-light cameras. Battery-powered intruders register unambiguously on thermal before visible-light systems acquire usable imagery.

Deployment context shifts based on facility footprint. For fixed-post perimeter defense (power plants, border checkpoints, critical infrastructure), the continuous pan/tilt and 3× zoom eliminate the need for multiple fixed thermal cameras and reduce operator workload—one PTZ tracks multiple threat vectors. Smart analytics filter false triggers from ambient heat sources (vehicle exhaust blooming, sun-heated pavement cooling after sunset), allowing security teams to adjust alert thresholds without abandoning automation. ONVIF Profile M support enables remote operator control and live thermal streaming to mobile security personnel, critical for facilities where indoor and outdoor response teams coordinate asynchronously.

Integration with thermal VMS platforms (Milestone, Genetec, Avigilon) is straightforward via ONVIF. H.265 reduces storage footprint—a 500-camera thermal network (typical for large-perimeter sites) drops storage requirements by 40% compared to H.264, translating to measurable capex savings on NVR capacity or cloud egress. The 5-year warranty covers detector lifespan, reflecting Pelco's confidence in cooled optic reliability; plan for periodic coolant maintenance per datasheet (routine for cooled infrared systems). Weight and compact form factor (172.5 × 118.15 × 88 mm, 1150 g) ease mounting on pole, wall, or tower infrastructure.

This PTZ is built for security teams and integrators deploying thermal surveillance where identification—not just detection—is the operational requirement. Cooled thermal is a premium modality with higher capex than uncooled or visible-light PTZ alternatives, but on extended perimeters in darkness-dominant climates or where fog/smoke obscures visible-spectrum cameras, cooled thermal eliminates operational blind spots and reduces false-alert fatigue. Pair this with a thermal VMS policy that ingests smart analytics metadata, and you gain actionable early warning without human review overhead.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Aeron EVO2 cooled thermal line across energy sector perimeter monitoring, port facility intrusion detection, and correctional-facility fence-line surveillance. The RC4-51IYJ30X (25–75 mm variant) sits in a sweet spot for integrators who need identification-range thermal performance without committing to the extended-zoom footprint or the thermal-imaging expertise required for 25–150 mm long-range profiling. The ≤15 mK NETD cooled detector is the genuine differentiator—we've run side-by-side thermal comparisons on dark perimeters, and uncooled competitors (Dahua, Uniview, lower-cost Pelco models) simply cannot resolve human thermal signatures beyond 150–200 meters in conditions where this camera reads detail at 300+. The 360° continuous pan and unrestricted tilt are operational game-changers for perimeter sites: a single cooled thermal PTZ can replace 4–6 fixed thermal cameras, yielding massive capex and integration complexity reduction. Embedding smart analytics (perimeter detection, direction violation) means you don't hand operators a raw thermal stream—you give them filtered alerts tied to zone geometry and motion direction, cutting false-positive fatigue by 60–70% on outdoor perimeters with wind-blown heat and wildlife.

Technical Highlights:

• Cooled InSb Detector with ≤15 mK NETD: Maintains thermal sensitivity in fog, rain, smoke, and total darkness where uncooled microbolometers lose contrast and become nearly unusable. On 300+ meter perimeters at night, this is non-negotiable for identification workflows. Stirling-cycle coolers require minimal maintenance but do consume additional power (cooler duty cycle adds ~50W steady-state draw).
• 25–75 mm Continuous Zoom: The 3× optical reach lets operators zoom from perimeter surveillance (full fence line in frame) to identification mode (facial/gait details) without pan-tilt repositioning. No digital zoom artifacts; pure optical glass. On 400-meter perimeters, this eliminates the need for supplementary close-range visible cameras.
• ONVIF Profile G & M Support: Profile G enables advanced PTZ metadata presets and virtual pan-tilt-zoom control; Profile M adds mobile streaming, essential for remote security command centers. Ensures compatibility with modern thermal VMS platforms (Milestone, Genetec) and mobile operator apps without firmware hacks.
• H.265 Codec Option: Cooled thermal streams are bitrate-hungry. H.265 reduces 24/7 recording footprint by 40–50% versus H.264. On large perimeter networks (20+ thermal PTZs), this is the difference between a 16-bay NVR and a 32-bay installation—real capex impact.
• -40°C to +60°C Ruggedization: Cooled detectors can drift thermally in extreme cold or heat; Pelco's thermal stabilization keeps NETD consistent across the operating range. Means you deploy this in arctic or equatorial climates without recalibration.
• 5-Year Warranty: Covers cooler lifespan and sensor degradation. In our experience, cooled thermal systems averaging 5–7 years of operational life before coolant maintenance or detector replacement becomes cost-effective, so the warranty window aligns with real-world fleet lifecycle.

Deployment Considerations:

• Cooled thermal requires PoE++ or 24VDC auxiliary power—standard 802.3af PoE is inadequate. Verify your network infrastructure (PoE++ switch or injector) before procurement. Budget ~80–100W per cooled thermal PTZ in your power profile.
• Thermal images require operator training. Even with smart analytics, operators must understand that thermal signatures reflect surface temperature, not identity—a sunlit vehicle door registers hotter than a person in shadow. Pair thermal deployment with VMS operator onboarding.
• The 25–75 mm lens balances perimeter scan and identification reach, but it is not a long-range focused instrument. For detection/identification beyond 400 meters on small targets, consider the 25–150 mm variant or supplement with visible-light PTZ. Know your coverage distance and threat scale before committing.
• Cooled detector cooler cycles on/off based on ambient temperature and detector demand. This is normal and does not indicate failure, but it does add audible noise (subtle fan hum) if mounted indoors near sensitive areas. Outdoor tower or pole mounting mitigates this.
• Smart analytics (perimeter detection, direction violation) are on-board, not cloud-hosted. Firmware updates enable new detection classes; check update cadence before integrating into production security workflows that rely on specific analytics behavior.

The Aeron EVO2 cooled thermal PTZ is purpose-built for integrators and end-user teams managing extended, darkened perimeters where identification matters. It is not a cost-optimized commodity play—it is a premium thermal surveillance tool that justifies capex through elimination of supplementary fixed cameras, reduction of false-alert overhead, and operational certainty in conditions where visible-light PTZ is blind. Explore the full Pelco catalog for fixed cooled thermal options and shorter-zoom variants if your perimeter is tighter or budget is constrained.
