Network Switches, PoE Injectors & Surveillance Infrastructure

Plan Your Deployment

Total PoE power budget and port density requirements
Switch throughput and uplink capacity planning
Redundancy and failover design considerations
Distance limitations and fiber conversion needs
Power conditioning and voltage compatibility

Sub categories

Showing Results for Infrastructure

Compare

Add to Cart The item has been added
Hanwha

SKU: TER-F01

Hanwha TER-F01 Ethernet Repeater 100M PoE Pass-Through

Extend Ethernet 100M with PoE pass-through, zero setup required
- Amplifies signal to 100 meters while passing power to downstream devices
- Plug-and-play operation—no configuration, IP assignment, or management needed
- Compact form factor fits cable trays and junction boxes without extra infrastructure
In stock · Ships same business day

$385.00 $258.99 Save $126.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Digital Watchdog

SKU: DWC-VSBD04Mi

Digital Watchdog DWC-VSBD04Mi 4MP Smart IR Outdoor Bullet IP Camera

4MP outdoor bullet with motorized zoom and 164ft Smart IR
- Motorized 2.8–12mm varifocal lens with autofocus for flexible framing
- 164-foot Smart IR range maintains legibility in complete darkness
- IP67/IK10 rated, PoE powered, H.265 compression for all-weather duty
In stock · Ships same business day

$381.00 $211.99 Save $169.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 02172-004

Axis 02172-004 30W PoE+ Midspan Injector

30W PoE+ midspan injector for network devices without built-in power
- 56V DC, 30W output (IEEE 802.3at Type 2 Class 4) powers PTZ cameras
- Gigabit Ethernet passthrough on all four pairs; auto PoE detection
- Compact 30×46×140mm form factor; wall, shelf, or DIN rail mount
In stock · Ships same business day

$88.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Digital Watchdog

SKU: DWC-MT95Wi28TW

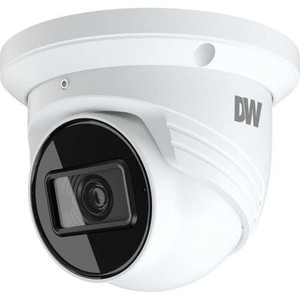

Digital Watchdog DWC-MT95Wi28TW 5MP AI IR Outdoor Turret Camera

5MP turret with 100ft Smart IR and AI analytics for outdoor perimeter watch
- 5MP (2592×1944) captures identifiable detail at 30–50 ft; 0.02 lux color sensitivity
- 100-foot Smart IR with auto day/night switching; IP67/IK10 rated for harsh weather
- AI object classification, line crossing, intrusion detection, tampering alerts built in
In stock · Ships same business day

$487.00 $265.99 Save $221.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Digital Watchdog

SKU: DWC-B6563WTIRW

Digital Watchdog DWC-B6563WTIRW 5MP IR Bullet Camera

5MP IR bullet with 100ft night vision and varifocal 2.7–13.5mm lens
- 5MP (2592 × 1944) at 20fps native + Star-Light x32 sense-up for color in moonlight
- 100-foot Smart IR range with auto day/night and 0.08 lux color threshold
- IP66 outdoor-rated with PoE or 12VDC power; P-iris varifocal lens (102° to 31.4° FOV)
In stock · Ships same business day

$446.00 $337.99 Save $108.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 5025-281

Axis T8129 Indoor PoE Network Extender - 5025-281

Compact PoE extender regenerates power to reach devices beyond 100m
- Auto-forwards IEEE 802.3af/at power with 10/100 Mbps data pass-through
- Plug-and-play inline installation; no configuration or separate power supply
- Fits cable trays and tight spaces at 105×40×22 mm; wall or shelf mount
In stock · Ships same business day

$221.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
i-PRO

SKU: WJ-PU201

i-PRO WJ-PU201 60W Single Port PoE Injector

60W single-port PoE injector for high-power networked devices
- 60W output over Gigabit Ethernet; powers devices rated 40W–60W
- IEEE 802.3bt compliant with 4-pair current sharing for safety
- Broken-wire detection and device recognition protect connected equipment
In stock · Ships same business day

$258.06 $203.99 Save $54.07

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 01232-001

Axis T8508 Rack Mount Kit A - 01232-001

19-inch rack mount bracket for AXIS T8508 PoE+ switch
- High-tensile steel bracket with M6 fasteners included for secure 24/7 mounting
- Fits standard IEC 19-inch racks at 444mm height without modification
- Weighs 1.06 kg; engineered specifically for T8508 port alignment
In stock · Ships same business day

$32.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Digital Watchdog

SKU: DWC-MT9JUNC2

Digital Watchdog DWC-MT9JUNC2 Junction Box for T9 Turret Cameras

Aluminum weatherproof junction box for Digital Watchdog T9 varifocal turrets
- Aluminum alloy construction resists corrosion in outdoor & coastal environments
- Weatherproof enclosure protects connectors & cable terminations from rain & dust
- Purpose-built geometry optimized for T9 turret camera cable routing & termination
In stock · Ships same business day

$56.00 $33.99 Save $22.01

Add to Cart
The item has been added
Compare

Out of stock
Digital Watchdog

SKU: DWC-PPVF5Di1TW

Digital Watchdog DWC-PPVF5Di1TW 5MP IR Outdoor Fisheye IP Camera

5MP fisheye IP camera with 185° view and 80ft IR for outdoor panoramic monitoring
- 185° horizontal and vertical fisheye eliminates blind spots in single device
- 80-foot Smart IR with 0.0 lux B/W for complete darkness surveillance
- IP66-rated, IK09 impact-resistant housing; PoE-powered at 8.7W max
Special Order · Ships in 2-3 weeks

$1,070.00 $690.99 Save $379.01

Add to Cart
The item has been added
Compare

Out of stock
Hanwha

SKU: TEU-F04

Hanwha TEU-F04 4-Port Ethernet Extender PoE

4-port Ethernet extender with PoE pass-through for extended camera runs
- Four channels of simultaneous Ethernet extension over standard UTP cable
- Pass-through PoE+ (802.3at) delivers power and data through single cable
- Plug-and-play installation with zero configuration; works with Hanwha and third-party devices
Special Order · Ships in 2-3 weeks

$1,700.00 $1,139.99 Save $560.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 5028-411

Axis T8641 PoE+ Over Coax Media Converter - 5028-411

PoE+ power and data over existing coaxial cable infrastructure
- Delivers up to 30W over coax to Axis and third-party PoE+ devices
- Plug-and-play base unit; pairs with remote converter for extended reach
- Reuses installed coax runs; eliminates new Ethernet cable installation costs
In stock · Ships same business day

$316.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AP-GXC-0150

Vivotek AP-GXC-0150 Outdoor 1-Port Gigabit PoE Extender

Outdoor PoE extender reaching 300m with 68W passive output, no local power
- Daisy-chain two units up to 300 meters with zero on-site power required
- 95W PoE input, 68W output at full Gigabit speeds on both ports
- IP67 waterproof, IK10 vandal-proof, 6KV surge protection, -40°C to +65°C
Special Order · Ships in 2-3 weeks

$242.00 $173.99 Save $68.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 5500-001

Axis 5500-001 PoE++ Gigabit Splitter 60W

PoE++ splitter extracts 54W power & gigabit data from single ethernet
- Field-selectable 12V or 24V DC output at 4.5A or 2.25A respectively
- Gigabit RJ45 pass-through maintains full network speed with zero data loss
- Compact 38 x 73 x 130mm form factor fits tight equipment enclosures
In stock · Ships same business day

$146.99

Add to Cart
The item has been added
Compare

Out of stock
Digital Watchdog

SKU: DWC-V7253WTIR

Digital Watchdog DWC-V7253WTIR 2MP Star-Light IR Outdoor Weatherproof Dome IP Camera

2MP dome with 50ft IR and Star-Light x32 for 24/7 outdoor surveillance
- 0.06 lux color night vision with 50-foot IR range and x32 sense-up
- 100dB true WDR handles high-contrast scenes; IP66/IK10 rated for weather
- PoE powered, coax-compatible HD-TVI/HD-CVI/analog output for legacy systems
Special Order · Ships in 2-3 weeks

$307.00 $198.99 Save $108.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Axis

SKU: 5026-204

Axis T8120 15W Single-Port PoE Midspan Injector - 5026-204

Single-port PoE injector adds 15W power to non-PoE network runs
- 15W @ 48V DC (802.3af) powers IP cameras, VoIP phones, access points
- Gigabit passthrough (10/100/1000 Mbps) leaves data bandwidth untouched
- Plug-and-play auto-sensing with no configuration or IP setup required
In stock · Ships same business day

$66.99

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

PoE Power Budget Math

A 24-port PoE+ switch with 370W total budget can't actually run 24 outdoor cameras at peak 25W each. Simultaneous peak — not nameplate — is the limit. Always verify per-port PoE allocation and total budget against actual camera load. See PoE budget planning and why your PoE switch fails after 18 cameras.

328-Foot Ethernet Limit

Cat5e, Cat6, and Cat6A all top out at 100 meters (328ft) per TIA-568. Past that, you need a media converter to fiber, a PoE extender, or an intermediate switch. Common gotcha: in-wall patch + faceplate + drop + jumper all count against 328ft. Long runs to perimeter cameras frequently exceed the limit — plan for fiber or coax-PoE extension.

Managed vs Unmanaged Switches

Unmanaged switches work for small deployments but provide no VLAN segmentation, no QoS for video traffic, no monitoring, and no remote troubleshooting. Managed switches (Layer 2 or Layer 3) let you isolate cameras on a dedicated VLAN, prioritize video over office traffic, and diagnose link failures from a central SNMP platform. Spec managed for any deployment over 8 cameras.

UPS Sizing & Runtime

NVR + switches + cameras + access control have very different power profiles than office gear. Size UPS for actual wattage of all connected loads + 20% headroom, and calculate runtime with battery-life curves (runtime is non-linear — doubling load often cuts runtime 60%+). Surveillance UPS should provide 15-30 min to accommodate generator transfer or graceful shutdown.

Copper vs Fiber Uplinks

In-rack uplinks on 10G copper (Cat6A) work fine for short runs. Between-building and multi-floor uplinks should be fiber — single-mode for >300m, multimode for under. Fiber is also electrically isolated, which matters in lightning-prone environments. Axis, Hanwha, and Ubiquiti switches include SFP/SFP+ uplinks across most models.

Cooling & Airflow in Racks

Surveillance gear runs 24/7 — a closed rack at 90°F interior temperature will fail drives and switches faster than spec. Specify perforated doors, rack-mount fans, and leave 1U of airflow gap above/below heat-generating equipment. NVRs with internal fans need front-to-back airflow; network switches vary by vendor. Check thermal spec before sealing a wall-mount enclosure.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

802.3af / at / bt PoE Standards

802.3af = 15.4W/port (entry cameras), 802.3at PoE+ = 25.5W/port (most outdoor cameras), 802.3bt PoE++ Type 3 = 60W, Type 4 = 90W (PTZ, heated, multi-sensor). Specify switch support for the highest standard your cameras need — future-proofing with PoE++ switches costs marginally more.

TIA-568 Cabling Standards

Cat5e rated to 1 Gbps at 100m. Cat6 rated to 10 Gbps at 55m, 1 Gbps at 100m. Cat6A rated to 10 Gbps at 100m with proper grounding. Use Cat6A for new surveillance cabling runs — marginal cost premium over Cat6, meaningful margin for long runs + high PoE.

SFP / SFP+ / QSFP+ Modules

Small Form-factor Pluggable optics for fiber uplinks. SFP = 1 Gbps, SFP+ = 10 Gbps, QSFP+ = 40 Gbps. Match module to switch vendor compatibility (some vendors lock to their own brand of optics). Multimode fiber with OM3/OM4 for ≤300m, single-mode for longer or future-proof runs.

VLAN Segmentation

Dedicated VLAN for surveillance isolates camera traffic from office network — improves security (camera-to-camera lateral movement blocked), performance (no contention with office traffic), and troubleshooting. Configure access-control and intercom VLANs separately. Managed switches required; unmanaged switches cannot segment.

Long-Reach PoE Extension

Ethernet-over-Coax (EoC) extends Ethernet + PoE to 1,500+ feet over existing RG59 coax — ideal for analog-to-IP retrofits. Ethernet-over-UTP extenders push runs to 4,000ft over CAT cable. NVT Phybridge CHARIoT, Altronix eBridge, and Veracity Highwire are the common product families. Rate-limited to 100 Mbps typically.

UPS Topology: Line-Interactive vs Double-Conversion

Line-interactive UPS switch to battery on power failure — sufficient for office gear. Double-conversion (online) UPS convert AC→DC→AC continuously, providing perfectly conditioned power — required for sensitive SCADA/security gear in dirty-power environments. Specify double-conversion for NVRs at critical sites.

Typical Deployment Scenarios

8-Camera Single-Site Retrofit

Existing network + 8 outdoor IP cameras. Add a 16-port managed PoE+ switch (Ubiquiti UniFi, Axis T85) on a dedicated VLAN. 1U rack UPS for the NVR + switch. 120-160 watts total PoE budget comfortably runs 8 outdoor cameras with heater + IR.

48-Camera Campus Upgrade

Four buildings, 48 cameras total, existing fiber backbone. Per-building 24-port PoE++ switch with SFP+ fiber uplink to core. Dedicated surveillance VLAN, QoS for video traffic, SNMP monitoring. 2-post relay rack in each IDF closet with dedicated surveillance UPS.

Perimeter Fence Line (1,200ft)

6 bullet cameras + 2 PTZs along perimeter fence, main NVR in building. Fiber media converter + outdoor-rated fiber to a PoE++ switch in a weatherproof enclosure at the fence line. Alternative: NVT Phybridge CHARIoT over existing coax for retrofit applications.

Multi-Floor Office Tower

Stacked IDFs on every floor, cameras + access control + intercom on dedicated VLANs. Cisco Catalyst or Ubiquiti UniFi Pro managed switches per floor with 10G fiber uplink to building core. Per-IDF 3U UPS. Integration with VMS and access control head-end at main BDF.

Frequently Asked Questions

How do I calculate PoE budget for a camera deployment?

Sum the peak wattage of every camera (not nameplate — check spec sheet for "PoE class" or "max consumption"). Add 15-20% headroom for inrush during cold-start. The result is your required simultaneous-peak PoE budget. A 24-port PoE+ switch advertised at 370W can only run about 18 outdoor cameras with heaters + IR — see PoE budget planning.

What's the maximum Ethernet cable run for an IP camera?

100 meters (328 feet) per TIA-568 — total distance from switch port to camera port. That includes in-rack patch cords, in-wall cabling, faceplate jack, and camera jumper. For longer runs, use fiber with a media converter or a long-reach PoE extender. Going past 328ft on copper causes intermittent packet loss that looks like camera problems.

Do I need managed or unmanaged PoE switches?

For more than 8 cameras or any mixed-use network (cameras sharing infrastructure with office traffic), specify managed. VLAN segmentation isolates camera traffic for security and performance; QoS ensures video gets bandwidth priority; SNMP monitoring surfaces failures before users call. Unmanaged switches are acceptable only for small standalone deployments.

What UPS runtime should I plan for an NVR + switch?

15-30 minutes of runtime at actual load is typical — enough to ride through brief outages or allow graceful shutdown before battery exhaustion. For sites with generator transfer, 5-10 minutes is sufficient. Size UPS wattage for actual connected load + 20%, and use the vendor's runtime-at-load curve (runtime is non-linear). Double-conversion UPS for sensitive or dirty-power sites.

How far can I extend PoE past 328 feet?

Ethernet-over-Coax extenders (NVT Phybridge CHARIoT, Altronix eBridge) push Ethernet + PoE to 1,500+ feet over existing RG59/RG6 coax — ideal for analog-to-IP retrofits. UTP-based extenders reach 2,000-4,000 feet on Cat cable at reduced bandwidth (typically 100 Mbps). For new runs over 328ft, fiber + PoE switch at the camera end is usually cleaner architecture.

Should I put cameras on a separate VLAN?

Yes — always. A dedicated camera VLAN isolates camera traffic from office network for security (blocks camera-to-camera lateral movement if one is compromised), performance (cameras don't contend with office bandwidth), and troubleshooting (camera traffic is cleanly separated for packet capture). Requires managed switches; takes 10 minutes to configure on Ubiquiti UniFi, Cisco Catalyst, or any enterprise switch.

Infrastructure

Plan Your Deployment

Sub categories

Showing Results for Infrastructure

Hanwha TER-F01 Ethernet Repeater 100M PoE Pass-Through

Digital Watchdog DWC-VSBD04Mi 4MP Smart IR Outdoor Bullet IP Camera

Axis 02172-004 30W PoE+ Midspan Injector

Digital Watchdog DWC-MT95Wi28TW 5MP AI IR Outdoor Turret Camera

Digital Watchdog DWC-B6563WTIRW 5MP IR Bullet Camera

Axis T8129 Indoor PoE Network Extender - 5025-281

i-PRO WJ-PU201 60W Single Port PoE Injector

Axis T8508 Rack Mount Kit A - 01232-001

Digital Watchdog DWC-MT9JUNC2 Junction Box for T9 Turret Cameras

Digital Watchdog DWC-PPVF5Di1TW 5MP IR Outdoor Fisheye IP Camera

Hanwha TEU-F04 4-Port Ethernet Extender PoE

Axis T8641 PoE+ Over Coax Media Converter - 5028-411

Vivotek AP-GXC-0150 Outdoor 1-Port Gigabit PoE Extender

Axis 5500-001 PoE++ Gigabit Splitter 60W

Digital Watchdog DWC-V7253WTIR 2MP Star-Light IR Outdoor Weatherproof Dome IP Camera

Axis T8120 15W Single-Port PoE Midspan Injector - 5026-204

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading

Certified Experts

Manufacturer Authorized

Expert Access

Since 2014

Brands

Categories

IP Cameras

Ordering

Legal

Company

Sales & Expert Advice

Customer Service
