Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: DWC-V7253WTIR
UPC: 813379019784
Condition: New
Availability: Special Order · Usually Ships in 2-3 Weeks
Warranty 5-year warranty
Write a Review 35% OFF

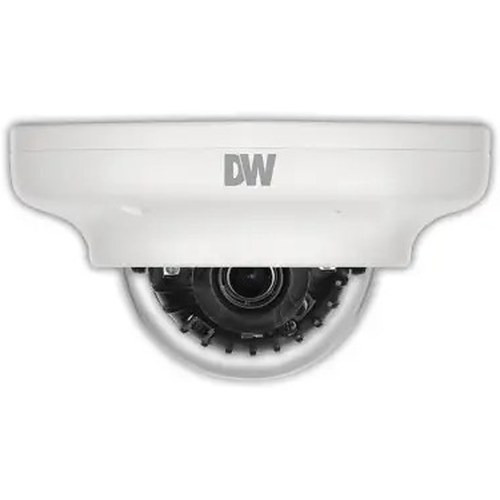

Digital Watchdog DWC-V7253WTIR 2MP Star-Light IR Outdoor Weatherproof Dome IP Camera

2MP dome with 50ft IR and Star-Light x32 for 24/7 outdoor surveillance

$307.00 $198.99 SAVE $108
Special Order
Ships in 2-3 Weeks

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Senior specialists for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install

Laura Bennett, IPSD Senior Specialist

Talk to Laura

200+ hrs training • U.S - based

Senior Specialist • 877-277-7147

Digital Watchdog DWC-V7253WTIR 2MP Star-Light IR Outdoor Weatherproof Dome IP Camera

$307.00
$198.99

Overview

SKU: DWC-V7253WTIR
UPC: 813379019784
Condition: New
Availability: Special Order · Usually Ships in 2-3 Weeks
Warranty 5-year warranty

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Description

Digital Watchdog DWC-V7253WTIR 2MP Star-Light IR Dome Camera

The Digital Watchdog DWC-V7253WTIR is a professional-grade 2MP outdoor dome camera engineered for reliable surveillance in demanding environments. Built on Universal HD over Coax® technology, this camera delivers exceptional image quality while maintaining compatibility with existing analog infrastructure, making it ideal for upgrading legacy systems without costly rewiring.

Key Features

  • 2MP 1080p resolution with 1/3" progressive scan CMOS sensor
  • Star-Light technology with up to x32 sense-up for extreme low-light performance
  • 50-foot infrared LED night vision with 0.06 lux color sensitivity
  • True WDR 100dB for high-contrast lighting conditions
  • IP66 weatherproof rating and IK10 impact-resistant polycarbonate dome
  • 16 programmable privacy zones for flexible deployment
  • PoE-powered design for simplified installation
  • 3.6mm fixed lens with auto/manual/FLC shutter modes

Technical Specifications

This camera operates across a wide temperature range (-4°F to 122°F), making it suitable for diverse climates. The 100dB true WDR combined with Smart DNR™ 3D noise reduction and Dynamic Range Compressor ensures clean, detailed video in challenging lighting. Multiple video output formats—HD-Analog, HD-TVI, HD-CVI, and 960H analog—provide seamless integration with coaxial-based systems. Motion detection and auto gain control (0-10) deliver responsive alerting capabilities, while advanced image processing features include gamma correction, de-fog, mirror/flip functionality, and manual white balance controls.

Durability & Installation

Constructed from aluminum vandal housing with a reinforced polycarbonate dome, the DWC-V7253WTIR withstands harsh outdoor conditions and intentional impact. The compact 4.13" × 2.39" form factor fits standard dome mounting applications. At just 1.7W power consumption (LED off), this camera minimizes electrical load on PoE infrastructure.

Applications

  • Parking lot and perimeter security
  • Outdoor facility monitoring
  • Building exterior coverage
  • Low-light industrial environments
  • Legacy analog system upgrades
James Everett
James Everett
Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-V7253WTIR excels where coaxial infrastructure already exists. Its Universal HD over Coax® compatibility eliminates expensive cabling replacement while delivering modern 2MP clarity. The Star-Light sense-up technology is particularly valuable for outdoor installations lacking supplemental lighting—achieving color video at 0.06 lux outperforms standard fixed-gain approaches.

The 100dB WDR handles backlit scenarios (sunset reflections, headlights) without sacrificing shadow detail. For integrators managing mixed analog/HD environments, this camera's multi-format output flexibility reduces SKU complexity. The 50-foot IR range covers typical perimeter distances, though wide-angle mounting should account for the fixed 3.6mm lens.

The IK10 rating and IP66 seal make this suitable for exposed mounting on building corners or fence lines.

Specifications
Type: Dome
Features: HD
Features: Night Vision
Frame Rate: Variable
Sensor Type: 2.1MP/1080p 1/3" CMOS
Active pixels: 1944 (H) x 1092 (V)
Scanning system: Progressive scan
Frequency: 60Hz / 50Hz
Signal technology: HD-TVI, HD-CVI, HD-Analog, 960H
Synchronization: Internal
Resolution: 2MP
Minimum scene illumination: 0.06 lux (Color); 0 lux (B&W)
S/N ratio: 55dB
Video Outputs: HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H
Focal Length: 3.6mm
Lens Type: Fixed lens
IR Distance: 50ft range
Shutter mode: Auto, manual, FLC
Shutter speed: 1/30-1/30,000
Backlight: On, off
Star-Light (sense-up: Off, x2 – x32
Wide dynamic range (WDR: True WDR, off, on
Wide dynamic range (WDR) dB: 100dB
Dynamic range compressor (DRC: Off, low, middle, high
Smart DNR™ 3D digital noise reduction: Off, low, middle, high
White balance: Auto / auto-ex / preset / manual
Day / night: Auto, day (color), night (B/W)
Mirror / flip: Yes
Auto gain control: 0~10
Motion detection: Yes
Privacy zones: 16 programmable privacy zones
Sharpness: 0 ~ 10
Gamma: 0.45 ~ 0.75
De-fog: On, off
Operating Temperature: -4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity: 10–90% RH (non–condensing)
IP Rating: IP66
Vandal Rating: IK10-rated impact resistant
Other certifications: FCC, CE, ROHS
Power requirement: DC 12V
Power (Max: 1.7W
Material: Aluminum vandal housing, polycarbonate dome
Dimensions: 4.13" x 2.39" (105 x 60.7 mm)
Weight: 0.95 lbs (0.43kg)
Product Type: Dome
Connectivity: Wired
Power Type: PoE
Night Vision: IR
Housing Color: White
Environment Rating: Outdoor
Warranty: 5-year warranty
