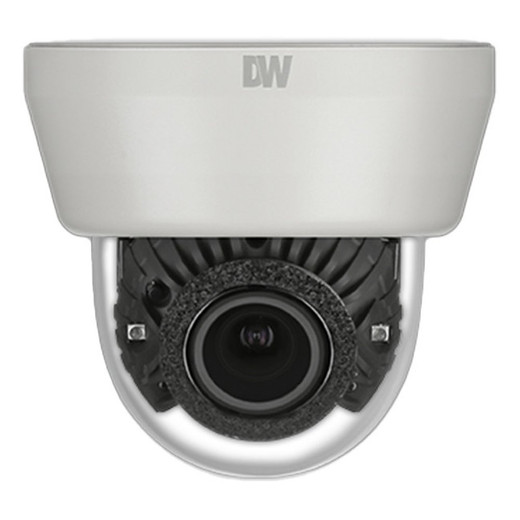

Digital Watchdog DWC-D4283WTIR 2MP Star-Light IR Dome Camera

Digital Watchdog DWC-D4283WTIR 2MP Star-Light IR Dome Camera

The DWC-D4283WTIR is a 2MP dome camera built for facilities where lighting is inconsistent or absent for extended periods. The combination of Star-Light technology (up to 32x sense-up) and 100-foot Smart IR range means you capture usable footage in near-total darkness without relying solely on passive infrared illumination. This is meaningful in retail environments with variable backlighting, warehouses with dark zones, and access points that need 24/7 monitoring regardless of ambient light.

Key Features

• 2.1MP CMOS sensor with 1/3" progressive scan: Delivers 1080p resolution across a wide field of view. For most retail and office surveillance, 2MP is the practical floor—enough detail for facial recognition at entrance points without consuming excessive storage on 24/7 recordings.
• Star-Light technology with up to 32x sense-up: Amplifies available light digitally to enhance low-light images without introducing excessive noise artifacts. Minimum illumination reaches 0.0 lux in B&W mode and 0.03 lux in color. This is particularly useful when infrared alone produces washed-out or overexposed images in mixed-lighting scenarios.
• 100-foot Smart IR range: Covers large indoor spaces—warehouses, parking structures, loading docks—without multiple cameras. The IR automatically adjusts intensity to prevent overexposure on nearby objects while maintaining adequate illumination on distant subjects.
• True WDR 100dB: Handles mixed lighting—backlit entrances, windows, spotlights—by balancing exposure across the image. In retail settings with both indoor and natural light, this prevents silhouetting and blown-out backgrounds.
• Motorized vari-focal 2.8–12mm lens with auto-focus and P-iris: Provides flexible framing without swapping lenses. The 91° to 28° horizontal field-of-view range lets a single camera adapt to changing security needs. Auto-focus and P-iris control adjust automatically based on lens position and light intensity, reducing manual fine-tuning.
• IP66 weatherproof rating: Tolerates dust and water spray from any direction, making it suitable for covered outdoor areas (loading docks, carports) and humid indoor environments (food prep, high-moisture warehouses). Not rated for full submersion—stick with IP67 if that's a requirement.
• PoE power with 2.3W–5.2W consumption: Single-cable deployment reduces installation labor. Power draw stays well under typical 802.3af budgets (15W per port), so you won't strain a standard PoE switch even on larger camera counts.
• Multi-signal support: CVBS, HD-Analog, HD-CVI, HD-TVI, and Universal HD over Coax: Allows deployment into existing analog infrastructure without ripping out coax runs. Simplifies migration from legacy systems by letting the DWC-D4283WTIR act as a bridge between old and new. Over time, you transition to pure IP without urgent replacement cycles.
• H.264 and MJPEG compression: H.264 is the standard for continuous recording (roughly 50% smaller files than MJPEG at equivalent quality). MJPEG is available if your VMS or playback software lacks H.264 support, though this is increasingly rare.
• Built-in microphone with 50Hz–10KHz audio response: Captures ambient sound for incident review—useful in retail loss-prevention and workplace safety contexts. Audio-only clips are small; consider this a value-add rather than a primary feature.
• 16 programmable privacy masks: Enables masking of sensitive areas (office windows, rest areas) without affecting the rest of the image. More practical than deleting footage in post-production.
• ONVIF compatibility: Ensures integration with standard video management systems (Milestone, Genetec, etc.). Avoids vendor lock-in to proprietary platforms.

Integration & Compatibility

The DWC-D4283WTIR integrates into both legacy analog and modern IP systems. Pelco C/D camera control enables PTZ and preset functions where supported. Motion detection and alarm I/O allow the camera to trigger alerts or recordings on third-party access control or environmental monitoring systems. Because it supports multiple video formats, it works in hybrid deployments where some cameras are analog and others are IP-based on the same infrastructure.

For IP cameras in warehouse and retail settings, ensure your NVR or VMS has sufficient storage headroom. A single 2MP camera recording 24/7 at H.264 medium bitrate generates roughly 100–150GB per month; planning network video recorder capacity around peak event hours and pruning older footage accordingly is essential.

Environmental Specs & Deployment Context

Operating temperature range is -40°F to 122°F with 10–90% non-condensing humidity. This covers most indoor climates but not tropical/high-humidity outdoor deployments without shelter. The plastic housing with IP66 sealing is lighter than metal alternatives, simplifying wall and ceiling mounting. Snapit mounting is standard, requiring compatible brackets (sold separately).

When to Choose a Different Model

If you need higher resolution (4MP or 5MP) for distant facial detail or license-plate capture, consider a higher-megapixel variant in the Digital Watchdog line. If your environment is fully outdoor and exposed to rain, saltwater, or extreme cold, evaluate models with true IP67 or IP68 ratings. For applications demanding 360° panoramic or PTZ coverage, a pan-tilt-zoom camera will cover more area per unit.

Warranty & Support

The DWC-D4283WTIR carries a 5-year manufacturer warranty, covering defects in materials and workmanship. Check your local distributor or integrator for specific warranty claim procedures and replacement timelines.

Frequently Asked Questions

Q: What's the difference between Star-Light and standard IR for low-light surveillance?

A: Star-Light amplifies available light digitally, producing sharper images with better color in dim conditions. Standard IR (passive LED) provides binary on/off illumination without color detail. The DWC-D4283WTIR combines both—Star-Light for mixed-lighting scenarios and IR for total darkness—offering more flexibility across different times of day and seasonal light changes.

Q: Can the DWC-D4283WTIR handle backlit entrances?

A: Yes. The True WDR 100dB rating means the camera balances exposure in high-contrast scenes. If someone walks in from bright daylight into a darker interior, the WDR circuit prevents the person from becoming a silhouette while keeping the outdoor background from blowing out.

Q: Is mounting hardware included?

A: The camera uses Snapit mounting, but specific brackets are sold separately. Confirm bracket compatibility with your integration partner before purchase.

Q: What NVR or VMS platforms work with the DWC-D4283WTIR?

A: ONVIF Profile S compliance ensures compatibility with most modern VMS platforms (Milestone XProtect, Genetec Security Center, etc.). For legacy systems, the multi-signal support (HD-CVI, HD-TVI, analog) may allow connection to older hybrid recorders. Verify with your VMS documentation before deployment.

Q: How much does the DWC-D4283WTIR cost to operate monthly?

A: Power consumption is 2.3W–5.2W depending on IR intensity and lens position. At 4W average and U.S. residential electricity rates (~$0.12 per kWh), monthly cost is roughly $0.03 per camera. Over a year, negligible compared to infrastructure and labor costs.

Q: Does the motorized lens auto-focus in infrared mode?

A: Yes. Auto-focus works in both daylight and infrared modes, adjusting for distance and lens zoom position automatically. Manual focus override is available if you need to lock on a specific distance.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-D4283WTIR is a practical mid-range dome built for facilities transitioning from analog to HD or upgrading existing systems without ripping out infrastructure. Its hybrid signal support (CVI/TVI/Analog/IP) makes it a pragmatic choice in environments where legacy and modern equipment coexist. The combination of Star-Light and 100-foot IR is particularly effective in retail—it handles the inconsistent lighting of changing daylight, spotlights, and backlit entry points far better than cameras relying solely on passive IR or basic auto-exposure.

Technical Highlights:

• 0.03 lux minimum illumination in color mode: This is meaningful for retail loss-prevention and warehouse access monitoring where you need to identify people in near-darkness without flooding the scene with IR light, which can trigger motion-detector alarms or create unwanted reflections.
• 100-foot IR range with motorized 2.8–12mm lens (91° to 28° HFOV): Covers large open spaces (loading docks, warehouse aisles, parking structures) without requiring multiple cameras. The adjustable zoom lets you reframe coverage as operations change without visiting the camera.
• P-iris control with 100dB WDR: Automatically adjusts iris opening based on scene brightness, preventing overexposure on nearby IR-reflective surfaces and underexposure in distant shadowed areas. Particularly valuable when the camera overlooks both near and far zones simultaneously.
• Under 5.2W PoE consumption: Deploys on standard 802.3af infrastructure without additional power supplies. On a 48-port 90W PoE switch, you can power roughly 17 cameras—a meaningful constraint for large rollouts but manageable in typical enterprise networks.

Deployment Considerations:

• IP66 withstands spray and dust but not full submersion—if your mounting location is exposed to hose-downs or standing water, step up to IP67 or validate the camera's installation against your cleaning protocol.
• The multi-signal output (analog + IP simultaneously) is an advantage when phasing out old recorders, but don't assume the analog output quality will match the IP stream—coax runs and passive combiners introduce artifacts. Validate video quality before committing to analog playback.
• Motorized vari-focal lenses require stable mounting. Any vibration from adjacent machinery or HVAC will produce drift in the image. Mount securely and isolate from mechanical resonance if possible.

Position the DWC-D4283WTIR as your standard dome for indoor retail surveillance, warehouse access points, and loading docks where you need reliable 24/7 detail capture without overengineering. It will frustrate you if you try to use it as a long-range outdoor camera—stick to covered areas and you'll see its strengths.
