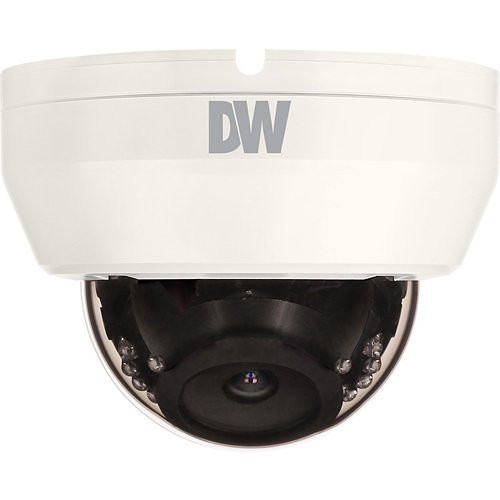

Digital Watchdog DWC-D3263WTIR 2MP Star-Light IR Dome Camera
The DWC-D3263WTIR is a professional 2MP indoor dome camera built for low-light surveillance where standard cameras fall short. Built on a 2.1MP 1/3" progressive scan CMOS sensor, this unit pairs Star-Light sense-up technology (×2 to ×32 magnification) with 100-foot Smart IR illumination to deliver usable color imagery and detail in near-total darkness—critical for retail loss prevention, office lobbies, and secure facilities where you need to identify subjects, not just detect motion. The vandal-resistant dome housing and IP66 rating mean it can handle rough indoor environments—think high-traffic corridors, warehouse receiving areas, and institutional settings where gear takes a beating.
Key Features & Deployment Benefits
- 2MP 1080p resolution (1944 × 1092 pixels): Adequate for facial detail and license-plate reads at typical indoor distances (10–30 feet). Balances storage footprint against identification confidence in mixed lighting.
- Star-Light technology with selectable sense-up (×2–×32): Pushes color sensitivity to 0.03 lux—roughly equivalent to twilight—without requiring external lighting. This eliminates the need for supplemental IR floods in semi-lit areas and reduces power draw compared to always-on IR.
- 100-foot Smart IR range: Infrared illumination reaches 30 meters, adequate for large retail floors or warehouse sections. Smart IR automates intensity to prevent washout on nearby objects while maintaining detail at distance—saves you from manual tweaking.
- Vari-focal 2.8–12mm lens with P-iris control: Field-of-view ranges 91° (wide) to 28° (telephoto). P-iris maintains optimal aperture across zoom range and light conditions, preserving depth of field. Field-adjustable post-installation—no need to unmount and swap optics if coverage requirements shift.
- 100dB Wide Dynamic Range (WDR): Handles mixed lighting (bright windows + interior shadows) without washout or crush. Critical in entryways and retail showrooms where sunlight competes with interior lighting.
- Auto day/night switching with color (day) and B/W (night) modes: Transitions automatically based on light levels. B/W mode in low light captures more detail because monochrome sensors absorb more photons than color filters.
- Smart DNR 3D Digital Noise Reduction: Suppresses grain in low-light footage without aggressive filtering that erodes edge detail. Matters for forensic value—blurry footage won't stand up in incident investigation or court.
- IP66 weatherproof rating: Protects against rain splash and dust ingress. Not full submersion (that requires IP67), but handles humid indoor environments and washdown protocols common in food service or institutional kitchens.
- Multi-protocol signal support (CVBS 960H, HD-Analog, HD-CVI, HD-TVI, Universal HD over Coax): Integrates into existing analog infrastructure without new cabling—a significant retrofit advantage if you're upgrading legacy systems. Reduces labor and material costs on brownfield projects.
- 16 programmable privacy masks: Selective area masking protects sensitive zones (restrooms, private offices) while monitoring public areas. No need to crop or post-process footage.
- De-fog and Backlight Compensation (BLC): De-fog cuts image blur in humid or steamy environments. BLC handles silhouetting when subjects stand in front of bright backgrounds.
Integration & Compatibility
The DWC-D3263WTIR supports Pelco C and Pelco D camera control protocols, enabling PTZ-like lens control (zoom, focus, iris) via standard security infrastructure. Power flexibility matters: draw runs 4.35W with LED on, 2.5W with LED off at 24V AC—low enough for budget PoE injectors. Operating range -4°F to 122°F (-20°C to 50°C) covers most North American indoor deployments; verify if you're mounting in unheated storage or climate-extreme facilities.
For system design, consider that IP cameras with comparable low-light and WDR performance typically cost significantly more. The DWC-D3263WTIR's analog-over-coax flexibility makes it especially practical for integrators managing mixed digital and legacy analog environments. Refer to your PoE power planning guide if daisy-chaining multiple units—although power draw is modest, validation prevents surprises at installation.
When to Choose a Different Model
If you need outdoor weatherproofing (rain, sleet, direct UV), look for a higher IP rating (IP67 or IP68) from the Digital Watchdog catalog. If coverage area exceeds 12 meters or you need pan/tilt, consider a PTZ variant. For deployments requiring ONVIF compliance or NVR-based recording rather than analog coax backhaul, consult a camera selection guide to compare IP-native alternatives.
Frequently Asked Questions
Q: What's the actual minimum illumination in practical terms?
A: The DWC-D3263WTIR achieves 0.03 lux color sensitivity with Star-Light engaged—that's near-moonlight conditions. At 0.0 lux B/W, it switches to infrared-only B/W mode, which loses color detail but maintains motion and silhouette. For retail applications, 0.03 lux color is sufficient for facial recognition and merchandise detail without external lighting.
Q: Can I integrate the DWC-D3263WTIR into a modern IP-based VMS?
A: Not directly as ONVIF. The DWC-D3263WTIR is fundamentally an analog-over-coax camera (HD-CVI, HD-TVI, CVBS). You would need a video encoder or hybrid NVR to bridge it into IP networks. For native IP deployments, select an IP-native camera from the same manufacturer.
Q: Is the lens field of view adjustable after mounting?
A: Yes. The vari-focal 2.8–12mm lens can be manually adjusted post-installation without dismounting. Zoom and focus adjustments are done via Pelco C/D control or physical adjustment ports. This reduces repositioning labor if initial coverage estimates shift.
Q: What's the warranty coverage?
A: The DWC-D3263WTIR includes a 5-year manufacturer warranty covering defects in materials and workmanship.
Q: Will the 100-foot IR range light up an entire warehouse bay?
A: 100 feet is effective range—the IR reaches that distance, but intensity tapers with distance. For a large open warehouse (50+ feet deep), a single camera may not provide uniform IR coverage. Plan for overlapping IR coverage or multiple units to avoid dark spots at room edges.
Q: Does the IP66 rating mean it's safe for water spray cleaning?
A: IP66 protects against water spray directed at the lens and dome from any angle. It's safe for washdown environments, but avoid direct high-pressure jets or submersion. If you need full submersion tolerance, specify IP67 or higher.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DWC-D3263WTIR excels where retail and institutional deployments demand detail in challenging light without infrastructure overhaul. The combination of 0.03 lux color sensitivity via Star-Light and 0.0 lux B/W mode via 100-foot Smart IR eliminates the need for supplemental lighting in most indoor scenarios—a tangible cost and complexity win. The 100dB WDR engine is the silent workhorse here: mixed lighting scenes (shop entrances with bright windows, offices with desk lamps and overhead fixtures) will not crush shadows or washout highlights. Forensic value stays intact.
Technical Highlights:
- Star-Light sense-up (×2–×32) paired with 0.03 lux color minimum: Captures identification-grade facial and merchandise detail in near-darkness. Directly reduces ongoing lighting costs and simplifies deployment in facilities where additional IR floods would be intrusive or expensive.
- 100-foot Smart IR with auto-intensity regulation: IR range and power scale intelligently to prevent washout on nearby subjects while maintaining clarity at distance. Eliminates manual iris/intensity tweaking and extends usable coverage area per camera.
- Vari-focal 2.8–12mm P-iris lens, field-adjustable post-installation: Zoom range (91° to 28° horizontal FOV) accommodates both wide overviews and focused monitoring. P-iris maintains optimal aperture across the zoom and light spectrum. Field adjustment avoids remounting labor if initial layout estimates shift.
- 100dB WDR with de-fog and BLC: Handles simultaneous bright and dark areas in single frame. De-fog cuts blur in humid spaces; BLC prevents silhouetting. These features reduce post-processing and improve usability of recorded footage.
Deployment Considerations:
- Analog-over-coax architecture (HD-CVI, HD-TVI, CVBS, 960H) simplifies brownfield retrofits but locks you into analog backbone or requires an encoder bridge for IP-based VMS. Plan accordingly if migration to pure IP is on the roadmap.
- IR range is effective at 100 feet but intensity tapers with distance. Large warehouse or open-plan spaces may need overlapping coverage from multiple cameras to avoid dark perimeter zones.
- Power draw is minimal (4.35W LED on), but verify that coax backbone supports analog signal quality over longer runs (200+ feet). Signal degradation in extended coax links can reduce image clarity more than the camera itself.
Best fit: retail loss prevention in dimly lit stockrooms or sales floors, institutional facility monitoring (schools, hospitals, office lobbies), and warehouse receiving areas where existing analog infrastructure can absorb one more reliable dome. The IP66 rating and compact form factor (4.72″ H × 3.51″ W) blend into ceilings and corners without visual bulk—important in customer-facing retail or professional office environments.
