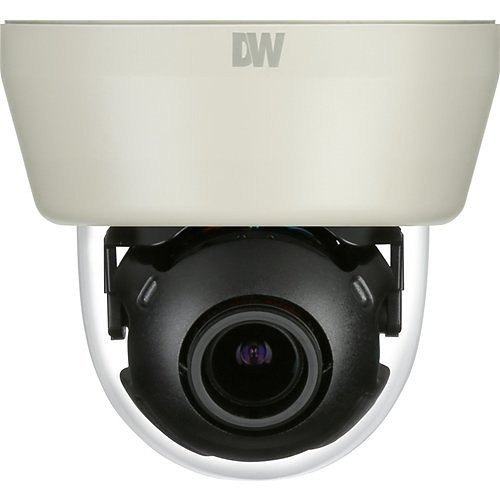

Digital Watchdog DWC-D4283WD 2MP Star-Light IR Dome Camera

Digital Watchdog DWC-D4283WD 2MP Star-Light IR Dome Camera

The DWC-D4283WD is a professional 2MP indoor dome IP camera built for retail, office, educational, and hospitality surveillance where variable lighting and high-contrast scenes demand reliable performance. This IP camera combines Star-Light low-light amplification with true 100dB Wide Dynamic Range (WDR) to handle the challenging mixed-lighting environments found in most commercial indoor spaces—think bright storefront windows alongside darker corners, or LED displays next to shadowed aisles.

Key Features

• 2MP (1944 × 1092) resolution: Delivers enough detail for facial recognition and merchandise inspection in retail and office settings without overloading your network bandwidth or storage capacity compared to 4MP or 5MP alternatives.
• Star-Light technology with up to 32x sense-up: Amplifies available light in near-darkness (down to 0.03 lux in color mode), so you capture usable footage in stairwells, loading docks, and dimly lit corridors without relying solely on infrared—color footage is often more useful for identification and evidence.
• 100dB true WDR: Handles extreme contrast ratios (bright and dark areas in the same scene simultaneously) without washout or black crushing—critical when a camera overlooks both an outdoor loading dock and an interior stockroom, or a display window and interior retail floor.
• Integrated infrared night vision: When ambient light drops below Star-Light effectiveness, the camera automatically switches to monochrome IR mode, maintaining 24/7 surveillance without gaps.
• 2.8–12mm motorized vari-focal lens with auto-focus and P-iris control: Adjustable from 91° (wide) to 28° (telephoto) field of view without physically moving the camera—mount once, then dial in coverage remotely. P-iris maintains consistent exposure across zoom ranges, preventing the image from brightening or darkening as you adjust magnification.
• Smart DNR 3D Digital Noise Reduction: Reduces the grainy artifacts common in low-light footage, producing cleaner images that compress more efficiently and reduce false alarms in motion-detection systems.
• 16 programmable privacy masks: Define rectangular regions on-screen that the camera will not transmit—useful for masking employee workstations, restroom entrances, or sensitive signage without dropping frames or wasting bandwidth on masked areas.
• Multi-format output (HD-Analog, HD-CVI, HD-TVI, Universal HD over Coax): Works with existing hybrid or analog infrastructure, so you can retrofit this camera into older systems or integrate it alongside legacy coax-based cameras without wholesale platform replacement.
• Built-in microphone: Captures audio alongside video for incident investigation; supports programmable alarm output for integration with access control or lighting systems.
• Auto day/night switching with color and B/W modes: Automatically transitions between color (daytime) and black-and-white (nighttime) for optimal visibility in every lighting condition.
• Pelco C and Pelco D PTZ protocol support: If you're controlling multiple cameras via a central joystick or keyboard, the DWC-D4283WD responds to standard PTZ commands over standard UTP cabling.
• IP66 weatherproof housing: The compact ivory plastic dome (4.24" H × 3.9" W/D) is sealed against dust and direct water spray, making it suitable for indoor environments with high humidity, condensation risk, or washdown areas—though it is not rated for submersion (IP67).
• PoE (Class 2) power: Draws under 13W via standard 802.3af PoE, eliminating the need for a separate 12VDC power supply and reducing installation complexity. One UTP cable carries both power and video.
• Operating temperature: −40°F to 122°F: Handles both heated interiors and unheated storage areas, garages, or loading docks without thermal stress.

Integration & Compatibility

The DWC-D4283WD is part of the Digital Watchdog IP cameras catalog and supports integration with most modern network video recorders and VMS platforms via ONVIF standards. If you're upgrading a system that already uses Digital Watchdog recorders or Pelco-protocol PTZ controllers, this camera integrates directly without additional middleware.

Consult your camera selection guide if you need help determining whether 2MP is sufficient for your coverage area, or if higher resolution is justified by longer throw distances or fine-detail requirements like license-plate or ATM-button recognition.

Frequently Asked Questions

Q: Does the DWC-D4283WD support ONVIF?

A: The product specifications confirm multi-format output and compatibility with standard surveillance platforms, though ONVIF support is not explicitly stated in the provided documentation. Verify with the manufacturer or your integrator before finalizing a platform choice.

Q: What is the maximum infrared range on this camera?

A: The DWC-D4283WD includes integrated infrared night vision, but the specific IR throw distance (in meters or feet) is not detailed in the available specifications. Contact the manufacturer or your supplier for IR range testing data.

Q: Can I use the DWC-D4283WD outdoors?

A: The camera is rated IP66, which protects against dust and direct water spray, but it is designed as an indoor dome camera. For outdoor deployment, consider a dedicated outdoor IP camera rated IP67 or higher, which can withstand rain and temperature extremes more reliably.

Q: What's the warranty on the DWC-D4283WD?

A: Warranty details are not provided in the current product documentation. Confirm the warranty period with your distributor or manufacturer before purchase.

Q: Can I adjust the zoom and focus remotely?

A: Yes. The motorized 2.8–12mm vari-focal lens with auto-focus allows remote zoom and focus adjustment via your VMS or recorder interface, provided your system supports camera control commands.

Q: Will the DWC-D4283WD work with my analog DVR?

A: The DWC-D4283WD supports HD-Analog, HD-CVI, and HD-TVI output formats, making it compatible with hybrid analog/digital systems. Consult your DVR documentation to confirm support for the specific format your recorder uses.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-D4283WD fills a practical niche in the mid-range dome segment: it delivers measurable low-light performance without overshooting the budget on megapixels or exotic analytics. The combination of 32x Star-Light amplification down to 0.03 lux and 100dB true WDR is a genuine advantage over fixed-gain IR-only systems, especially in retail and office settings where you need color footage during early morning or late evening when ambient light is borderline but not absent.

Technical Highlights:

• 100dB WDR at 2MP resolution: This is solid dynamic range for an indoor dome. You'll see meaningful detail in both bright and dark areas simultaneously—critical in high-contrast retail environments with display windows. The payoff is fewer false alarms from motion detection triggered by exposure swings.
• Motorized 2.8–12mm lens with P-iris: You mount the camera once, then dial in the exact field of view and focus from your control room. P-iris automation prevents the image from brightening as you zoom in (eliminating the classic "telephoto washout" problem). This flexibility pays dividends in retrofit scenarios where you can't move the physical mounting point.
• Smart DNR 3D noise reduction: In low-light Star-Light mode, DNR produces noticeably cleaner frames compared to raw sensor output. Cleaner frames compress better in H.264 or H.265, meaning lower bandwidth and storage overhead—material savings across 24/7 recording on a 10+ camera system.
• Multi-format codec support (HD-Analog, CVI, TVI, coax): If you're retrofitting a hybrid system with aging analog infrastructure, this camera speaks the same language. You avoid the cost and downtime of wholesale platform replacement.

Deployment Considerations:

• 2MP may be borderline for long-throw applications: If your coverage area requires identifying a face or license plate beyond 20–25 feet, consider a 4MP or 5MP variant in the Digital Watchdog line. 2MP works best for medium-range interior detail and merchandise inspection.
• IP66 is not outdoor-rated: The camera is sealed against dust and spray, but it's not submersion-proof or built for direct solar load. Stick to interior mounting or protected overhangs. If you need true outdoor performance, specify an IP67-rated bullet or turret variant.
• PoE power draw is conservative: Under 13W on 802.3af means this camera won't strain a standard PoE switch. You can often daisy-chain it with other mid-power cameras without triggering power-budget issues—real consideration on older switches with 95W total budgets.

Deploy the DWC-D4283WD in retail corridors, office bullpens, warehouse interior zones, and hospitality back-of-house spaces where you need reliable color footage in mixed lighting without megapixel overkill or exotic features. It is not the choice for license-plate recognition, perimeter intrusion detection, or outdoor flood exposure, but for controlled-environment commercial surveillance, it delivers practical value.
