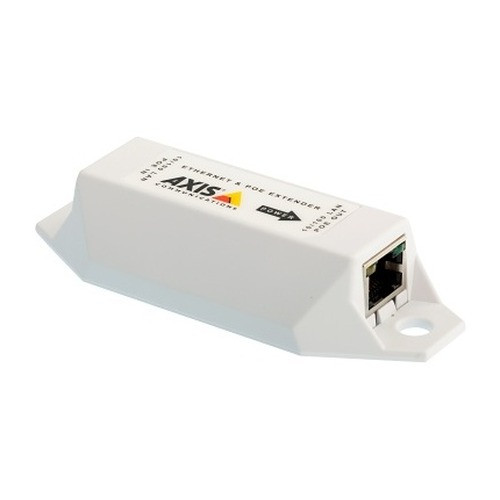

Axis 5025-281 T8129 Indoor PoE Network Extender
The Axis 5025-281 (T8129) is a compact inline PoE extender purpose-built to expand Power over Ethernet reach within indoor facilities. Unlike passive splitters, the T8129 actively forwards IEEE 802.3af and 802.3at power to PoE-enabled devices—eliminating the need for a separate power supply at extended distances. This matters when you're running IP cameras or access points beyond the standard 100-meter CAT5 cable limit: the T8129 regenerates and re-powers the signal, so your downstream device still gets full voltage and data integrity.
Key Features
- Automatic PoE forwarding (802.3af/at): Detects incoming PoE and transparently forwards power to the connected device. No configuration required—plug the upstream Ethernet into one RJ45 port, connect your powered device to the other. Saves installation labor on large warehouse or campus deployments where you'd otherwise need separate 12VDC runs or additional power infrastructure.
- 10/100 Mbps half/full duplex data path: Passes Ethernet traffic without bottleneck. Sufficient for standard IP camera streams (1080p/2MP), door controllers, and wireless access points. Not suitable for high-bandwidth real-time analytics or 4K+ camera clusters over a single extender, but adequate for single-device extension scenarios.
- Compact form factor (105×40×22 mm, 45 g): Fits discreetly in cable trays, above ceiling panels, or on equipment racks. Wall or shelf mountable with minimal footprint. Space-constrained warehouse or retail environments benefit from the ability to tuck the T8129 out of sight without requiring a separate enclosure.
- LED status indicators: Green LED shows PoE presence; yellow LED indicates link and activity. Quick visual confirmation that power is flowing and data is passing—useful for troubleshooting during commissioning or when diagnosing cable runs.
- Operating temperature range -10°C to 50°C: Suitable for climate-controlled indoors (offices, warehouses with HVAC). Not rated for outdoor, unheated storage areas, or high-temperature industrial environments. If your facility spans unheated zones or exterior cable runs, verify local temperature conditions before deployment.
- Category 5 or higher cabling: Works with standard CAT5e and CAT6, following EIA 568A/B pinouts. No special cable required, so you're not adding cost or complexity to the bill of materials.
Integration & Compatibility
The T8129 is agnostic to device type—it works with any PoE or High PoE-compliant endpoint (Axis IP cameras, third-party access points, industrial switches, door readers). Compliance with EN 55022 Class B, EN 55024, and FCC Part 15B ensures the extender won't introduce EMI noise in standard indoor IT environments. When planning PoE switches and infrastructure, treat the T8129 as a simple pass-through: it consumes negligible power from the upstream source and forwards the remainder. Pair multiple T8129 units in series only if your Axis or third-party NVR and cabling infrastructure support daisy-chaining; most standard deployments use a single extender per run.
When to Choose a Different Model
If your facility requires outdoor cable runs, elevated temperature tolerance, or IP-rated enclosure protection, the T8129's -10°C to 50°C range and indoor-only design are limiting factors. For outdoor PoE extension, consult outdoor-rated PoE extender variants in the Axis catalog. If you need to extend power beyond a single PoE-compliant device or require higher data throughput (gigabit speeds), a full managed PoE switch is more appropriate than an inline extender.
Frequently Asked Questions
Q: Does the T8129 work with High PoE devices drawing more than 30W?
A: The T8129 forwards IEEE 802.3af (13W) and 802.3at (30W) power. If your downstream device requires more—such as a PTZ camera or high-power access point—you must verify that your upstream PoE source can supply sufficient wattage. The T8129 itself does not boost or amplify power beyond what arrives from the upstream switch.
Q: Can I daisy-chain multiple T8129 units?
A: Daisy-chaining is theoretically possible but not recommended in most deployments. Each extender introduces a small voltage drop; stacking them limits power available to the final device and may cause instability. Use a single extender per cable run when feasible, or deploy a managed PoE switch if you require multiple extension points.
Q: What is the warranty on the Axis 5025-281?
A: The T8129 includes a 3-year manufacturer's warranty covering defects in materials and workmanship.
Q: Does the T8129 support gigabit Ethernet?
A: No. The T8129 operates at 10/100 Mbps. For gigabit speed requirements, use a managed PoE+ switch instead.
Q: Is the T8129 suitable for outdoor or temperature-extreme environments?
A: The operating range is -10°C to 50°C (14°F to 122°F), designed for indoor climate-controlled spaces. Unheated warehouses, exterior cable runs, or areas exceeding this range require alternative PoE infrastructure.
Q: Will the T8129 work with non-Axis PoE devices?
A: Yes. The T8129 is a standards-compliant 802.3af/at extender and works with any PoE-capable device from any vendor—Axis cameras, third-party access points, IP phones, and industrial controllers.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 5025-281 T8129 is a straightforward tool for single-point PoE extension, and it solves a specific problem: running a camera or access point beyond 100 meters of CAT5 cabling without pulling a second power line. The plug-and-play nature (no configuration, no management IP) makes it a low-friction addition to warehouse or campus surveillance rollouts where you're already managing Axis IP cameras and need to reach a distant corner without adding infrastructure complexity.
Technical Highlights:
- 802.3af/at pass-through: Accepts up to 30W inbound and forwards it unchanged. Means your 13W or 30W device receives rated power even at cable distance. No power budgeting surprises if your upstream switch is properly provisioned.
- 10/100 Mbps half/full duplex: Adequate for single-device runs; 1080p and 2MP IP cameras consume 4–8 Mbps during typical operation, so the T8129 doesn't bottleneck. Not suitable for aggregating multiple high-bitrate streams through a single extender.
- 45-gram form factor: Small enough to mount above dropped ceilings or in cable trays without additional support. Avoids the expense and labor of mounting a full switch at extended points.
Deployment Considerations:
- The T8129 does not regenerate signal—it simply forwards both power and Ethernet. If your cable run is marginal (near 100m with noise), the extender won't fix signal integrity issues. Test the full cable path before committing to T8129 deployment.
- Voltage drop accumulates over longer cable runs. A 100m CAT5 cable carrying 30W PoE power can drop 2–3 volts. Confirm your downstream device's minimum operating voltage before deploying on extended runs; some industrial cameras specify 44V minimum, which can be violated on lengthy extensions.
- Not outdoor-rated. If your cable tray or conduit is exposed to temperature swings below -10°C or above 50°C, the T8129's reliability degrades. Choose a managed PoE switch for outdoor or temperature-extreme sites.
The 5025-281 is best positioned for indoor facility expansions—warehouses, office additions, campus buildings—where a single PoE camera or access point sits 100–150 meters from the main switch and no intermediate powered infrastructure exists. Skip it if you need gigabit speeds, multi-device aggregation, or outdoor resilience.
