Axis TU8010 2-Port PoE Extender - 02726-001

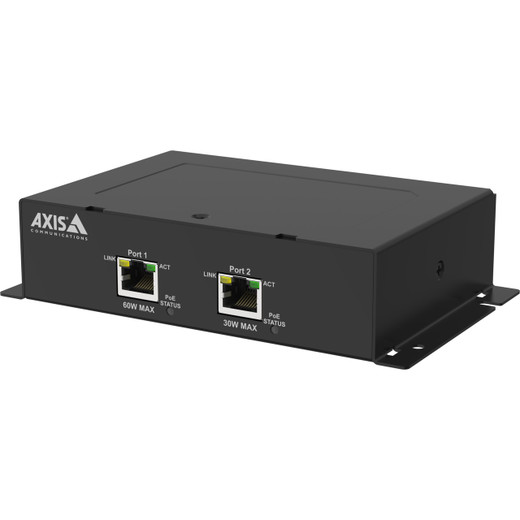

Axis 02726-001 TU8010 2-Port PoE Extender

Overview

The Axis 02726-001 is a compact PoE extender engineered to overcome the fundamental 100-meter distance limit imposed by IEEE 802.3 on standard Ethernet cabling for powered devices. When deployed between a core PoE switch and remote IP cameras or access control equipment, the 02726-001 regenerates both signal and power, restoring full strength across an additional 100 meters of cable run. This effectively doubles your deployment reach without requiring new infrastructure, dedicated power supplies, or power injectors at the edge.

In warehouse automation, multi-building campuses, and surveillance systems where camera or device locations exceed 100 meters from the network core, this extender eliminates the choice between accepting signal degradation, running new conduit (expensive and disruptive), or provisioning separate power. The 02726-001 accepts PoE++ (Class 8) input — up to 60W on modern hardware — and regenerates that power to two downstream ports without throttling or loss of negotiated wattage.

Key Features

• Two full-power PoE output ports: Each port supplies the complete negotiated wattage to a downstream device with no reduction in available power. Eliminates intermediate power injectors or splitters. This matters because a camera requiring 30W will receive exactly 30W, not a fraction thereof.
• 100-meter cable extension range: Extends PoE transmission distance by one additional 100-meter segment beyond the standard IEEE 802.3 limit. For a camera 150 meters from your core switch, you run 100 meters to the 02726-001, then 50 meters from the extender to the camera — both segments maintain full signal integrity and power delivery. This doubles effective deployment radius.
• PoE++ (Class 8) input support: Accepts up to 60W input from PoE++ capable switches. Because the extender draws power via PoE rather than a dedicated 1G uplink or external supply, you conserve precious core switch ports. Bandwidth is not consumed — only power infrastructure is utilized.
• Automatic fallback to 802.3af compatibility: If connected to older switches or legacy infrastructure supporting only standard PoE (15.4W), the 02726-001 operates transparently at that power level with no configuration required. Graceful degradation prevents incompatibility surprises during integration with existing systems.
• Compact footprint and lightweight design (1.21 lbs): Measures approximately 4.3 x 2.8 x 1.2 inches, light enough to mount directly inside equipment closets, wall-mount on junction boxes, or install on cable trays without requiring dedicated rack space or reinforced anchors. Fits where full-size switches cannot.
• 3-year manufacturer warranty: Covers defects and component failure across the warranty period — standard protection for active network infrastructure components.

When to Deploy the 02726-001

Use this extender when you need to place IP cameras, wireless access points, or powered network devices beyond 100 meters from your core switch, but running new cable or external power supplies is either infeasible or cost-prohibitive. Real-world scenarios include:

• Warehouse and manufacturing expansions: Adding cameras 150+ meters away on a factory floor would require trenching or conduit runs through concrete and machinery. The 02726-001 eliminates that capital expense by reusing existing runs.
• Multi-building and campus deployments: Running new cabling through walls, across roofs, or between buildings is disruptive and visible. The extender lets you extend from existing trunks without new physical infrastructure.
• Remote perimeter and gate monitoring: Yard cameras, gate readers, or boundary sensors can be 150–200 meters from the core security cabinet. A single extender deployed at the midpoint supplies power to multiple edge devices.
• Core switch port conservation: One PoE port on the switch feeds the extender, which then powers two downstream devices. Effectively doubles per-port reach without multiplying core infrastructure consumption.

Integration & Compatibility

The 02726-001 is protocol-agnostic — it passes through any Ethernet traffic and PoE negotiation between the upstream switch and downstream devices. Compatible with Axis IP cameras, third-party ONVIF-compliant devices, IP intercoms, access control readers, wireless access points, and any standards-compliant powered network equipment. No configuration, firmware, or software required; PoE negotiation occurs automatically during device startup.

When integrating the 02726-001 into a larger surveillance or access control architecture, plan your power budget carefully: the extender itself consumes minimal power (Class 0–1), but you must ensure the upstream switch can supply Class 8 wattage if downstream devices demand it. For example, two 25W cameras require a switch capable of 50W+ per port.

Frequently Asked Questions

Q: Does the 02726-001 require any configuration or software?

A: No. Simply connect the upstream PoE port to your switch and the two downstream ports to your devices. PoE negotiation and power delivery happen automatically — no IP address, firmware upload, or management console needed.

Q: Can I daisy-chain multiple 02726-001 extenders to reach 200+ meters?

A: Theoretically, yes — you could connect a second extender to one of the downstream ports of the first. However, this introduces cumulative signal degradation and is not recommended by Axis for production deployments. For distances beyond 200 meters, evaluate alternative architectures such as additional PoE switches at intermediate points or fiber-optic extension.

Q: What happens if I connect a high-power device (40W+) to the 02726-001?

A: If the upstream switch supplies sufficient Class 8 power (60W+), the device will negotiate and receive its full required wattage via the extender. If the switch is older or power-limited, PoE negotiation will fail and the device will not power on — this prevents damage but requires careful switch selection.

Q: Is there any latency or packet loss introduced by the 02726-001?

A: No measurable latency or packet loss is introduced. The extender is a passive repeater for data (Ethernet frames pass through unmodified) and an active regenerator for power only. Network performance is identical to a direct connection.

Q: Can I use the 02726-001 indoors and outdoors?

A: The 02726-001 is rated for indoor deployment and controlled environments. For outdoor use, you would need to house it inside a weatherproof enclosure — ensure the enclosure does not trap heat and maintains proper ventilation around the unit.

Q: What is the warranty coverage on the 02726-001?

A: The 02726-001 carries a 3-year manufacturer warranty covering defects in materials and workmanship.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 02726-001 solves a real infrastructure constraint that appears in almost every multi-building or large-footprint deployment: the 100-meter Ethernet distance limit becomes a choke point when your core network infrastructure is centralized but your edge devices (cameras, readers, APs) are scattered across a facility. The 02726-001 is not a luxury — it's a practical workaround that preserves your cabling investment and avoids the capital and labor expense of running new conduit or fiber. The key insight is that it regenerates both signal and power, which means downstream devices receive full negotiated wattage, not a diminished or uncertain supply.

Technical Highlights:

• PoE++ Class 8 input with 100m regeneration: Accepts up to 60W per port from modern switches and restores full power across an additional 100-meter segment. This matters because a 30W camera deployed 150 meters from the core will receive exactly 30W at the extender output, not a degraded or voltage-sagging supply.
• Dual output ports multiply per-port reach: One PoE port on your switch feeds the extender; the extender then supplies power to two devices. Effectively doubles the number of powered devices per core switch port without multiplying bandwidth consumption.
• 802.3af fallback compatibility: If your upstream infrastructure is older (supporting only legacy 15.4W PoE), the 02726-001 operates transparently at that level. No surprises during integration with mixed-generation network plants.
• 1.21 lbs and compact form factor: Fits in equipment closets, wall-mounted on junction boxes, or cable-tray installed without requiring rack space or reinforced mounting hardware.

Deployment Considerations:

• Power budget discipline is critical: verify that your upstream switch can supply Class 8 wattage (60W+) if your downstream devices are power-hungry (e.g., two 25W cameras). Older or lower-capacity switches will negotiate at lower power classes, potentially starving devices.
• Daisy-chaining multiple 02726-001 units to reach 200+ meters is theoretically possible but introduces cumulative signal degradation. For longer distances, provision intermediate PoE switches or evaluate fiber-optic extension instead.
• The 02726-001 is designed for indoor and controlled environments. If outdoor deployment is required, house it inside a weatherproof enclosure with adequate ventilation — do not rely on the unit itself for environmental protection.

Deploy the 02726-001 in warehouse expansions where running new conduit is prohibitively expensive, multi-story campuses where inter-floor cabling is disruptive, and remote gate or perimeter monitoring where the core infrastructure is centralized. It's the practical answer to the 100-meter distance question — not elegant, but it works and saves real capital in mid-to-large installations.
