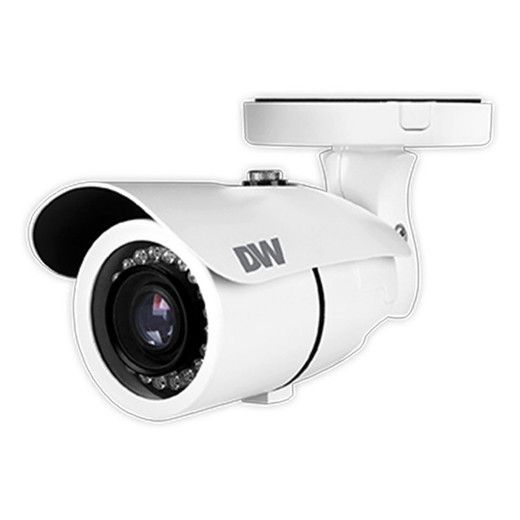

Digital Watchdog DWC-B6563WTIRW 5MP IR Bullet Camera

The DWC-B6563WTIRW is a 5MP fixed outdoor bullet camera designed for perimeter and entry-point surveillance where lighting is inconsistent and weather exposure is guaranteed. It combines optical night vision (100-foot Smart IR range) with electronic low-light amplification (Star-Light sense-up to x32) to maintain color imagery in near-darkness without supplemental lighting — a meaningful advantage when your budget doesn't include additional fixtures.

Key Features

• 5MP resolution (2592 × 1944 pixels): Captures sufficient detail for license plate and facial recognition at typical outdoor coverage distances; the 1/2.8" CMOS sensor delivers crisp stills and 20fps video at native resolution, dropping to 30fps if you downgrade to 1080p for bandwidth efficiency on legacy recorders.
• Star-Light technology with up to x32 sense-up: Maintains color video down to 0.08 lux — roughly moonlight levels — without triggering IR. Once ambient drops below that, the camera switches to IR mode; this dual approach reduces the harsh washout typical of full-time IR-only systems and minimizes false alerts from reflections on wet pavement.
• 100-foot Smart IR range: Infrared reaches far enough to cover standard perimeter setups (roughly 30 meters) without the reflectivity problems that plague close-range IR on shiny surfaces. At maximum distance, expect monochrome output but usable forensic detail.
• Varifocal 2.7–13.5mm lens: Field of view ranges from 102° (wide, close monitoring) to 31.4° (narrow, distant coverage); this flexibility lets you deploy a single model across entry gates, loading docks, and fence lines without stocking multiple cameras.
• True WDR at 120dB: High-contrast scenes — sunny loading dock with dark shadows — are rendered without blown highlights or crushed shadows. This matters when your NVR won't accept frame-by-frame brightness tweaking and you need usable forensic video straight from the sensor.
• IP66 aluminum die-cast housing: Direct rain and dust won't penetrate; operating range from -4°F to 122°F covers most North American climates. Skip this model only if you need full submersion capability (IP67) or saltwater environments (IP68 with conformal coating).
• PoE or 12VDC power options: Draws 2.86–5.0W depending on IR load, so standard 802.3af PoE (15.4W budget) powers the camera without straining your switch. If your infrastructure is already wired for 12VDC, that path is available too.
• Multi-format video output: Supports HD-Analog (coax), HD-TVI, HD-CVI, and ONVIF IP — a rare combination that bridges legacy hybrid recorders and modern IP-only systems. Useful if you're phasing out old DVRs without a hard cutover.
• 24 programmable privacy zones: Mask parking lots, neighboring property, or blank walls without processing them; reduces storage bloat and focuses motion detection on areas that matter.
• Smart DNR 3D digital noise reduction: Suppresses the grainy artifacts that plague low-light video; combined with WDR, this ensures archive footage is genuinely usable rather than a liability.

Integration & Compatibility

The DWC-B6563WTIRW (often searched as DWC B6563WTIRW) supports Pelco C, UTC, and UTP camera control protocols. If your NVR or control system predates ONVIF standardization, verify protocol compatibility before purchase. The coax-compatible modes (HD-TVI, HD-CVI) mean you can upgrade existing analog systems incrementally — run the new camera on the same coax runs as old analog cameras, then swap the DVR channel cards without rewiring.

Physical & Environmental

Compact 8.83" × 3.8" profile fits tight mounting spaces. Comprehensive 5-year warranty provides long-term coverage. P-iris lens control (not servo) offers stable depth-of-field adjustment without the motorized noise and failure modes of traditional iris systems.

Frequently Asked Questions

Q: What's the minimum light level the DWC-B6563WTIRW needs for color video?

A: Color output is maintained down to 0.08 lux using Star-Light sense-up (x32). Below that, the camera switches to infrared (0.0 lux in IR mode). This hybrid approach preserves color detail during twilight and overcast conditions when IR alone would dominate.

Q: Can the DWC-B6563WTIRW be powered by standard PoE (802.3af)?

A: Yes. Power draw is 2.86–5.0W depending on IR usage, well within the 15.4W budget of 802.3af. No PoE+ injector or switch upgrade required.

Q: Does this camera work with modern IP VMS systems like Milestone XProtect or Axis Camera Station?

A: The DWC-B6563WTIRW supports ONVIF, so it integrates with any ONVIF-compatible VMS. However, if you're using the HD-TVI or HD-CVI video modes (for coax runs), you'll need a hybrid recorder that supports those formats — modern IP-only systems won't decode them. Verify your VMS requirements before choosing video output mode.

Q: How far does the IR reach?

A: Smart IR range is 100 feet (30 meters). At maximum range, video is monochrome but forensically usable for scene reconstruction. Most standard perimeter coverage falls well within this range.

Q: What's the warranty on the DWC-B6563WTIRW?

A: 5-year manufacturer warranty covers defects in materials and workmanship. Verify coverage terms with your distributor.

Q: Is this camera NDAA Section 889 compliant?

A: The evidence provided does not confirm NDAA compliance. Contact the manufacturer or your distributor for current compliance certification status.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-B6563WTIRW is a pragmatic mid-tier outdoor bullet camera that addresses the core challenge of hybrid surveillance: lighting variability. The combination of Star-Light sense-up (x32) and 100-foot Smart IR means you're not betting the entire system on IR performance or doubling your infrastructure costs with supplemental lighting. If you're upgrading analog or legacy HD-TVI systems without overhauling your cabling, this camera's support for HD-TVI, HD-CVI, and ONVIF modes is genuinely valuable — you're not forced into an all-IP or all-analog commitment.

Technical Highlights:

• Star-Light x32 sense-up down to 0.08 lux: Maintains usable color imagery during twilight and overcast periods when IR-only cameras devolve into harsh monochrome. This reduces the 24/7 dependency on infrared and saves power in seasons with longer daylight hours.
• True 120dB WDR: High-contrast outdoor scenes (sunlit loading dock with deep shadows) are rendered without highlight clipping or shadow crush. A real differentiator from basic WDR implementations that don't handle extreme ratios.
• 2.86–5.0W PoE draw: Fits comfortably inside 802.3af 15.4W budget — no PoE+ requirement, no injector cost, no switch power-budgeting headaches. Matters when you're provisioning dozens of cameras across multiple switches.
• Varifocal 2.7–13.5mm lens: One SKU covers wide entry-gate monitoring (102° FOV) and distant fence-line coverage (31.4° FOV). Reduces inventory complexity and allows field re-aiming without swapping lens modules.

Deployment Considerations:

• HD-TVI and HD-CVI output modes require hybrid recorders — modern IP-only systems won't decode these formats. If you're aiming for an all-IP architecture, use ONVIF mode and accept that legacy analog recorders won't integrate this camera.
• The varifocal lens is manual focus, not motorized autofocus — depth-of-field changes require physical lens adjustment after installation. Plan focal length before deployment.
• P-iris control (not servo iris) is stable but doesn't adapt to sudden glare or shadows in real time — it's best suited for stable outdoor scenes, not indoor variable-lighting environments.

Deploy the DWC-B6563WTIRW when you're bridging analog and IP infrastructure, need reliable night vision without supplemental fixtures, and can accept manual lens focus. It's not the choice for dynamic indoor scenes or rapid focal-length changes, but for fixed outdoor perimeter coverage with modest lighting, it delivers forensic-grade imagery at a reasonable power footprint.

Key Specifications:
Field of View: 102° ~ 31.4°
Color: White
