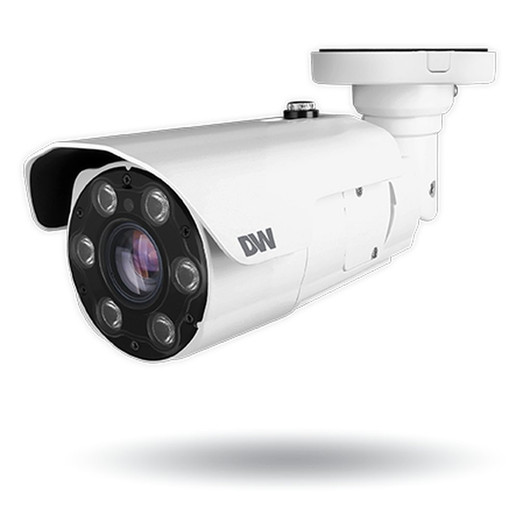

Digital Watchdog DWC-MB95Wi28TW 5MP Star-Light IR Outdoor Bullet Camera

Digital Watchdog DWC-MB95Wi28TW 5MP Star-Light IR Outdoor Bullet Camera

The DWC-MB95Wi28TW is a 5MP outdoor bullet camera purpose-built for perimeter and facility surveillance where nighttime performance and rugged construction matter more than cutting-edge form factors. This is a wired, PoE-powered system that trades aesthetic finesse for proven reliability in industrial, warehouse, and infrastructure deployments.

Key Features

• 5MP 1/2.7" CMOS sensor (2592 × 1944 pixels) — delivers enough resolution for face identification at typical mounting distances (10–25 feet) without over-specifying storage or bandwidth in multi-camera setups.
• Star-Light IR with 164-foot range and 850nm illumination — eliminates reliance on external IR floods for most outdoor perimeters. Useful when mounting height or cable runs to supplemental lighting are impractical.
• Extreme low-light sensitivity: 0.0 lux B/W, 0.02 lux color mode — the color-mode spec is the real-world metric here. At 0.02 lux, you maintain usable color detail under moonlight, reducing dependence on IR-only (which produces grayscale). Matters for license plate or clothing-color identification.
• True WDR 120dB dynamic range — handles mixed lighting conditions (sun on one side, shadowed entrance on the other) without washout or crushing. Prevents the common failure mode of bright windows blooming while a doorway disappears.
• Smart DNR 3D Digital Noise Reduction — reduces the salt-and-pepper grain that degrades storage efficiency in low light. In 24/7 recording, cleaner images compress better, lowering bandwidth and disk footprint.
• IP67 aluminum die-cast housing, -22°F to 140°F operating range, IK10 impact rating — IP67 means submersion to 1 meter for 30 minutes; direct rain and dust are no concern. IK10 rating withstands 20J impacts (equivalent to a 5.5 lb object dropped from 3 feet). Suitable for loading docks, outdoor gates, and unattended remote sites.
• PoE powered, 9.0W maximum draw — single Ethernet run handles both video and power. At under 10W, you won't strain a standard 802.3af PoE switch serving 20+ cameras. No separate 12VDC supply runs to troubleshoot.
• Dual-stream H.265/H.264/MJPEG with configurable bitrate (64–8 Mbps) — H.265 cuts bandwidth roughly 40–50% versus H.264 at equal quality. On a 24/7 archive, this reduces storage cost. Variable bitrate (VBR) adapts to scene complexity, further reducing redundant data.
• 2.8mm fixed lens, 98.5° horizontal FOV — wide angle for general area coverage. 3.6mm variant available if tighter framing is preferred. No motorized zoom, so you commit to positioning upfront—trades flexibility for lower complexity and power consumption.
• Built-in analytics: object classification, line-crossing detection, perimeter intrusion, scene-change tampering — enables rule-based alerts on-camera rather than flooding your VMS with raw motion events. Reduces false alarms from shadows or traffic patterns.
• Micro SD/SDHC/SDXC card slots (up to 1TB local storage) — provides 3–5 days of 24/7 5MP backup footage on a single large card, useful when WAN upload is unreliable or network downtime needs offline redundancy.

Integration and Compatibility

Full ONVIF Profile S conformance ensures compatibility with major VMS platforms including DW Spectrum IPVMS, ExacqVision, and Milestone Systems. Network protocols include IPv4/IPv6, DHCP, DDNS, HTTP/HTTPS, RTSP, FTP, SMTP, and SNMP. Security features span digest authentication, IP filtering, and MAC filtering. Email and FTP server notifications let you route alerts to third-party ticketing or SIEM systems without VMS intervention.

Audio input with G.711A/U compression supports two-way talk-down, useful for gate-house or loading-dock coordination. Motion detection, 4 programmable privacy masks, and adjustable white balance enable scene-specific tuning. Auto and manual shutter modes (1/30 to 1/100,000 speed) let you trade motion blur against low-light sensitivity based on your target (vehicles, pedestrians, license plates).

Deployment Context

The DWC-MB95Wi28TW suits outdoor surveillance where durability, nighttime visibility, and simplicity outweigh budget constraints or aesthetic concerns. Typical roles include warehouse perimeter monitoring, parking lot coverage, remote gate surveillance, and critical infrastructure protection. The 164-foot IR range reduces shadow zones on large parking areas or loading docks. The fixed-lens design and modest power draw make it easy to deploy in clusters—20+ units on a single managed PoE switch is routine.

Trade-offs and Limitations

5MP is adequate for identification at 15–20 feet; beyond that, consider an 8MP variant from the same manufacturer if face recognition is a hard requirement. The fixed lens limits post-installation adjustment—poor mounting placement cannot be corrected via zoom. No motorized iris or zoom mechanics reduce failure points in extreme temperature swings. If you need extreme low-light performance below 0.02 lux in color mode, dedicated low-light camera options with larger sensors may outperform even this model's Star-Light spec.

What's in the Box

Based on available evidence, the DWC-MB95Wi28TW ships with standard mounting hardware and documentation. For a complete package inventory, consult the manufacturer datasheet or your vendor's packing slip.

Frequently Asked Questions

Q: What is the difference between the DWC-MB95Wi28TW's IR sensitivity and a full-frame low-light camera?

A: The DWC-MB95Wi28TW's 0.02 lux color sensitivity and Star-Light IR deliver strong nighttime detail without separate IR illuminators. True full-frame sensors (1-inch or larger) offer superior noise floor in absolute darkness, but cost 3–5x more and require larger enclosures. For outdoor deployments with any ambient light (street lamps, security lights, moon), the DWC-MB95Wi28TW is practical; indoor absolute-darkness scenarios benefit from larger-sensor alternatives.

Q: Is the DWC-MB95Wi28TW NDAA-compliant or restricted by Section 889?

A: No compliance statement is present in the available evidence. Consult the manufacturer's compliance documentation or your integrator for Section 889 or NDAA determination.

Q: Can I use this camera with Milestone XProtect or other third-party VMS?

A: Yes. Full ONVIF Profile S support ensures compatibility with Milestone, ExacqVision, DW Spectrum, and other major platforms. Verify your VMS version supports dual-stream H.265 playback if bandwidth optimization is important.

Q: What is the actual PoE power budget I should plan for?

A: The DWC-MB95Wi28TW draws a maximum of 9.0W. A single 802.3af PoE injector or switch port (15W budget) supports this camera with comfortable margin. At this power level, a 24-port PoE switch can safely power 20+ units.

Q: What local storage capacity is practical with the Micro SD card slot?

A: A 1TB Micro SD card (maximum supported) provides approximately 3–5 days of 24/7 5MP recording at standard bitrate, depending on scene complexity and codec choice. This serves as failover backup if your NVR or WAN link goes down.

Q: Does the DWC-MB95Wi28TW support motion-based recording or always-on?

A: The camera supports both. Built-in motion detection rules and programmable privacy masks allow you to configure on-camera event triggers, reducing unnecessary storage and network load. You can also stream continuous video to your NVR and apply recording policies there.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MB95Wi28TW is a pragmatic mid-range outdoor camera that prioritizes nighttime reliability over resolution or analytics sophistication. The 0.02 lux color sensitivity and 164-foot Star-Light range position it well for perimeter sites where moonlight or ambient security lighting is present. The fixed 2.8mm lens and modest 5MP count mean it won't deliver Hollywood-grade facial detail at 50 feet, but that's not its mandate. At 9W PoE draw, it scales cleanly across large deployments.

Technical Highlights:

• True WDR 120dB + Smart DNR 3D: Handles the mixed-light nightmare (sun on glass, shadowed entrance) that defeats cheaper cameras. The DNR is especially valuable in 24/7 storage; cleaner low-light imagery compresses 10–20% better under H.265, real money on large archives.
• H.265 dual-stream + 64–8 Mbps bitrate control: Lets you store primary high-quality to NVR and a bandwidth-constrained copy to slower WAN links or legacy VMS. Practical for distributed sites with limited upload capacity.
• IP67 + IK10 + aluminum housing: Submersion-rated and vandal-resistant. The temperature spec (-22°F to 140°F) spans most North American climates without thermal cycling problems. No active cooling, so reliability improves in remote unattended locations.
• On-camera object classification and perimeter intrusion: Reduces false motion alerts from rain, shadows, or slow traffic. Useful if you lack a modern VMS with native video analytics and must rely on edge detection.

Deployment Considerations:

• Fixed 2.8mm lens is not adjustable post-mount: Plan sightlines carefully. Poor mounting angle cannot be corrected via zoom. Test positioning before final installation, especially if you need to cover a wide perimeter from a single pole.
• 5MP detail ceiling: Identification-grade detail (readable faces, license plates) is reliable to 15–20 feet. Beyond that, consider stepping to 8MP or a higher-magnification lens option from the Digital Watchdog catalog.
• Micro SD failover adds complexity: Ensure your management process includes regular health checks of the local card; a failed card sitting unmonitored is worse than no backup. Integrate into your firmware upgrade cycle.

Best suited for perimeter coverage on industrial facilities, warehouse yards, parking structures, and critical-infrastructure gates where you need proven nighttime performance and straightforward PoE deployment. If your priority is AI-driven object re-identification or adaptive bitrate streaming to mobile clients, look to the newer low-light camera options in the same family.
