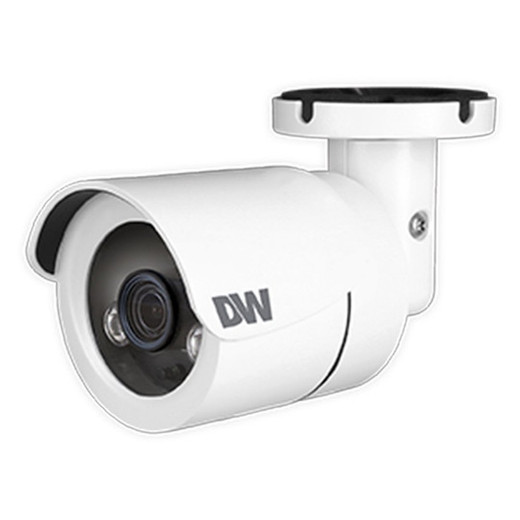

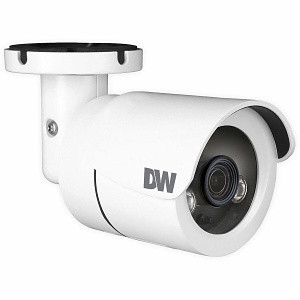

Digital Watchdog DWC-B7553WTIRW 5MP Star-Light IR Outdoor Bullet Camera
The DWC-B7553WTIRW is a fixed outdoor IP bullet camera designed for 24/7 surveillance in mixed or low-light conditions. Its core strength is combining advanced low-light amplification (Star-Light with 32x sense-up) and intelligent infrared (70-foot range) to deliver usable color or monochrome footage from dusk through complete darkness—without relying solely on IR. This matters because it reduces the 'washed-out' IR-only look many outdoor cameras produce, preserving detail in facial features and clothing even when ambient light is minimal.
Key Features
- 5MP resolution (1/2.8" CMOS sensor): Captures 2592 x 1944 pixels, balancing detail with file size and network bandwidth—useful for perimeter and entrance monitoring where you need to distinguish individuals without overwhelming your NVR storage. Supports multiple fallback resolutions (4MP, 2.1MP, 1080p, 720p) if network or storage constraints force a reduction.
- Star-Light technology with 32x sense-up: Amplifies available light up to 32 times in near-darkness, allowing the camera to deliver color video at illumination levels where conventional sensors would either fail or shift to infrared-only mode. This preserves detail and color cues forensic review often relies on.
- Smart IR™ with 70-foot intelligent range: Adjusts infrared brightness based on subject distance, preventing washed-out overexposure of nearby objects while still illuminating the full surveillance zone. 70 feet covers most parking lots, building perimeters, and entry points without requiring separate IR floodlights.
- True WDR 120dB: Handles extreme contrast—such as monitoring a sunlit exterior while a subject stands in a shadowed doorway. The 120dB dynamic range allows both areas to register without crushing blacks or blowing highlights, critical for forensic usefulness when documenting incidents at building entrances.
- IP66 weatherproof rating with aluminum die-cast housing: Resists direct rain, dust, and corrosive salt spray in outdoor environments. The -4°F to 122°F operating range covers most North American climates without requiring additional environmental enclosures. IP66 means hose-down proof but not submersion-rated; for underwater or partial-submersion duty, specify IP67 or IP68 alternatives.
- PoE power (3.9W LED on / 2.0W LED off): Runs entirely from a single network cable, eliminating separate 12VDC or AC wiring runs. The sub-4W draw fits comfortably within standard 802.3af PoE budgets (15.4W per port), allowing you to power dozens of these cameras from a standard managed PoE switch without hitting power limits or needing PoE+ injectors.
- Smart DNR™ 3D noise reduction: Reduces the grainy "snow" effect common in low-light video, producing cleaner nighttime footage suitable for facial or license-plate analysis. Progressive scan eliminates flicker at both 50Hz and 60Hz line frequencies.
- Auto day/night mode with 24 programmable privacy zones: Automatically shifts to monochrome at dusk for maximum IR sensitivity, and back to color at dawn. The 24 privacy zones allow masking of sensitive areas (windows, neighboring property) while preserving perimeter coverage—important for regulatory compliance without sacrificing detection capability.
- Multi-signal protocol support (CVBS, HD-Analog, HD-CVI, HD-TVI): If your infrastructure includes existing coax cabling, this camera can leverage those runs instead of requiring new Ethernet, reducing installation cost on large retrofit projects. Supports Pelco C and UTC control protocols for integration with professional network video recorders and management systems.
- 4.0mm fixed lens with 82° horizontal FOV: A moderate wide angle suitable for entrance monitoring and perimeter sweeps. Fixed lens means no motorized focus drift; the tradeoff is you cannot zoom after installation, so mounting position and angle must be planned carefully.
- Compact form factor (6.41" x 2.65", 1.1 lbs): The small bullet profile mounts easily to existing wall brackets, eaves, or pole mounts without drawing attention. Weight is low enough for standard arm-bracket installation without reinforcement.
Integration & Compatibility
The DWC-B7553WTIRW outputs H.264 and MJPEG video streams, making it compatible with IP camera management platforms and NVRs that support standard ONVIF Profile S. Pelco C and UTC control enable direct integration into DVR or NVR systems from those ecosystems. For video surveillance systems planning, the low power draw and standard network connectivity simplify PoE switch sizing and VMS architecture.
When to Choose a Different Model
If you need motorized zoom for distant perimeter coverage or room-to-room panning, consider a varifocal or PTZ variant from the Digital Watchdog line. If thermal (heat-signature) detection is required, thermal models are necessary—standard sensors including this one cannot detect non-illuminated heat sources. For indoor applications, specify an indoor-rated bullet or turret to avoid oversizing environmental protection and cost.
Frequently Asked Questions
Q: What is the actual low-light sensitivity of the DWC-B7553WTIRW?
A: The camera achieves 0.16 lux in color mode and 0.0 lux (infrared on) in black-and-white. The 32x Star-Light sense-up extends color usability into near-total darkness without relying entirely on IR, preserving color detail down to approximately 0.005 lux with sense-up active.
Q: Is the DWC-B7553WTIRW suitable for mounting above a doorway in direct sunlight?
A: Yes, provided the doorway itself is not backlit. The 120dB true WDR handles the contrast between bright exterior light and shadowed doorway interiors. However, if the camera is pointed directly into the sun, you will still experience lens flare and contrast clipping. Mounting angle and sun direction are key variables.
Q: Can I use the DWC-B7553WTIRW with an existing analog-over-coax (HD-CVI or HD-TVI) infrastructure?
A: Yes. The camera supports HD-CVI and HD-TVI over coax, so you can leverage existing RG59 or RG6 cabling rather than running new Ethernet. However, you sacrifice some of the modern IP ecosystem (ONVIF, cloud integration, advanced analytics). Confirm your DVR or NVR supports the specific HD standard you choose.
Q: What is the maximum IR illumination range, and will it light up a full parking lot?
A: Smart IR reaches 70 feet with intelligent brightness adjustment. For a typical parking lot (150+ feet in length or width), 70 feet covers roughly one-third to one-half of the lot. Multi-camera deployment or additional fixed IR floodlights are necessary for full-lot coverage.
Q: Does the DWC-B7553WTIRW require a separate power supply or can it run on standard PoE?
A: It runs entirely on standard 802.3af PoE (15.4W available per port, 3.9W typical draw). No separate power supply is needed. A standard 48-port managed PoE switch can power roughly 3–4 of these cameras per port before hitting its aggregate power budget, depending on switch specifications.
Q: What privacy and compliance features does the DWC-B7553WTIRW offer?
A: The camera provides 24 programmable privacy zones, allowing you to mask windows, neighboring properties, or other sensitive areas from recording while preserving perimeter detection. This helps meet GDPR, CCPA, and workplace privacy regulations without sacrificing security coverage.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DWC-B7553WTIRW (often searched as DWC B7553WTIRW) is a strong pick for outdoor perimeter and entrance monitoring because it doesn't force you into a false choice between low-light color preservation and infrared coverage. The combination of 32x Star-Light sense-up and 70-foot Smart IR is what separates this model from cheaper outdoor bullets that either lose color entirely in dusk or produce harsh IR-only footage unsuitable for facial recognition or clothing-color identification.
Technical Highlights:
- 32x Star-Light sense-up + 0.16 lux color sensitivity: Maintains usable color video from dusk into near-total darkness, preserving forensic detail without requiring full IR mode. This reduces false alarms triggered by IR noise and improves investigative value when color or pattern details matter (clothing, vehicle markings).
- 120dB true WDR: Non-negotiable for entrance monitoring where sunlit exterior and shadowed doorway exist in the same frame. The 120dB budget prevents the common scenario of bright backgrounds drowning out faces in shade or vice versa.
- Sub-4W PoE draw at 3.9W: Fits cleanly into 802.3af budgets with headroom for dozens of cameras on a single switch. On long cable runs or congested PoE infrastructure, the low draw means fewer voltage-drop complications and no need for midspan injectors.
Deployment Considerations:
- The 4mm fixed lens with 82° FOV is best suited for close-to-medium range coverage (entrance monitoring, 30–50 foot perimeter sweeps). Beyond 100 feet, facial or license-plate detail degrades quickly; plan multi-camera deployments accordingly.
- The 70-foot IR range does not mean full parking-lot illumination—confirm site dimensions and camera placement before assuming single-camera coverage. Two or three cameras with overlapping coverage are typical for large parking areas.
Deploy the DWC-B7553WTIRW where low-light color fidelity and forensic clarity matter: building entrances, perimeter gates, and parking-lot entry points. It excels in mixed-lighting environments and 24/7 surveillance scenarios where night-shift detail recovery is part of your investigation workflow.
Key Specifications:
Color: White
