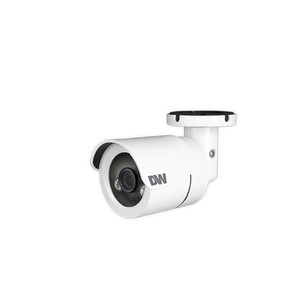

Digital Watchdog DWC-MPB45Wi650TW 5MP IR Varifocal Outdoor Bullet IP Camera

Digital Watchdog DWC-MPB45Wi650TW 5MP IR Bullet Camera

The Digital Watchdog DWC-MPB45Wi650TW is a professional-grade 5MP outdoor bullet IP camera engineered for demanding surveillance applications. Combining varifocal optics, advanced infrared illumination, and robust weatherproofing, this camera delivers exceptional image quality and flexibility for large-area monitoring, perimeter security, and long-range identification tasks.

Key Features

• 5MP 1/2.8" CMOS sensor with 2592×1944 total pixels for superior detail capture
• 140-foot Smart IR range with auto-adjusting infrared illumination
• Motorized varifocal lens: 6mm–50mm with 40.8°–6.9° horizontal field of view
• True Wide Dynamic Range (WDR) at 120dB for balanced exposure in mixed lighting
• Dual-stream H.264/H.265 compression with bitrate control (32–20 Mbps)
• PoE powered with optional 12VDC adapter for flexible deployment
• IP66-rated aluminum die-cast housing withstands -40°F to 122°F operation
• Auto day/night switching with color in daylight, B/W at night (0.08 lux color minimum)
• Motorized P-iris and auto-focus for consistent exposure and sharpness
• Micro SD/SDHC/SDXC slot (up to 1TB) for local edge recording
• 16 programmable privacy masks and mirror/flip capabilities
• De-fog processing and 3D Smart DNR for clean footage in adverse conditions

Technical Specifications

Imaging & Optics: The camera delivers up to 30 fps at all resolutions, including 5MP, 1080p, and 720p modes via dual-stream capability. The varifocal lens with motorized zoom and auto-focus enables precise framing from wide-area monitoring to narrow long-range identification. Slow shutter mode (x2–x7.5) enhances low-light sensitivity, while Smart DNR reduces noise without sacrificing detail.

Night Vision: With 140 feet of Smart IR illumination, the camera penetrates complete darkness with color capability down to 0.08 lux and B/W operation at 0.0 lux. The P-iris automatically compensates for varying light levels to maintain consistent image quality.

Connectivity & Software Compatibility: Native support for DW Spectrum IPVMS, Genetec, Milestone Systems, and ExacqVision Technologies ensures integration into enterprise VMS ecosystems. Protocols include RTSP, ONVIF, DHCP, DDNS, HTTP/HTTPS, and SNMP for robust network management. Multi-user authority and 802.1x security authentication protect system integrity.

Video Analytics & Alerts: IVA (Intrusion, Line Crossing, Loitering, Enter/Exit, Tamper) and IVA+ (Logical Rules, Object Removed, Tailgating, Direction) licenses enable intelligent event detection. Motion detection, email notifications, and SD card recording trigger operational alerts.

Build & Durability: The aluminum die-cast body measures 12.2" × 3.81" and weighs 1.96 lbs. IP66 rating and -40°C to 50°C temperature range ensure reliable outdoor operation in harsh climates. Power consumption is minimal: 9W at 12VDC or 10.5W over PoE.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MPB45Wi650TW excels in applications requiring long-range surveillance with high identification accuracy. The 6–50mm varifocal lens combined with 5MP resolution allows operators to cover wide perimeters while maintaining sufficient pixel density for facial or license plate recognition. True 120dB WDR and 140-foot Smart IR make this camera particularly suitable for mixed-lighting environments—parking lots, entry gates, and rooftop monitoring where sun glare and shadows are common challenges.

The dual H.264/H.265 codec support and bitrate control (up to 20 Mbps) balance image quality with bandwidth efficiency, critical for installations with multiple cameras feeding a central NVR. Support for major VMS platforms (Genetec, Milestone, ExacqVision) ensures compatibility in heterogeneous enterprise networks. The optional SD card recording provides failsafe backup if network connectivity is interrupted, and IVA-licensed analytics reduce false alarms through intelligent object detection.

Buyers should note the camera requires a separate mounting bracket (sold separately) and optional 12VDC power adapter if PoE infrastructure is unavailable. The 5-year warranty provides strong backing for long-term deployments.
