Fire Alarm Modules
Addressable fire alarm input/output modules for SLC loop expansion. Monitor modules supervise conventional zones and contact inputs; relay modules control HVAC shutdown, door holders, and elevator recall; isolator modules protect SLC loops from short-circuit faults.
Plan Your Deployment
- Select module type: monitor (input), relay (output), control, or isolator based on function
- Confirm SLC protocol compatibility with installed fire alarm panel platform
- Plan isolator module placement per NFPA 72 to limit fault impact on the loop
- Specify relay contact rating for HVAC shutdown, door holder, and elevator recall loads
- Evaluate dual-input monitor modules to reduce SLC address consumption
Showing Results for Fire Alarm Modules
-
Add to Cart The item has been addedPotter
SKU: CA2Z
Potter CA2Z Class A Initiating Module
Class A initiating module converts 4 Class B circuits for PFC panels
- Converts four Class B initiating circuits to Class A operation
- Transient protection with 5.1k EOL resistor built in
- PC board assembly mounts to PFC-4410RC or PFC-4410G3 panels
In stock · Ships same business day$130.95 $71.99 Save $58.96The item has been added -
Add to Cart The item has been addedPotter
SKU: CAM

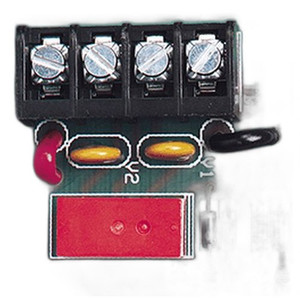

Potter CAM Class A Output Module
Relay-based Class A output module for door strike and accessory control
- Wiegand protocol compatible with field-configurable output assignments
- 12V or 24V DC powered relay architecture for multi-door access installations
- LED status indicators and in-cabinet or wall mounting for flexible deployment
In stock · Ships same business day$81.75 $53.99 Save $27.76The item has been added -
Add to Cart The item has been addedPotter
SKU: MRS
Potter MRS Main Reserve Switch
Key-operated main/reserve selector for fire suppression control systems
- DPDT switch independently controls two signal pairs for fail-safe switchover
- 1 AMP @ 40 VDC contact rating handles low-voltage fire alarm panel signals
- 24 VDC, 10mA operation with dual LED status indicators; UL/cUL listed
In stock · Ships same business day$253.20 $136.99 Save $116.21The item has been added -
Add to Cart The item has been addedPotter
SKU: PAD100-DIM

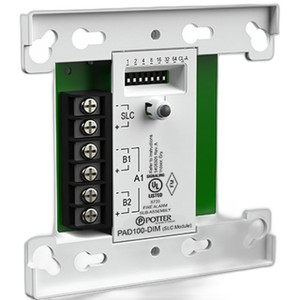

Potter PAD100-DIM Dual Input Module
Dual-input module expands Potter panel capacity with 2 RJ-45 reader ports
- Supports Wiegand and serial protocols for proximity, smart card, and PIN entry
- Two independent reader connections consolidate separate credential streams into one
- 12V DC supervised power with LED status indicators for power and communication
In stock · Ships same business day$178.50 $132.99 Save $45.51The item has been added -
Add to Cart The item has been addedPotter
SKU: PAD100-IM

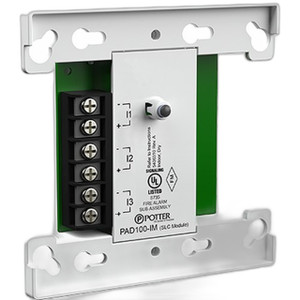

Potter PAD100-IM Isolator Module
Power distribution isolator for multi-door access control networks
- Isolates reader and strike circuits to prevent fault cascade across system
- Supports distributed installations across multiple doors without single points of failure
- UL Listed module rated 32–120°F with compact 0.6 lb form factor
In stock · Ships same business day$119.00 $84.99 Save $34.01The item has been added -
Add to Cart The item has been addedPotter
SKU: PAD100-LED

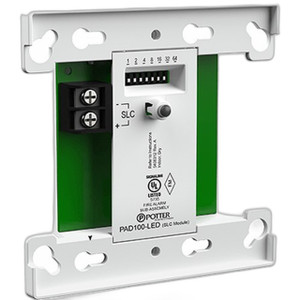

Potter PAD100-LED Addressable LED Module
Addressable LED module for remote status feedback on single alarm line
- Daisy-chain multiple units on one addressable circuit without separate wiring
- Line-powered design with low current draw; no external supply required
- Wall-mount or panel integration with Potter Standard Addressable Protocol
In stock · Ships same business day$66.30 $49.99 Save $16.31The item has been added -
Add to Cart The item has been addedPotter
SKU: PAD100-MIM

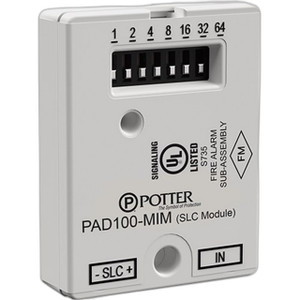

Potter PAD100-MIM Micro Input Module
Micro input module for PAD100 systems—expand without a second controller
- Fits 2-1/2" single-gang box; ideal for multi-door and retrofit installations
- Direct PAD100 protocol integration; no separate network config required
- Distributed sensor monitoring for door status, request-to-exit, and alarms
In stock · Ships same business day$90.55 $70.99 Save $19.56The item has been added -
Add to Cart The item has been addedPotter
SKU: PAD100-RM
Potter PAD100-RM Relay Expansion Module
Relay expansion module for Potter PAD series door control scaling
- Adds relay-switched strike and magnetic lock control without replacing existing controller
- Compatible with Potter credential readers; supports card, PIN, and biometric formats
- Relay contacts rated 2A @ 30VDC, 0.5A @ 125VAC; UUKL listed for smoke control
In stock · Ships same business day$135.70 $101.99 Save $33.71The item has been added -
Add to Cart The item has been addedPotter
SKU: PAD100-SIM
Potter PAD100-SIM Single Input Module
Single input module for Potter access control—expand without replacing controllers
- One dedicated input channel for Wiegand and clock-and-data reader protocols
- DIN rail mount in compact modular form factor—integrates directly into Potter systems
- Add capacity incrementally without gateway replacement or system reconfiguration
In stock · Ships same business day$110.70 $83.99 Save $26.71The item has been added -
Add to Cart The item has been addedPotter
SKU: PAD100-TRTI
Potter PAD100-TRTI Two Relay Two Input Module
Two relay two input module expands Potter access control without panel swap
- Two independent relay outputs control strikes, mag locks, solenoids separately
- Two discrete inputs monitor door sensors, RTE buttons, alarms in real time
- 12/24 VDC terminal block wiring scales access control across distributed locations
In stock · Ships same business day$433.25 $325.99 Save $107.26The item has been added -
Add to Cart The item has been addedPotter
SKU: PAD100-ZM
Potter PAD100-ZM Zone Expansion Module
Zone expansion module for Potter systems—add I/O without replacing panels
- Networked slave architecture connects to Potter control platforms for centralized credential management
- Reader and strike I/O expansion scales incrementally in retrofit and new-build deployments
- Field-installable module integrates with existing Potter infrastructure without wholesale replacement
In stock · Ships same business day$173.70 $129.99 Save $43.71The item has been added -
Add to Cart The item has been addedPotter
SKU: RA-4410G3
Potter RA-4410G3
Multi-credential reader with sub-second response for access control systems
- Reads multiple credential formats with encrypted or standard transmission
- Compact design fits confined panel spaces in retrofit and new installations
- Sub-second credential processing supports high-throughput door access scenarios
In stock · Ships same business day$666.25 $397.99 Save $268.26The item has been added
