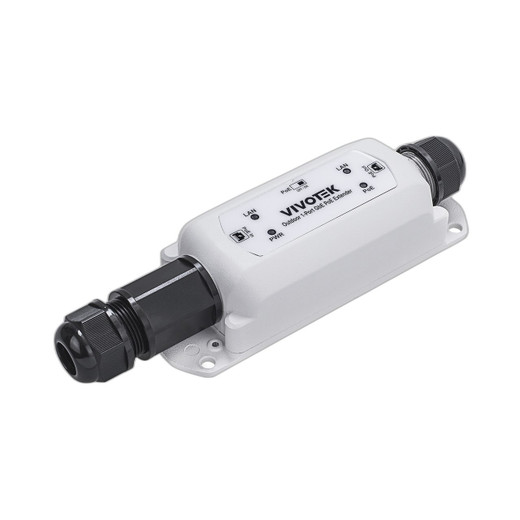

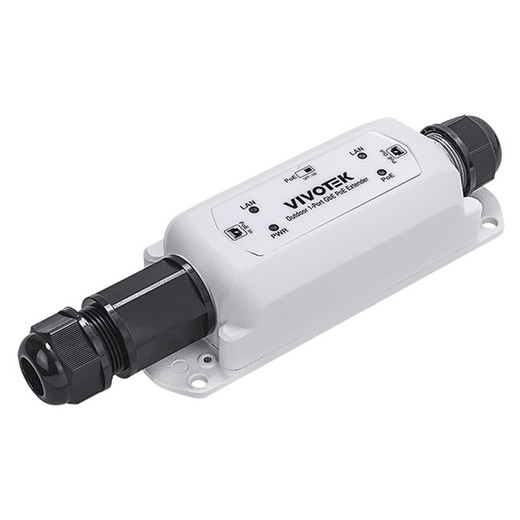

Vivotek AP-GXC-0150 Outdoor 1-Port Gigabit PoE Extender

Vivotek AP-GXC-0150 Outdoor 1-Port Gigabit PoE Extender

The Vivotek AP-GXC-0150 is a rugged outdoor PoE extender designed to extend Ethernet and power delivery to remote IP surveillance devices and networked equipment across expansive outdoor deployments. Supporting up to 95W of PoE input power and delivering 68W of passive PoE output, this extender eliminates distance limitations inherent in standard networking while maintaining full Gigabit speeds and reliable power supply to demanding devices.

Key Features

• Extended Reach: Daisy-chain up to 2 units for distances up to 300 meters with no local power required
• High Power Delivery: Supports 802.3af/at/bt and PoH input up to 95W; outputs 48-55VDC at maximum 68W passive PoE
• Gigabit Performance: Full 1 Gbps Ethernet throughput on both input and output ports with 4 Gbps switching capacity
• Extreme Weather Resistance: IP67 waterproof rating and IK10 vandal-proof construction for harsh outdoor environments
• Wide Temperature Range: Operates reliably from -40°C to +65°C, with storage capability to +85°C
• Surge Protection: 6KV surge protection on PoE ports safeguards equipment from lightning and power surges
• Smart Controls: Dip-switch PSE power on/off management and full auto-MDI/MDI-X negotiation support
• Compact Design: Lightweight (0.3 kg) and compact form factor for discreet outdoor mounting

Technical Specifications

• Model: AP-GXC-0150
• Ports: 1 PD input + 1 PSE output Gigabit Ethernet (RJ45)
• PoE Input: 802.3af/at/bt & PoH up to 95W
• PoE Output: 48-55VDC, max 68W passive PoE
• Bandwidth: 10/100/1000 Mbps auto-negotiation
• MAC Table: 2K entries
• Dimensions: 157(W) x 55.8(H) x 39.75(D) mm
• Ratings: CE, FCC, VCCI, C-Tick
• Warranty: 24 months

Applications

Ideal for extending power and connectivity to PTZ cameras, outdoor Wi-Fi access points, mesh network nodes, and other high-powered devices in remote locations beyond standard 100-meter Ethernet limits. Perfect for large campuses, industrial facilities, parking areas, and rural surveillance deployments.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The AP-GXC-0150 addresses a critical infrastructure challenge in outdoor surveillance: reliable power and data delivery over extended cable runs. By supporting daisy-chain installation up to 300 meters and requiring no external power source, this extender simplifies deployment logistics and reduces installation costs. The 95W input capacity accommodates modern high-power PTZ cameras and thermal imaging devices, while 68W passive PoE output ensures devices receive stable, regulated power.

IP67 and IK10 ratings make it genuinely suitable for uncontrolled outdoor environments. Organizations managing large-scale outdoor security systems will appreciate the ability to position cameras and sensors far from central infrastructure without signal degradation or power loss.
