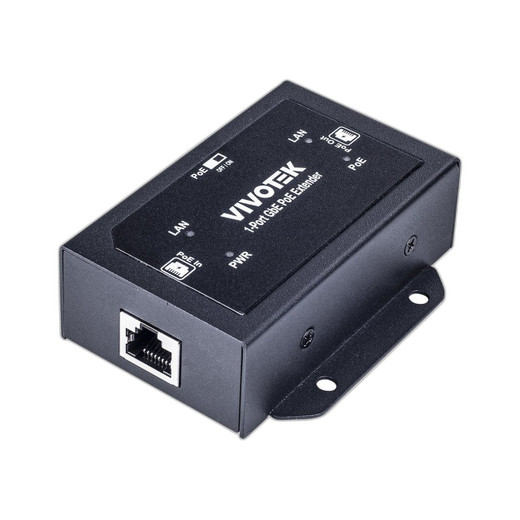

Vivotek AP-GXC-0100 Gigabit Ethernet Extender

Vivotek AP-GXC-0100 Gigabit Ethernet Extender

The Vivotek AP-GXC-0100 is a compact indoor Gigabit Ethernet extender designed to expand network reach in security and surveillance installations. This single-port device extends network connectivity up to 300 meters using daisy-chain installation, eliminating the need for local power at extension points while maintaining full Gigabit speeds. Ideal for IP camera deployments and distributed security systems across large facilities.

Key Features

• Extends Gigabit Ethernet up to 300 meters with daisy-chain capability
• No local power required at extension points
• Supports 802.3af/at/bt and PoH input up to 95W
• Outputs 48-55VDC passive PoE, maximum 68W
• 12kV surge protection on each PoE port
• Compact form factor: 90 x 69.4 x 28.5 mm
• LED indicators for Power, LAN, and PoE status
• Wide operating temperature range: -40°C to 65°C

Technical Specifications

• Gigabit Ethernet bandwidth: 10/100/1000 Mbps
• Switching capacity: 4 Gbps
• MAC table: 2K entries
• Auto-MDI/MDI-X and auto-negotiation supported
• Dual Gigabit RJ45 ports (1 PD input, 1 PSE output)
• PoE power control via DIP switch
• Weight: 0.19 kg
• Certifications: CE, FCC, VCCI, C-Tick
• 24-month warranty

Applications

Perfect for extending IP surveillance camera networks across office buildings, retail environments, warehouses, and large facilities. Works seamlessly with Vivotek network cameras and compatible security infrastructure where distance limitations would otherwise prevent deployment.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The AP-GXC-0100 solves a critical challenge in IP surveillance—extending PoE-powered cameras beyond standard Ethernet distance limitations without requiring additional power infrastructure. Its daisy-chain capability allows multiple units to work in series, achieving the full 300-meter extension across multiple segments. The passive PoE output maintains compatibility with standard PoE devices while the 68W maximum output supports power-hungry cameras and accessories.

The 12kV surge protection on each port adds critical reliability in outdoor-adjacent or electrically noisy environments. For system integrators, this device reduces installation complexity and cost compared to running new dedicated power lines to remote camera locations.
