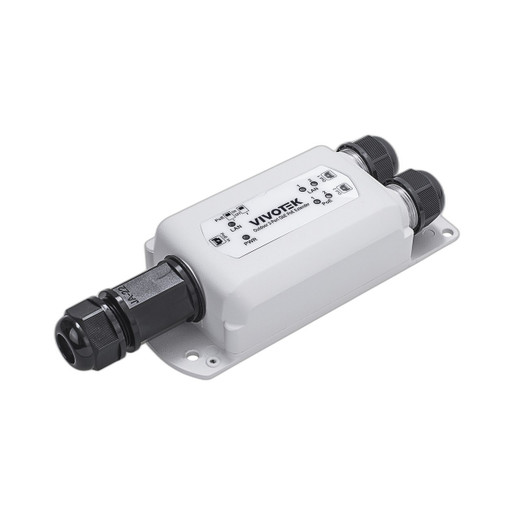

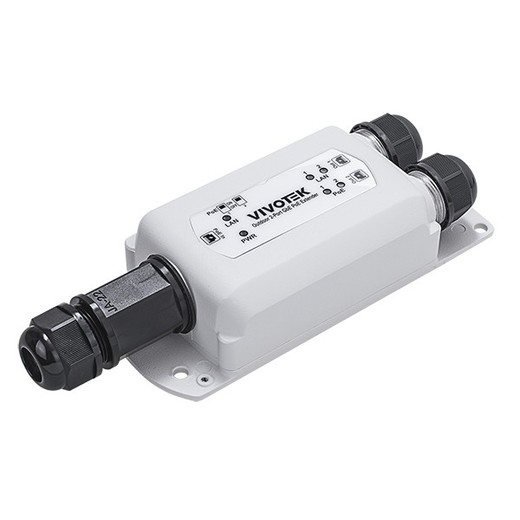

Vivotek AP-GXC-0250 Outdoor 2-Port Gigabit PoE Extender

Outdoor PoE extender reaches 300m with dual Gigabit ports, no extra power

$286.00 $198.99 SAVE $87

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Senior specialists for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install

Laura Bennett, IPSD Senior Specialist

Talk to Laura

200+ hrs training • U.S - based

Senior Specialist • 877-277-7147

Vivotek AP-GXC-0250 Outdoor 2-Port Gigabit PoE Extender

$286.00
$198.99

Overview

SKU: AP-GXC-0250
UPC: 4710469353840
Condition: New
Availability: Usually Ships in 2-3 Weeks
Warranty 2 Year Warranty

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Description

Vivotek AP-GXC-0250 Outdoor 2-Port Gigabit PoE Extender

The Vivotek AP-GXC-0250 is a rugged outdoor PoE extender designed to expand IP surveillance networks beyond standard Ethernet cable limitations. By combining dual Gigabit Ethernet ports with 95W PoE input capacity, this device eliminates the need for additional power sources at remote deployment locations. Ideal for large-scale surveillance installations, perimeter security, and distributed camera networks, the AP-GXC-0250 delivers both power and data transmission over extended distances with industrial-grade durability.

Key Features

  • Dual Gigabit Ethernet ports—one input (PD) and two output (PSE) for flexible topology
  • Up to 95W PoE input (802.3af/at/bt & PoH) with 68W passive PoE output
  • Daisy-chain capability supporting up to 300m total extension distance with no local power required
  • 6 Gbps switching capacity with 2K MAC table for efficient network performance
  • IP67 waterproof and IK10 vandal-proof construction for harsh outdoor environments
  • Operating temperature range of -40°C to 65°C ensures reliability in extreme climates
  • 6KV surge protection on each PoE port for equipment safeguarding
  • PSE power on/off DIP switch for flexible port management

Technical Specifications

  • Ports: 3 total Gigabit Ethernet (1 PD input, 2 PSE output)
  • Power Delivery: 48–55VDC passive PoE output up to 68W maximum
  • Bandwidth: 10/100/1000 Mbps auto-negotiation with MDI/MDI-X support
  • Dimensions: 167.4 x 72.8 x 39.8 mm; 0.36 kg
  • Environmental: IP67 rated; -40°C to 85°C storage range; 10–90% operating humidity (non-condensing)
  • Certifications: CE, FCC, VCCI, C-Tick
  • Warranty: 24 months

Applications

Perfect for extending PoE-powered surveillance cameras, access control devices, and IoT sensors across large outdoor areas such as parking lots, industrial facilities, campus perimeters, and remote locations. The daisy-chain architecture simplifies multi-point deployments while maintaining power budgets.

James Everett
James Everett
Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The AP-GXC-0250 addresses a critical challenge in large-scale surveillance networks: maintaining adequate power delivery beyond standard Ethernet run lengths. Its dual output ports enable flexible network configurations—whether daisy-chained for linear coverage or deployed in parallel for load distribution. The 68W passive PoE output accommodates high-demand devices like PTZ cameras, while the 6 Gbps switching capacity ensures minimal latency for real-time video feeds.

The combination of IP67 and IK10 ratings makes this extender exceptional for hostile environments where both moisture and physical tampering are concerns. DIP switch control adds operational flexibility without requiring firmware management. For integrators deploying extensive outdoor surveillance infrastructure, the AP-GXC-0250 significantly reduces installation complexity and eliminates the cost burden of remote power conditioning.

Specifications
Model: AP-GXC-0250
Extension Distance: Up to 300m daisy-chain
PoE Input Power: 802.3 af/at/bt & PoH up to 95W
PoE Output Power: 48~55VDC, Max. 68W Passive PoE
PD Power Pin Assignment: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
PSE Power Pin Assignment: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
PD Gigabit Ethernet (RJ45: 1
PSE Gigabit Ethernet (RJ45: 2
PSE Power On/Off Dip Switch: Supported
Surge Protection/Each PoE Port: 6KV
Total Gigabit Ethernet Port: 3
Mac Table: 2K
Bandwidth: 10/100/1000 Mbps
Switching Capacity: 6 Gbps
Auto-MDI/MDI-X, Auto-Negotiation: Supported
Dimensions (W x H x D: 167.4(W) x 72.8(H) x 39.8(D) mm
Weight: 0.36 kg
LED Indicators: Power, LAN, PoE
Waterproof Rating: IP67
Vandal Proof: IK10
Operating Temperature: -40°C ~ 65°C (-40°F ~ 149°F)
Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
Operating Humidity: 10 ~ 90% (non-condensing)
EMC: CE, FCC, VCCI, C-Tick
Warranty: 24 months
Type: Switch
Product Type: Switch
Connectivity: Wired
Power Type: PoE+
Housing Color: White
Environment Rating: Outdoor
Poe Power: PoE (802.3af)
Compression: H.265; H.264
Analytics: Deep Learning (DLPU)
Mount Type: Rack
Camera: Link ............................................................................7 SUPREME 360° Fisheye Cameras .................................22 Thermal Bullet Cameras ....................................................56
Compatible Accessories: Network Video Recorders Video Management Software
Mounting: Installation ..........................................................77 CMS Station ............................................................................96 Solution Integration Alliance
Voltage DC: 55VDC
Power: PoE
Power Watts: 95W
IP Rating: IP67
Impact Rating: IK10
