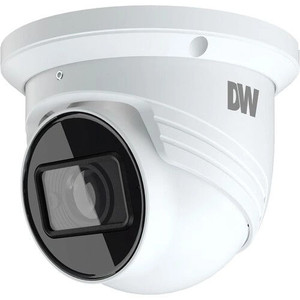

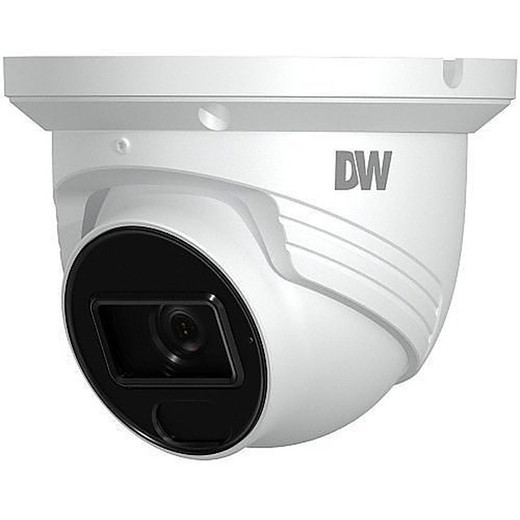

Digital Watchdog DWC-MT95Wi28TW 5MP AI IR Outdoor Turret Camera

Digital Watchdog DWC-MT95Wi28TW 5MP AI IR Outdoor Turret Camera

The DWC-MT95Wi28TW is a 5MP fixed-turret outdoor surveillance camera purpose-built for perimeter monitoring, parking facilities, retail environments, and industrial sites where reliable nighttime visibility and intelligent threat detection matter. This is a straightforward surveillance tool—no pan-tilt-zoom, no gimmicks—designed to capture detail and generate actionable alerts.

Key Features

• 5MP resolution (2592 × 1944): captures enough detail to identify individuals and vehicles at typical perimeter distances (30–50 feet). At closer ranges, facial features and license plates remain legible; at farther distances, you trade detail for scene context. Practical middle ground for most fixed-mount applications.
• 100-foot Smart IR with true day/night auto-switching: active infrared illumination covers the range needed for loading docks, fence lines, and parking areas. True day/night switching (versus continuous grayscale) preserves color data during twilight hours, improving downstream analytics accuracy.
• Extreme low-light sensitivity—0.0 lux in B/W, 0.02 lux in color: means the camera can operate in near-total darkness with IR alone, or detect motion and shape in very dim ambient light without IR activation. Reduces false alerts from IR reflection off rain, fog, or reflective surfaces.
• True WDR 120dB (wide dynamic range): handles scenarios where part of the frame is brightly backlit (loading dock door, sunset reflection) and part is shadowed. WDR processing does introduce slight latency and can create artifacts in extreme cases, but the 120dB rating is sufficient for most mixed-light outdoor environments. Not needed for purely nighttime monitoring.
• AI-powered object classification: distinguishes humans from vehicles, animals, and false triggers. Reduces alert noise by filtering out blowing leaves, headlight reflections, and passing trucks when you only care about perimeter breach by a person. Requires integration with an ONVIF-compliant VMS to fully exploit; on-camera alone, you get generic motion detection.
• Dual focal length options (2.8mm and 3.6mm): 2.8mm delivers wider field of view for area coverage; 3.6mm narrows the view for longer-distance detail capture. Choose at purchase time—not switchable. Plan lens selection around mounting height and coverage zone before installation.
• IP67 rating and IK10 impact resistance: IP67 means the housing sheds rain, dust, and brief submersion—standard for exposed outdoor mounting. IK10 handles vandal strikes and minor impact. Together, they ensure the camera survives a typical outdoor environment for 3–5 years without housing failure. Not suitable for submersion in water or extreme salt-spray industrial settings (those require stainless-steel housings).
• PoE powered (maximum 7.0W): draws less power than a typical 802.3af-rated PoE injector, so a single PoE switch can support dozens of these cameras without power-budget strain. Eliminates the need for separate 12VDC power supplies and conduit runs. Simplifies install and reduces BOM cost on large deployments.

Video Compression & Stream Management

The DWC-MT95Wi28TW encodes in H.264, H.265, and MJPEG at variable bitrates (64 Kbps to 8 Mbps). H.265 cuts storage size by roughly 40–60% compared to H.264 on the same scene—meaningful on 24/7 recording across a multi-camera system where disk cost and retention time drive economics. Dual-stream capability allows simultaneous high-quality primary recording and lower-bitrate secondary streams for live monitoring or bandwidth-constrained network paths.

Integration & Compatibility

The camera is ONVIF-compliant and supports IPv4/IPv6, RTSP, and integrates with ONVIF-compatible VMS platforms including DW Spectrum IPVMS, ExacqVision, and Milestone Systems. Built-in Micro SD/SDHC/SDXC card slot (up to 1TB) provides on-camera backup—useful if network connectivity is intermittent or if local failover is required. Line crossing alerts, intrusion detection, scene tampering detection, and 4 programmable privacy masks are built in. Real-time motion detection with email and FTP notification support simplifies alert routing without requiring a separate edge device.

Environmental Durability

Operates from –30°C to 60°C and handles 0–95% humidity without special enclosures. Smart DNR 3D noise reduction and auto white balance maintain image quality in variable weather—fog, rain, and glare are handled gracefully. Aluminum die-cast housing resists corrosion in most climates; if you're in a salt-spray or chemically harsh environment, confirm material compatibility with your integrator.

Frequently Asked Questions

Q: What's the difference between the 2.8mm and 3.6mm lens options for the DWC-MT95Wi28TW?

A: The 2.8mm lens delivers a wider horizontal field of view (approximately 110°), making it better for large area coverage at moderate distances. The 3.6mm lens narrows the view (approximately 80°) and magnifies distant objects, making it better for identifying details at longer ranges. Choose based on your mounting height and the distance from the camera to the zone you need to monitor. Lens selection is made at purchase and cannot be changed in the field.

Q: Does the DWC-MT95Wi28TW support H.265 compression, and what's the storage saving?

A: Yes, the camera supports H.265 (HEVC) encoding. H.265 typically reduces file size by 40–60% compared to H.264 on the same video scene, depending on scene complexity and motion. On 24/7 multi-camera systems, this translates to measurable savings in NVR storage capacity and can extend retention time without purchasing additional drives.

Q: Is the DWC-MT95Wi28TW suitable for wall mounting, or is it ceiling-only?

A: The turret form factor is designed for flush wall or ceiling mounting. Confirm mounting accessories and bracket compatibility with your integrator—the camera itself does not include a mount, and wall vs. ceiling orientation may require different hardware.

Q: Can the DWC-MT95Wi28TW integrate with Milestone Xprotect or other third-party VMS platforms?

A: Yes. The camera is ONVIF Profile S and T compliant, so it integrates with any ONVIF-compatible VMS, including Milestone Xprotect, ExacqVision, and others. Confirm specific version compatibility with your VMS vendor before deployment to ensure analytics pass-through (if required).

Q: What's the maximum IR range on the DWC-MT95Wi28TW, and does it work in complete darkness?

A: The Smart IR system has an effective range of 100 feet (approximately 30 meters). In complete darkness (0.0 lux), the camera relies entirely on IR illumination. With ambient light as low as 0.02 lux (color) or 0.0 lux (B/W with IR), the camera can detect motion and shape. Beyond 100 feet, IR falloff reduces illumination, so object classification and detail identification degrade gracefully.

Q: What storage options are available on the DWC-MT95Wi28TW?

A: The camera has an onboard Micro SD/SDHC/SDXC card slot supporting cards up to 1TB. Local storage is useful for failover backup during network outages or as a supplement to a central NVR. The camera records directly to the card in the event of network loss, though primary recording should remain on a networked NVR for centralized management and retention policies.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MT95Wi28TW is a practical mid-range outdoor turret that combines straightforward 5MP capture, true 120dB WDR, and AI-assisted analytics into a single IP67-rated package. This is not a high-spec showpiece—it's a working tool for deployments where you need dependable color/IR imaging, intelligent motion filtering, and vendor-neutral ONVIF integration without the complexity (or cost) of deep-learning edge processing or PTZ mechanics.

Technical Highlights:

• 100-foot Smart IR with true day/night: IR range covers typical perimeter and parking scenarios; true day/night switching (not greyscale mode) preserves color during low-light transitions, which matters for downstream AI analytics and human review.
• 120dB WDR: genuine wide dynamic range handles dock doors and sunset backlight without washout or crushing shadows. Introduces minimal latency and artifact, useful for mixed-light zones; skip it if you're monitoring pure nighttime areas.
• H.265 dual-stream: 40–60% storage reduction on H.265 primary stream, with H.264/MJPEG fallback. On a 16-camera site recording 24/7, this saves one or two NVR drives over a year—real money.
• 7.0W PoE footprint: sub-10W draw means a single 60W PoE switch can power 8+ cameras without power-limiting your other devices.

Deployment Considerations:

• Lens selection (2.8mm vs. 3.6mm) is fixed at purchase. Confirm coverage geometry with a site visit before ordering—field changes require a replacement camera.
• AI object classification (person vs. vehicle) is built in, but full analytics benefit requires ONVIF-compatible VMS integration. On-camera alone, you get basic motion detection and tampering alerts.
• Local Micro SD backup is useful for network failover, but do not rely on it as primary storage—1TB cards fill in days on continuous 5MP recording. Plan for a proper NVR.

Best suited for retail chains, logistics facilities, and municipal deployments where you need proven outdoor durability, color night vision out to 100 feet, and vendor-neutral video management. If you need PTZ coverage or extreme zoom, look at a higher-end turret or PTZ variant in the Digital Watchdog catalog. If budget is the driver and analytics are nice-to-have, consider a lower-cost fixed IP camera without onboard AI. The DWC-MT95Wi28TW sits in the pragmatic middle: reliable, ONVIF-native, analytics-ready.
