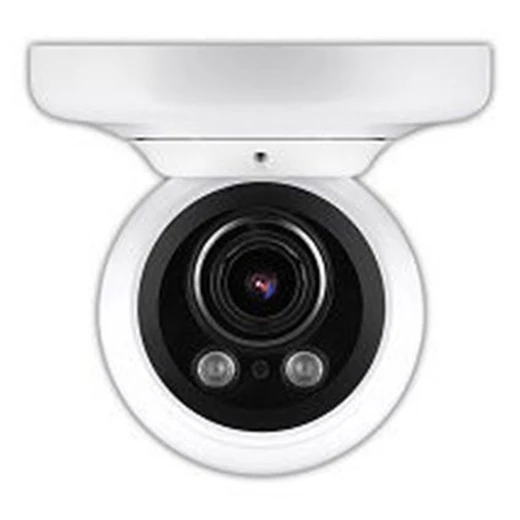

Digital Watchdog DWC-MPVA5Wi28T 5MP AI IR Outdoor Turret IP Camera

Digital Watchdog DWC-MPVA5Wi28T 5MP AI IR Turret Camera

The Digital Watchdog DWC-MPVA5Wi28T is a professional-grade 5MP outdoor turret IP camera engineered for comprehensive surveillance in demanding environments. Built on a 1/2.8" CMOS sensor delivering 2592 × 1944 resolution, this camera captures fine detail across wide outdoor areas while leveraging advanced AI analytics to transform raw video into actionable intelligence. With IP67 and IK10 ratings, vandal-resistant construction, and a 5-year warranty, the DWC-MPVA5Wi28T meets the durability demands of mission-critical security deployments.

Key Features

• 5MP resolution with 103° horizontal field of view and 2.8mm fixed lens
• AI-powered intrusion detection, line crossing, loitering, object counting, and tamper alerts
• 100-foot Smart IR night vision with True WDR 120dB for challenging lighting
• IP67 rated, IK10 vandal-resistant turret housing in aluminum die-cast construction
• PoE powered with minimal 7.8W consumption for simplified deployment
• Dual-stream H.264/H.265 video at up to 30fps; supports MJPEG
• 16 programmable privacy masks and auto day/night switching
• Micro SD card recording up to 1TB with local CVBS output option

Technical Highlights

Low-light performance is exceptional: the camera achieves 0.0 lux in black and white and 0.13 lux in color, ensuring visibility in near-total darkness when paired with IR illumination. The adaptive shutter mechanism (8–1/50000 range) and slow shutter modes (up to 7.5x) maximize sensor efficiency while reducing bandwidth consumption. Smart DNR 3D noise reduction and de-fog processing maintain image clarity in adverse weather. The True WDR 120dB engine handles extreme backlit scenes without loss of detail in shadows or highlights.

Connectivity options include IPv4 with DHCP, DDNS, and Bonjour for plug-and-play network integration. Multi-stream encoding enables simultaneous feeds at different resolutions and frame rates, optimizing bandwidth for edge storage, NMS, or cloud archiving. The camera supports major VMS platforms including DW Spectrum IPVMS, Milestone Systems, and ExacqVision, plus standard RTSP/RTP streaming for custom integrations. Security features include 802.1x, HTTPS/TLS encryption, MAC filtering, and multi-user role-based access.

IVA standard licensing covers intrusion zones, line crossing, object counting, loitering, entry/exit events, and tamper detection. IVA+ upgrades add logical rules, object removal, tailgating, direction analysis, and disappearance alerts—enabling sophisticated behavioral monitoring without external analytics engines.

Applications

• Perimeter security and access control at commercial facilities
• Parking lot and lot exit monitoring with automated counting and direction detection
• Retail and warehouse loss prevention with object tampering alerts
• Campus and property boundary surveillance requiring 24/7 low-light coverage
• Loitering and intrusion prevention in restricted outdoor zones

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MPVA5Wi28T combines robust optical design with embedded AI to deliver actionable security intelligence rather than passive video. The 5MP resolution and 103° HFOV strike an effective balance for outdoor perimeter work without sacrificing frame rate or bandwidth efficiency. PoE operation and minimal power draw simplify cabling and UPS provisioning compared to 12V adapters.

The dual-stream architecture and multi-codec support ensure compatibility with legacy and modern VMS deployments alike. The IVA feature set—particularly line-crossing and object-counting analytics—eliminates the cost of separate edge or cloud analytics platforms, making this camera ideal for organizations seeking integrated intelligence in a single appliance. The IK10 vandal rating and -20°C to 50°C operational range confirm suitability for harsh outdoor climates.

Consideration: the 2.8mm fixed lens limits zoom flexibility; deployments requiring variable focal lengths should evaluate motorized alternatives.

Available in White.
