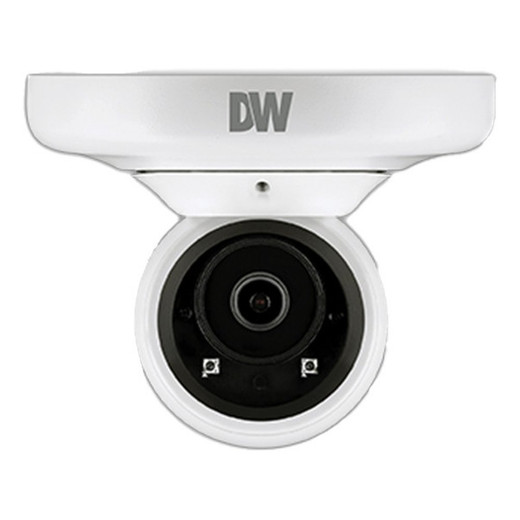

Digital Watchdog DWC-VA553WTIR 5MP Turret IR Outdoor IP Camera

Digital Watchdog DWC-VA553WTIR 5MP Turret IR Outdoor IP Camera

The DWC-VA553WTIR is a fixed 5MP outdoor turret camera built for perimeter monitoring, parking lot surveillance, and industrial facility protection in low-light and variable-lighting environments. It pairs a 1/2.8" CMOS sensor (2608 x 1960 pixels) with Star-Light low-light processing and 70-foot Smart IR illumination, enabling color recording at 0.16 lux and full B&W recording at 0 lux—meaning you capture usable detail whether it's dusk, night, or deep shadow. The aluminum die-cast turret housing is IP66-sealed and IK10-rated, so rain, dust, and impact won't degrade performance in harsh outdoor conditions. PoE Class 2 power delivery (under 13W consumption) eliminates the need for a separate 12V supply and keeps installation straightforward.

Key Features

• 5MP Resolution (2608 x 1960): Captures sufficient detail for identification tasks across mid-range outdoor coverage areas; balances clarity against storage and bandwidth constraints on warehouse and perimeter systems.
• Star-Light Technology: Low-light imaging mode boosts sensitivity up to x32 gain, pushing color recording into near-darkness (0.16 lux) without washing out detail. Eliminates visibility gaps common with standard sensors in twilight and overcast conditions.
• 70-Foot Smart IR Range: Active infrared fills gaps where outdoor lighting is sparse or inconsistent. Automatically compensates for darkness without manual adjustment, critical for 24/7 monitoring of unlit perimeter zones.
• True WDR 120dB: Handles high-contrast scenes—backlighting from windows, headlights, or reflective surfaces—by balancing bright and dark areas in a single frame. Prevents the blown-out foreground or darkened background that defeats recognition on poorly lit building exits or parking area entries.
• 4.0mm Fixed Lens (82° HFOV, 60° VFOV): Wide horizontal field of view suits fence-line and parking lot sweeps. Fixed focal length simplifies deployment and removes focus drift risks over time.
• Smart DNR 3D Noise Reduction: Suppresses grain and compression artifacts in low-light video, maintaining readability on night-mode recordings without sacrificing frame rate (progressive scan up to 30fps).
• IP66 & IK10 Ratings: IP66 sealing blocks direct rain and dust ingress; IK10 impact resistance tolerates vandalism attempts and accidental contact. Rated for -4°F to 122°F operating range, covering seasonal extremes in temperate and cold climates.
• Multiple Video Standards: Supports CVBS, HD-Analog, HD-CVI, HD-TVI, and Universal HD over Coax, enabling drop-in integration with legacy analog systems or hybrid HD-over-coax backbones without replacing head-end infrastructure.
• 24 Privacy Zones & Motion Detection: Masks sensitive areas (adjacent property, interior windows) and triggers alerts on motion events, reducing false alarms and privacy compliance overhead.
• PoE Class 2 Power (802.3af): Single Cat5e/6 cable supplies power and video, simplifying routing in retrofit outdoor installations and reducing the number of conduit runs. Low wattage (under 13W) prevents power-budget strain on shared PoE switches.
• Auto Day/Night & Backlight Compensation: Automatically switches between color (day) and B&W (night) modes as ambient light drops; backlight compensation prevents silhouette effect when subjects stand against bright backgrounds.
• De-fog Functionality: Reduces obscuration from fog, mist, or condensation on the lens—relevant in humid outdoor environments and coastal installations.

Integration & Compatibility

The DWC-VA553WTIR (often searched as DWC VA553WTIR) operates as a standard ONVIF IP camera when connected via HD-CVI or Universal HD over Coax converters, or as a legacy analog camera on traditional surveillance DVRs. The turret form factor and fixed lens design mount flush to walls or under eaves without protruding optics that require separate mounting arms. Five-year warranty covers manufacturing defects across the imaging and processing pipeline.

Typical Applications

• Outdoor perimeter and fence-line monitoring—industrial campuses, logistics yards, secure compound boundaries
• Parking lot and vehicle surveillance—entry/exit points, lot sweeps, license plate context
• Building exterior and entrance monitoring—loading docks, side exits, roof perimeter
• Low-light industrial facility protection—night-shift yard operations, exterior equipment areas
• Mixed-lighting outdoor zones—areas with partial shade, overhead lighting, or variable seasonal sun angles

Frequently Asked Questions

Q: What's the maximum IR range on the DWC-VA553WTIR?

A: The camera features a 70-foot Smart IR range, meaning infrared illumination reaches and illuminates subjects up to approximately 70 feet away. Beyond that distance, IR supplementation diminishes and you rely on ambient light or external lighting infrastructure.

Q: Can the DWC-VA553WTIR record in color at night?

A: Yes. With Star-Light technology enabled, the camera records in color down to 0.16 lux (roughly twilight brightness). Below that threshold, it switches to B&W infrared mode while still capturing detail. This eliminates the common problem of color washout or complete darkness in traditional night-vision cameras.

Q: Is the DWC-VA553WTIR suitable for submersion or continuous water contact?

A: No. IP66 rating means it resists direct rain and moisture spray, but does not support full immersion or submersion. For waterfront or wet-environment applications, consult a higher IP-rated variant (IP67 or above).

Q: What power supply does the DWC-VA553WTIR require?

A: It runs on PoE (IEEE 802.3af), drawing under 13W. A single Cat5e or Cat6 cable delivers both power and video, eliminating the need for a separate 12V power supply. Standard PoE-capable network switches and injectors work without additional hardware.

Q: Does the DWC-VA553WTIR support ONVIF?

A: The camera operates natively on HD-CVI and Universal HD over Coax protocols. When used with appropriate converters or on modern hybrid systems that support these standards, it integrates with ONVIF-based VMS platforms. Confirm converter compatibility with your chosen NVR or VMS before deployment.

Q: What happens if the lens gets dirty or fogged?

A: The camera includes de-fog functionality that electronically reduces obscuration from fog or condensation. However, physical dirt or condensation inside the lens housing will still require manual cleaning. The IP66 seal prevents water ingress, but moisture between the optics and housing requires professional service to address.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-VA553WTIR addresses a genuine gap in outdoor low-light surveillance: the need to see color detail and human features at night without expensive external lighting or separate infrared-only cameras. Star-Light technology combined with 70-foot Smart IR range removes the artificial choice between visible-light cameras (useless at night) and thermal or pure IR (no color). This matters in logistics yards, manufacturing perimeter zones, and parking areas where overnight theft or intrusion requires face/vehicle recognition, not just motion alerts.

Technical Highlights:

• True WDR 120dB: Handles the mixed-lighting mess common in industrial outdoor spaces—overhead sodium lights casting shadows, building-mounted floods creating glare, seasonal sun angles shifting across the same scene. 120dB dynamic range is aggressive enough to hold detail in both bright and dark regions simultaneously, reducing the need for supplemental lighting infrastructure.
• 0.16 lux Color @ x32 Gain: That's twilight brightness with usable color fidelity. Most budget outdoor cameras either fail to color-record or produce unusable washed-out footage in that range. Here you get readable faces and license plates in the 20–30 minutes around dusk, extending the useful surveillance window without external lighting.
• Smart DNR 3D: Low-light video typically looks grainy and compressed. DNR smooths that without introducing motion blur or ghosting, keeping 30fps playback sharp enough for forensic review.
• 70-foot IR without External Strobes: Built-in IR avoids the heat signature and power draw of separate illuminators. Simpler to spec and install, fewer failure points.

Deployment Considerations:

• Multi-Standard Video Output is a Double Edge: HD-CVI, HD-TVI, and Universal HD over Coax support makes this camera backward-compatible with legacy DVRs and hybrid systems—valuable if you're retrofitting older infrastructure. However, confirm your NVR or VMS actually supports the codec variant you plan to use. Universal HD over Coax is not truly universal across all manufacturers.
• Fixed 4.0mm Lens Limits Flexibility: 82° horizontal FOV is wide, suitable for fence-line and parking-lot sweeps, but you cannot zoom or adjust focal length post-installation. Measure your coverage zone before deployment. If you need variable coverage or tighter framing on distant subjects, consider a varifocal variant from the same family.
• Privacy Zones Help Compliance But Add Config Overhead: 24 masking zones are flexible, but each must be drawn and tested. On larger deployments across multiple sites, template zones can accelerate commissioning.
• PoE Power Budget is Tight: At under 13W, the camera won't strain a shared PoE switch, but in a 48-port scenario with dozens of cameras, cumulative wattage matters. Run the math: 20 cameras × 13W = 260W, versus 480W available on a typical PoE+ switch. You have headroom, but not infinite.

Position this camera for perimeter and parking-lot surveillance where low-light color capability justifies a modest step up from basic outdoor cameras, and where PoE simplicity beats having separate power runs. It's not a PTZ (cannot pan/zoom), not a high-megapixel wide-area camera, and not rated for coastal salt spray—know those limits upfront.
