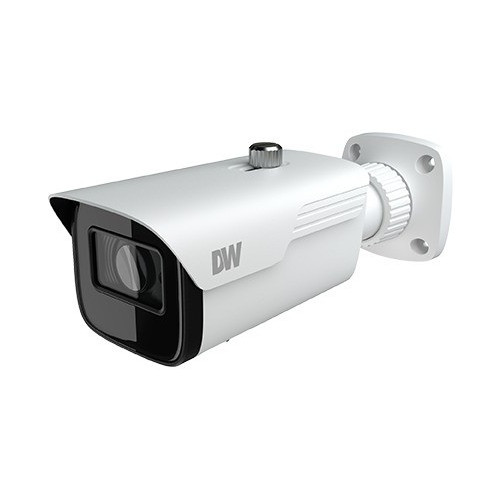

Digital Watchdog DWC-VSBD04Mi 4MP Smart IR Outdoor Bullet IP Camera

Digital Watchdog DWC-VSBD04Mi 4MP Smart IR Outdoor Bullet IP Camera

The DWC-VSBD04Mi is a professional outdoor bullet camera engineered to deliver reliable surveillance in high-security and industrial environments where durability and image clarity under variable lighting are non-negotiable. Built on a 4MP 1/3" CMOS sensor capturing 2560 x 1440 resolution at 30fps, this camera addresses the core challenge of outdoor deployment: identifying details from distance in dim and bright conditions simultaneously.

Key Features

• Motorized Varifocal Lens (2.8–12mm) with Autofocus: Provides 92° to 31° horizontal field-of-view flexibility, eliminating the need to physically reposition the camera during installation. Autofocus ensures sharp imagery across the entire zoom range—critical when monitoring parking structures, perimeter fences, or loading docks at varying depths.
• Smart IR with 164-Foot Range: Infrared illumination extends visibility to ~50 meters in complete darkness. This is genuinely useful for outdoor access points and vehicle lanes; most commodity cameras top out at 30–40 meters, which means target re-identification fails at distance. The DWC-VSBD04Mi keeps faces and license plates legible even when ambient light is zero.
• True WDR 120dB (Dynamic Range): Simultaneous backlighting and shadow detail. Deploy this camera facing glass doors, across loading bays with bright exterior light bleeding in, or monitoring a parking lot entrance at sunrise. 120dB WDR means you won't lose faces in the dark doorway entrance while the outdoor parking lot is blown out white.
• H.265 Codec with H.264/MJPEG Fallback: H.265 cuts storage and bandwidth roughly 40–60% compared to H.264 without sacrificing quality—a material gain when running 24/7 recording across 4, 8, or 16 cameras on a single NVR. Dual-stream architecture lets you record at full 4MP locally while streaming lower resolution to mobile clients, keeping WAN bandwidth modest.
• IP67 + IK10 Ratings: IP67 means no rain, dust, or outdoor spray penetration; IK10 withstands 20J impacts (equivalent to a sledgehammer strike). This combination ensures multi-year outdoor lifespan without protective enclosures in industrial yards, transit stations, and high-vandalism environments.
• PoE Power at 8W Maximum Draw: Operates entirely on 802.3af standard PoE—no separate 12VDC power injectors required. An 8-port PoE switch can power ten of these cameras simultaneously, simplifying installation and reducing cable clutter.
• Built-in Microphone with Audio I/O: Captures two-way audio for entry intercoms or incident review. Useful for parking structures, warehouse doors, or perimeter gates where you need audio alongside video for evidence integrity.
• Smart DNR 3D + De-Fog: Digital noise reduction and de-fog processing reduce grain in low-light scenes and cut through moisture or haze without over-processing. Maintains spatial detail where cheaper noise reduction flattens fine features.
• Programmable Privacy Masks (8 Regions): Blur or block sensitive areas—neighboring properties, windows, reflections—to comply with regional privacy laws without losing surveillance coverage elsewhere in the frame.
• Motion Detection, Line Crossing, Perimeter Intrusion Analytics: Built-in event intelligence; triggers on a tripwire crossing or intrusion into a virtual zone. Reduces false alerts from wind-blown leaves or passing clouds and feeds real triggers directly to your VMS for responsive alerting.

Integration & Compatibility

The DWC-VSBD04Mi supports IP cameras ecosystem standards: ONVIF Profile S/T compatibility ensures integration with enterprise VMS platforms (Milestone XProtect, Genetec Security Center, and others). Native integration with network video recorders in the Digital Watchdog Spectrum IPVMS line simplifies multi-camera deployments. IPv4/IPv6, 802.3 10/100 LAN, RTSP, DHCP, DDNS, FTP, and HTTPS protocols are all standard. Security-conscious environments benefit from digest authentication, IP/MAC filtering, and HTTPS encryption—no cleartext traffic by default.

Integrated microSD card support (up to 1TB) provides local edge recording as a failsafe if your central recorder goes offline. Email and FTP notifications trigger automatically on motion or tampering events, enabling rapid response without polling the camera manually.

Operating Environment & Warranty

The DWC-VSBD04Mi operates reliably in –22°F to 140°F (–30°C to 60°C) outdoor temperature ranges, covering most North American and European climates. Minimum scene illumination is 0.0 lux in infrared monochrome and 0.005 lux in color mode—meaning even starlight-level darkness is manageable. A 5-year manufacturer warranty reflects confidence in the sealed aluminum die-cast housing and component reliability under environmental stress.

When to Choose a Different Model

If you need higher resolution for distant facial identification in a 40+ meter scenario, consider outdoor IP cameras with 5MP or 8MP sensors in the same family. If budget constraints are absolute, fixed-lens variants lower cost but sacrifice zoom flexibility. If your installation is predominantly indoor with outdoor backup (e.g., a warehouse with one external dock), evaluate IP camera selection guidance for mixed environments—the motorized varifocal adds cost where a fixed 3.6mm would suffice indoors.

Frequently Asked Questions

Q: What's the maximum infrared range on the DWC-VSBD04Mi?

A: Smart IR reaches approximately 164 feet (50 meters) in complete darkness. Usable face recognition typically extends 25–30 meters depending on camera angle and target size; vehicle license plate clarity reaches 40+ meters. Beyond that, silhouettes remain visible but detail degrades.

Q: Is the DWC-VSBD04Mi ONVIF compatible?

A: Yes. The camera supports ONVIF Profile S and T, meaning it integrates with any standard VMS platform (Milestone, Genetec, Hanwha, etc.) without proprietary drivers. RTSP and HTTPS protocols are native.

Q: Can I record to an external NVR and use microSD simultaneously?

A: Yes. The microSD card (up to 1TB) runs independently of network recording, creating a local failsafe. If your central recorder loses connectivity, edge storage continues, and you can retrieve footage from the card later.

Q: What's the power consumption, and will a standard PoE switch handle multiple cameras?

A: Maximum draw is 8W via 802.3af PoE. A standard 8-port 95W PoE switch can power 10+ of these cameras. No high-power injectors or separate supplies required.

Q: Does the motorized lens autofocus work reliably in low light?

A: Autofocus uses image analysis; in very low light (below 0.01 lux) or IR-only scenes, autofocus can hunt slightly. Manual focus override is available via the camera's web interface or your VMS if a scene requires lock-down at a specific depth.

Q: What warranty does Digital Watchdog provide?

A: The DWC-VSBD04Mi includes a 5-year manufacturer warranty covering defects in materials and workmanship under normal use conditions.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-VSBD04Mi stands out because it pairs rugged construction with practical imaging features that solve real outdoor surveillance problems. The 120dB WDR and Smart IR 164-foot range address the two most common failure modes in outdoor systems—backlighting that bleaches foregrounds and nighttime darkness that erases detail. Deploy this camera at a loading dock with afternoon sun pouring in, and it holds both the shaded entrance and the bright exterior. Switch to night mode, and the Smart IR pushes usable identification to 50 meters when competitors max out at 30.

Technical Highlights:

• Motorized Varifocal with Autofocus: The 2.8–12mm lens paired with autofocus means you can dial in focus without repositioning hardware during commissioning. For complex perimeter deployments or multi-depth vehicle lanes, this flexibility cuts installation time significantly and prevents post-deployment focus drift.
• H.265 Compression: Delivering 40–60% storage savings compared to H.264 on a 4MP stream running 24/7. On an 8-camera system recording 14 days locally, that's roughly 2TB saved—meaningful when NVR capacity is fixed or when you're evaluating bandwidth for cloud failover.
• IP67 / IK10 Durability: Sealed aluminum die-cast housing rated IK10 (20J impact tolerance) plus IP67 ingress protection ensures multi-year field life without enclosure upgrades in industrial yards, parking structures, or high-vandalism zones. The 5-year warranty reflects that confidence.

Deployment Considerations:

• Autofocus can hunt in very low light (below 0.01 lux) or pure IR scenes; if your scene is static (e.g., a fixed parking lot), manually lock focus during setup and leave it locked.
• The motorized varifocal adds ~$100–150 to BoM versus a fixed lens—only justified if you have variable depths or aren't certain of final coverage zones before installation.
• PoE power budget is modest (8W), but standard 95W switches cannot simultaneously power more than 10–12 of these units without supplemental power—size your switch infrastructure accordingly on dense deployments.

Position the DWC-VSBD04Mi (often searched as DWC VSBD04Mi) for perimeter security at industrial facilities, parking structure entrances, and outdoor access points where you need legible detail 40+ meters out and reliable nighttime visibility. The combination of zoom flexibility, infrared reach, and environmental durability makes it a practical choice for warehouse automation environments and high-security campus deployments.
