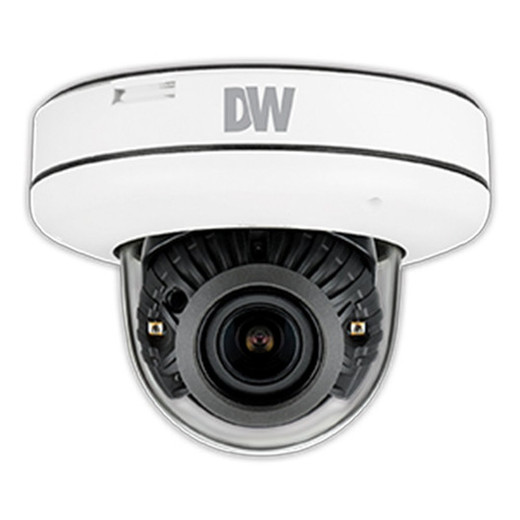

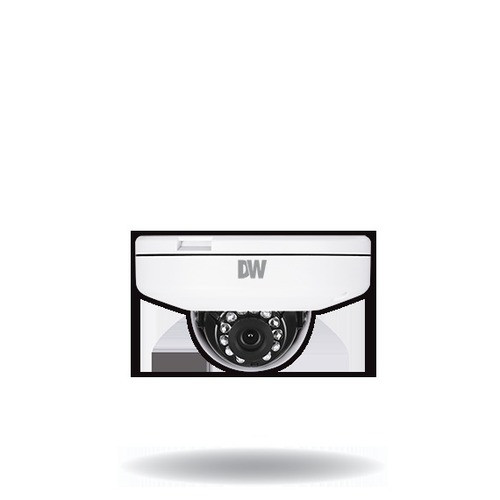

Digital Watchdog DWC-MV84WiAWC1T 4MP IR Outdoor Dome IP Camera

Digital Watchdog DWC-MV84WiAWC1T 4MP Outdoor Dome Camera

The Digital Watchdog DWC-MV84WiAWC1T is a professional-grade 4MP infrared outdoor dome camera designed for comprehensive surveillance in demanding environments. Built with a 4MP 1/3" CMOS sensor delivering 2688 x 1520 resolution, this camera captures exceptional detail across wide outdoor spaces with its variable 2.8mm to 12mm lens, offering a horizontal field of view from 87° down to 32°.

Key Features

• 4MP resolution with 2688 x 1520 total pixels for detailed imaging
• 100-foot Smart IR™ illumination for 24/7 low-light and night vision monitoring
• Vari-focal lens with P-iris for flexible deployment and precise focus control
• True WDR 120dB Wide Dynamic Range for challenging lighting conditions
• IP66 and IK10 rated vandal-resistant dome housing with aluminum die-casting
• PoE powered with minimal power consumption (9.2W max)
• Multi-stream H.264 and MJPEG video compression at up to 30fps
• Smart DNR™ 3D Digital Noise Reduction for cleaner video in low light
• 4 programmable privacy masks for sensitive area protection
• Auto day/night switching with color (day) and B/W (night) modes

Technical Highlights

This camera operates across extreme temperatures from -4°F to 122°F and maintains functionality in 10-90% humidity, making it suitable for harsh outdoor climates. The minimum scene illumination reaches 0.0 lux in B/W mode and 0.20 lux in color, ensuring visibility in near-darkness without relying solely on IR.

Network connectivity includes full IPv4 support with DHCP, DNS, DDNS, and ONVIF compliance. Security features encompass 802.1x authentication, HTTPS/TLS encryption, IP filtering, and digest authentication. The camera streams across multiple resolutions including 1440p, 2.1MP, 1080p, 720p, and VGA with bitrate control from 100Kbps to 10Mbps, enabling flexible bandwidth management.

The included DW Spectrum® CaaS™ license integrates with Digital Watchdog's video management platform, supporting up to 30 MEGApix® CaaS™ cameras in a single network. Operational notifications can be triggered via email, FTP server, or alarm outputs, while motion detection capabilities enable intelligent alerting.

Applications

Ideal for perimeter security, parking lot surveillance, building exteriors, and large outdoor facilities requiring detailed 4MP imaging with reliable infrared coverage. The vandal-resistant dome construction and environmental durability make this camera well-suited for institutional, commercial, and industrial deployments.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MV84WiAWC1T balances professional imaging performance with practical operational efficiency. Its 100-foot Smart IR range, combined with 120dB WDR and 3D noise reduction, delivers consistent video quality across day/night transitions and variable lighting. The vari-focal lens with P-iris eliminates the need for multiple cameras when coverage flexibility is required.

Aluminum construction and IK10 vandalism rating ensure longevity in uncontrolled outdoor environments. The 5-year warranty and integration with DW Spectrum® software provide enterprise-grade reliability and management scalability, making this camera a dependable choice for organizations requiring durable, detailed outdoor surveillance without excessive power consumption.
