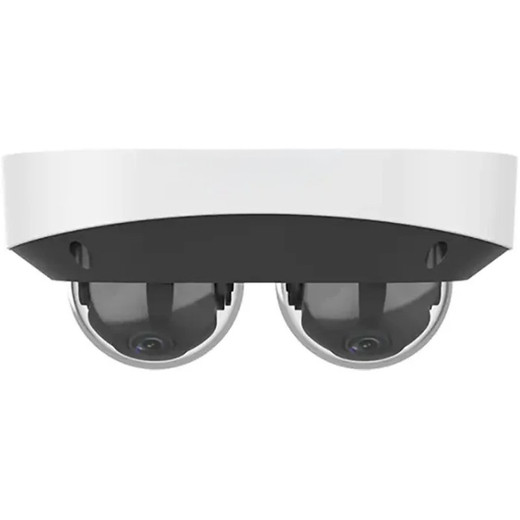

Digital Watchdog DWC-MF5Wi4TWDMP 4MP Outdoor IR Dome Camera
The DWC-MF5Wi4TWDMP is a fixed outdoor dome camera built to handle high-risk environments where weather exposure and physical tampering are genuine concerns. This 4MP unit combines practical durability with straightforward deployment — no exotic features, no overcomplicated setup, just solid optics, reliable infrared, and outdoor IP camera essentials that work.
Key Features
- 4MP 1/2.8" CMOS sensor with 4.0mm fixed lens: Delivers 82.3° horizontal field of view. That's wide enough for parking lot or building perimeter sweeps, and tight enough to capture usable detail at 20–30 feet. If you need facial ID from 50+ feet, step up to a higher megapixel variant; for mid-range area coverage, this resolution-to-lens balance is practical.
- IR illumination with 50-foot Smart IR™ range: Delivers usable monochrome imagery in complete darkness. At 50 feet, you'll see movement and general activity clearly; beyond that, the image begins to thin. For indoor or near-structure applications, this range is overkill; for open compound or parking lot perimeter, it's appropriate.
- IK10 vandal dome + IP66 weather sealing: IK10 means this dome resists sledgehammer-level impact — realistic protection for unsecured outdoor locations or high-risk facilities. IP66 blocks dust completely and handles direct rain and wash-down jets. Skip this model if you need full submersion capability (IP67/IP68); for typical outdoor installations, IP66 is sufficient.
- Auto day/night with color-to-B/W switchover: Camera runs in full color during daylight, shifts to grayscale when illumination drops below threshold. Eliminates separate day/night camera pairs and simplifies wiring — one cable, one sensor, two imaging modes.
- PoE (Class 3) power delivery: Pulls under 13W via standard 802.3af PoE. This overhead won't strain a typical enterprise PoE switch; you can stack dozens of these cameras without adding dedicated power supplies or separate DC harnesses. Critical for retrofit deployments where power infrastructure is tight.
- Dual H.264/H.265 codec support: H.265 cuts bitrate roughly 40–50% compared to H.264 on equivalent quality. On 24/7 recording across 4–6 cameras, that compression difference adds up to measurable storage savings. Legacy VMS platforms may require H.264 fallback; modern systems should enforce H.265 to maximize recorder disk life.
- Smart DNR™ 3D noise reduction: Cleans up the grainy, low-light video that IR sensors often produce. Result: watchable footage at midnight without introducing motion blur or motion artifacts that can hide detail.
- ONVIF compliance: Integrates with NVRs and VMS platforms that speak ONVIF Profile S/T/G. Check your recorder's compatibility list; no proprietary codec or firmware lock-in here.
- Motion detection + video analytics support: Triggers recording or alerts on movement. Useful for reducing file bloat on 24/7 continuous recording and flagging overnight perimeter breaches.
- Operating temperature -4°F to 122°F: Survives winter freeze and summer heat without image degradation or sensor failure. Useful if you're deploying across multiple climate zones or know thermal extremes are part of your site profile.
- 5-year manufacturer warranty: Standard enterprise-grade coverage. Covers defects in manufacture; does not cover impact, electrical surge, or improper installation.
When to Choose This Model
Deploy the DWC-MF5Wi4TWDMP in fixed outdoor perimeter roles: parking lot sweeps, building exterior coverage, industrial compound boundaries, warehouse dock areas. The combination of IK10 durability and IP66 sealing makes it reliable in unsecured outdoor locations where replacement labor and downtime cost more than equipment cost. Wide-angle fixed lens means no pan/tilt complexity — mount it, focus it, and forget maintenance for years.
When to Consider a Different Model
If your deployment requires tighter facial recognition or detail capture beyond 25 feet, prioritize a higher-megapixel variant — 6MP or 8MP in the same Digital Watchdog IP camera family. If you need motorized zoom, active pan/tilt, or the ability to reframe remotely, step to a PTZ model. If submersion or washdown risk is severe (floor drains, high-pressure spray), specify IP67 or IP68 instead. If your site permits a non-vandal form factor and has low physical threat risk, consider a lower-cost turret or bullet dome without IK10 rating.
Integration & Compatibility
The DWC-MF5Wi4TWDMP (often searched as DWC MF5Wi4TWDMP) supports ONVIF discovery and streaming — standard for Milestone XProtect, Genetec, Axis Camera Station, and third-party NVR platforms. Dual codec support means you can configure H.264 for older systems or H.265 for bandwidth-constrained installations. Motion-triggered recording reduces storage overhead; use a PoE switch with intelligent power management if you're chaining multiple units.
Frequently Asked Questions
Q: What's the minimum light level this camera needs to produce color video?
A: 0.16 lux in color mode. Twilight conditions sit around 0.4–1 lux; this camera will produce usable color video well into dusk. Once ambient light drops below 0.16 lux, the sensor switches to monochrome IR mode to preserve frame rate and sensitivity.
Q: Can I wall-mount the DWC-MF5Wi4TWDMP, or is it ceiling-only?
A: Dome cameras are typically ceiling or soffit-mounted to minimize glare and reflection into the lens. Wall mounting is mechanically possible but will introduce sun glare into the image during low-angle light. If wall mounting is your only option, position the camera to face away from direct sunrise/sunset angles.
Q: Does this camera support two-way audio?
A: No. The DWC-MF5Wi4TWDMP is video-only; there is no built-in microphone or speaker. If you need audio, integrate a separate microphone via a secondary line into your NVR or VMS.
Q: What PoE switch do I need to power this camera?
A: Any standard 802.3af PoE switch with at least Class 3 power budget will work. The DWC-MF5Wi4TWDMP draws under 13W, so it won't exhaust switch power capacity. Verify your switch's total power budget if deploying multiple cameras on the same switch.
Q: Is the DWC-MF5Wi4TWDMP NDAA Section 889 compliant?
A: No NDAA exemption or compliance statement is documented for this model. If Section 889 compliance is a procurement requirement, confirm with the manufacturer or your purchasing team before committing to an order.
Q: Can I use standard CAT5e cabling, or do I need CAT6?
A: CAT5e is sufficient for PoE power and data transmission. CAT6 is fine if it's already in the wall; it will not improve performance on this camera. Keep cable runs under 300 feet to maintain PoE voltage stability.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DWC-MF5Wi4TWDMP is a straightforward outdoor dome camera that prioritizes durability and simplicity over bells-and-whistles. The IK10 + IP66 combination directly addresses two real pain points in outdoor deployments — weather damage and physical tampering — while PoE eliminates the need for separate 24VDC power harnesses or transformer complexity. The 4MP sensor with 4.0mm fixed lens delivers adequate detail for wide-area perimeter and parking lot coverage; it's not a detail cam, but it doesn't pretend to be.
Technical Highlights:
- IK10 vandal dome + IP66 sealing: Impact resistance to deliberate hammer blows plus complete dust blockage and rain jet immunity. Real-world deployment value in unsecured outdoor locations where human interference or weather damage drives downtime and replacement costs.
- 50-foot Smart IR™ range: Monochrome imagery in full darkness is reliable and usable. Beyond 50 feet, IR washout becomes apparent; inside 40 feet, you'll see motion and activity detail clearly. Competitive for mid-range dome cameras, not cutting-edge IR performance.
- Dual H.264/H.265 codec: H.265 reduces bitrate 40–50% on equivalent quality — measurable storage savings on 24/7 systems. Modern recorders should enforce H.265 to maximize disk life and reduce bandwidth strain on slower internet links.
- Class 3 PoE at under 13W: Won't stress enterprise switches. Standard 802.3af infrastructure supports dozens of these cameras without additional power supply investment.
Deployment Considerations:
- Fixed 4.0mm lens means you're committing to a set field of view at installation. Reframing requires physical repositioning. If your site layout is still evolving, plan mounting carefully before installation.
- No integrated audio. Microphone integration requires a separate wired connection to the NVR or a standalone audio encoder — budget labor and cable runs accordingly if audio is part of your brief.
- ONVIF compliance is standard, but always cross-check your NVR's or VMS's supported codec and profile list before field deployment. H.264 fallback is usually available if needed, but H.265 is preferred.
Position this camera for fixed, wide-area outdoor perimeter roles — parking lot boundaries, building exterior sweeps, warehouse compounds, or industrial facility perimeters. The durability and straightforward setup make it a cost-effective choice for deployments where image detail matters less than uptime and weather resilience.
