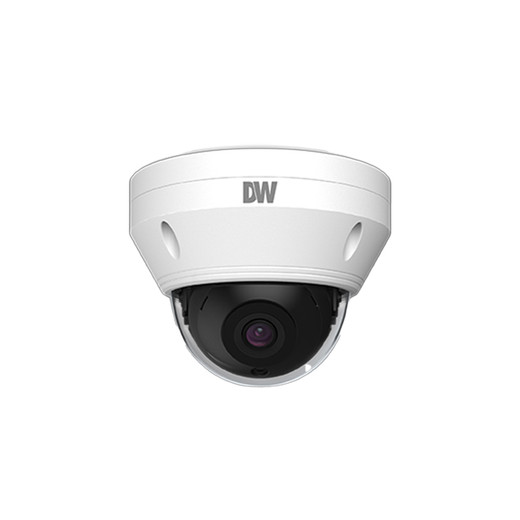

Digital Watchdog DWC-VSDG04Bi 4MP Outdoor Dome IP Camera

Digital Watchdog DWC-VSDG04Bi 4MP Outdoor Dome IP Camera

The DWC-VSDG04Bi is a professional-grade 4MP outdoor dome built for uncontrolled environments where weatherproofing and anti-tampering construction aren't optional. IP67 rating means full dust sealing and submersion-rated performance; IK10 vandal rating handles blunt-force impact without cracking the dome or shifting the lens. This is a camera engineered to survive the real world, not a product with optimistic environmental specs.

Key Features

• 4MP native resolution (2560×1440 @ 30fps) — Delivers frame detail across large outdoor footprints. 30fps eliminates motion blur in moderate-speed vehicle or pedestrian tracking without burning bandwidth on higher frame rates that surveillance storage rarely justifies.
• True WDR 120dB (wide dynamic range) — Critical for mixed-lighting scenes: bright sky and dark building shadow in the same frame. 120dB handles roughly 8 stops of exposure variance, so backlit subjects and sidelighting don't force you to choose between blown highlights or crushed shadow detail.
• Smart IR with 100-foot range — Covers large parking lots, building perimeter, and approach corridors without the heat signature and power draw of unmanaged IR. Infrared adjusts based on scene distance to avoid washout on near objects.
• 0.005 lux minimum illumination (color mode) — Captures useful color video under starlight or parking-lot ambient without switching to grayscale. Real-world benefit: license plates and clothing colors remain identifiable in low-light conditions where legacy cameras fall back to monochrome.
• 2.8mm fixed lens, 94° horizontal FOV — Wide angle captures full warehouse loading docks, parking-lot entry gates, and building facades without pan/tilt complexity. Fixed lens means no mechanical wear; optical simplicity reduces failure points.
• Dual-stream H.264/H.265 compression — H.265 cuts bitrate roughly 40–60% versus H.264 at equivalent quality. Deploy one stream at 5–8 Mbps for 24/7 NVR recording, a second at 1–2 Mbps for live remote viewing over congested branch links. Bitrate control (CBR/VBR) scales to your network and storage budget.
• MicroSD card slot (up to 1TB) — Local failover recording independent of network connectivity. If your NVR or WAN fails, the camera continues writing to local storage. Recovery is a SD card extraction and offline review—no lost shifts.
• 8 programmable privacy masks — Mask sensitive areas (residential windows, private parking) at the camera before transmission. Reduces false alerts and simplifies compliance workflows.
• Built-in microphone + line-level audio I/O — Single RJ-45 connection carries video, audio, and power. Useful for loading dock or gate monitoring where voice context matters; optional two-way talk-back via integrated audio input.

Integration & Compatibility

ONVIF Profile S/T/G compliance ensures interoperability with any conformant VMS or third-party platform. Native support for DW Spectrum® IPVMS and IPv4/IPv6 dual-stack networking. Multi-layer security includes HTTPS, IP filtering, MAC filtering, and digest authentication—audit the camera's access logs to verify no unauthorized client connections.

Built-in analytics detect line crossing, intrusion perimeter breaches, scene changes (tampering), video blur, and abnormal color shifts. Motion-triggered notifications route via email or FTP, enabling rapid response workflows without manual dashboard monitoring.

Deployment Context

Outdoor perimeter protection, parking lots, building facade surveillance, and critical infrastructure (utilities, transportation hubs, retail exterior) benefit most from the IK10 durability and IP67 environmental rating. The -30°C to 60°C operating range supports cold-climate and high-heat deployments without derating performance. Outdoor IP cameras in this class often compromise on lens quality or weatherproofing; the DWC-VSDG04Bi allocates design headroom to both, reducing field failures and replacement costs.

When to Choose a Different Model

If you require higher resolution for fine forensic detail (face or plate ID at 50+ feet), a higher-megapixel variant in the Digital Watchdog line may justify the added storage overhead. If the 2.8mm fixed lens is too wide for your coverage pattern, explore models with 4–8mm varifocal ranges in the same family. Indoor-only applications should skip the rugged weatherproof housing and cost down to a compact indoor dome.

Frequently Asked Questions

Q: What is the power consumption of the DWC-VSDG04Bi?

A: The camera draws under 13W via standard 802.3af PoE, eliminating the need for separate power infrastructure. A single PoE port on your switch supplies both power and network connectivity.

Q: Can the DWC-VSDG04Bi be wall-mounted, or does it require ceiling installation?

A: The dome form factor and included mounting template support both ceiling and wall mounting. Outdoor installation typically favors ceiling or soffit mounting for rain and UV protection, but the camera's aluminum die-cast housing tolerates wall-facing positions.

Q: Does the DWC-VSDG04Bi work with Milestone XProtect or other third-party VMS platforms?

A: Yes. ONVIF Profile S/T/G compliance ensures compatibility with any ONVIF-conformant VMS, including Milestone, Genetec, ExacqVision, and others. Native integration with DW Spectrum is also available.

Q: What is the maximum infrared illumination distance?

A: The Smart IR delivers effective illumination to approximately 100 feet (30 meters) in typical outdoor darkness, covering large parking lots and building perimeters without excessive power draw or heat signature.

Q: Is the DWC-VSDG04Bi compliant with NDAA Section 889 restrictions?

A: Digital Watchdog products are subject to individual compliance verification. Consult the manufacturer's export/compliance documentation or contact your specialty distributor for NDAA or other regulatory certification status.

Q: Can video from the DWC-VSDG04Bi be recorded to a local SD card if the network fails?

A: Yes. The MicroSD card slot (up to 1TB capacity) provides independent failover recording. If your NVR or WAN connection drops, the camera continues writing to local storage, preserving continuous coverage until connectivity is restored.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-VSDG04Bi delivers balanced value for outdoor surveillance where durability and reliable image quality matter more than premium resolution. The combination of IK10 vandalism resistance and IP67 weatherproofing ensures operational longevity in uncontrolled environments—parking lots, building exteriors, loading docks, utility perimeters—where cheaper cameras accumulate damage and field failures.

Technical Highlights:

• True WDR 120dB: Handles real-world mixed-lighting scenarios without overexposure or crushing shadow detail. A typical backlit scene (subject against bright sky or parking-lot lighting) delivers usable forensic detail across both bright and dark regions simultaneously.
• Smart IR 100-foot range: Practical coverage for medium-to-large outdoor spaces. Infrared adaptively manages intensity based on scene distance, preventing near-object washout while maintaining visibility at perimeter edges. Power draw remains efficient at sub-13W PoE, so it won't stress your switch budget across dozens of cameras.
• H.265 dual-stream architecture: Record 24/7 at 5–8 Mbps on the NVR (H.265), while streaming a lighter 1–2 Mbps second stream to branch offices or mobile clients over congested WAN links. Bitrate flexibility scales deployment costs to network reality.
• MicroSD failover (up to 1TB): Continuous recording continues locally if your NVR or WAN connection drops. No missed shifts, no excuses to management. Extract the SD card, review offline, and restore to NVR storage without vendor service calls.

Deployment Considerations:

• Fixed 2.8mm lens limits framing options: The 94° horizontal FOV is wide but unvarying. If your coverage pattern requires 50° or narrower (distant fence line, distant rooftop), you'll need a varifocal model. Plan your mounting height and angle carefully during site survey.
• ONVIF compliance is your insurance policy: The camera speaks standard protocols, so platform lock-in is your choice, not the camera's. If your VMS vendor raises support costs or discontinues your version, you can migrate to a competing platform without hardware replacement.
• Privacy masks reduce false alerts but require upfront configuration: Masking tree movement, traffic reflection, or other legitimate scene dynamics before transmission cuts meaningless motion-detection noise. Budget discovery time to identify and mask distracting elements during commissioning.

Best suited to outdoor perimeter and asset-protection deployments where you value multi-year reliability and straightforward integration over cutting-edge analytics. Parking-lot security, building facade monitoring, loading-dock coverage, and utility sites benefit most from the rugged construction and adaptive IR.
