Power & UPS
Sub categories
Power Supplies
1027 items
PoE Injectors & Midspans
394 items
Power Delivery & Supplies
1639 items
Surge Protectors
12 items
UPS & Power Management
47 items
DC Power Connectors & Lugs
0 item
Showing Results for Power & UPS
-
Lifesafety Power
SKU: FPO250/250-5D8P3M8PNLCE12M/P24-B
Lifesafety Power FPO250/250-5D8P3M8PNLCE12M/P24-B 250W power supp
- 250W capacity supports 20A @ 12V or 10A @ 24V across one module.
- Eight Class 2 outputs at 2.5A each keep door hardware UL-compliant.
- Dual-bus architecture enables zone segregation without extra feeder runs.
$9,662.00 $6,346.99 Save $3,315.01The item has been added -
Lifesafety Power
SKU: FPO250/250-B10010D8NLCE8M2
Lifesafety Power FPO250/250-B10010D8NLCE8M2 250W power supply
- Dual-bus outputs deliver 12VDC@20A or 24VDC@10A from one cabinet.
- Eight 3A auxiliary outputs each assign independently to Bus 1 or Bus 2.
- E8 enclosure (36H×30W×6.5D in) supports B100 battery backup and NLC supervision.
$2,973.00 $1,952.99 Save $1,020.01The item has been added -
Lifesafety Power
SKU: FPO250/250-B1002C82D8E6M1
Lifesafety Power FPO250/250-B1002C82D8E6M1 250W power supply 20A
- Delivers 20A@12VDC or 10A@24VDC to support mid-scale multi-door lock deployments.
- Eight relay outputs are individually fused at 3A with per-output FAI, failsafe, or failsecure mode.
- Eight auxiliary DC outputs are Bus1/Bus2 assignable, supporting multi-bus campus architectures.
$2,448.00 $1,607.99 Save $840.01The item has been added -
Lifesafety Power
SKU: FPO250/250-B1002D8E4M1
Lifesafety Power FPO250/250-B1002D8E4M1 250W power supply 20A/12
- Delivers 20A at 12VDC or 10A at 24VDC via jumper selection for mixed-voltage sites.
- Eight independently fused 3A outputs with Bus1/Bus2 switching isolate load faults per branch.
- Fixed 250W output suits stable-grid installs where UPS protection is managed separately.
$1,547.00 $1,016.99 Save $530.01The item has been added -
Lifesafety Power
SKU: FPO250/250/250-3C83D8PE12M
Lifesafety Power FPO250/250/250-3C83D8PE12M 250W power supply
- 8 independently fused 3A relay outputs support FAI, failsafe, or failsecure per door.
- Selectable 12VDC/24VDC output eliminates separate supplies on mixed-voltage deployments.
- 8 Class 2 auxiliary outputs at 2.5A each power REX buttons, sensors, and indicators.
$6,668.00 $4,379.99 Save $2,288.01The item has been added -
Lifesafety Power
SKU: FPO250/250/250-3C85D8PE12M/P24-A
Lifesafety Power FPO250/250/250-3C85D8PE12M/P24-A 3 x 250W power
- Three 250W modules deliver 750W aggregate capacity for 20+ door deployments.
- 24 relay outputs support magnetic locks, strikes, and motor deadbolts at 12 or 24VDC.
- 40 Class 2 auxiliary outputs power readers, sensors, and intercoms on isolated buses.
$9,506.00 $6,243.99 Save $3,262.01The item has been added -
Lifesafety Power
SKU: FPO250/250/250-3D8P5M8PNLCE12M/P24-B
Lifesafety Power FPO250/250/250-3D8P5M8PNLCE12M/P24-B Mercury Pro
- 750W total output powers 40 managed lock outputs and 24 auxiliary channels from one shelf.
- Centralized distribution eliminates separate power runs per zone, reducing installation labor.
- 120 VAC single-phase input integrates into standard mains without special service requirements.
$10,454.00 $6,866.99 Save $3,587.01The item has been added -
Lifesafety Power
SKU: FPO250/250/250-4C84D8E12S
Lifesafety Power FPO250/250/250-4C84D8E12S 250W power supply 20A
- Delivers 20A at 12VDC or 10A at 24VDC from a single 250W supply.
- 32 relay lock outputs, each 3A fused with per-output FAI/failsafe/failsecure selection.
- 32 isolated DC auxiliary outputs eliminate external relay banks in cabinet installs.
$6,198.00 $4,070.99 Save $2,127.01The item has been added -
Lifesafety Power
SKU: FPO250/250/250-8M8PNLCE12M/P24-A
Lifesafety Power FPO250/250/250-8M8PNLCE12M/P24-A 250W power supp
- Eight isolated Class 2 outputs at 2.5A each prevent single-fault cascade failures.
- Selectable 12V/20A or 24V/10A operation supports legacy and modern access control hardware.
- 250W total capacity covers mid-scale deployments of 8–12 IP cameras or 4–6 access panels.
$11,177.00 $7,341.99 Save $3,835.01The item has been added -
Lifesafety Power
SKU: FPO250/E-BOXED
Lifesafety Power FPO250/E-BOXED Smart DC Power Supply/Charger 208
- Accepts 208–230VAC mains input, compatible with standard commercial electrical infrastructure.
- Fully enclosed BOXED form factor mounts to DIN rail, wall bracket, or cabinet surface.
- Integrated charging circuit supports battery backup systems alongside regulated DC output.
$465.00 $305.99 Save $159.01The item has been added -
Lifesafety Power
SKU: FPO75-2D8E1
Lifesafety Power FPO75-2D8E1 75W power supply 6A/12V or 3A/24V 1
- 16 independently fused 3A outputs eliminate single failure points across distributed loads.
- Per-output Bus1/Bus2 selection isolates zones or backup domains during commissioning.
- Compact 14H×12W×4.5D-inch enclosure fits standard DIN rail or wall-mount security cabinets.
$474.00 $311.99 Save $162.01The item has been added -
Lifesafety Power
SKU: FPO75-2D8E4M
Lifesafety Power FPO75-2D8E4M 250W PS 20A/12V or 10A/24V 24 DC au
- Selectable 20A/12V or 10A/24V output eliminates buck/boost conversion on mixed-voltage sites.
- Four independent 2.5A Class 2 channels isolate lock, reader, and RTE circuits without daisy-chaining.
- Dual-bus per-output assignment prevents single-fault cascade across up to 24-door deployments.
$744.00 $488.99 Save $255.01The item has been added -
Lifesafety Power
SKU: FPO75-2D8E4M1
Lifesafety Power FPO75-2D8E4M1 75W power supply 6A/12V or 3A/24V
- Eight individually fused 3A outputs prevent cascade failures across locks and readers.
- Selectable 12V/24V per output supports mixed device loads from a single 75W supply.
- Dual-bus architecture enables fault isolation in supervised access control deployments.
$885.00 $581.99 Save $303.01The item has been added -
Lifesafety Power
SKU: FPO75-2D8PE1
Lifesafety Power FPO75-2D8PE1 75W power supply 6A/12V or 3A/24V
- 16 supervised Class 2 outputs (2.5A each) isolate faults without cascading failures.
- Dual-bus architecture segments 12V and 24V loads in one panel, reducing wiring complexity.
- E1 enclosure (14H×12W×4.5D in.) mounts on 19-inch rack rails or wall on 4-inch centers.
$474.00 $311.99 Save $162.01The item has been added -
Lifesafety Power
SKU: FPO75-2D8PE2M

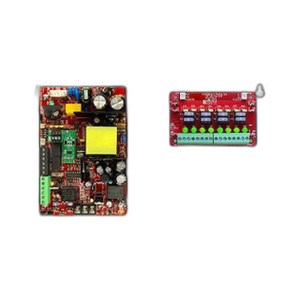

Lifesafety Power FPO75-2D8PE2M 75W power supply 6A/12V or 3A/24V
- Delivers 6A@12VDC or 3A@24VDC from one AC input to fit mixed-voltage site designs.
- Eight independently current-limited 2.5A outputs reduce homerun wiring across access zones.
- Per-output Bus1/Bus2 assignment enables zone isolation without additional distribution hardware.
$645.00 $423.99 Save $221.01The item has been added -
Lifesafety Power
SKU: FPO75-B1002D8E1
Lifesafety Power FPO75-B1002D8E1 Std Pow Sys 75W Dual Voltage
- Dual 12V/24V zone-selectable outputs eliminate separate supplies in mixed-voltage installs.
- Integrated fire alarm disconnect relay automatically unlocks doors on alarm—no aux wiring needed.
- Low-battery cutoff and dedicated fast charger extend SLA/lithium backup battery service life.
$558.00 $366.99 Save $191.01The item has been added
Power is the foundation of every surveillance, access-control, and network system. Centralized, supervised, battery-backed power keeps cameras recording, doors locking, and switches forwarding during outages and surge events. Choose components sized for your load — recorder UPS, camera supplies, PoE midspans, surge protection — and your system runs through the events that take down unmanaged installations.
Plan a Reliable Power System
- Sized power supplies — 12V or 24V DC sized to total device load plus 25% headroom for spin-up, aging, and expansion.
- UPS & battery backup — runtime sized to your outage profile, with managed shutdown for NVRs and access controllers.
- PoE budgets — 802.3af, at, and bt midspans/switches sized for total port load, not just per-port maximum.
- Surge protection & grounding — at the building entrance and at outdoor camera locations exposed to lightning.
- Distribution & redundancy — rack PDUs, DIN-rail supplies for industrial cabinets, and dual-source feeds for life-safety loads.
Shop by Category
UPS & Battery Backup
Rack-mount and tower UPS units sized to NVR, switch, and controller load — line-interactive and double-conversion topologies for clean recovery.
Power Supplies
12V DC and 24V DC supplies for camera and access-control panels — sized by current draw with 25% headroom for surge and expansion.
PoE Injectors & Midspans
802.3af, 802.3at, and 802.3bt midspans for legacy switches — 15W to 90W per port for PTZ cameras, displays, and high-power readers.
Rack Power Supplies
19-inch chassis with distributed outputs — PTC fused, supervised, and battery-backup ready for multi-camera or access-control deployments.
DIN Rail Power Supplies
Industrial DIN-rail supplies for control cabinets — wide-range AC input, redundant pairing, and temperature-rated for harsh environments.
Power Delivery & Supplies
Centralized distribution panels, surge protection, and grounding products for organized, code-compliant low-voltage installations.
Surge Protectors
Inline Ethernet, coax, and AC surge suppressors for outdoor cameras, antenna runs, and equipment-room protection — critical for rooftop and pole-mount installations.
Featured Brands
Altronix
Access-control and CCTV power — rack and wall enclosures, battery backup, and FACP-compatible supervised power.
Lifesafety Power
Networked supervised power for access control and fire — Mercury, LenelS2, and Genetec integrations.
NETGEAR
PoE+ and PoE++ switches and midspans with high port-count power budgets for camera and Wi-Fi deployments.
Ubiquiti
UniFi PoE switches with managed budget per port — strong fit for IT-managed surveillance VLANs.
Cradlepoint
Cellular failover routers with PoE and dual-SIM for branch-site continuity when WAN drops.
Transition Networks
Industrial PoE++ media converters and ruggedized switches for outdoor, transportation, and utility deployments.
Buyer FAQ
How do I size a UPS for my surveillance system?
Add up the wattage of every device on the UPS — recorder, switch, monitor, controller, and PoE budget for the cameras — then add 25% headroom for spin-up and aging. Multiply by your target runtime (typically 15–30 minutes for managed shutdown, 4–8 hours for site continuity) to pick a VA rating. Our team can review your bill of materials and recommend a model — submit details via the contact form.
What's the difference between PoE, PoE+, and PoE++?
PoE (802.3af) delivers up to 15.4W per port — fine for fixed-lens cameras and basic readers. PoE+ (802.3at) lifts that to 30W — covers PTZ heaters, IR illuminators, and most multi-sensor cameras. PoE++ (802.3bt Type 3/4) runs up to 60W or 90W per port for high-power thermal cameras, displays, and access-control controllers. Pick a switch or midspan whose total budget covers the sum of per-port loads, not just the per-port maximum.
Why use a midspan instead of a PoE switch?
When you have an existing non-PoE switch you want to keep, a midspan (PoE injector) adds power without replacing the switch. Midspans also help when you need to upgrade a few high-power ports (60W or 90W) without buying an entire 802.3bt switch.
Do I need surge protection on outdoor cameras?
Yes — outdoor Ethernet runs collect induced energy during nearby strikes even when the camera isn't directly hit. Inline PoE surge protectors at the camera (or at the building entry) clamp the spike and protect the recorder/switch. Critical for any pole-mount or rooftop deployment.
How do I plan power for an access-control system?
Each door typically needs 1–2A at 12V DC (controller + reader + lock + REX). Multiply by door count, then size a supervised power supply (Altronix, Lifesafety) with battery backup matched to UL 294 / NFPA 72 hold-up time for your jurisdiction. Our Senior Specialist team has working integrators who size these systems daily.
Need help sizing your system?
Our team includes working integrators who size camera-system power, PoE budgets, and access-control supplies daily. Send your bill of materials, recorder count, and target runtime — we'll recommend the right UPS, supply, and midspans before you order.
