CyberPower PDU15M2F8R Concise Descriptor
Overview

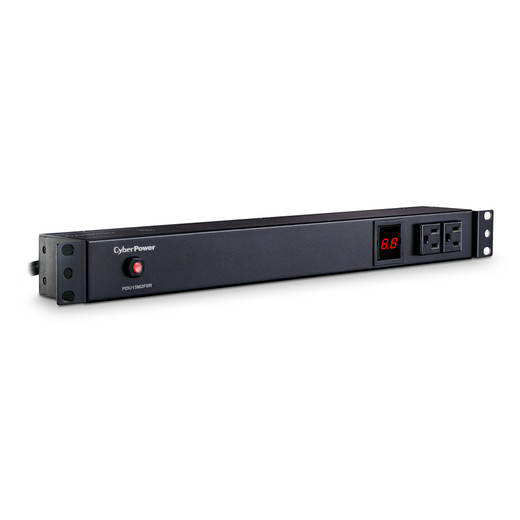

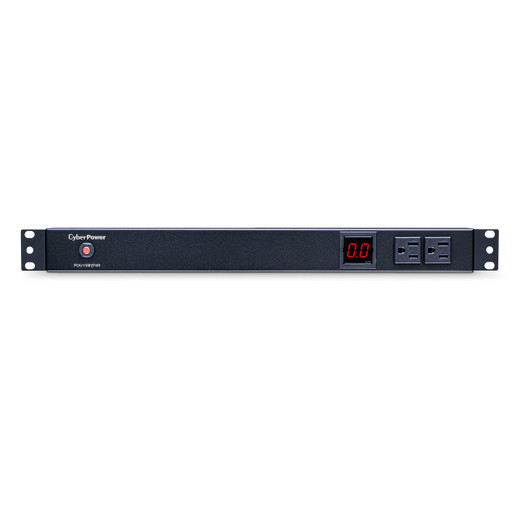

The CyberPower PDU15M2F8R is a 1U rackmount metered Power Distribution Unit designed to provide reliable power to network and surveillance equipment. It offers 10 NEMA 5-15R outlets, with two conveniently located at the front and eight at the rear, facilitating organized cable management. The integrated digital amperage meter on the front LCD provides real-time load monitoring, allowing you to track current draw and prevent overloads. This switch-free unit is ideal for data centers, network closets, and server racks where consistent power delivery and load visibility are critical. The PDU15M2F8R supports 100-125V AC input and has a capacity of 15A, derated to 12A for safe operation. Its metal housing ensures durability in demanding environments.
Compatibility
This PDU is compatible with standard 19-inch server racks for horizontal or vertical mounting. It accepts a NEMA 5-15P input plug and provides NEMA 5-15R outlets, suitable for most standard IT and AV equipment. The unit's 100-125V AC input range makes it suitable for North American power grids. It is designed to work with a wide array of network switches, servers, NVRs, and other rack-mounted devices that do not exceed its 12A continuous load capacity.
Installation Notes
The PDU15M2F8R supports both horizontal and vertical rack mounting using the included configurable brackets. It can also be mounted on a wall. The 15-foot power cord offers flexibility in placement within a rack or enclosure. Operating temperature ranges from 32°F to 95°F (0°C to 35°C) with 0-95% non-condensing humidity. Compliance with UL62368, UL60950-1, FCC Class A, ETL, and RoHS standards ensures safe and reliable operation.
What's in the Box
- 1x CyberPower PDU15M2F8R Metered PDU
- 1x Power Cord Retention Tray
- 1x Set of Mounting Brackets
