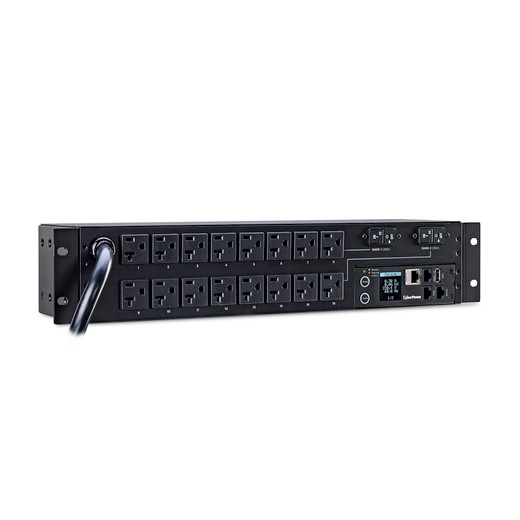

CyberPower PDU31003 Power Distribution Unit
Overview
The CyberPower PDU31003 is a 2U rackmount power distribution unit designed to provide reliable power to network and server equipment. It features 16 NEMA 5-20R outlets, delivering 120V at up to 30A (derated to 24A for continuous use) from a NEMA L5-30P input plug. This unit is ideal for data centers, network closets, and industrial environments where controlled power distribution and basic monitoring are required. The PDU31003 supports remote and local monitoring via its RJ45 Ethernet port and integrated LCD display, offering visibility into power status and environmental conditions.
Compatibility
This PDU is designed for standard 19-inch server racks and can be mounted horizontally or vertically. It is compatible with equipment requiring standard 120V power input. The NEMA L5-30P input plug requires a compatible 30A outlet. Its 16 NEMA 5-20R outlets accommodate most standard server and network device power cords.
Installation Notes
The PDU31003 supports both horizontal and vertical mounting within a standard 2U rack space. It includes a 12-foot (3.7 m) power cord, providing flexibility in placement. The operating temperature range is 32-113°F (0-45°C), and it can operate in humidity levels from 0-95% non-condensing. A 30A circuit breaker provides overload protection.
What's in the Box
- 1x CyberPower PDU31003 PDU
- 1x Cord Retention Tray
- 1x Mounting Hardware Kit
